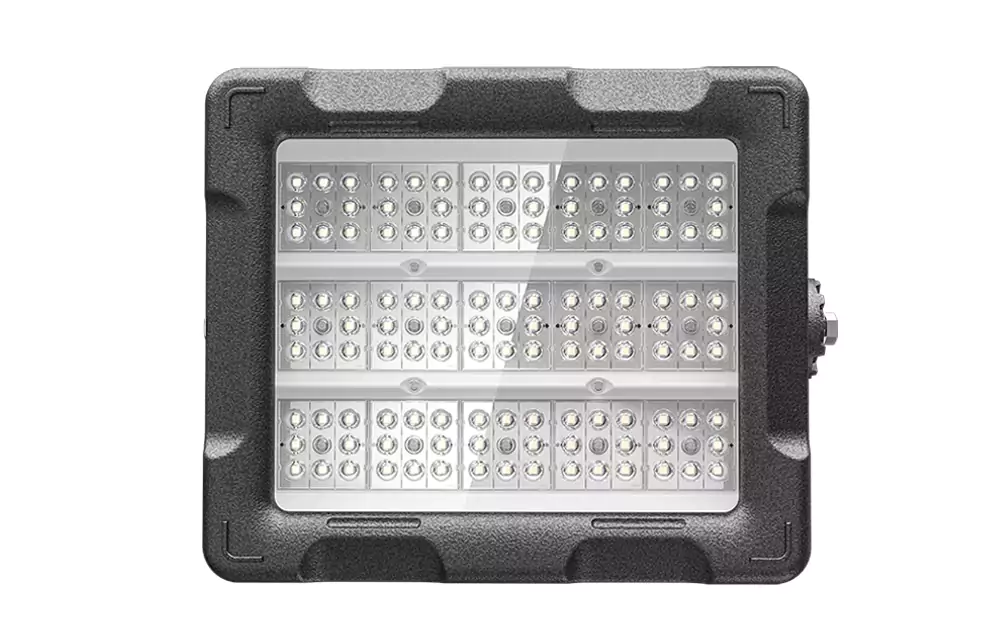

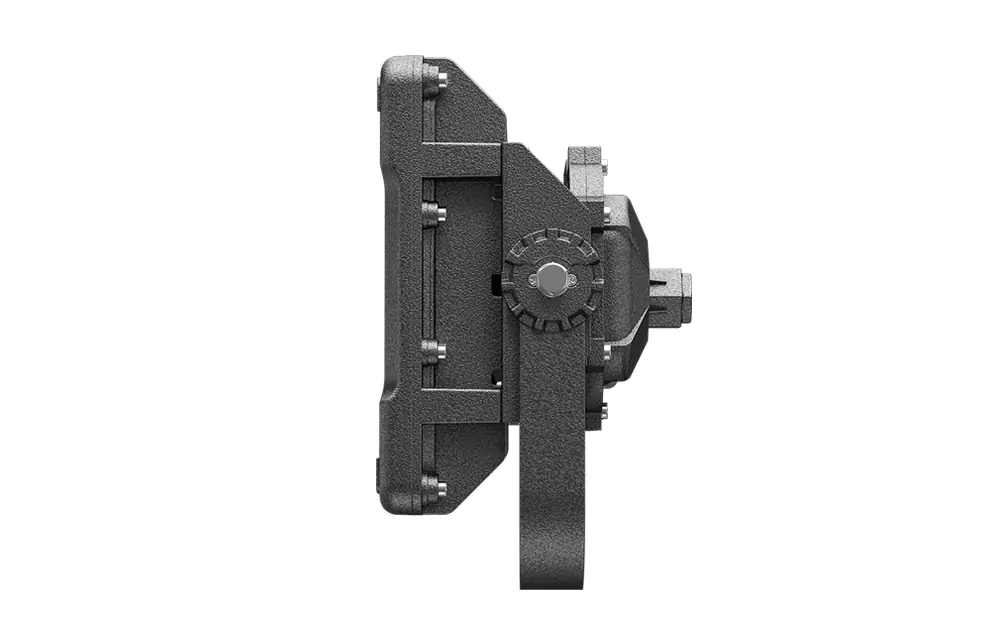

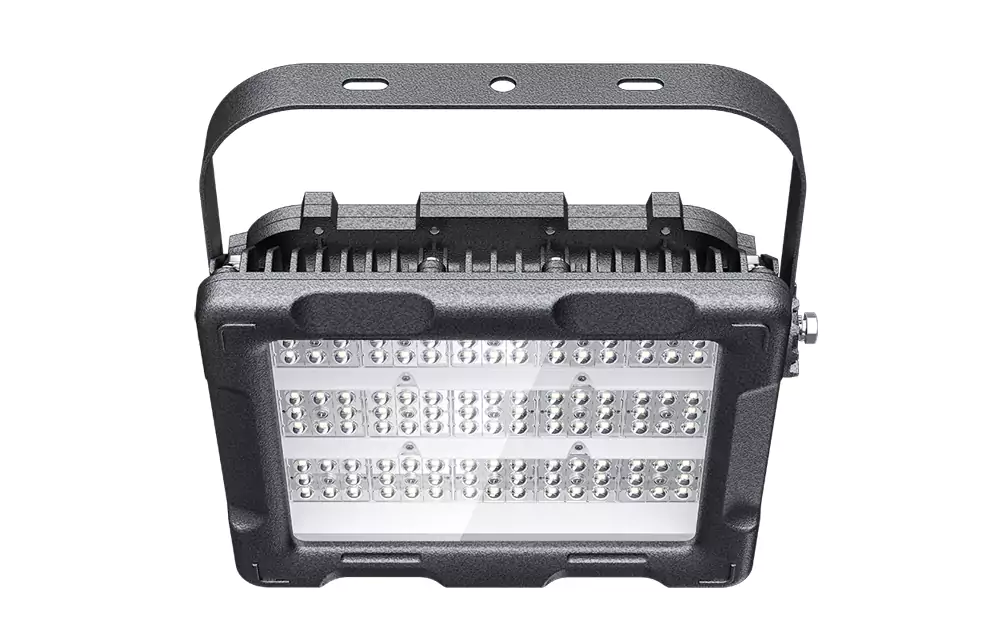

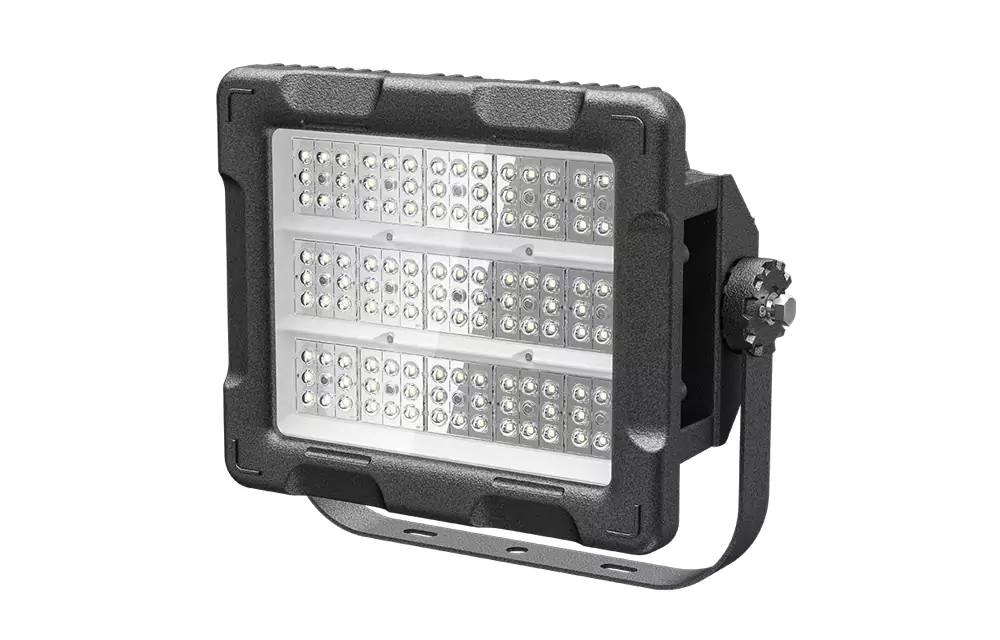

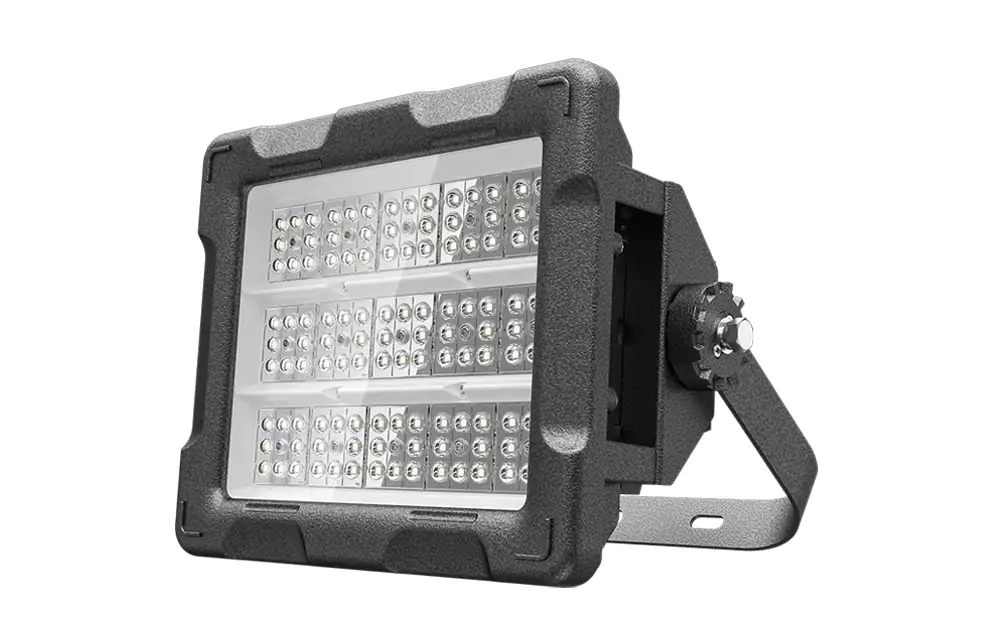

mimiLED 2 Series LED Explosion Proof Light
Key Features:
■ Imported CREE LED chip, very long life and low lumen depreciation.
■ Meanwell explosion proof driver used, safe and stable working.
■ ATEX certified, good to use in the place of flammable and explosive chemical materials.
■ Pure Aluminum housing used for excellent heat dissipation.
■ Different light distribution curve available for you.
Specification
| Model No. | ML-EX25W-UCE2 | ML-EX50W-UCE2 | ML-EX70W-UCE2 | ML-EX100W-UCE2 | ML-EX150W-UCE2 | ML-EX200W-UCE2 |
| Power | 25W | 50W | 70W | 100W | 150W | 200W |
| Light Chip Brand | CREE | CREE | CREE | CREE | CREE | CREE |
| Power Driver Brand | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 | >80 | >80 | >80 |
| Beam Angle | 25°/55°/90°/120°/100*150°/120*150° | |||||
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W | >150LM/W | >140LM/W | >140LM/W |
| Initial Flux | >3, 750LM | >7, 500LM | >10, 500LM | >15, 000LM | >21, 000LM | >28, 000LM |
| Working Environment | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Impact Test | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 |
| Corrosion Proof | WF2 | WF2 | WF2 | WF2 | WF2 | WF2 |
| Application | Zone 1 & 2, Zone 21 & 22 | |||||
| Protection Rating | II 2G Ex db mb IIB T4 Gb, II 2D Ex tb IIIC T(95℃) Db | |||||
| Fixture Dimension | 374*276*171MM | 374*276*171MM | 374*276*171MM | 374*276*171MM | 374*276*171MM | 374*276*171MM |
| Material | Pure Aluminum | Pure Aluminum | Pure Aluminum | Pure Aluminum | Pure Aluminum | Pure Aluminum |
ATEX Approved
With ATEX certified, strictly according to the ATEX directives.

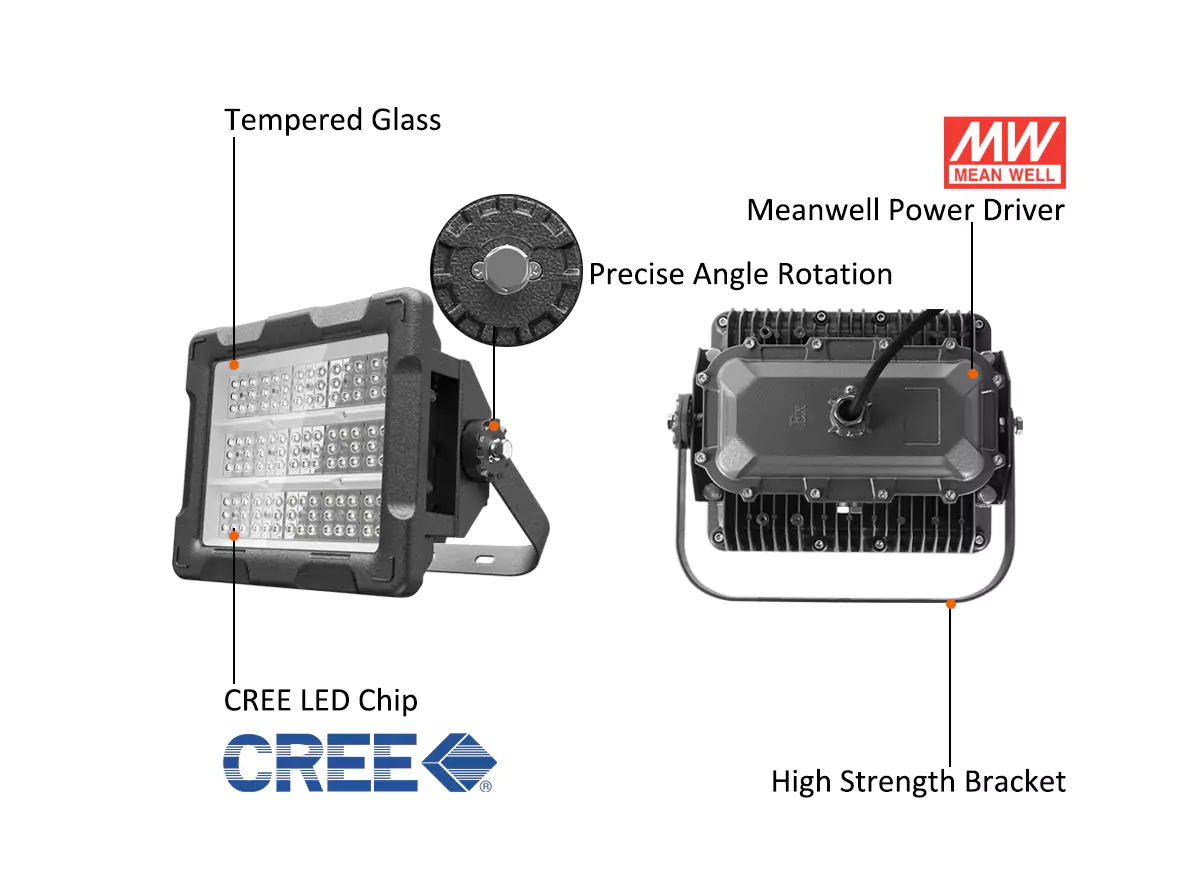

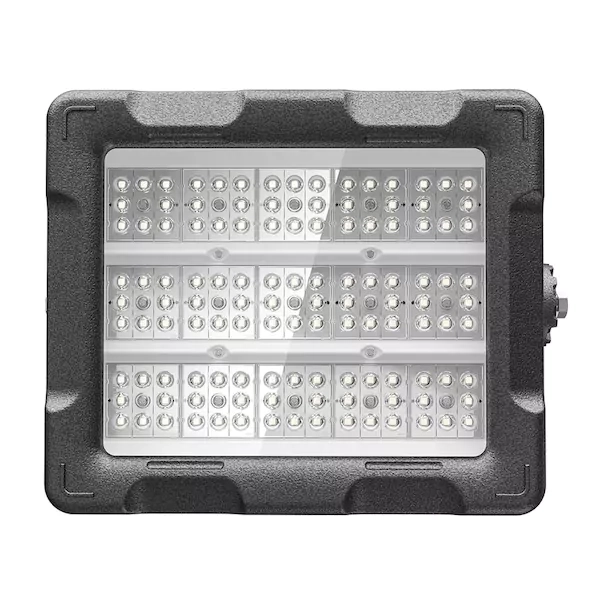

Imported CREE LED Chip
High brightness and low lumen depreciation

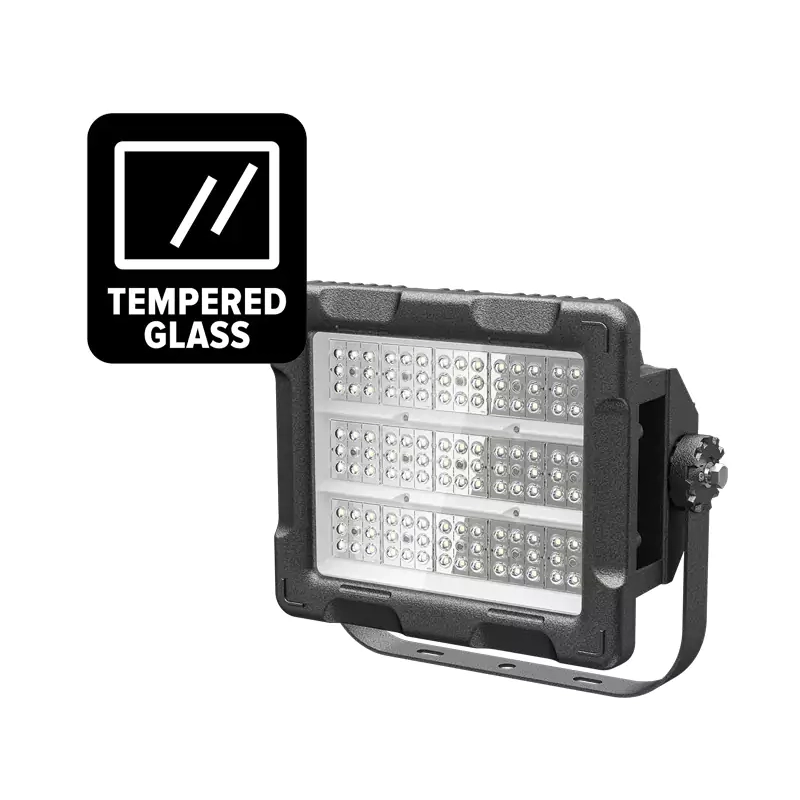

With Tempered Glass
Safe and high light transmittance

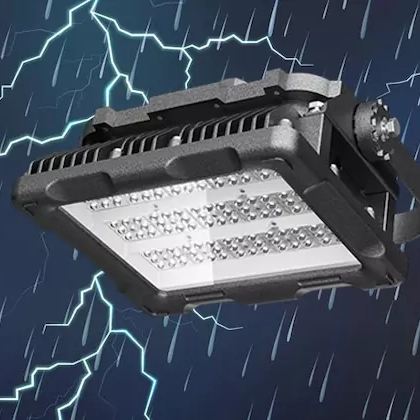

IP66 Waterproof
No problem to use outside.

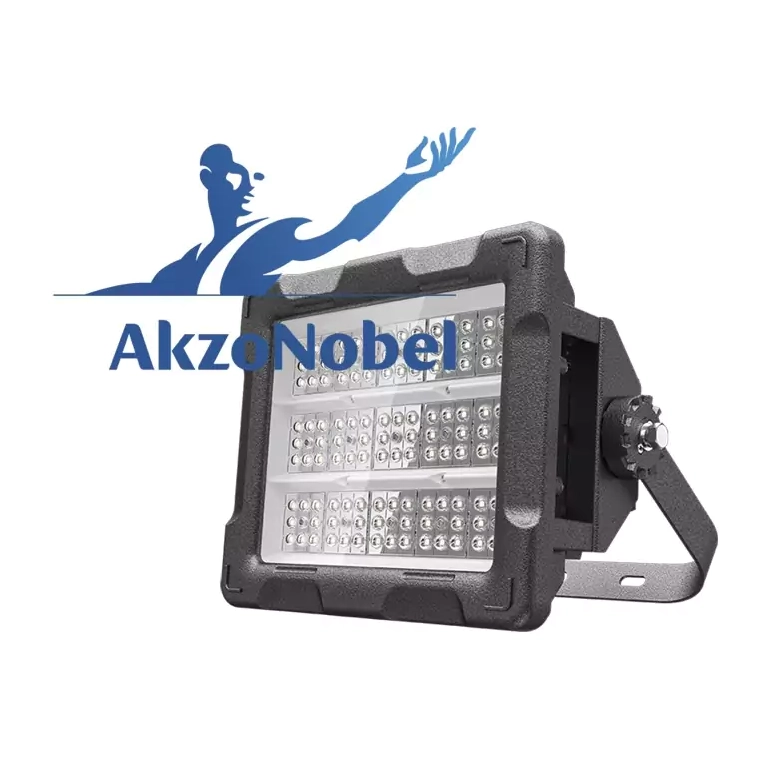

AkzoNobel Coating
Best corrosion proof

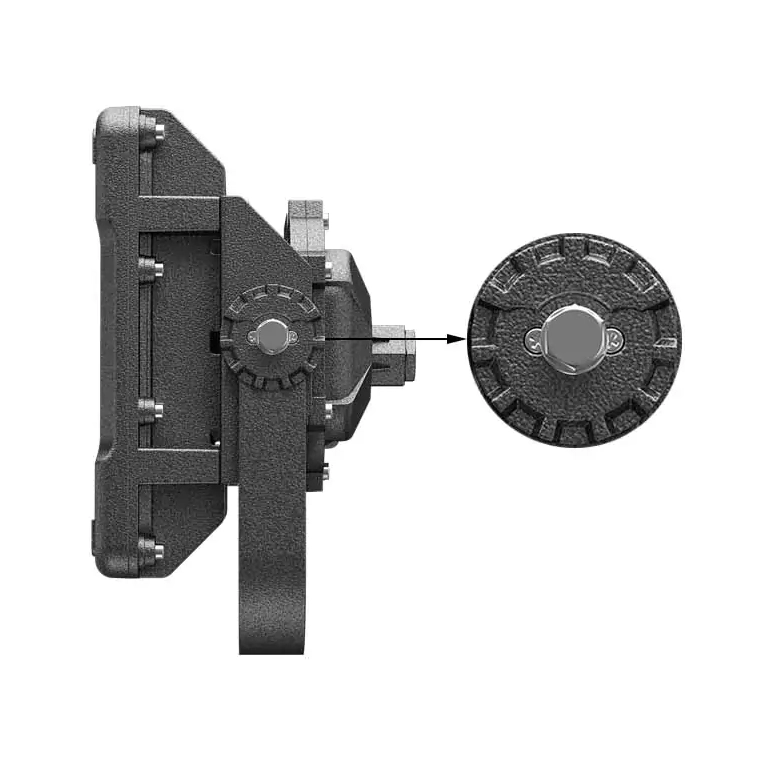

With Precise Angle Rotation

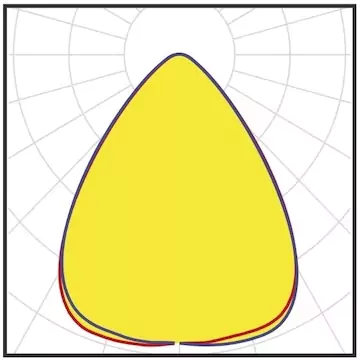

Light Distribution Curve

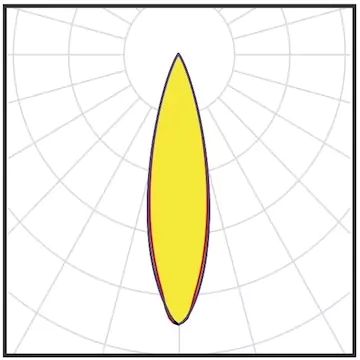

25°

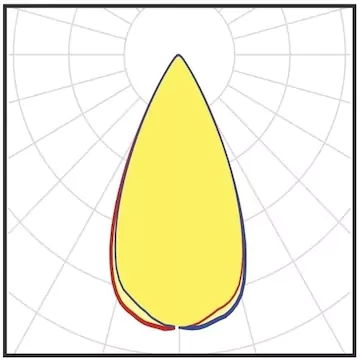

55°
90°

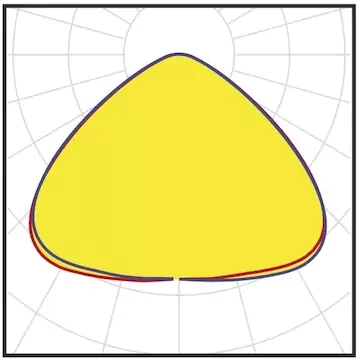

120°

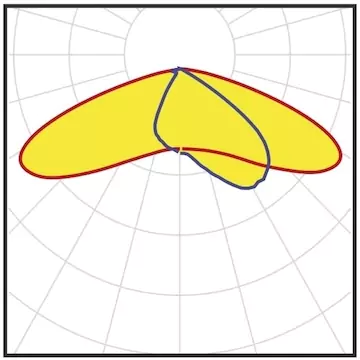

100*150°

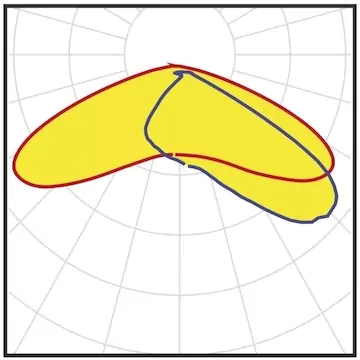

120*150°
Product size
| Power | L | W | H |
| 25W | 374mm | 276mm | 171mm |
| 50W | 374mm | 276mm | 171mm |
| 70W | 374mm | 276mm | 171mm |
| 100W | 374mm | 276mm | 171mm |
| 150W | 374mm | 276mm | 171mm |
| 200W | 374mm | 276mm | 171mm |
