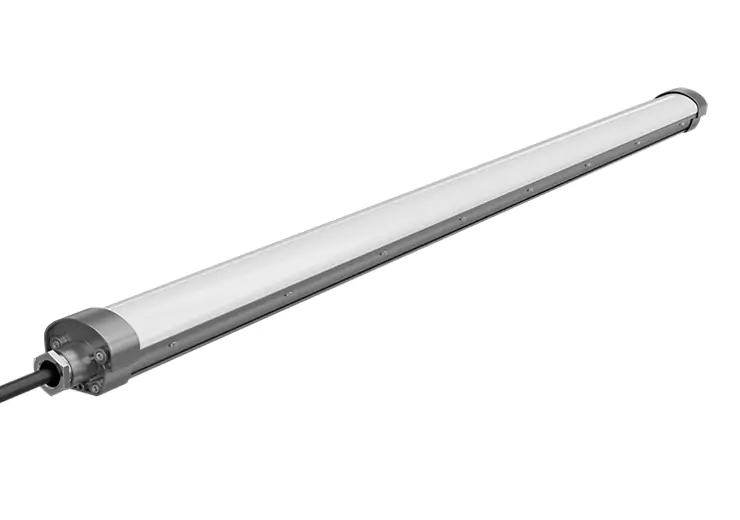

mimiLED 5 Series LED Explosion Proof Light
Key Features:

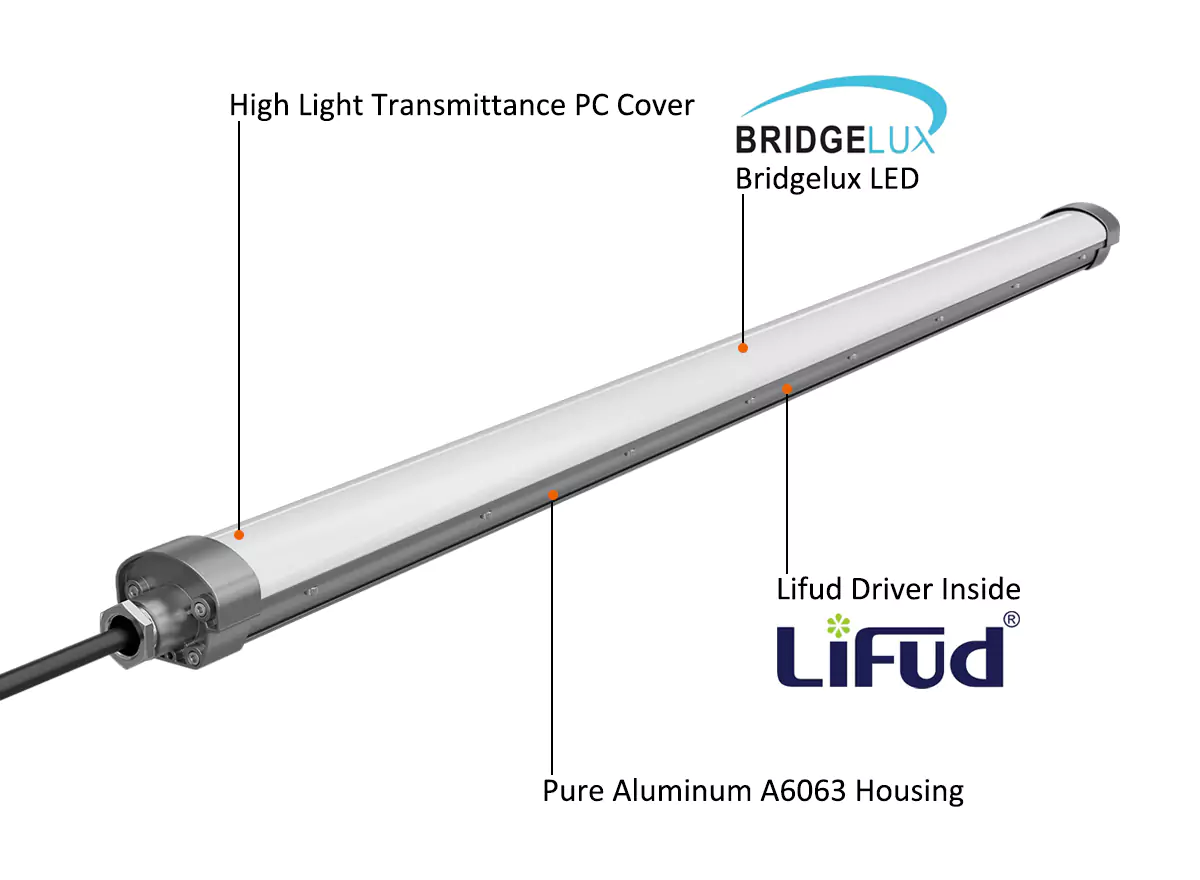

■ High bright Bridgelux LED chip and Lifud driver, top performance.
■ ATEX certified, good to use in gas, dust and fibers explosion hazardous areas.
■ Grey and yellow housing available for option.
■ Pure Aluminum A6063 heat sink ensures excellent heat dissipation and long life.
■ Various installation ways optional for your different applications.
Specification
| Model No. | ML-EX20W-UCE5-L60 | ML-EX40W-UCE5-L60 | ML-EX40W-UCE5-L120 | ML-EX60W-UCE5-L120 | ML-EX80W-UCE5-L150 |
| Power | 20W | 40W | 40W | 60W | 80W |
| LED Chip Brand | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux |
| Power Driver Brand | Lifud | Lifud | Lifud | Lifud | Lifud |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 | >80 | >80 |
| Beam Angle | 120° | 120° | 120° | 120° | 120° |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V | AC 220-240V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W | >150LM/W | >150LM/W |
| Initial Flux | >3, 000LM | >6, 000LM | >6, 000LM | >9, 000LM | >12, 000LM |
| Working Environment | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Impact Test | IK10 | IK10 | IK10 | IK10 | IK10 |
| Corrosion Proof | WF2 | WF2 | WF2 | WF2 | WF2 |
| Application | Zone 1 & 2, Zone 21 & 22 | ||||
| Protection Rating | II 2G Ex eb mb IIC T6 Gc, II 2D Ex tb IIIC T(95℃) Db | ||||
| Certificate | ATEX, CE, RoHS | ATEX, CE, RoHS | ATEX, CE, RoHS | ATEX, CE, RoHS | ATEX, CE, RoHS |
| Fixture Dimension | 600*70*58MM | 600*70*58MM | 1200*70*58MM | 1200*70*58MM | 1500*70*58MM |
| Material | Pure Aluminum A6063 | Pure Aluminum A6063 | Pure Aluminum A6063 | Pure Aluminum A6063 | Pure Aluminum A6063 |
ATEX Approved
With ATEX certified, strictly according to the ATEX directives.
Bridgelux LED Chip
150LM/W, Long life

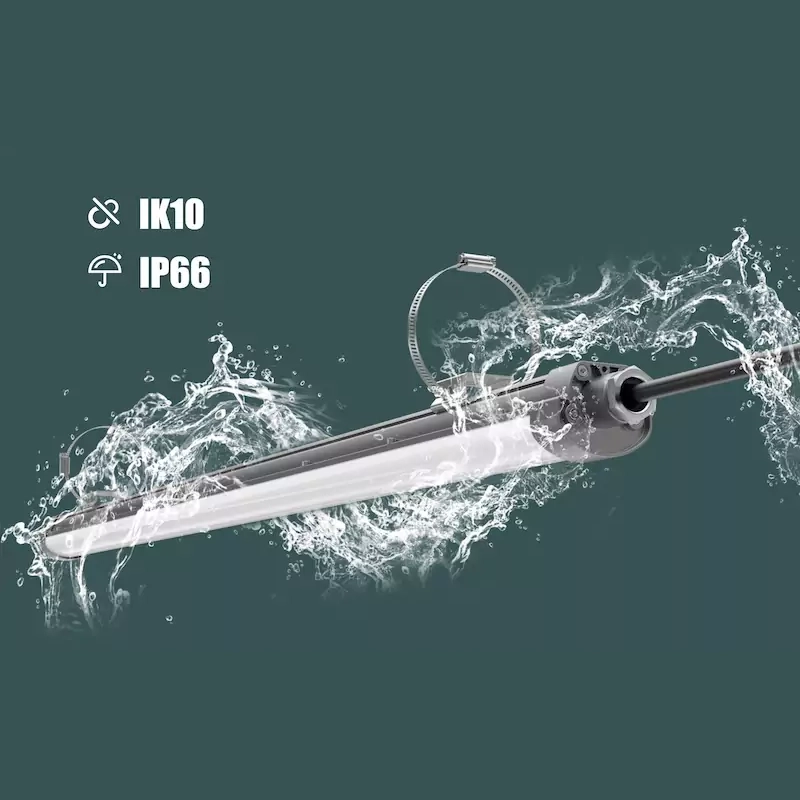

IK10 Protection and IP66 Waterproof
Good to use in outside area

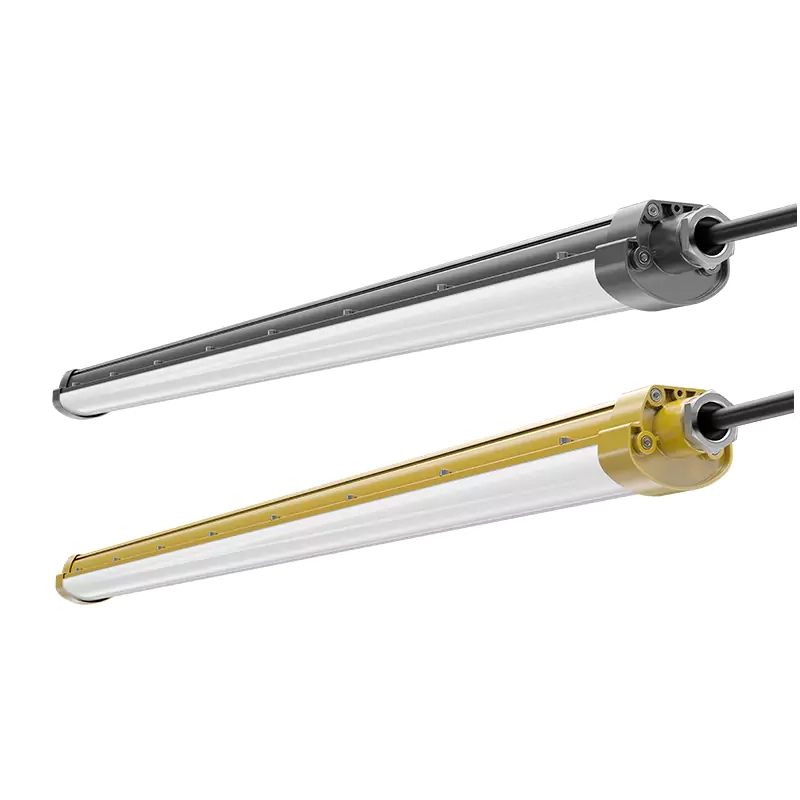

Grey and Yellow Housing Are Available
For your different options
Emergency Version is Optional
Emergency Time: 3hours. Power: 10%
Installation Ways

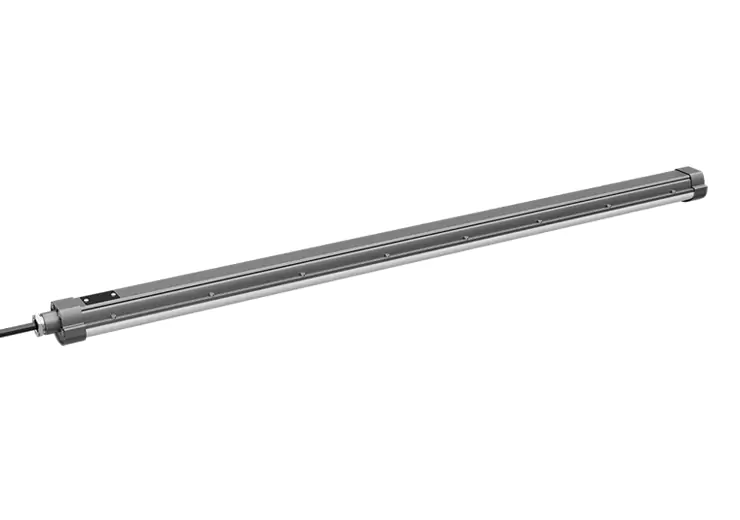

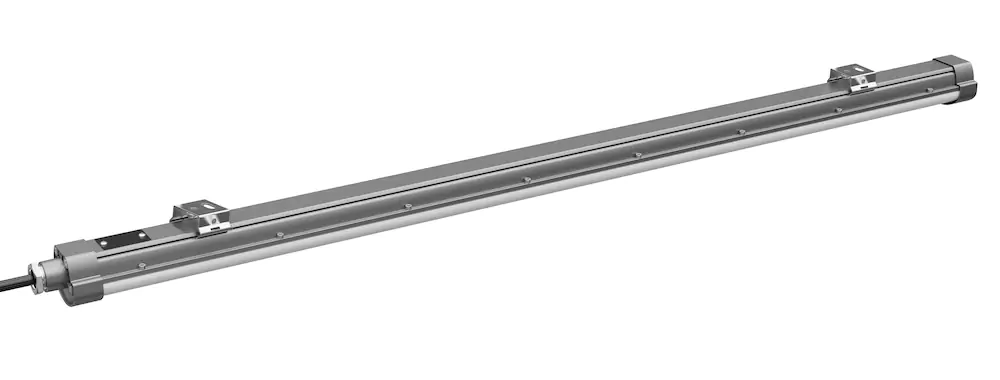

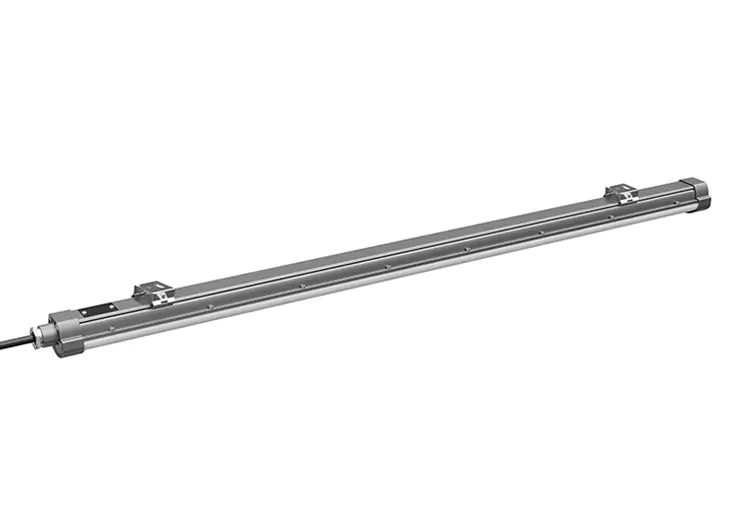

Surface Mounting

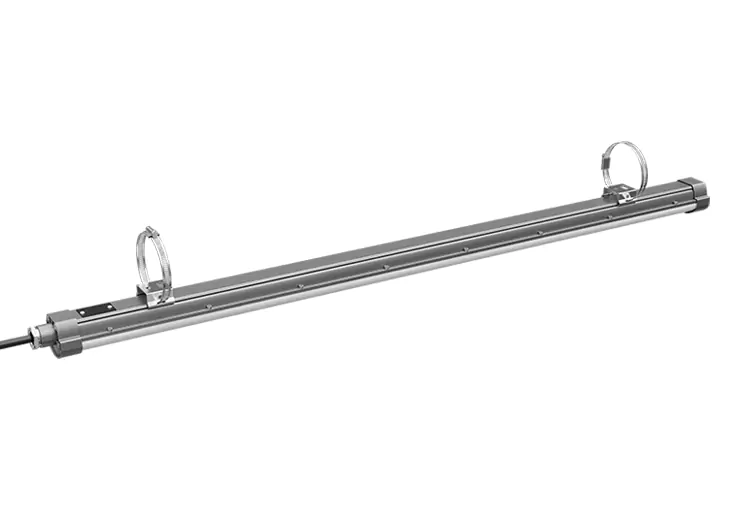

Pole Mounting

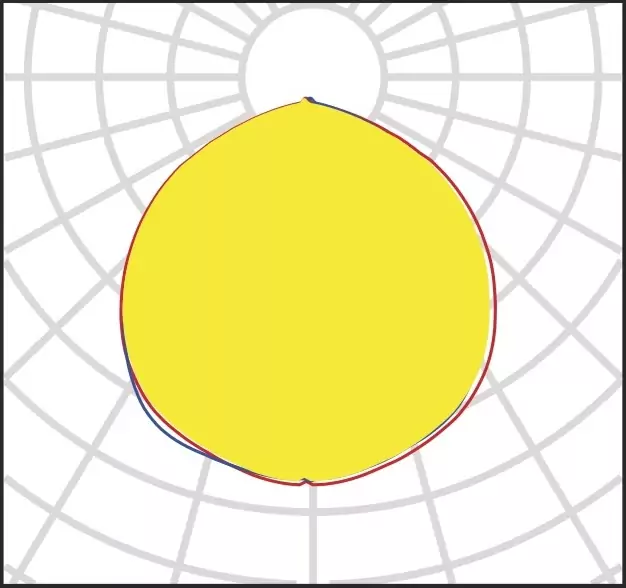

Light Distribution Curve
120°

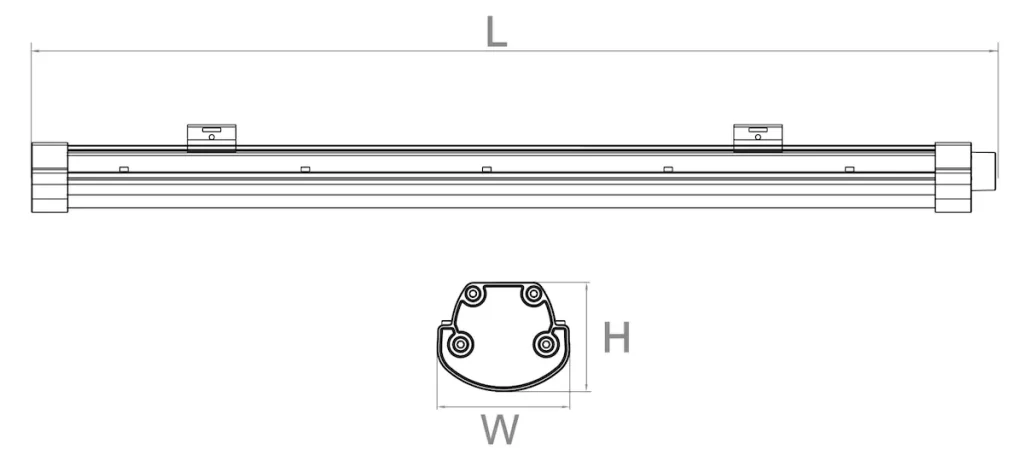

Product size
| Model | L | W | H |
| ML-EX20W-UCE5-L60 | 600mm | 70mm | 58mm |
| ML-EX40W-UCE5-L60 | 600mm | 70mm | 58mm |
| ML-EX40W-UCE5-L120 | 1200mm | 70mm | 58mm |
| ML-EX60W-UCE5-L120 | 1200mm | 70mm | 58mm |
| ML-EX80W-UCE5-L150 | 1500mm | 70mm | 58mm |
