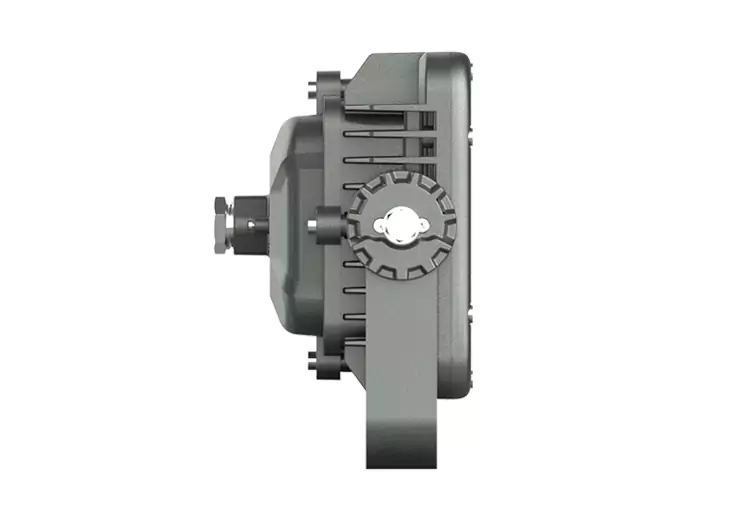

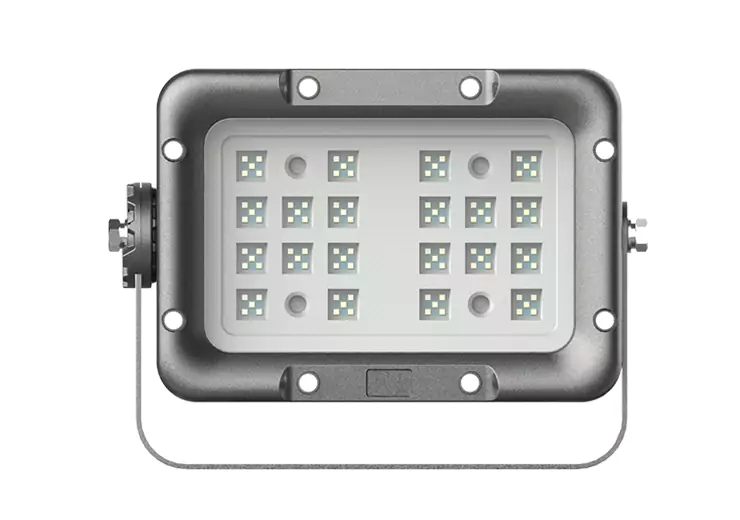

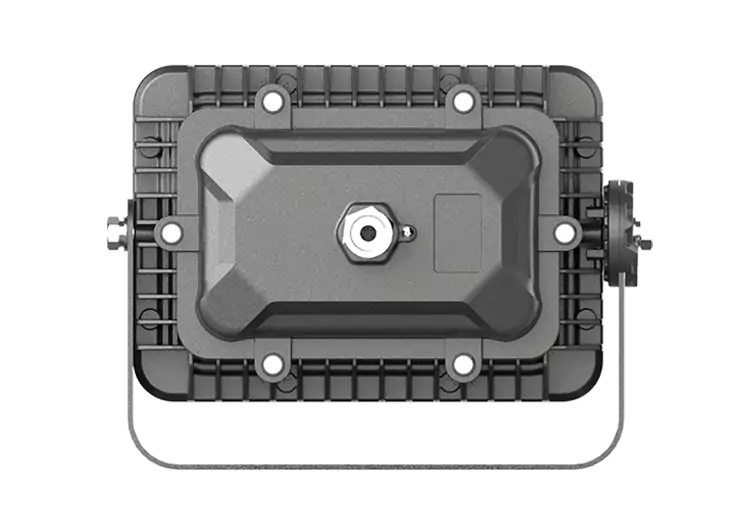

mimiLED 6 Series LED Explosion Proof Light
Key Features:
■ High bright CREE LED chip and Meanwell driver, 5 years’ warranty.
■ ATEX certified, good to use in gas, dust and fibers explosion hazardous areas.
■ Excellent thermal conductivity, large heat dissipation.
■ High light transmittance tempered glass cover, shock and vibration resistant.
■ WF2 corrosion proof and IP66 waterproof.
Specification
| Model No. | ML-EX25W-UCE6 | ML-EX50W-UCE6 | ML-EX70W-UCE6 |
| Power | 25W | 50W | 70W |
| LED Chip Brand | CREE | CREE | CREE |
| Power Driver Brand | Meanwell | Meanwell | Meanwell |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 |
| Beam Angle | 90° | 90° | 90° |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W |
| Initial Flux | >3, 750LM | >3, 750LM | >3, 750LM |
| Working Environment | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 |
| Impact Test | IK08 | IK08 | IK08 |
| Corrosion Proof | WF2 | WF2 | WF2 |
| Application | Zone 1 & 2, Zone 21 & 22 | ||
| Protection Rating | II 2G Ex mb eb IIB T4 Gb, II 2D Ex tb IIIC T(110℃) Db | ||
| Certificate | ATEX, CE, RoHS | ATEX, CE, RoHS | ATEX, CE, RoHS |
| Fixture Dimension | 374*276*171MM | 374*276*171MM | 374*276*171MM |
| Material | Aluminum Alloy & Tempered Glass | ||
ATEX Approved
With ATEX certified, strictly according to the ATEX directives.

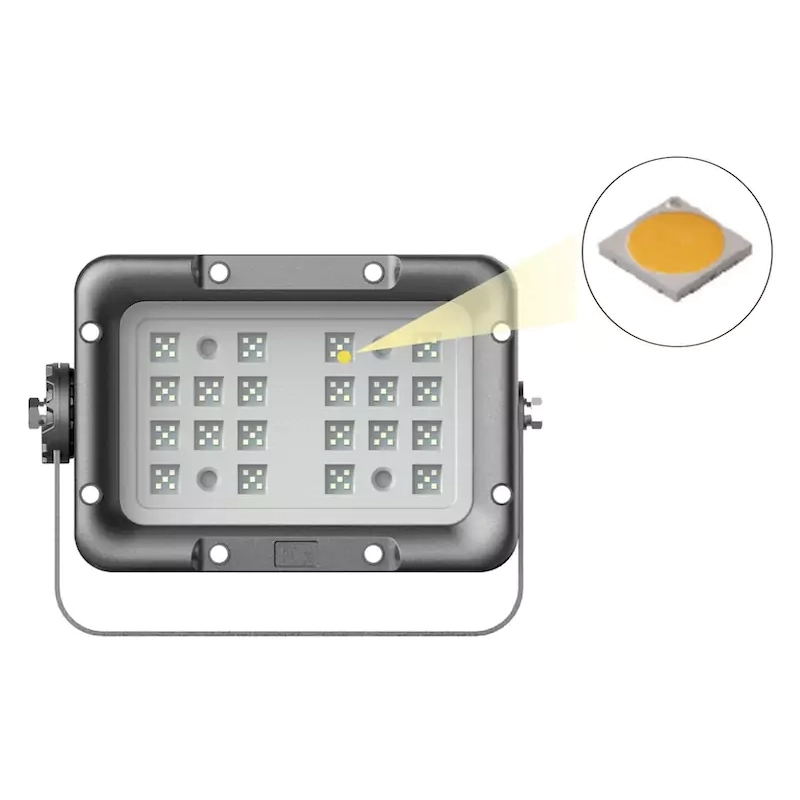

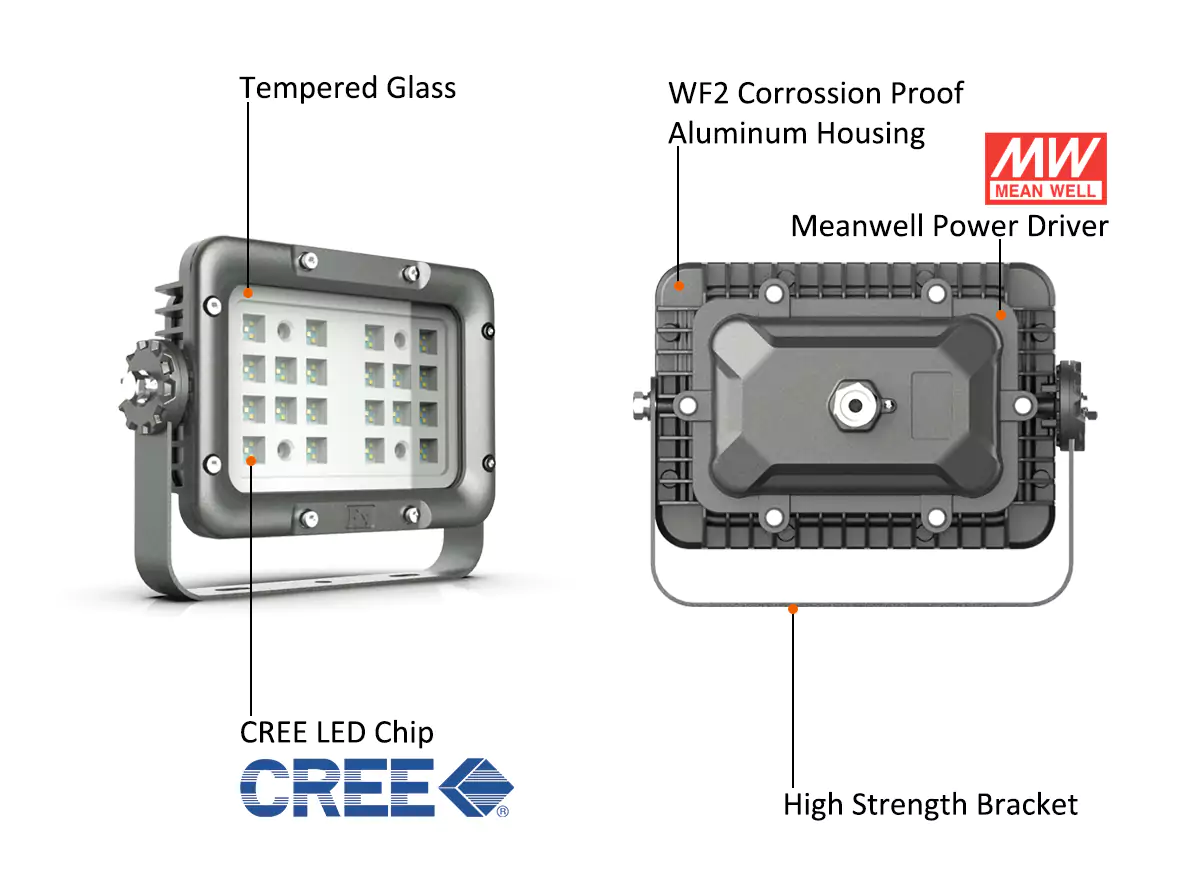

Imported CREE LED
150LMM/W

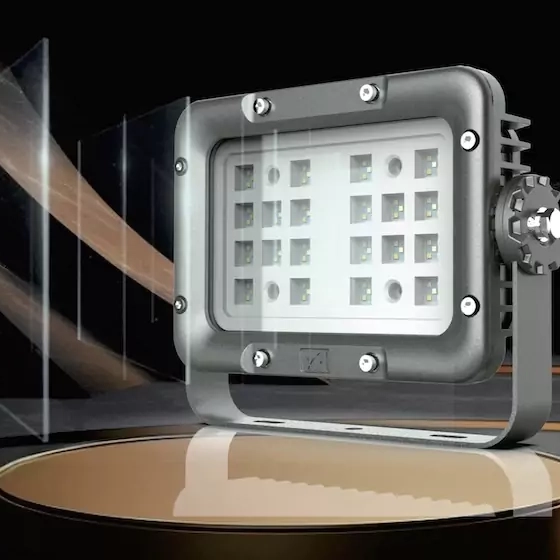

High Light Transmittance Tempered Glass
Shock & vibration resistant

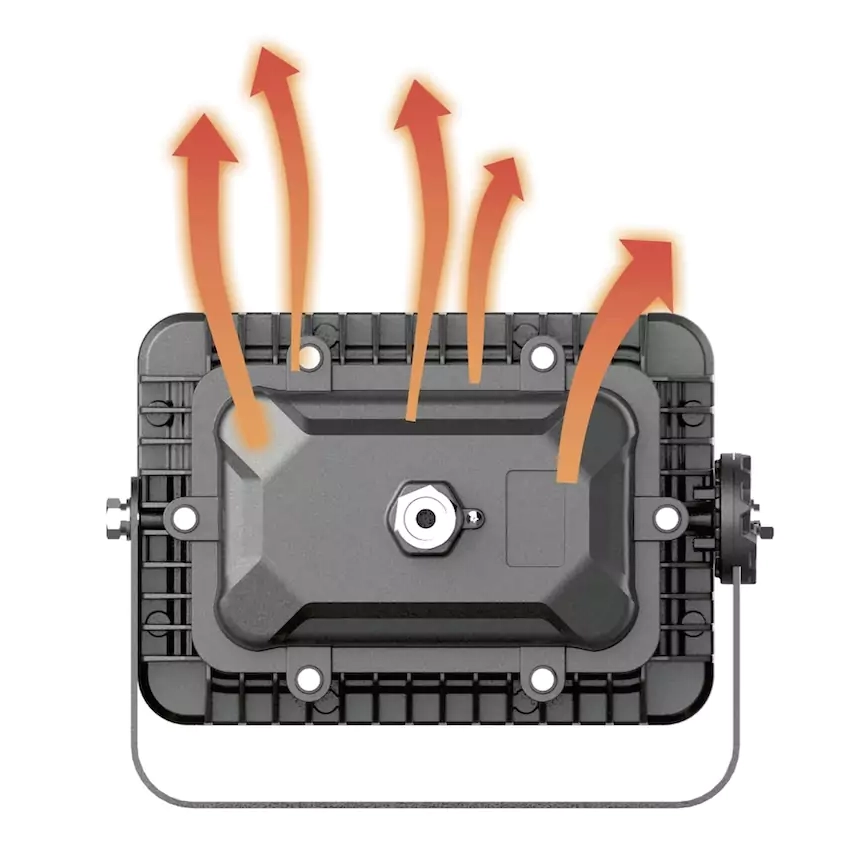

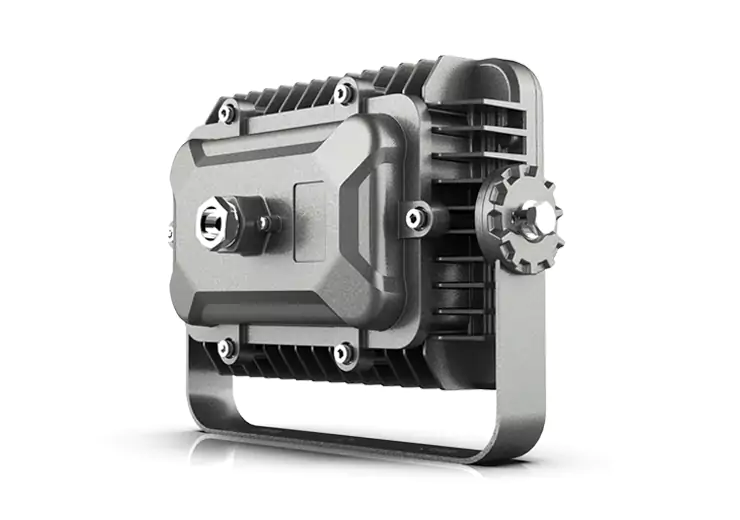

Efficient Heat Sink
Excellent thermal conductivity, and super heat exchange
IP66 Waterproof
No need to worry about working outside
Examples of Mounting

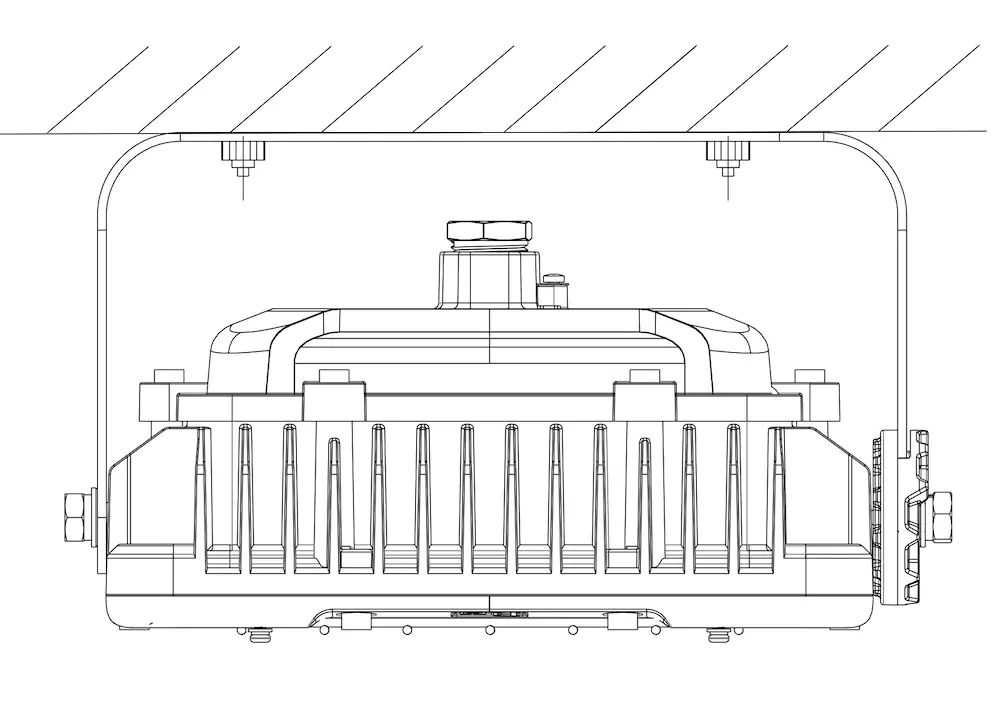

Ceiling Type

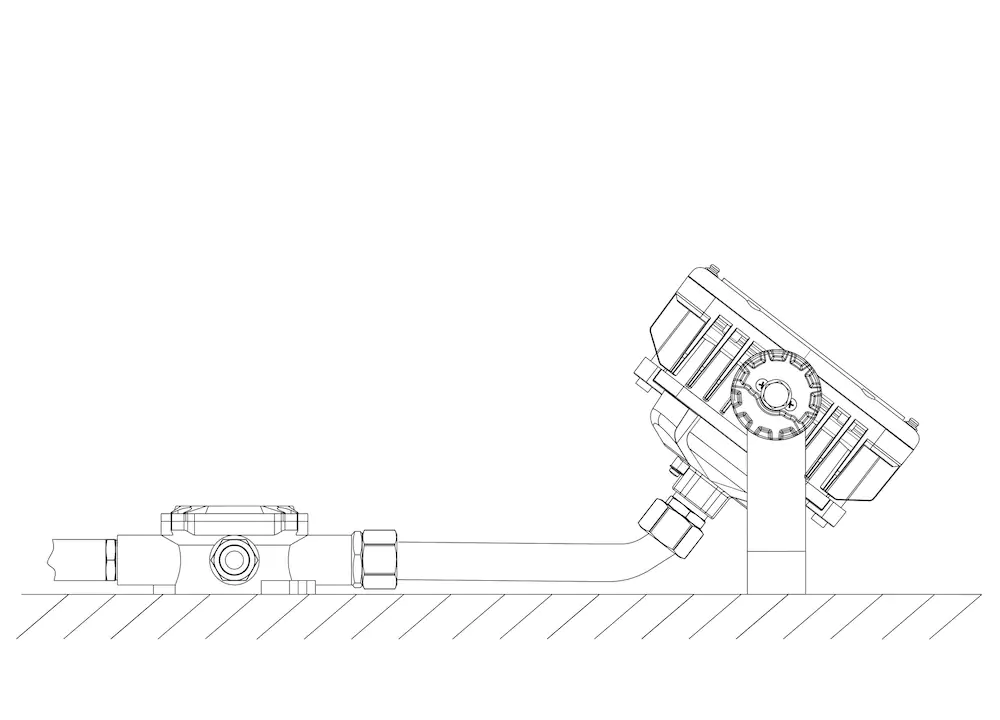

Sitting Style

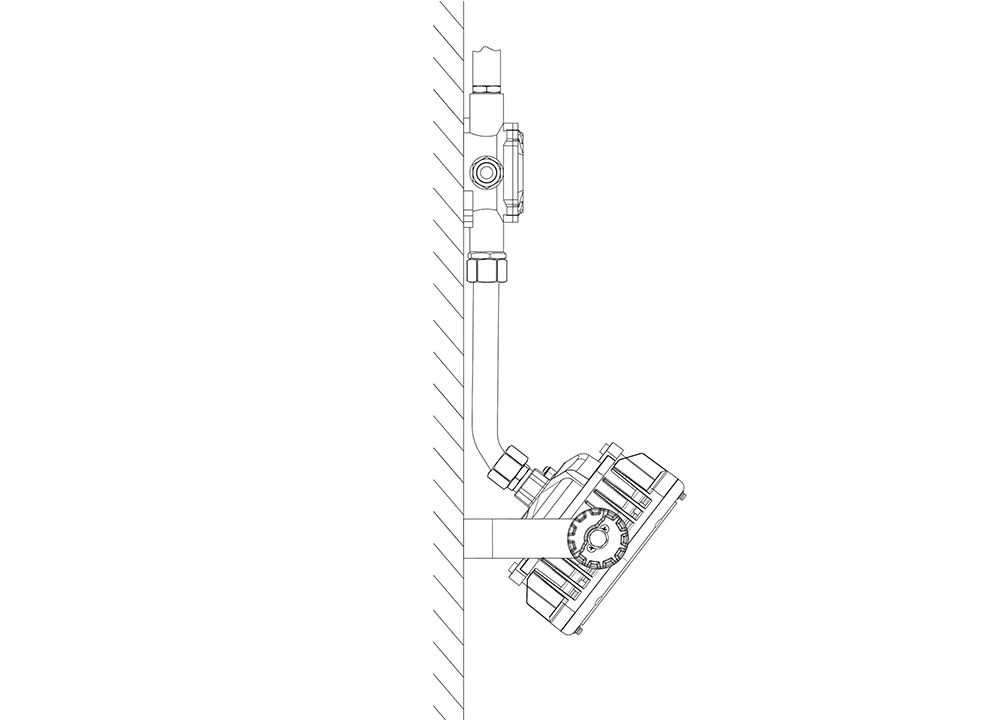

Wall Style
Light Distribution Curve
90°

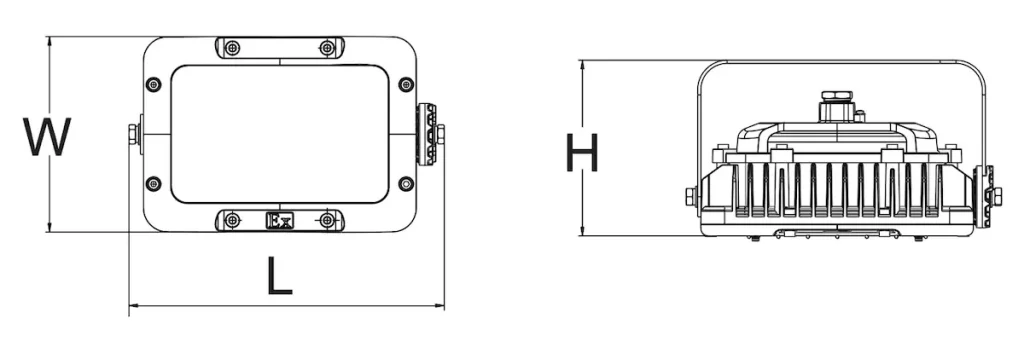

Product size
| Model | L | W | H |
| ML-EX25W-UCE6 | 299mm | 186mm | 167mm |
| ML-EX50W-UCE6 | 299mm | 186mm | 167mm |
| ML-EX70W-UCE6 | 299mm | 186mm | 167mm |
