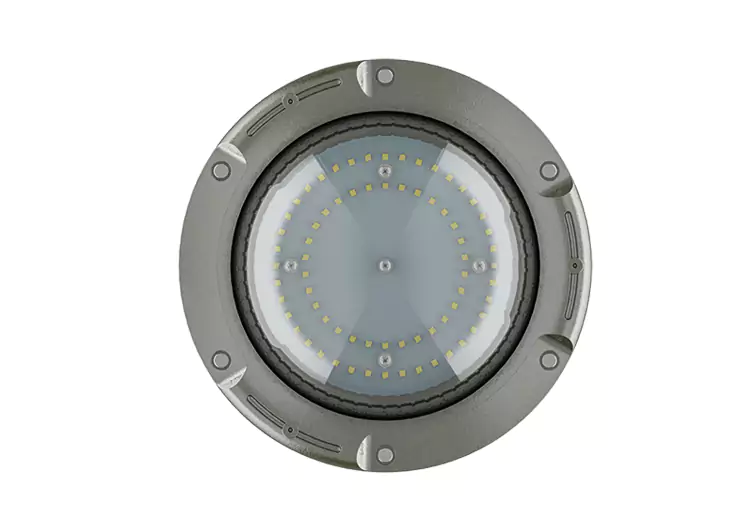

mimiLED 7 Series LED Explosion Proof Light

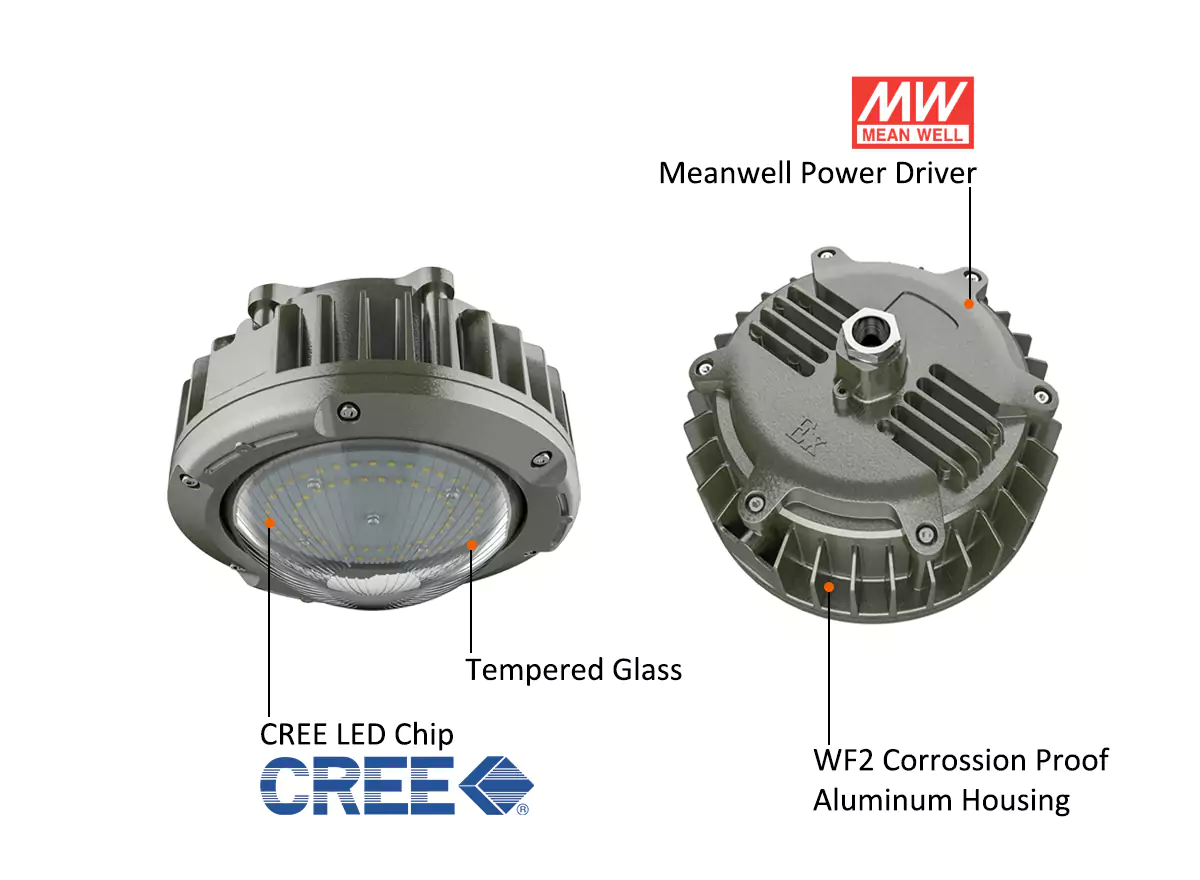

Key Features:

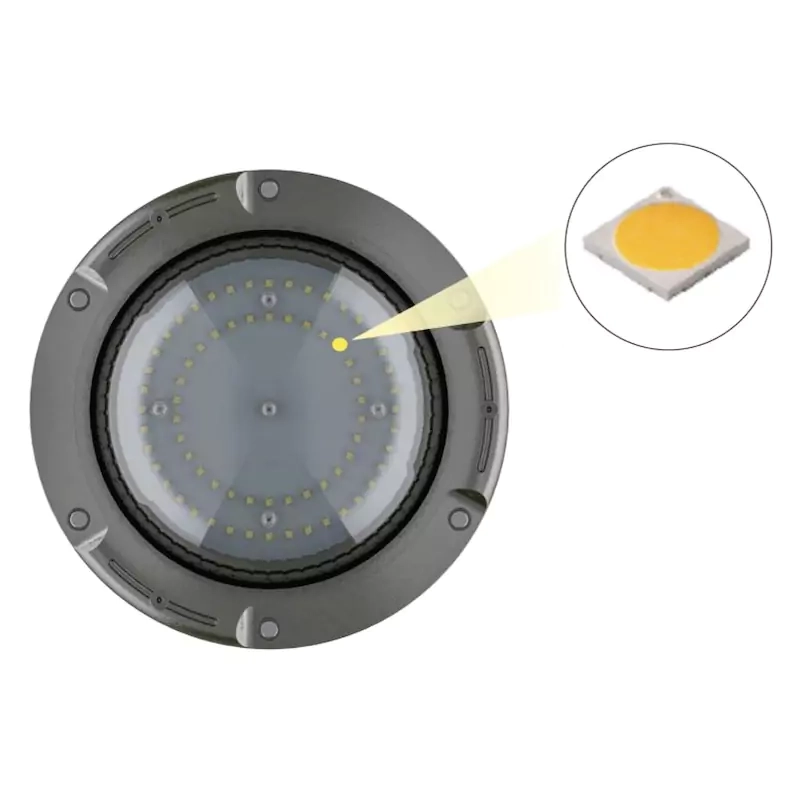

■ High bright CREE LED chip and Meanwell driver, up to 180LM/W.
■ ATEX certified, good to use in hazardous locations and explosive gas atmosphere.
■ Excellent thermal conductivity, large heat dissipation.
■ Durable tempered glass cover, great quality and high light transmittance.
■ WF2 corrosion proof and IP66 waterproof.
Specification
| Model No. | ML-EX24W-UCE7 | ML-EX50W-UCE7 | ML-EX60W-UCE7 | ML-EX70W-UCE7 |
| Power | 24W | 50W | 60W | 70W |
| LED Chip Brand | CREE | CREE | CREE | CREE |
| Power Driver Brand | Meanwell | Meanwell | Meanwell | Meanwell |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 | >80 |
| Beam Angle | 120° | 120° | 120° | 120° |
| Input Voltage | AC 85-305V | AC 85-305V | AC 85-305V | AC 85-305V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >180LM/W | >170LM/W | >170LM/W | >170LM/W |
| Initial Flux | >4, 320LM | >8, 500LM | >10, 200LM | >11, 900LM |
| Working Environment | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Impact Test | IK08 | IK08 | IK08 | IK08 |
| Corrosion Proof | WF2 | WF2 | WF2 | WF2 |
| Application | Zone 1 & 2, Zone 21 & 22 | |||
| Protection Rating | II 2G Ex mb eb IIB T4 Gb, II 2D Ex tb IIIC T(110℃) Db | |||
| Certificate | ATEX, CE, RoHS | ATEX, CE, RoHS | ATEX, CE, RoHS | ATEX, CE, RoHS |
| Fixture Dimension | Φ225*263MM | Φ225*263MM | Φ225*263MM | Φ225*263MM |
| Material | Aluminum Alloy & Tempered Glass | |||

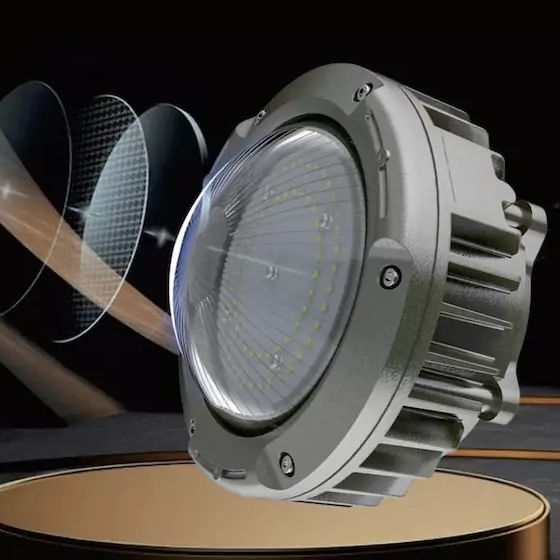

Durable Tempered Glass
Durable Tempered Glass
High light transmittance and corrosion proof

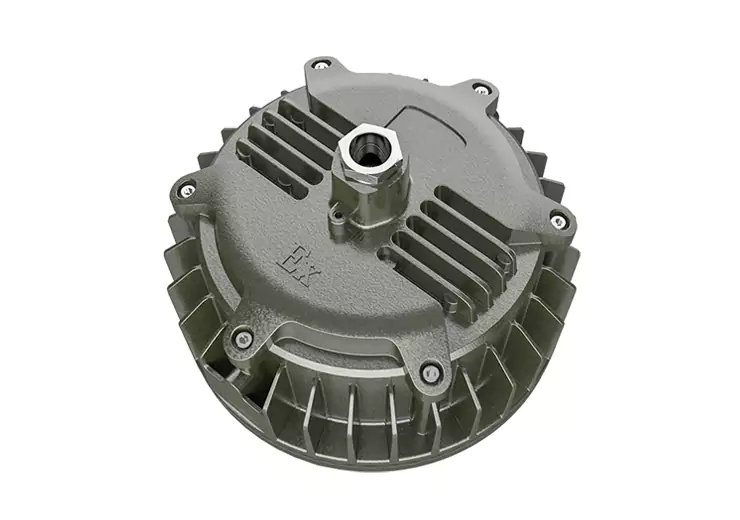

Aluminum Housing
Super heat dissipation, ensure long lifespan

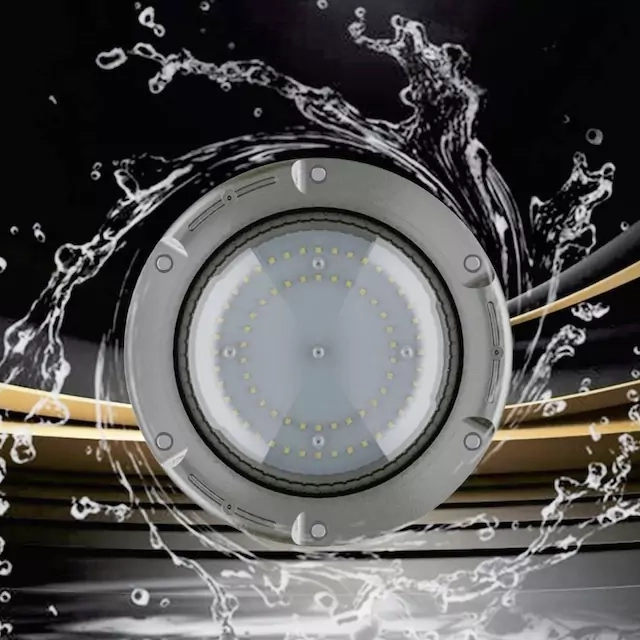

IP66 Waterproof
No problem to use outside

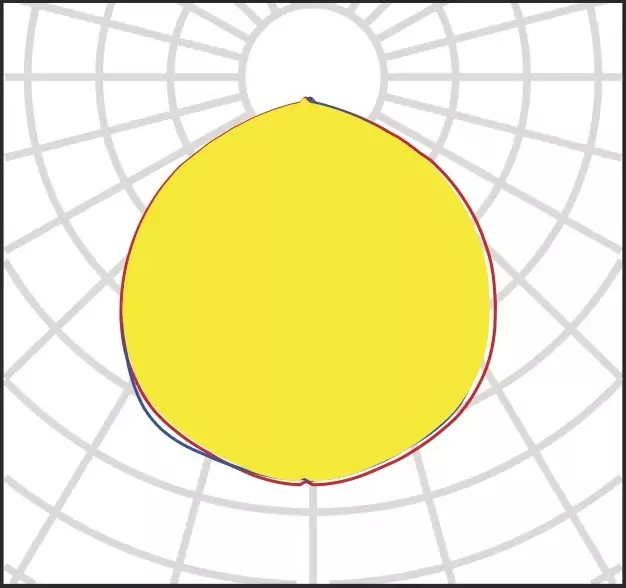

Light Distribution Curve
120°

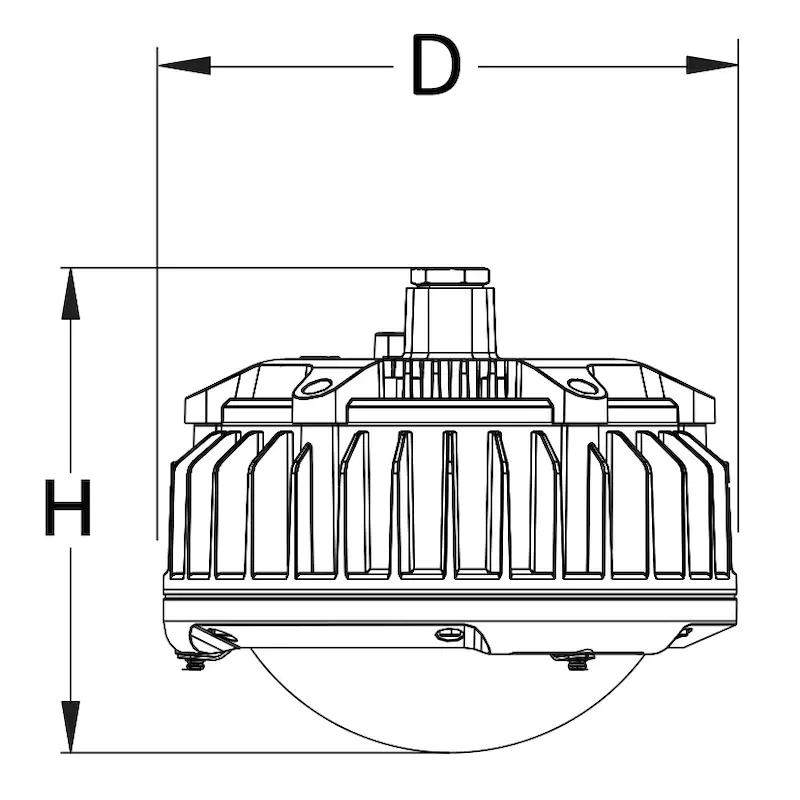

Product size
| Model | D | H |
| ML-EX24W-UCE7 | 225mm | 263mm |
| ML-EX50W-UCE7 | 225mm | 263mm |
| ML-EX60W-UCE7 | 225mm | 263mm |
| ML-EX70W-UCE7 | 225mm | 263mm |
