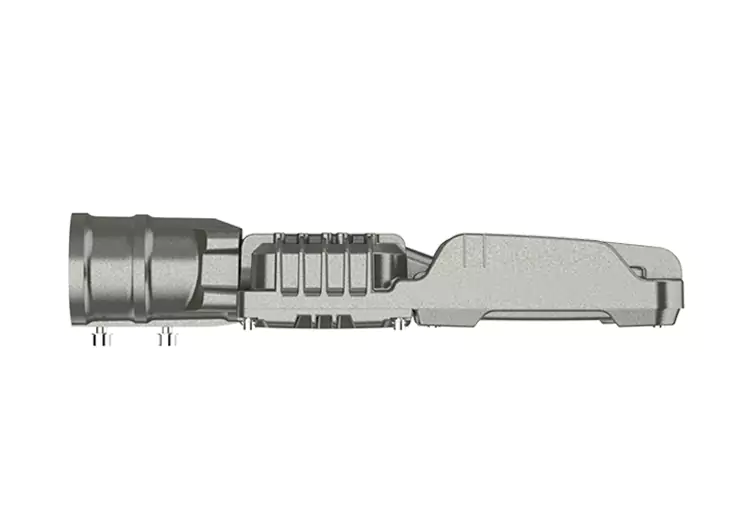

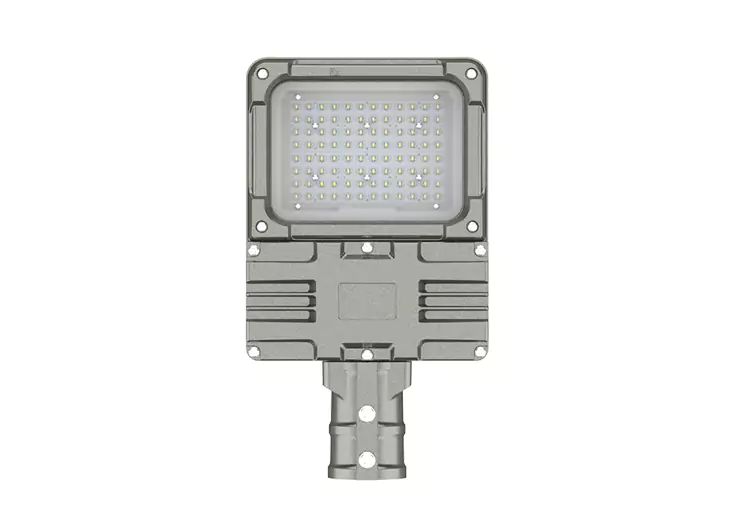

mimiLED 8 Series LED Explosion Proof Street
Key Features:
■ High bright CREE LED chip and Meanwell driver, 150LM/W.
■ ATEX certified, good to use in hazardous locations and explosive gas atmosphere.
■ Excellent thermal conductivity, large heat dissipation.
■ Ultra-thick reinforced tempered glass cover, impact resistance.
■ WF2 corrosion proof and IP66 waterproof.
Specification
| Model No. | ML-EXS24W-UCE8 | ML-EXS40W-UCE8 | ML-EXS60W-UCE8 | ML-EXS80W-UCE8 | ML-EXS100W-UCE8 |
| Power | 24W | 40W | 60W | 80W | 100W |
| LED Chip Brand | CREE | CREE | CREE | CREE | CREE |
| Power Driver Brand | Meanwell | Meanwell | Meanwell | Meanwell | Meanwell |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 | >70 |
| Beam Angle | TP II/TP III/TP IV | TP II/TP III/TP IV | TP II/TP III/TP IV | TP II/TP III/TP IV | TP II/TP III/TP IV |
| Input Voltage | AC 85-305V | AC 85-305V | AC 85-305V | AC 85-305V | AC 85-305V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W | >140LM/W | >140LM/W |
| Initial Flux | >3, 600LM | >6, 000LM | >9, 000LM | >11, 200LM | >14, 000LM |
| Working Environment | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ | -25℃~+45℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 | IP66 |
| Impact Test | IK08 | IK08 | IK08 | IK08 | IK08 |
| Corrosion Proof | WF2 | WF2 | WF2 | WF2 | WF2 |
| Application | Zone 1 & 2, Zone 21 & 22 | ||||
| Protection Rating | II 2G Ex mb eb IIB T4 Gb, II 2D Ex tb IIIC T(110℃) Db | ||||
| Certificate | ATEX, CE, RoHS | ||||
| Fixture Dimension | L412*W237*H81MM | ||||
| Material | Aluminum Alloy & Tempered Glass | ||||

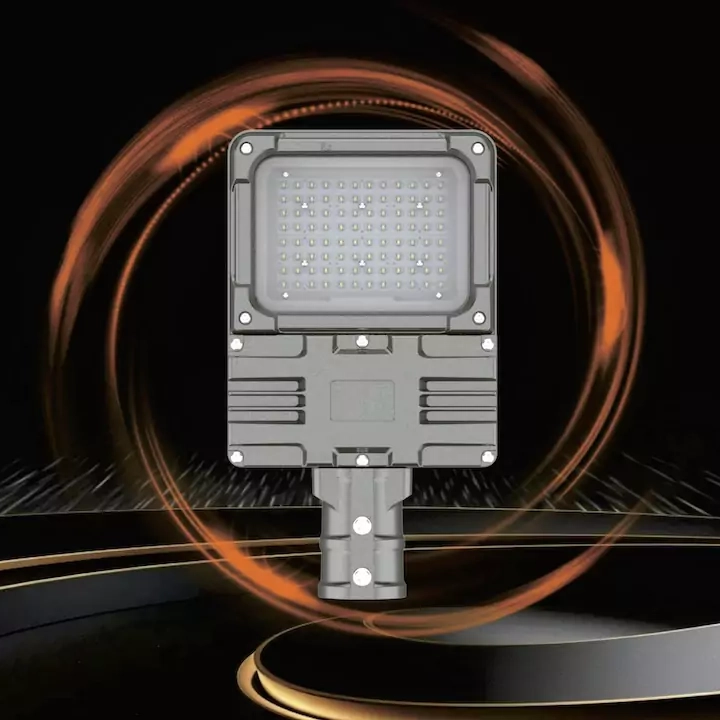

Gas and Dust Proof
For Zone 1 & 2, Zone 21 & 22

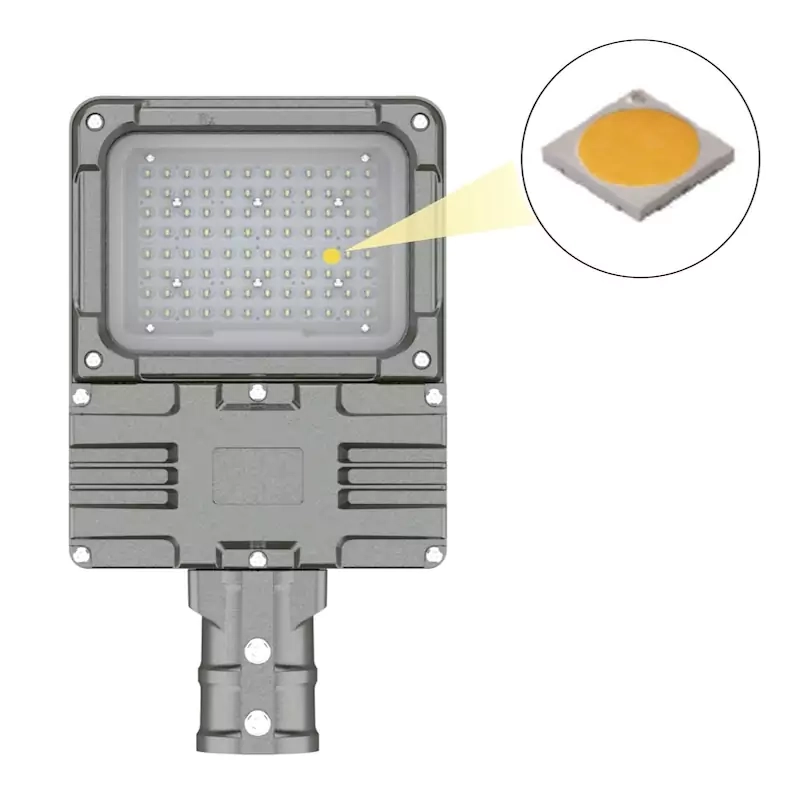

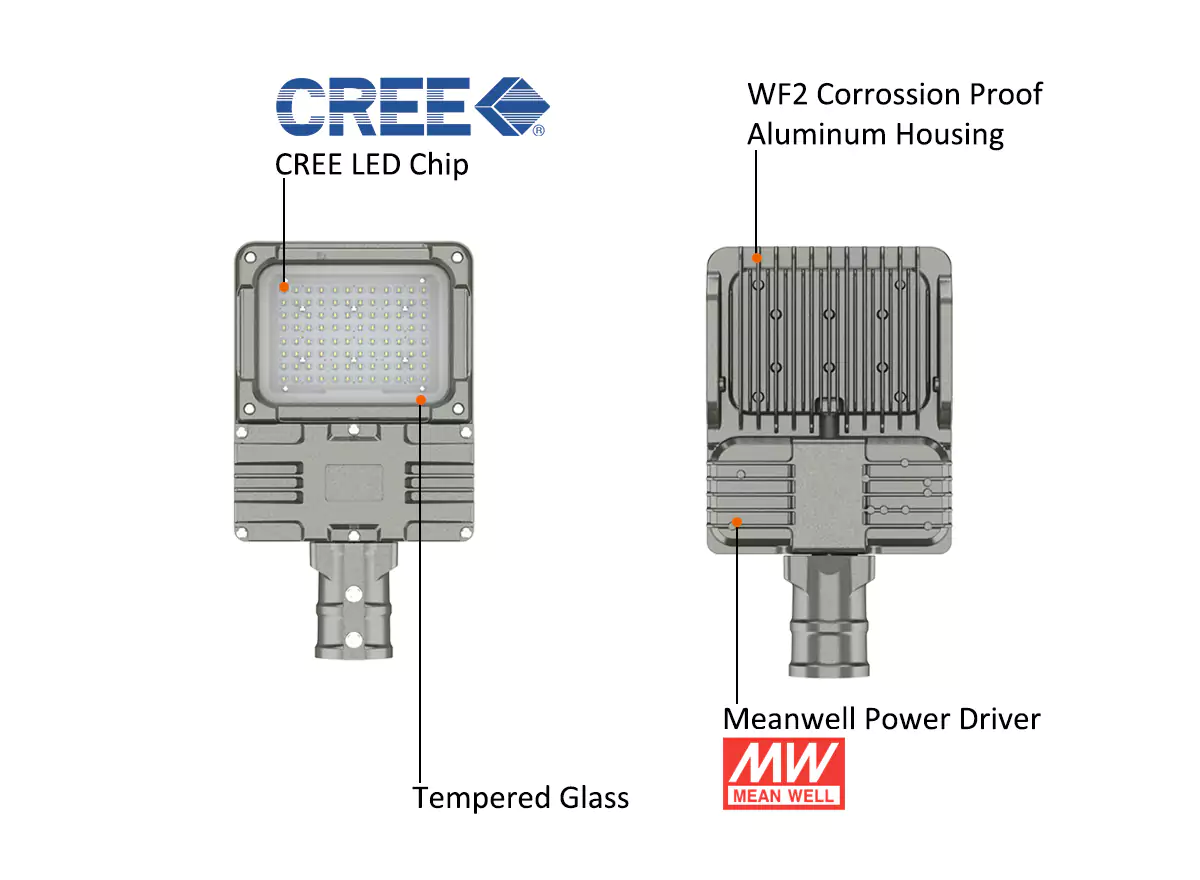

High Bright CREE SMD3030
150LM/W

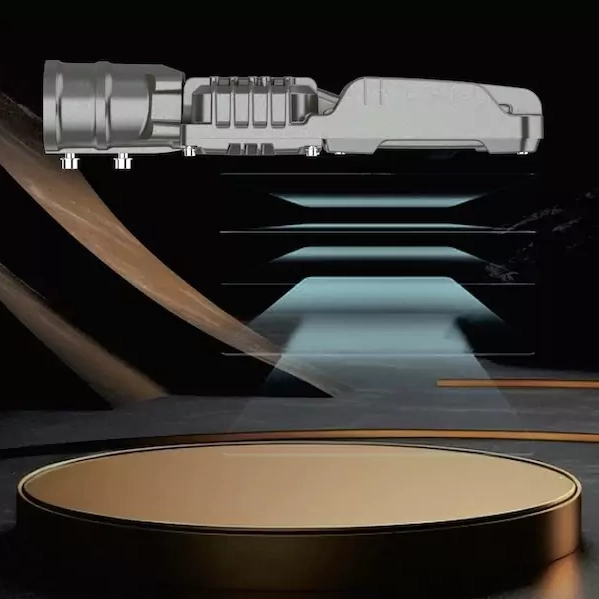

Ultra-thick reinforced tempered glass cover
Impact resistance, high safety

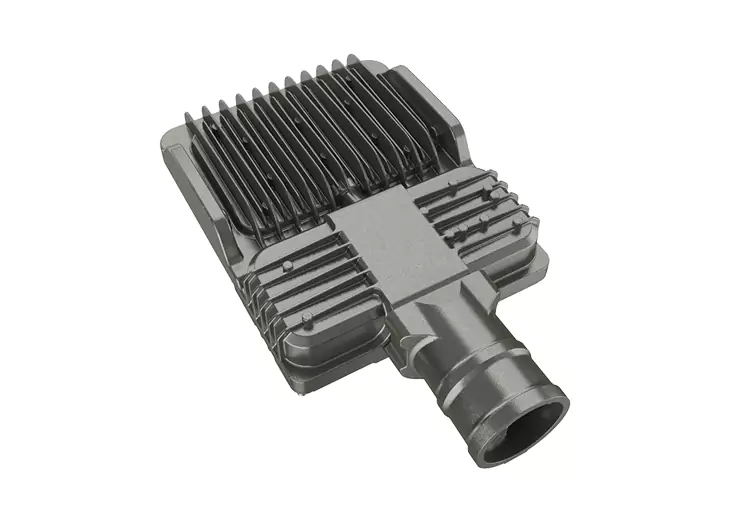

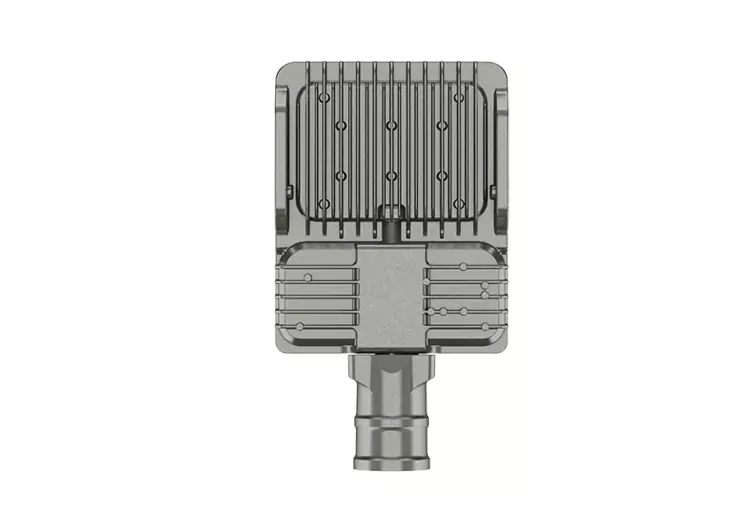

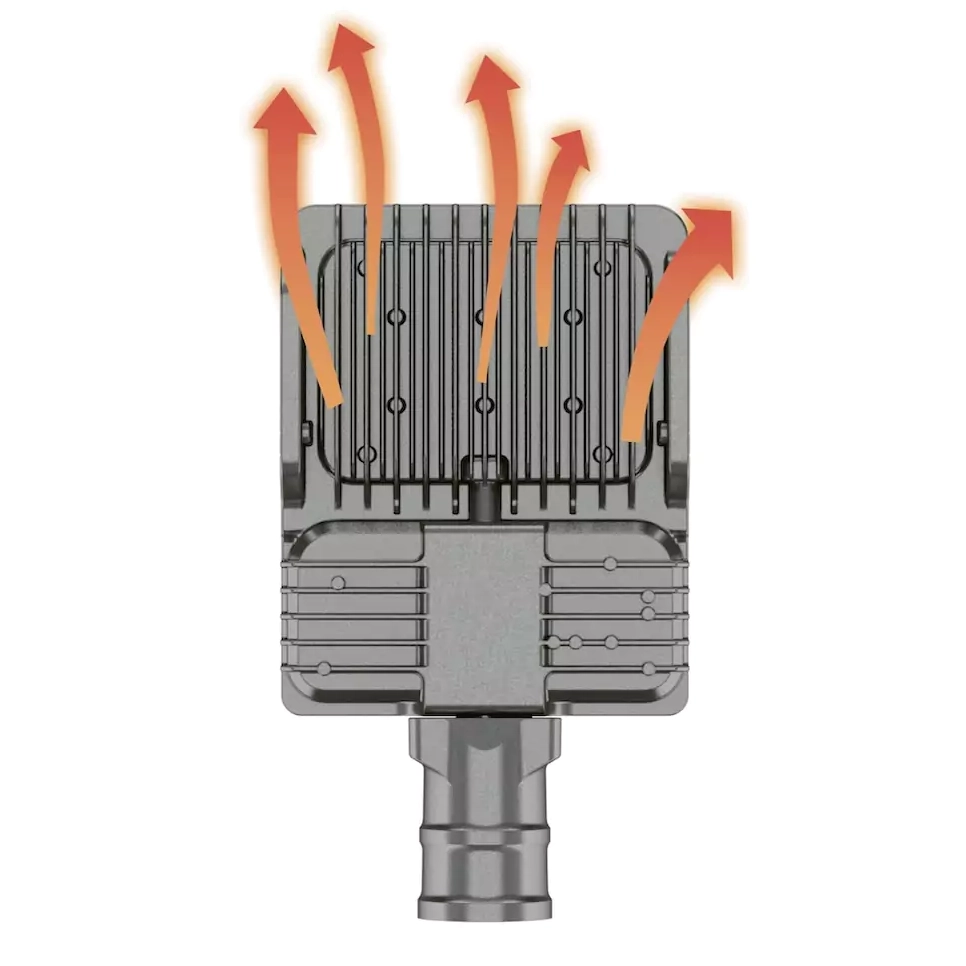

Excellent Thermal Conductivity
Large Heat Exchange

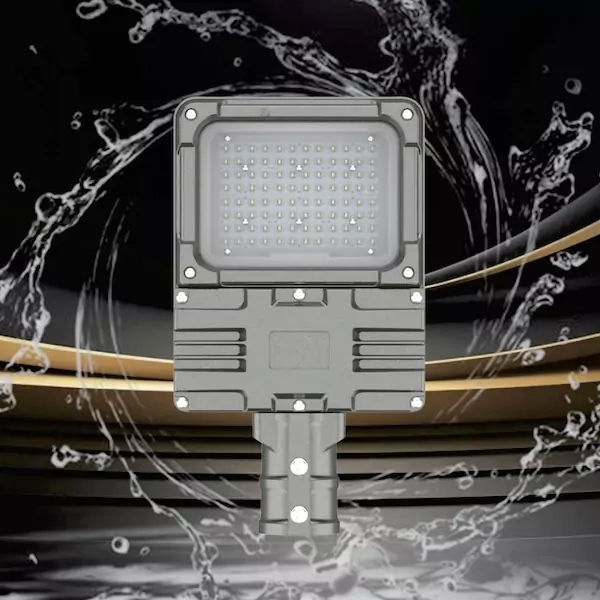

WF2 Corrosion Proof and IP66 Waterproof
Examples of Mounting

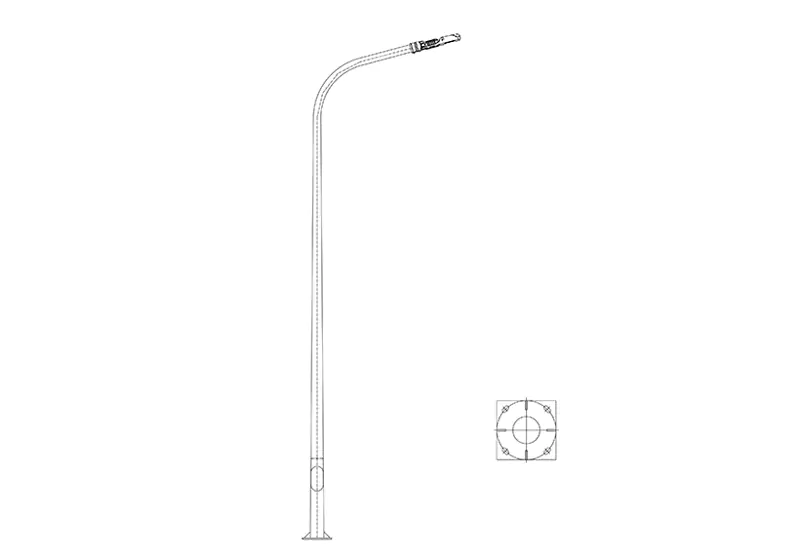

Light Pole Type 1

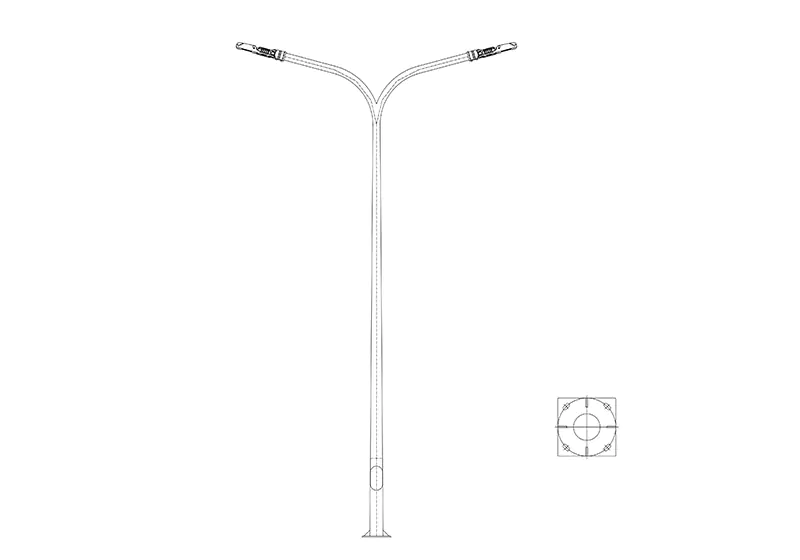

Light Pole Type 2

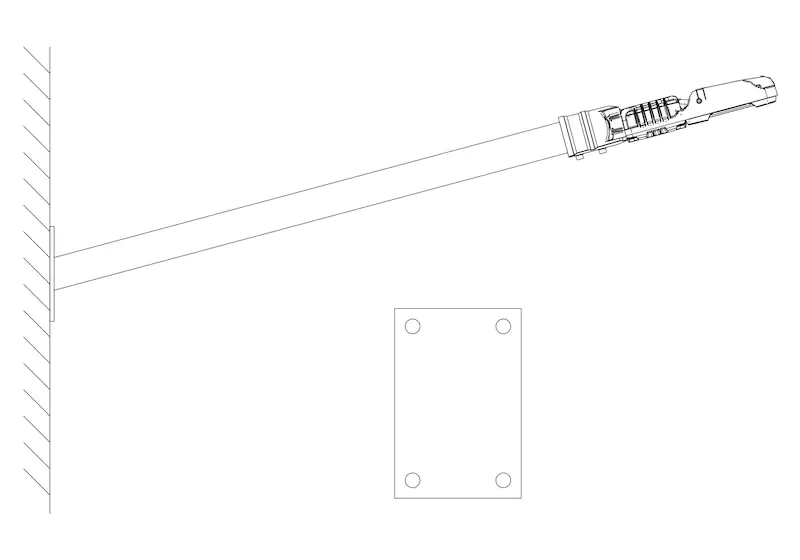

Light Pole 3
Light Distribution Curve
Type II
Type III
Type IV

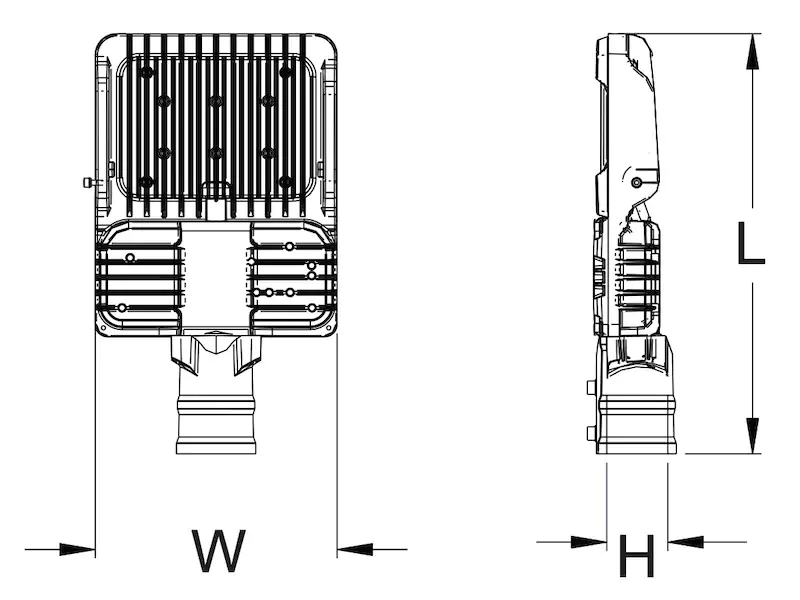

Product size
| Model | L | W | H |
| ML-EXS24W-UCE8 | 412mm | 237mm | 81mm |
| ML-EXS40W-UCE8 | 412mm | 237mm | 81mm |
| ML-EXS60W-UCE8 | 412mm | 237mm | 81mm |
| ML-EXS80W-UCE8 | 412mm | 237mm | 81mm |
| ML-EXS100W-UCE8 | 412mm | 237mm | 81mm |
