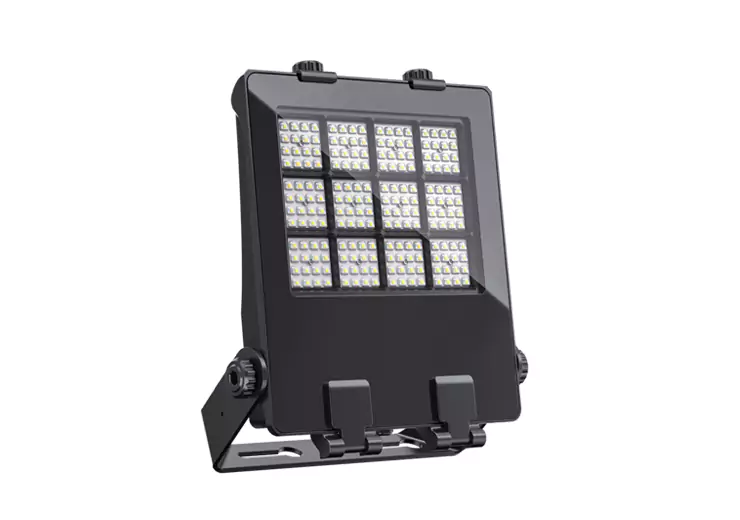

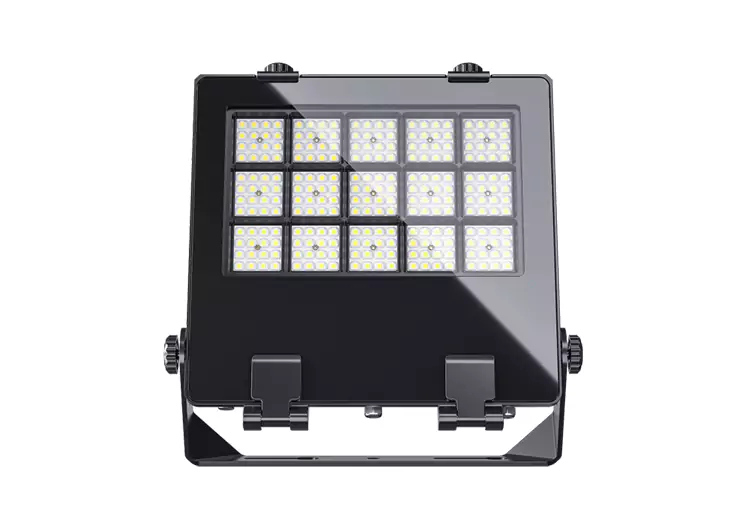

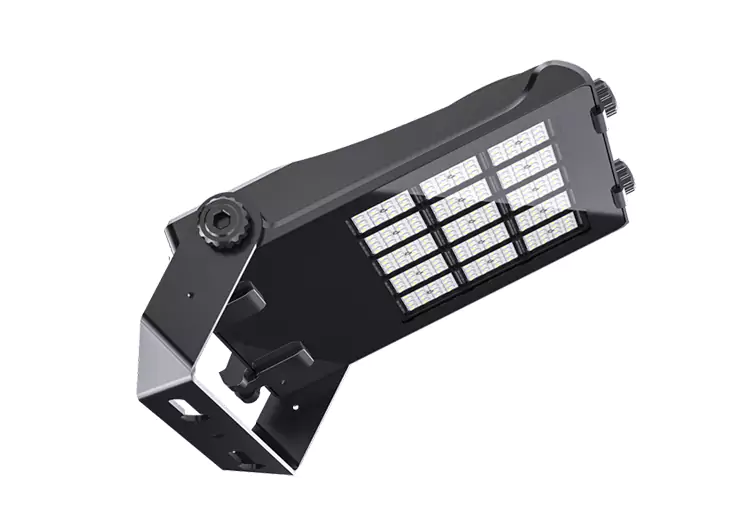

mimiLED 2 Series LED Flood Light
Key Features:

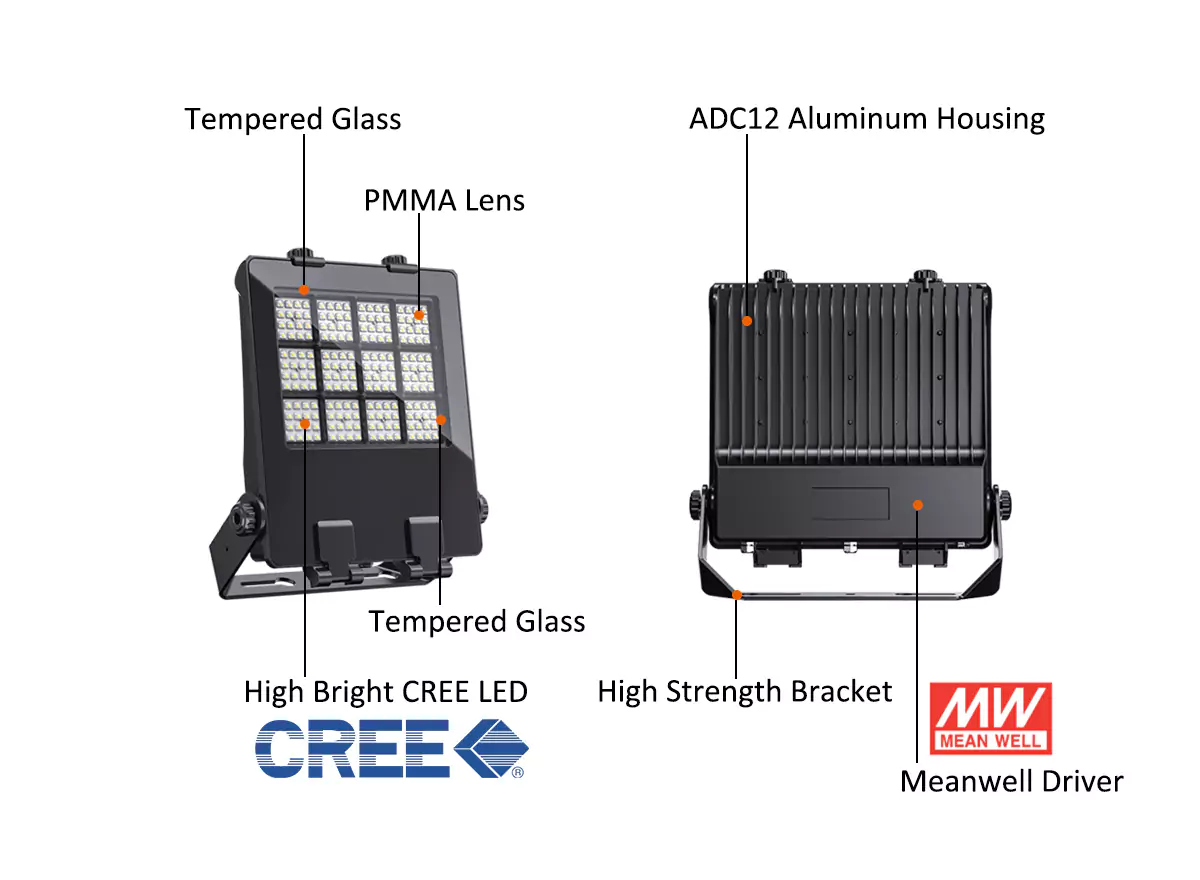

■ High bright CREE LED chip & Meanwell driver used.
■ Screw-free to open, very easy to repair and maintain.
■ PMMA lens & tempered glass used, excellent on UV resistance.
■ 9 types of beam angle for your different projects.
■ Advanced URG technology.
Specification
| Model No. | ML-F100W-UCF2 | ML-F150W-UCF2 | ML-F200W-UCF2 | ML-F240W-UCF2 |
| Power | 100W | 150W | 200W | 240W |
| LED Chip Brand | CREE | CREE | CREE | CREE |
| Power Driver | Meanwell | Meanwell | Meanwell | Meanwell |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 |
| Beam Angle | 20°/30°/60°/90°/Type II/Type III/Type IV/Type V/P50 | |||
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >140LM/W | >140LM/W | >140LM/W | >140LM/W |
| Initial Flux | >14, 000lm | >21, 000lm | >28, 000lm | >33, 600lm |
| Working Environment | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Fixture Dimension | 461*320*69MM | 461*320*69MM | 461*380*69MM | 534*440*69MM |
| Net Weight | 5.1KGS | 5.1KGS | 6.0KGS | 8.6KGS |
| Material | ADC12 Aluminum+Tempered Glass | |||

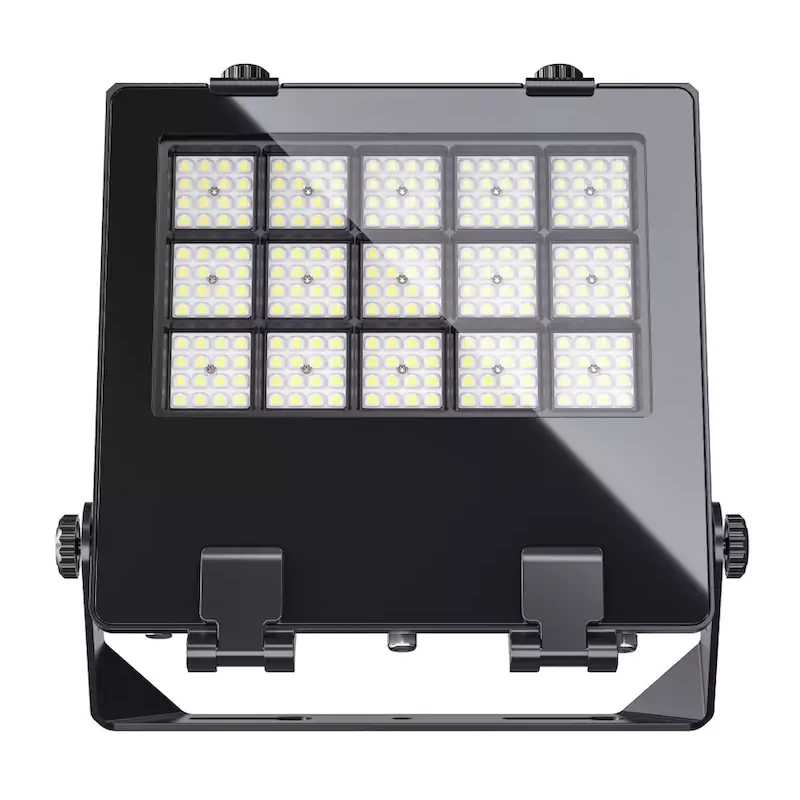

CREE SMD3030 LED Chip
High bright and very long life

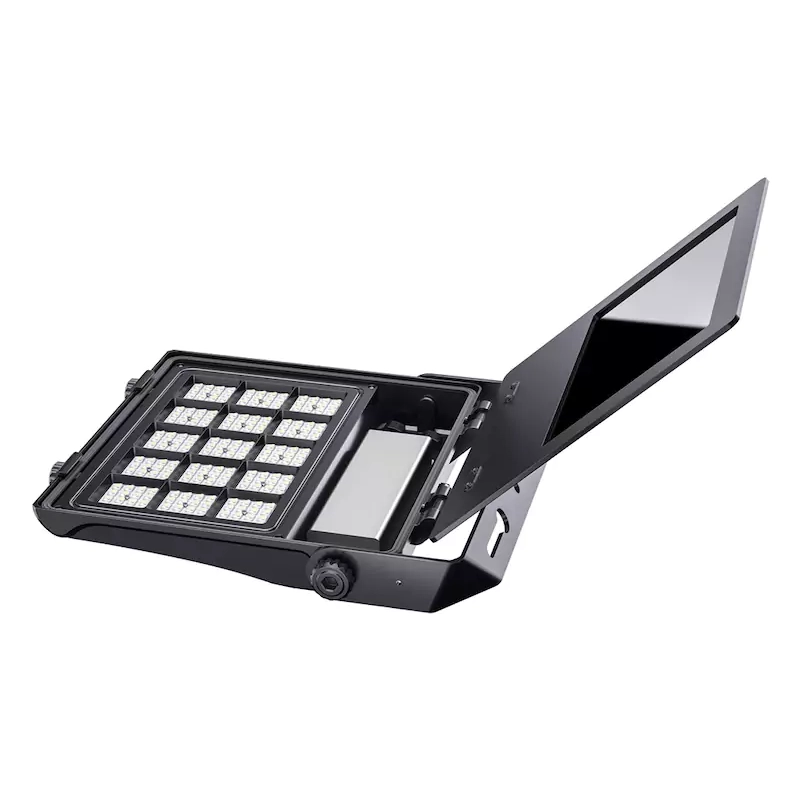

Screw-Free, Very Easy to Open

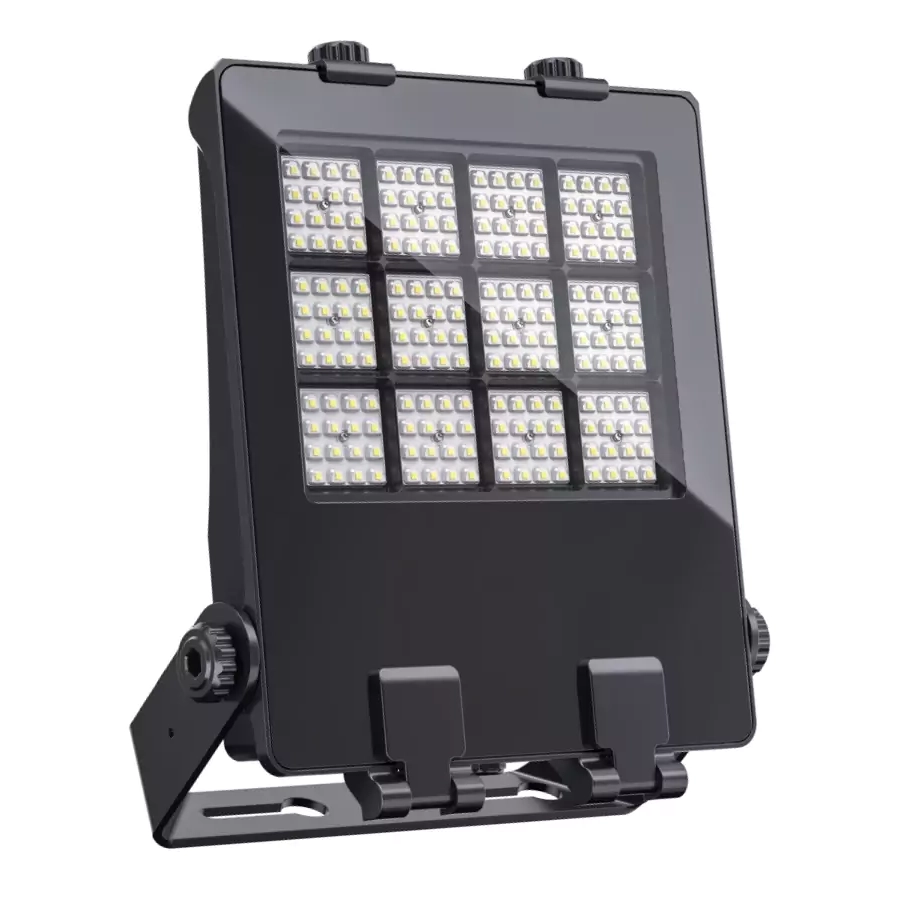

UGR<21
Specially designed lens, minimize glare

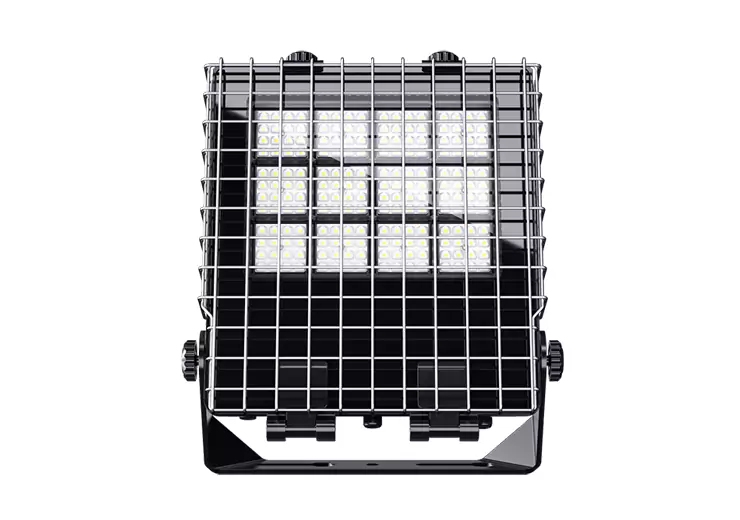

With Metal Mesh Protection, IK10
Higher impact resistance, good to use in sports field
IP66 Waterproof, 10/20KV Surge Protection
Good to use outside
Tempered Glass & PMMA Lens
Great performance on UV resistance
Light Distribution Curve

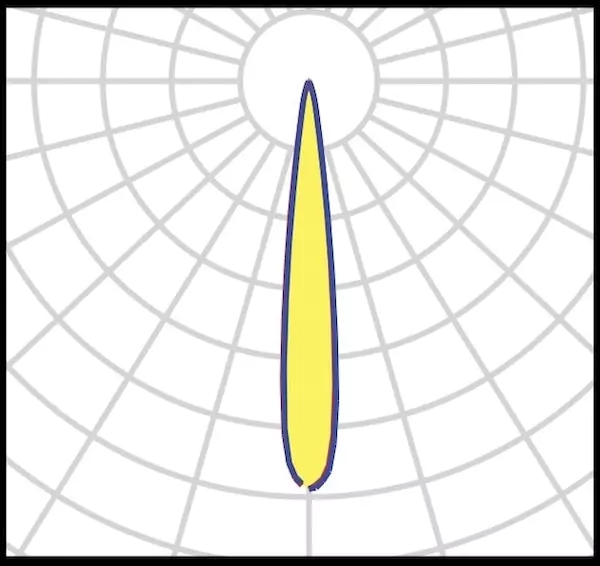

20°

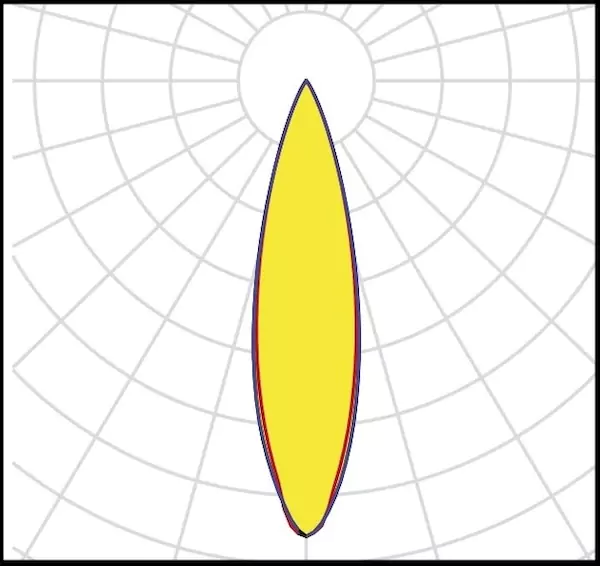

30°

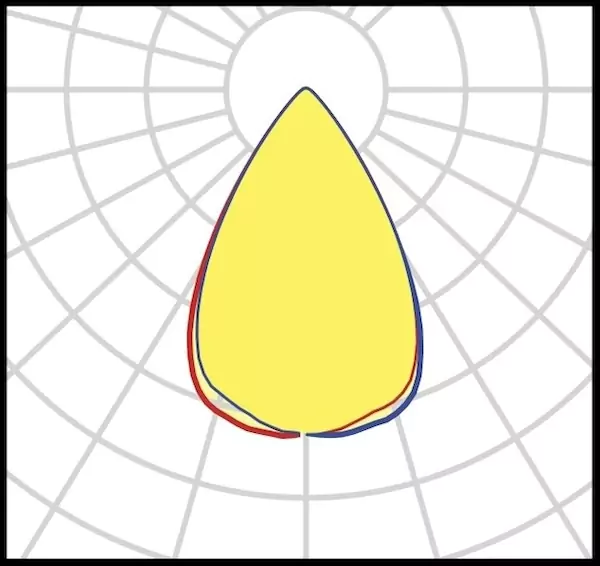

60°

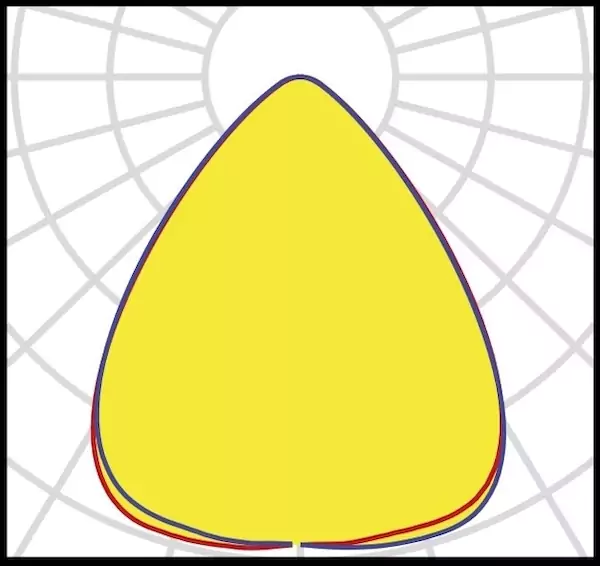

90°

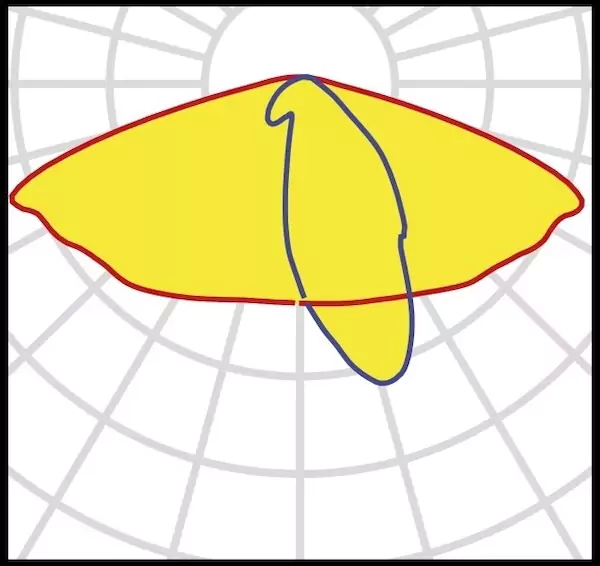

Type II

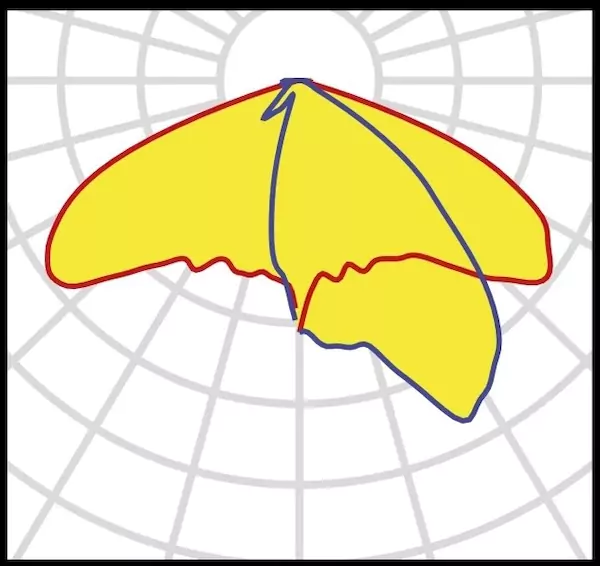

Type III

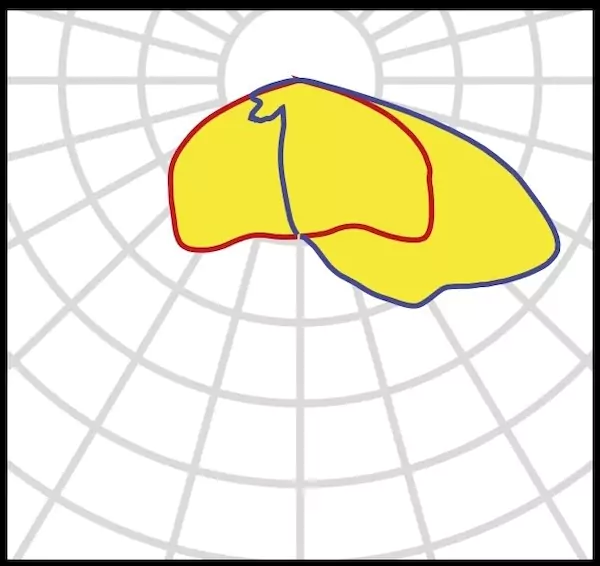

Type IV

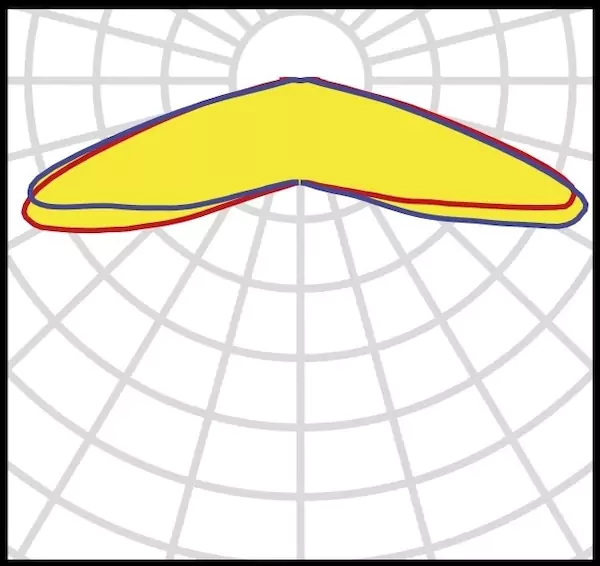

Type V

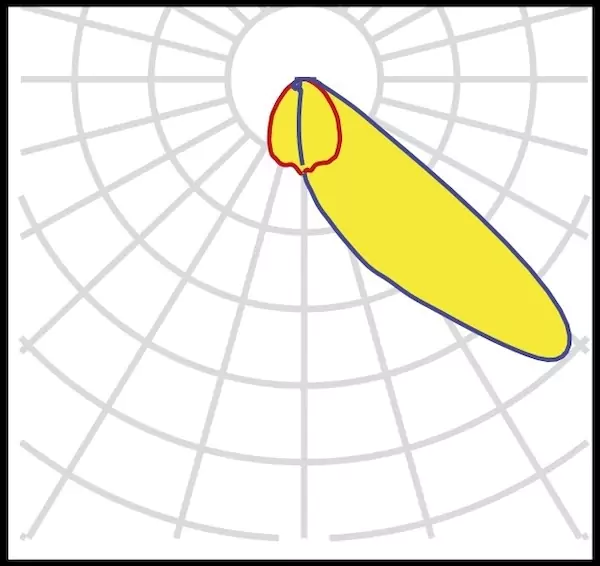

P50

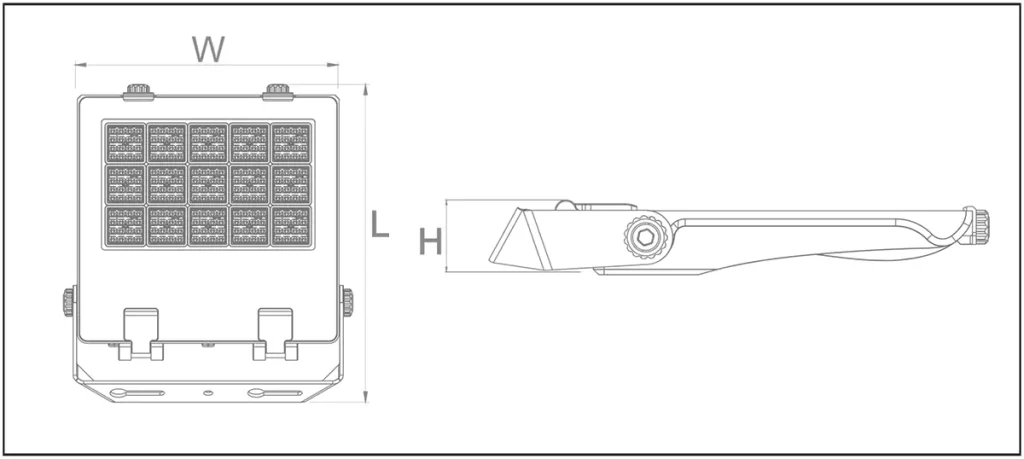

Product size
| Power | L | W | H |
| 100W | 461mm | 320mm | 69mm |
| 150W | 461mm | 320mm | 69mm |
| 200W | 461mm | 380mm | 69mm |
| 240W | 534mm | 440mm | 69mm |
