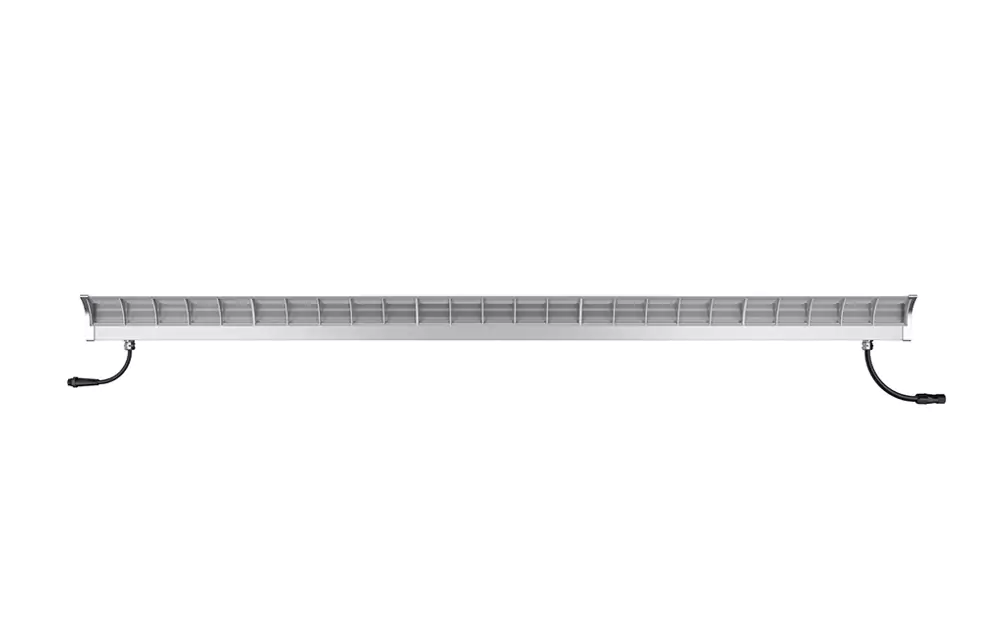

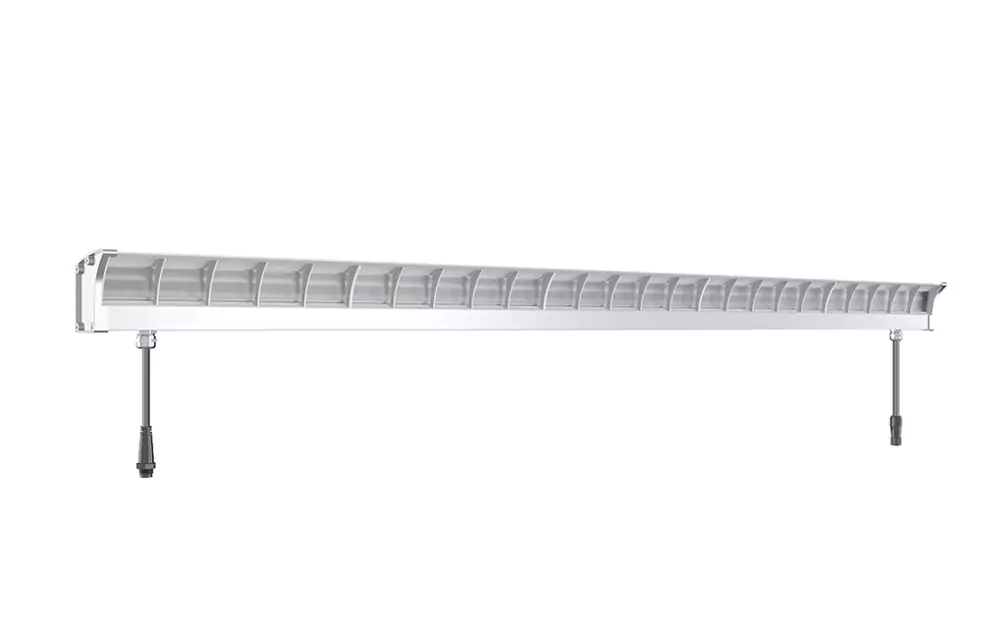

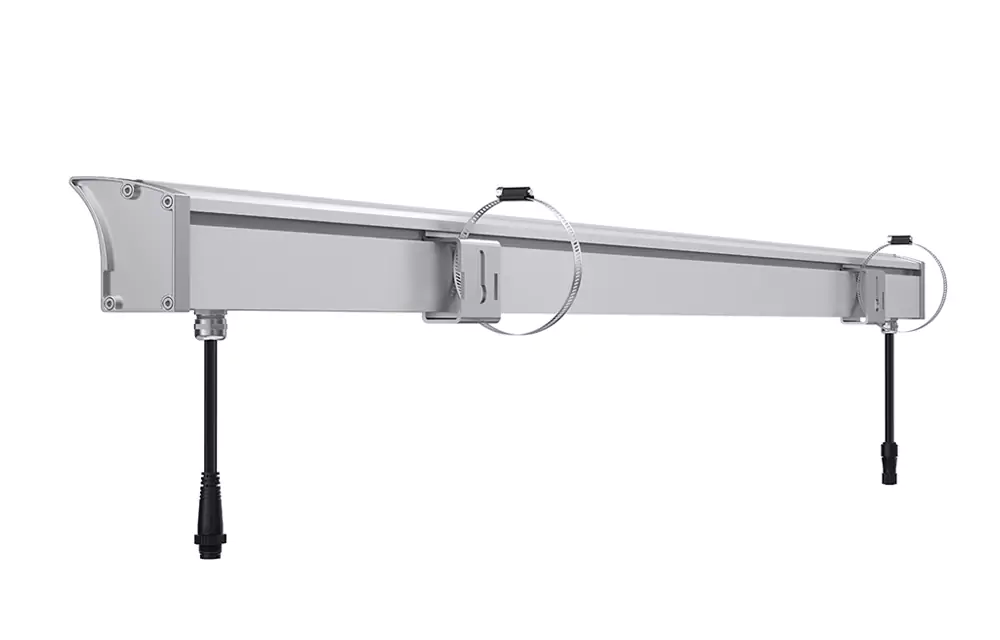

mimiLED 3 Series Linear LED Tennis Court Light

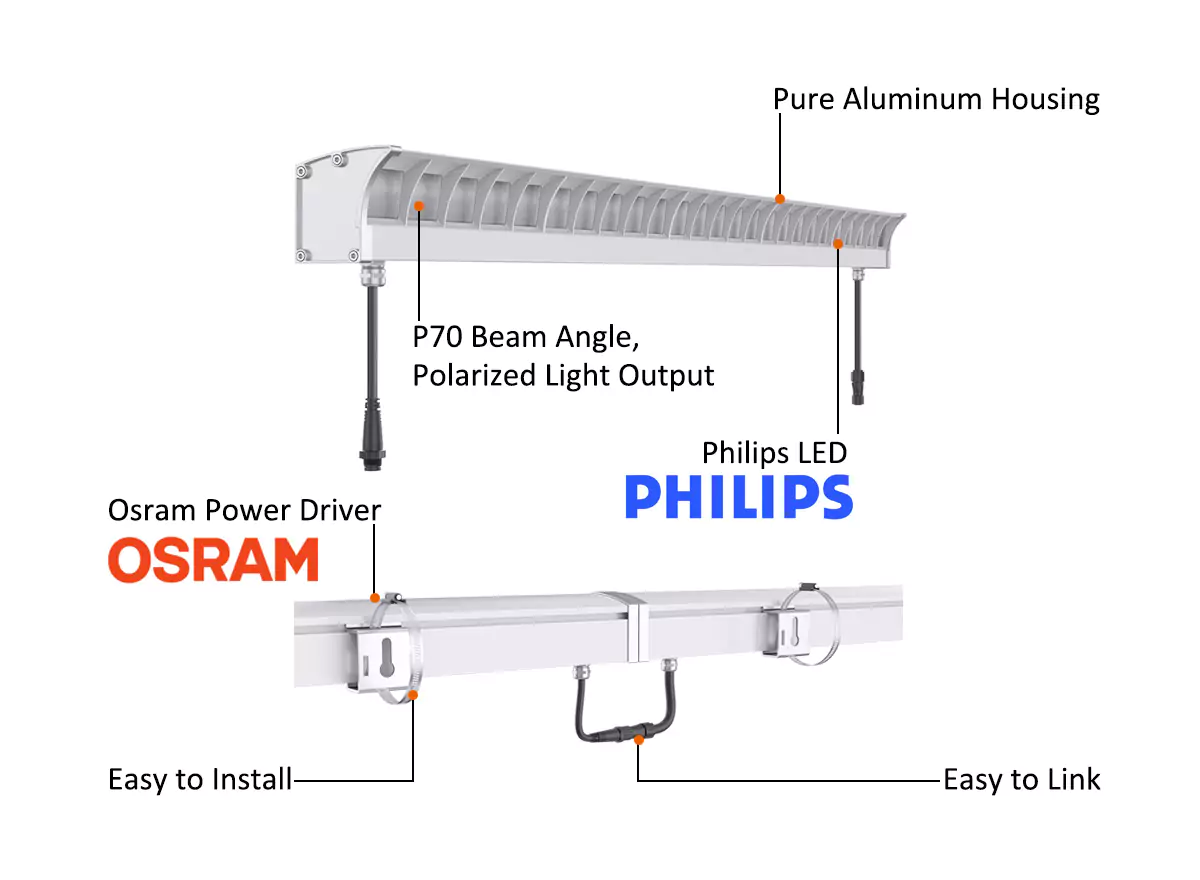

Key Features:
■ Unique new design for tennis court.
■ Anti-glaring and low UGR.
■ Polarized light output from reflecting structure offers best uniformity and lux.
■ Very easy on installation and maintenance.
■ High bright Philips LED chip, more than 150LM/W.
Specification
| Model No. | ML-TC30W-UCF3 | ML-TC43W-UCF3 | ML-TC60W-UCF3 | ML-TC80W-UCF3 |
| Power | 30W | 43W | 60W | 80W |
| LED Chip Brand | Philips | Philips | Philips | Philips |
| Power Driver Brand | Osram | Osram | Osram | Osram |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 |
| Beam Angle | P70 | P70 | P70 | P70 |
| Input Voltage | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W | >150LM/W |
| Initial Flux | >4, 500lm | >6, 450lm | >9, 000lm | >12, 000lm |
| Working Environment | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Fixture Dimension | 1511*117*83MM | 1511*117*83MM | 1511*117*83MM | 1511*117*83MM |
| Material | Pure Aluminum | Pure Aluminum | Pure Aluminum | Pure Aluminum |
Anti-glaring, Low UGR

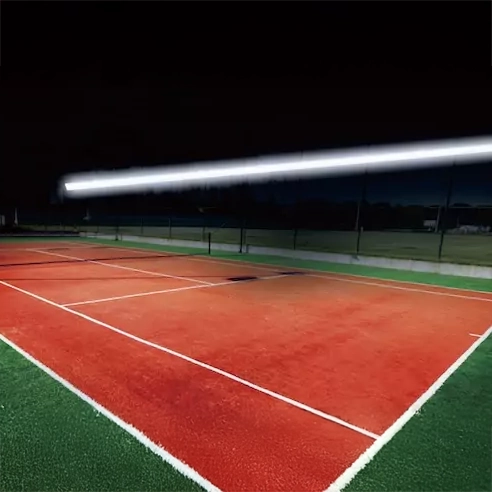

Perfect for tennis court

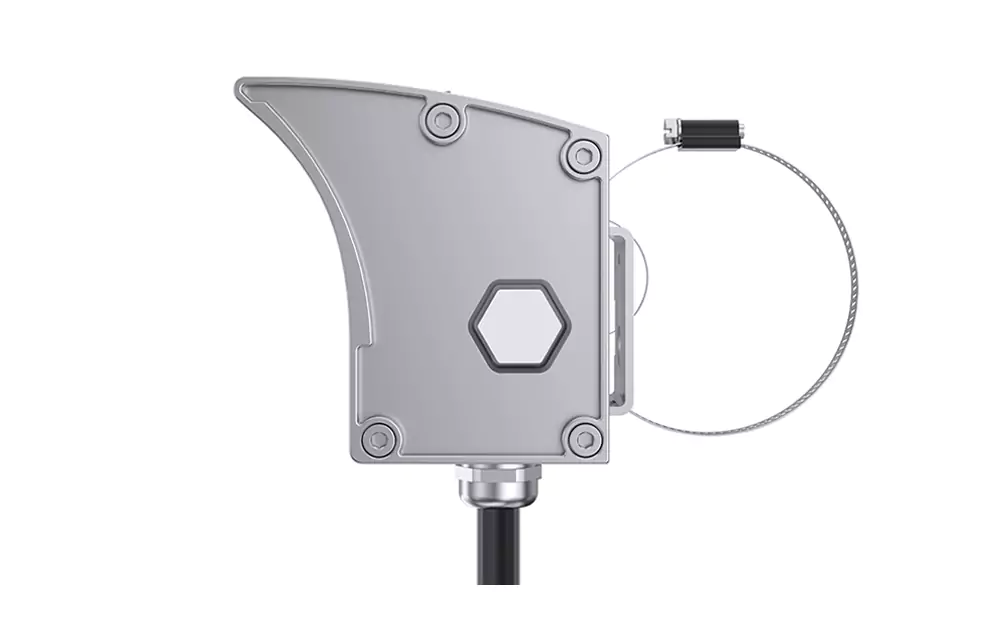

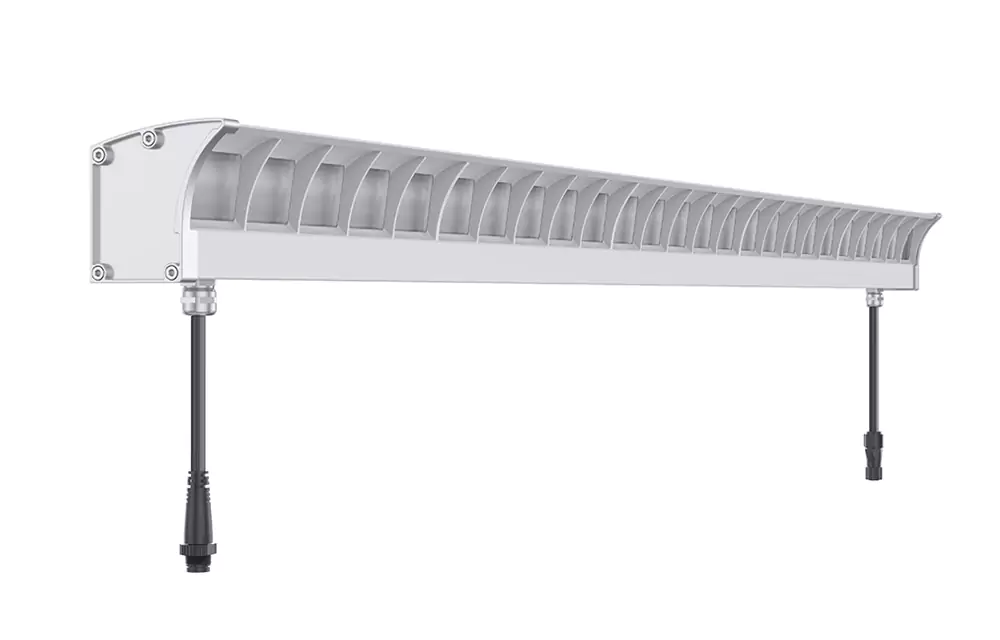

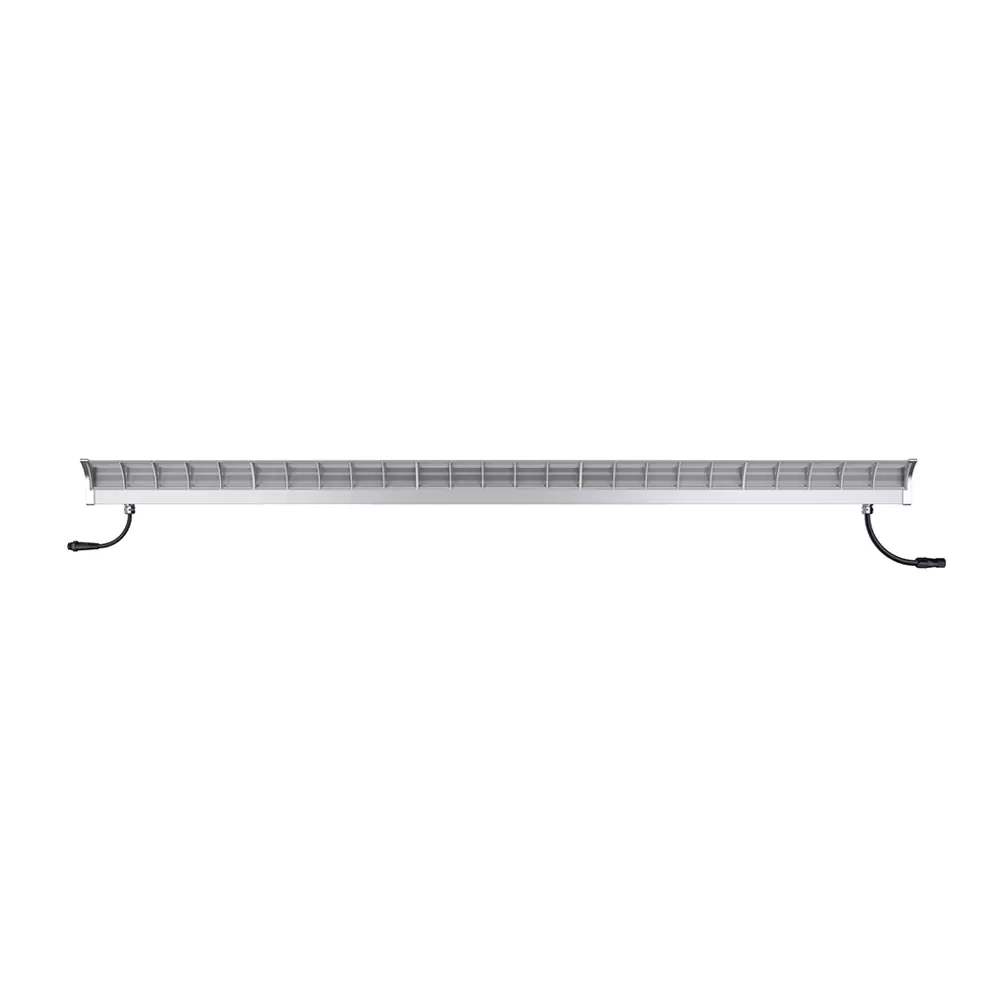

Specially Design for Tennis Court
With a shield in front to minimize the glare and increase the light uniformity distribution.

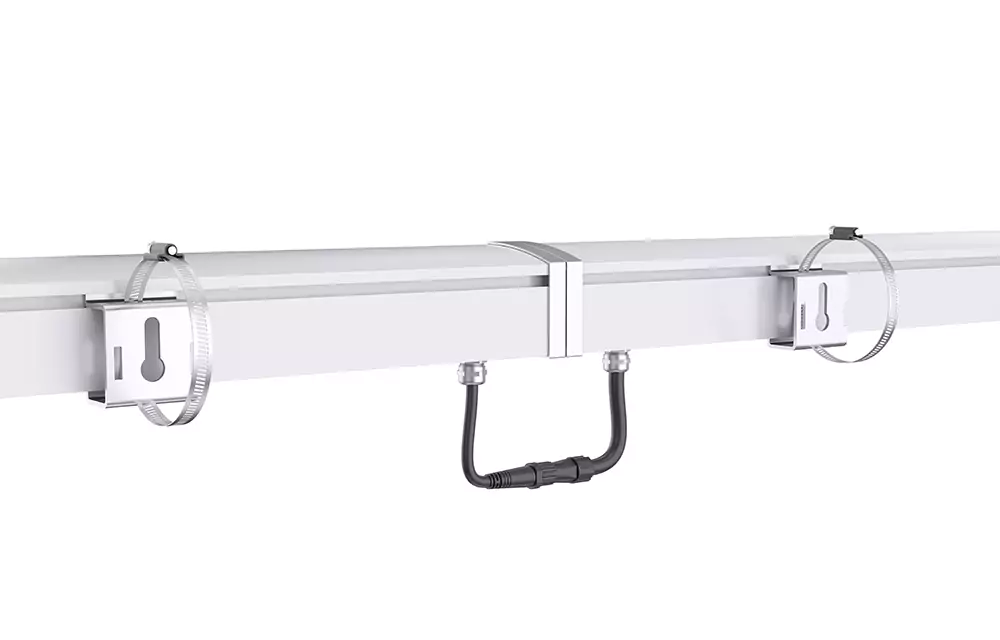

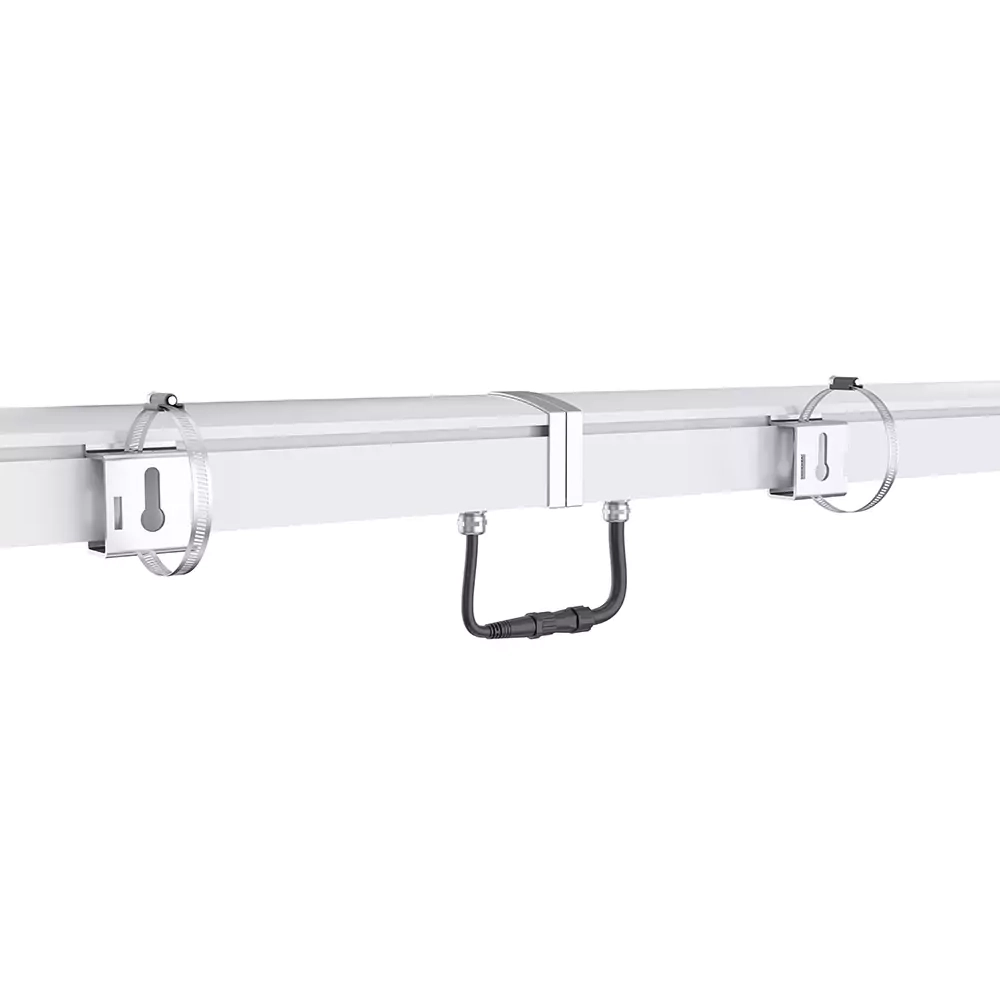

Easy to Link

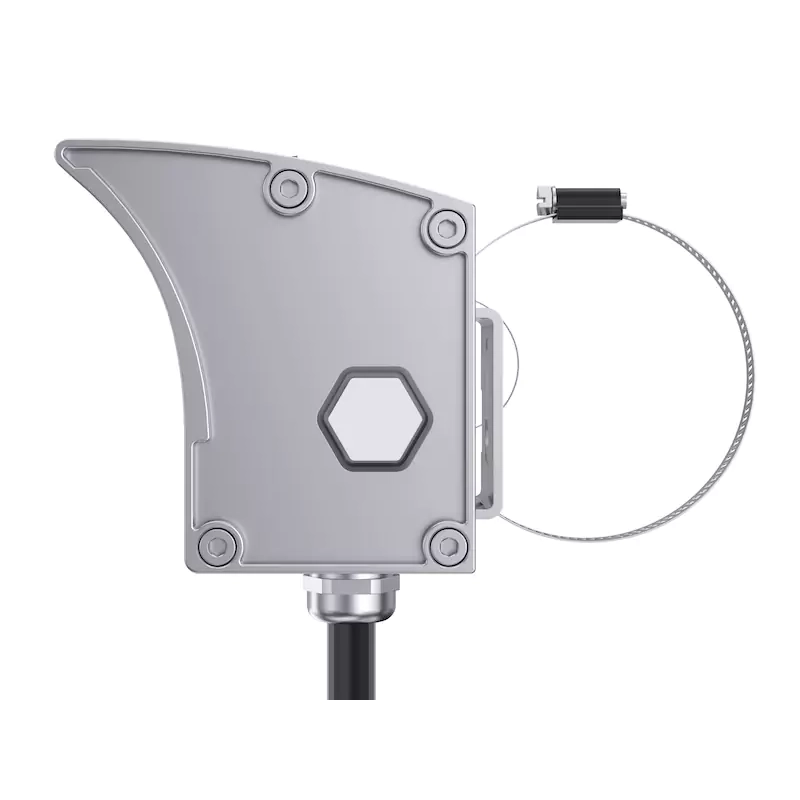

Easy Installation and Maintenance
Lower your labor cost and material cost.

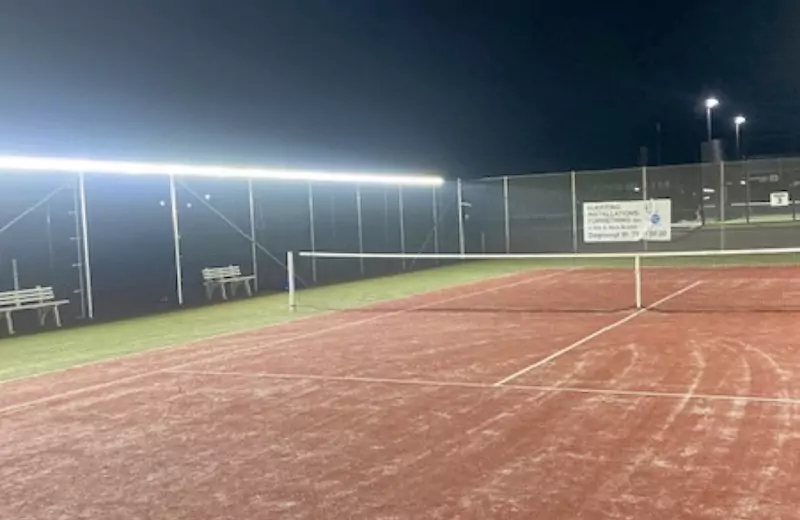

P70 Beam Angle Apply to All Tennis Courts
No shadow, no glare light, no back light

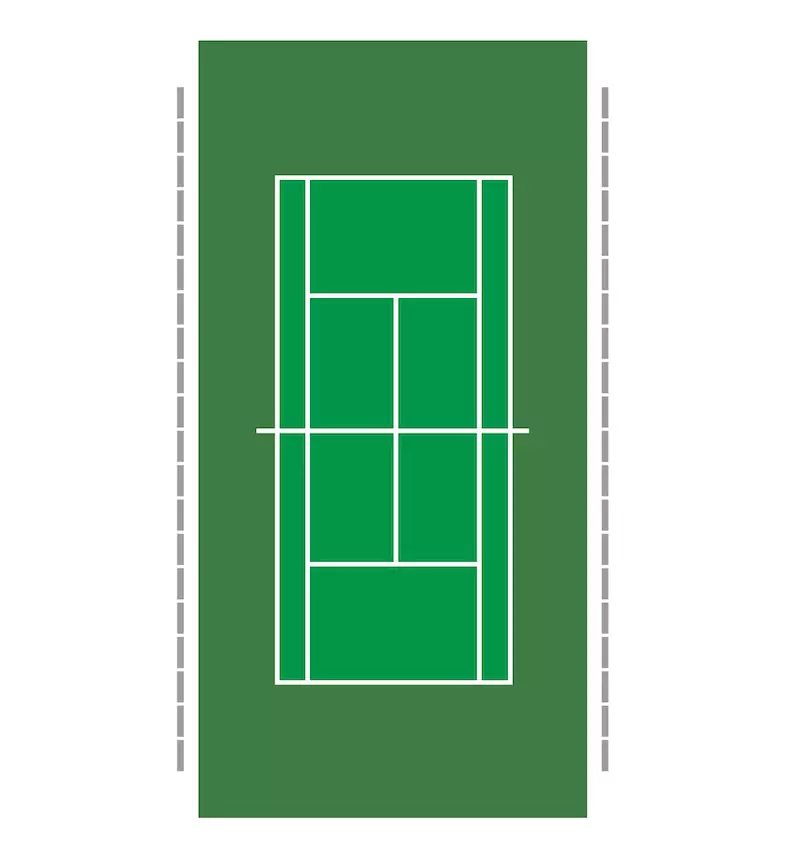

For Single Tennis Play Area
Solution 1: Class Ⅲ, 200lux
2 Lines of 20pcs 30W, total 40pcs 30W
Power option: 1, 200W
Lux: 200lux
Uniformity: >0.7
Solution 2: Class Ⅱ, 300lux
2 Lines of 20pcs 43W, total 40pcs 43W
Power option: 1, 720W
Lux: 300lux
Uniformity: >0.7
Solution 3: Class Ⅰ, 600lux
2 Lines of 20pcs 80W, total 40pcs 80W
Power option: 3, 200W
Lux: 600lux
Uniformity: >0.7

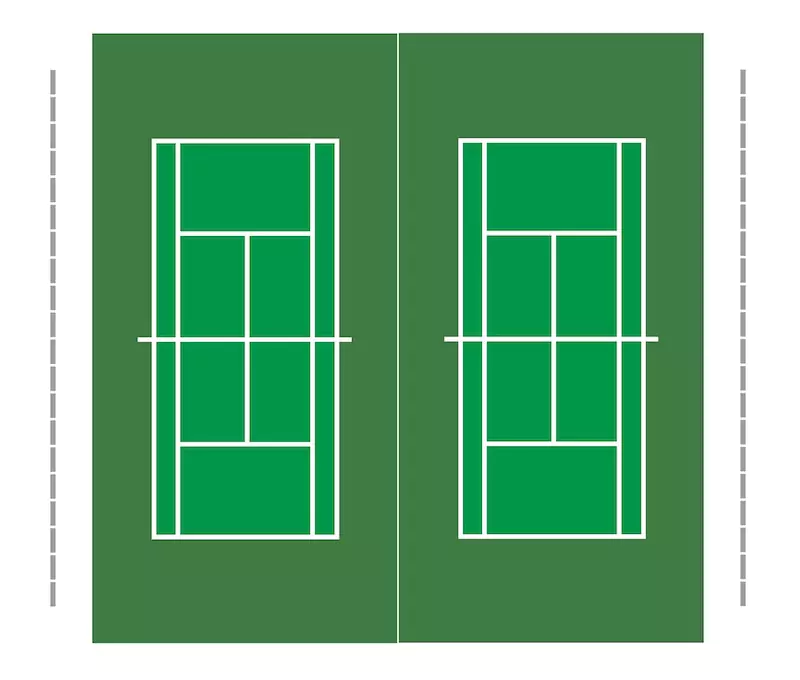

For Double Tennis Play Area
Solution 1: Class Ⅲ, 200lux
2 Lines of 20pcs 60W, total 40pcs 60W
Power option: 2, 400W
Lux: 200lux
Uniformity: >0.7
Solution 2: Class Ⅱ, 300lux
2 Lines of 20pcs 80W, total 40pcs 80W
Power option: 3, 200W
Lux: 300lux
Uniformity: >0.7
Level of Competition
| Application | Class I | Class II | Class III |
|---|---|---|---|
| International & National | ■ | ||
| Regional | ■ | ■ | |
| Local | ■ | ■ | ■ |
| Training | ■ | ■ | |
| Recreational | ■ |

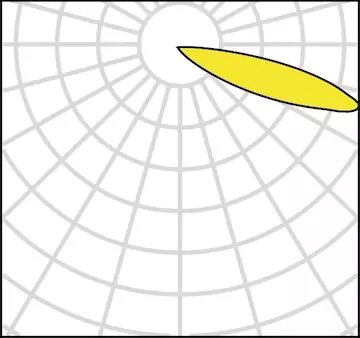

Light Distribution Curve
P70

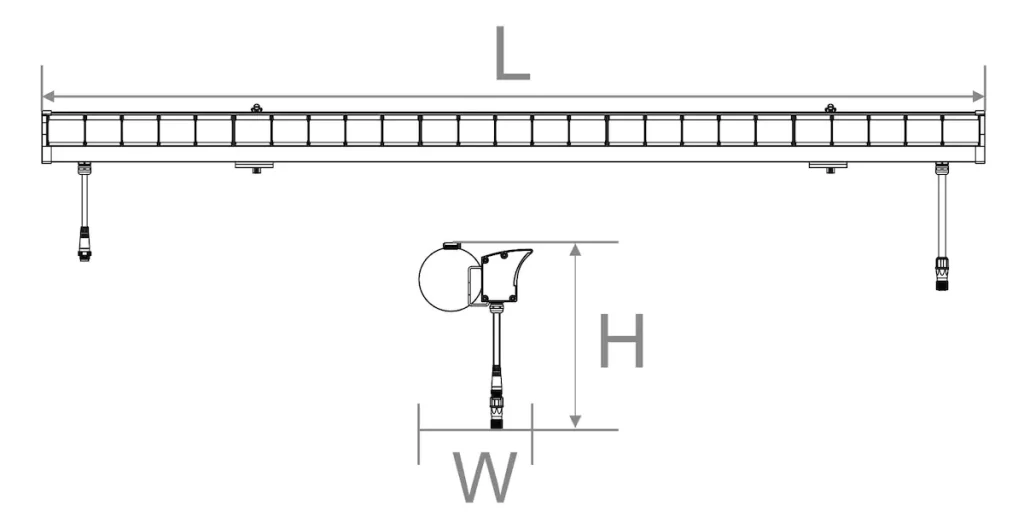

Product size
| Power | L | W | H |
| 30W | 1511mm | 117mm | 83mm |
| 43W | 1511mm | 117mm | 83mm |
| 60W | 1511mm | 117mm | 83mm |
| 80W | 1511mm | 117mm | 83mm |
