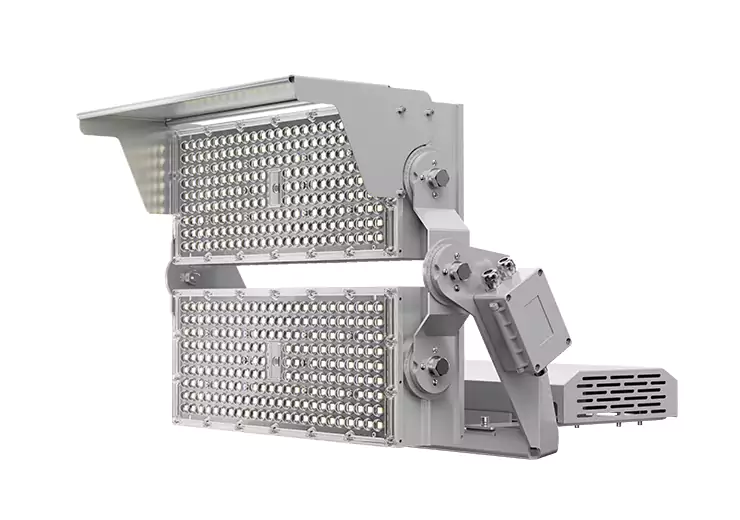

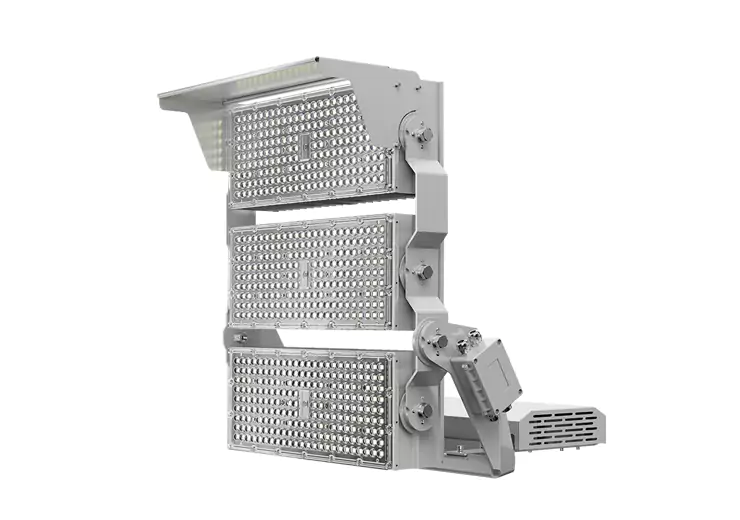

mimiLED 8 Series LED Flood Light

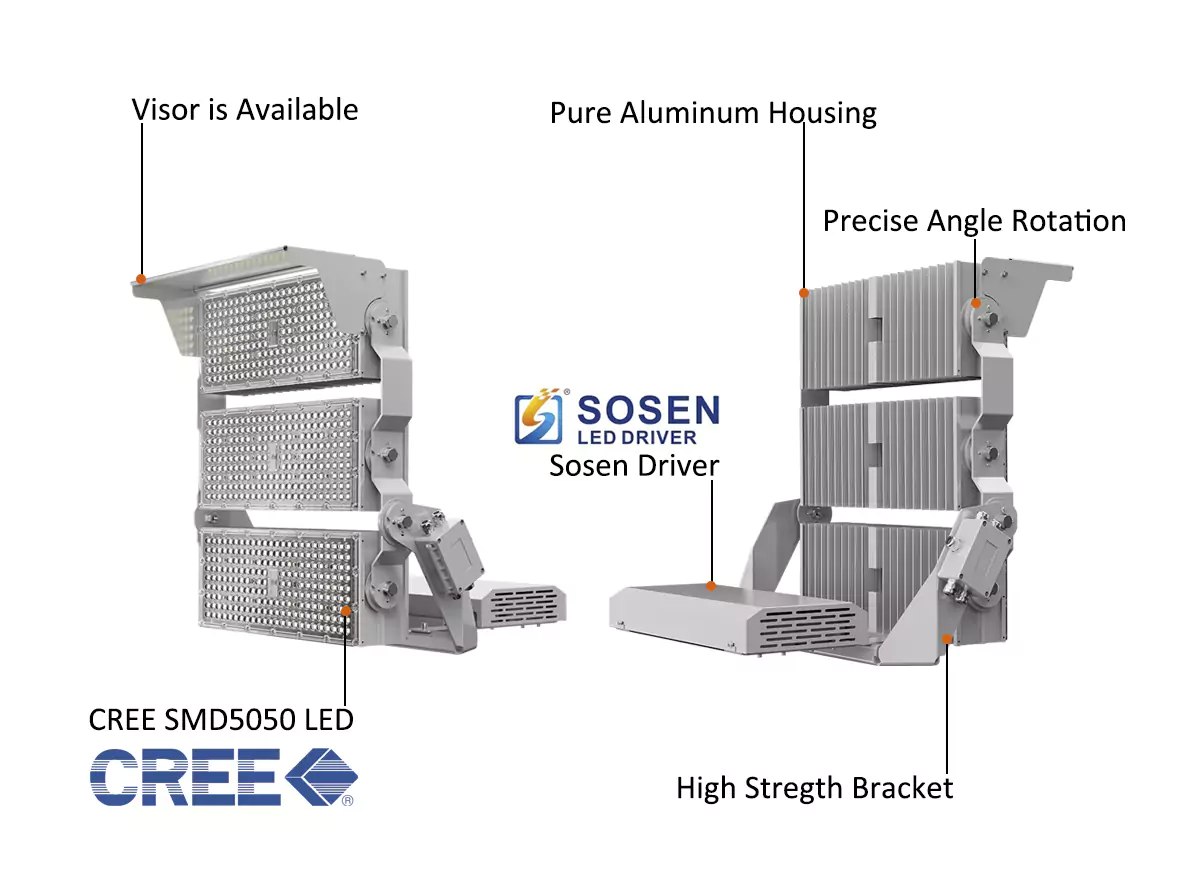

Key Features:
■ High bright CREE SMD5050 LED chip, 180LM/W.

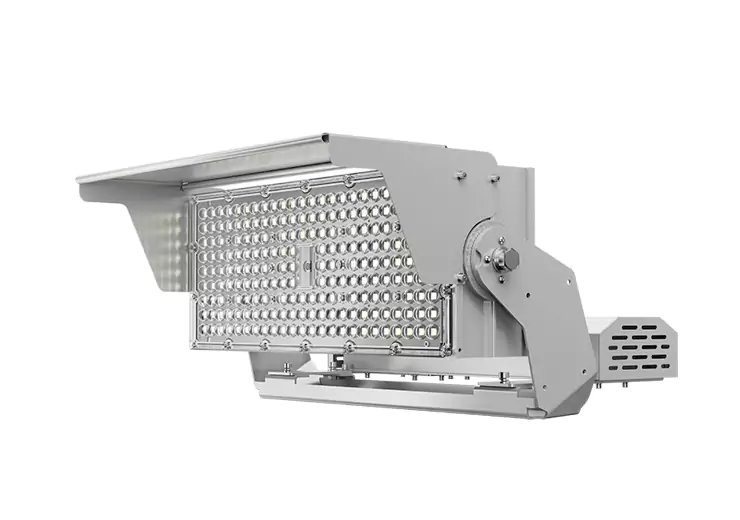

■ With visor, excellent to minimize light pollution and spill light.
■ Light weight with good heat dissipation, easy installation.
■ Bracket with dial for better support and precise angle rotation.
■ Various beam angles for different project requirements.
Specification
| Model No. | ML-F500W-UCF8 | ML-F1000W-UCF8 | ML-F1500W-UCF8 |
| Power | 500W | 1000W | 1500W |
| LED Chip Brand | CREE | CREE | CREE |
| Power Driver Brand | Sosen | Sosen | Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 |
| Beam Angle | 20°/30°/60°/P50 | 20°/30°/60°/P50 | 20°/30°/60°/P50 |
| Input Voltage | AC 180-305V | AC 180-305V | AC 180-305V |
| Surge Protection | 6KV/20KV | 6KV/20KV | 6KV/20KV |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >180LM/W | >180LM/W | >180LM/W |
| Initial Flux | >90, 000LM | >180, 000LM | >270, 000LM |
| Working Environment | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 |
| Impact Test | IK08 | IK08 | IK08 |
| Dimmable | 1-10V/DALI | 1-10V/DALI | 1-10V/DALI |
| Fixture Dimension | 250*498*195MM | 421*605*265MM | 631*605*265MM |
| Material | Pure Aluminum | Pure Aluminum | Pure Aluminum |

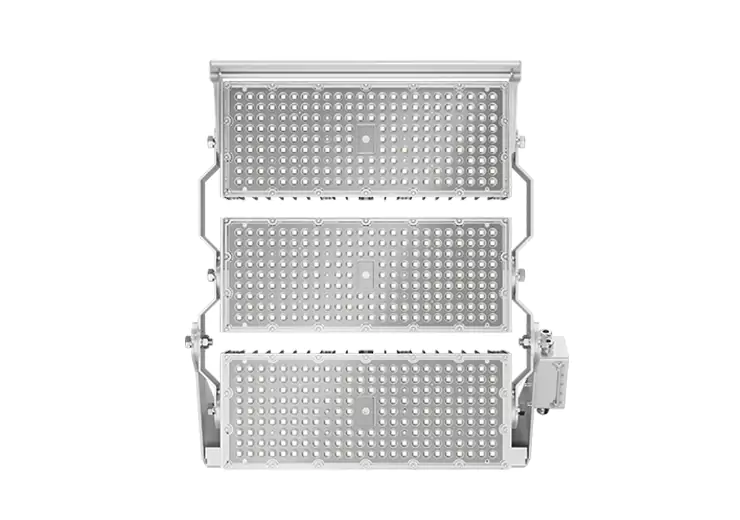

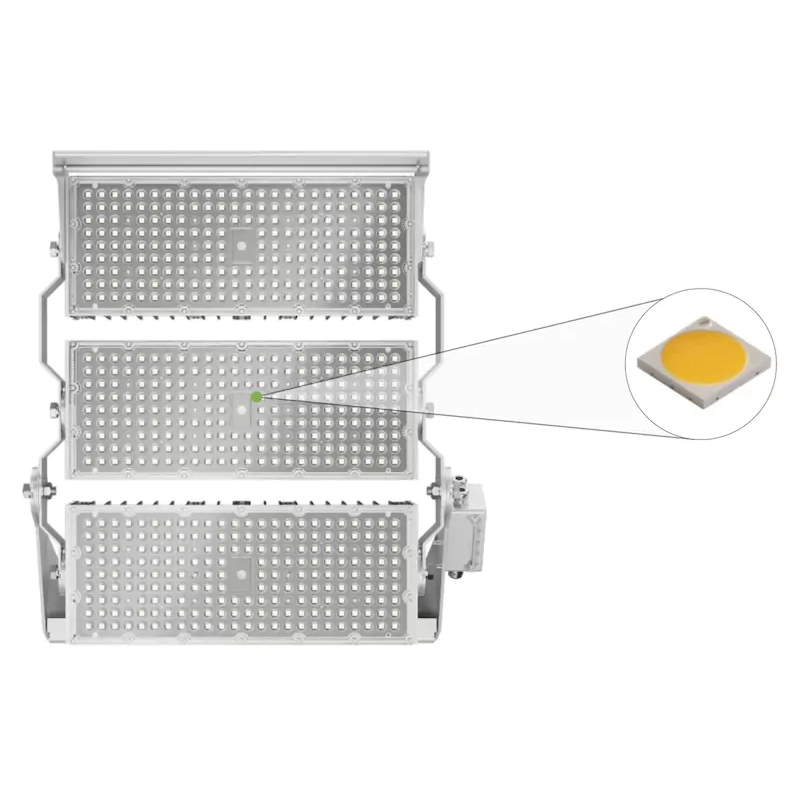

High Bright CREE SMD5050 LED
180LM/W, Long lifespan

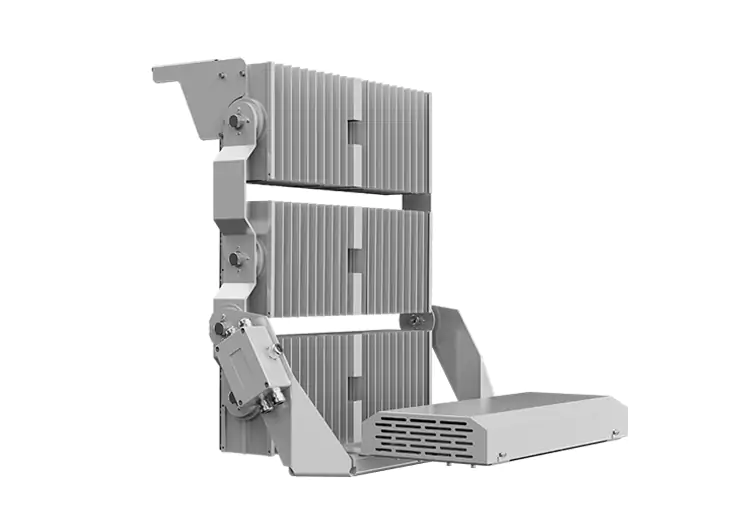

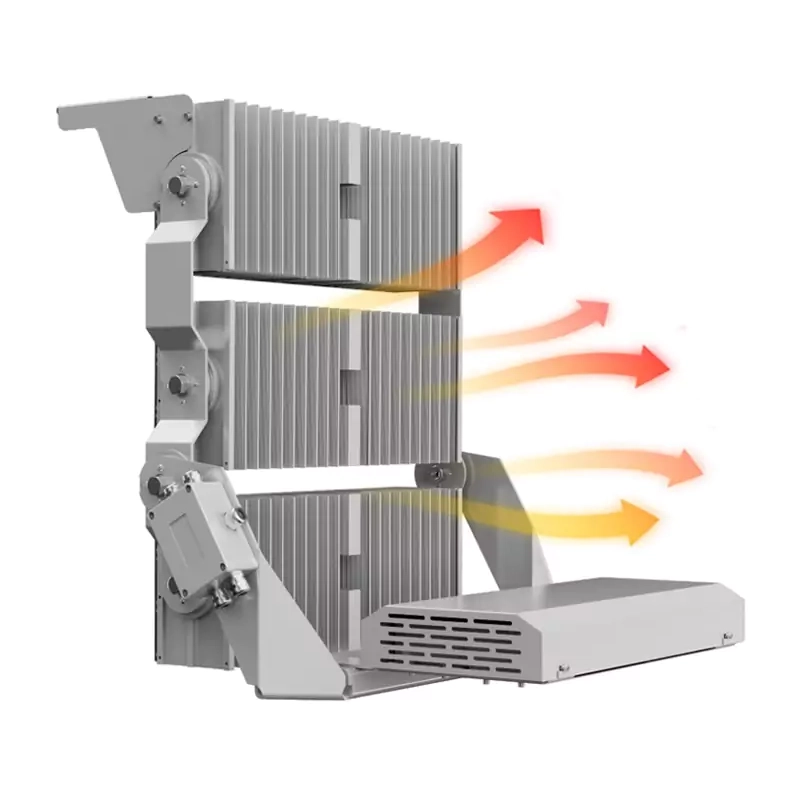

Pure Aluminum Housing
Excellent heat dissipation

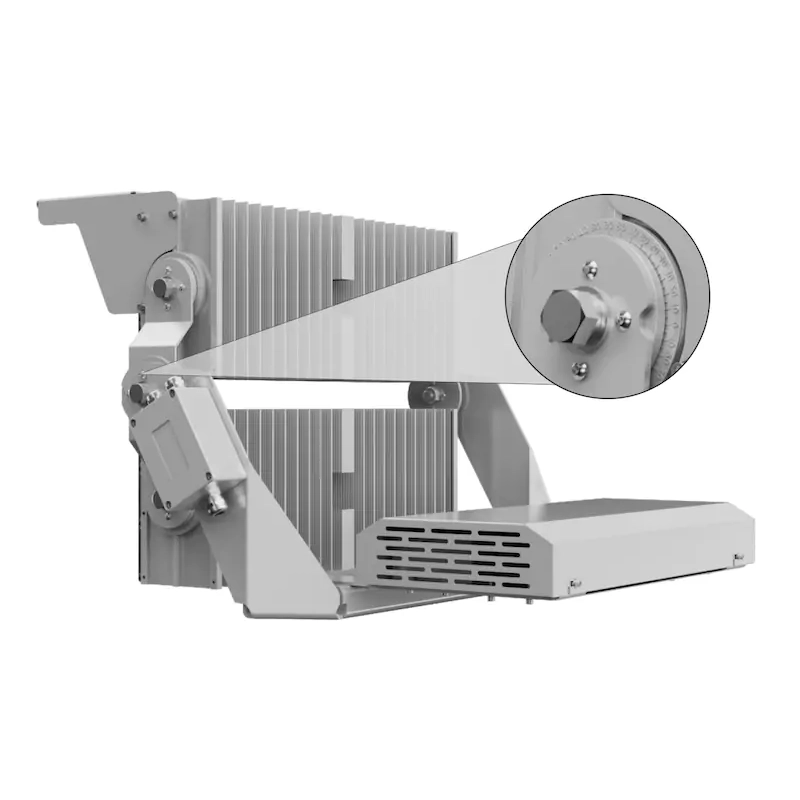

Precise Angle Rotation
The bracket with a dial to provide good support and precise angle adjustment for the lamp fixture.

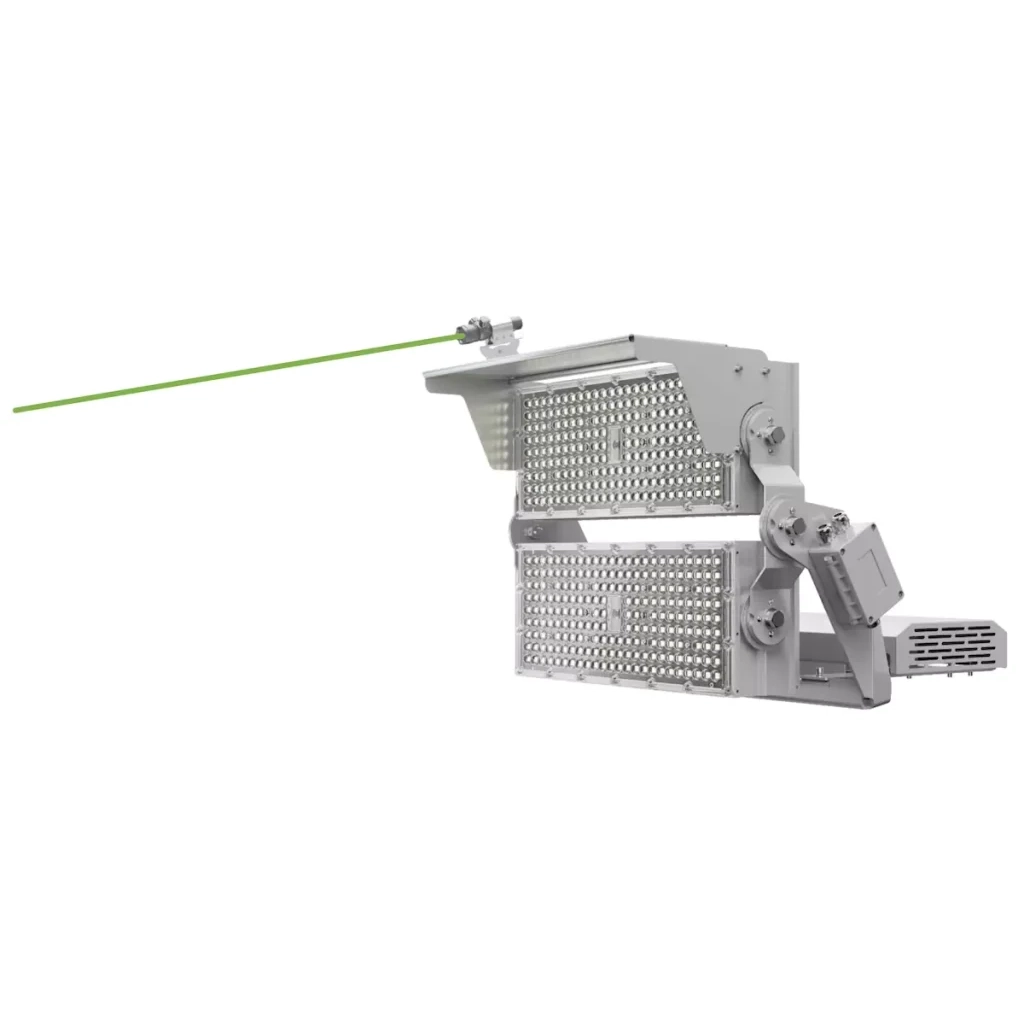

Laser Sight is Optional

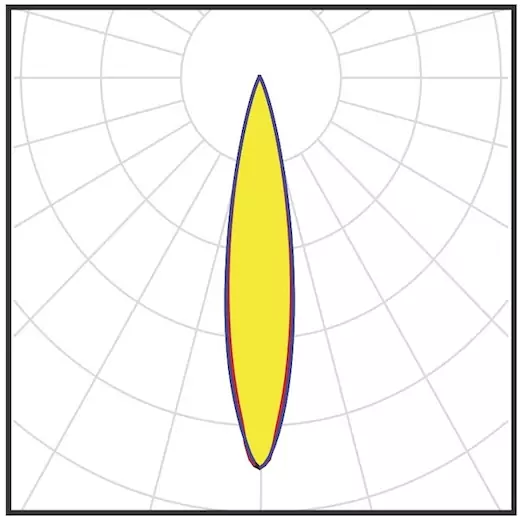

Light Distribution Curve
20°

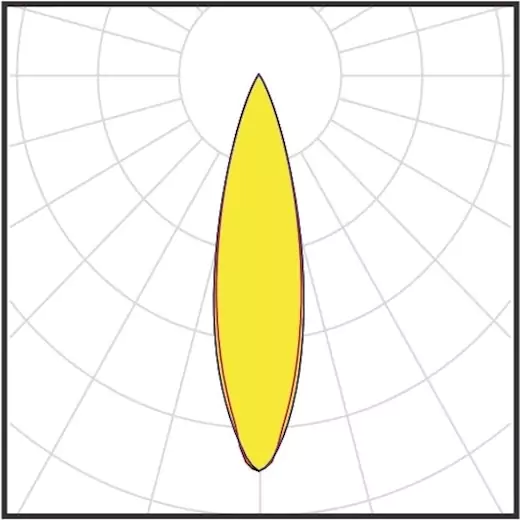

30°

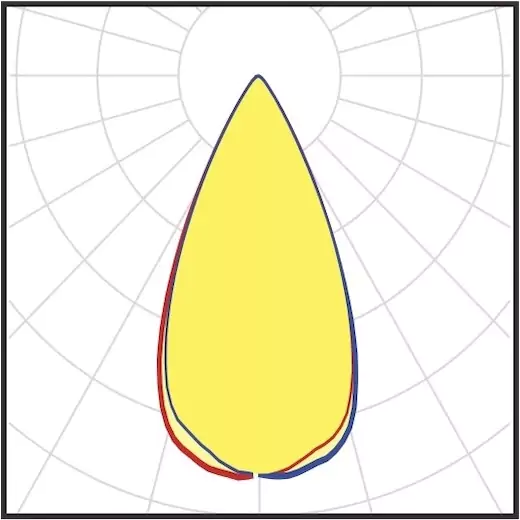

60°

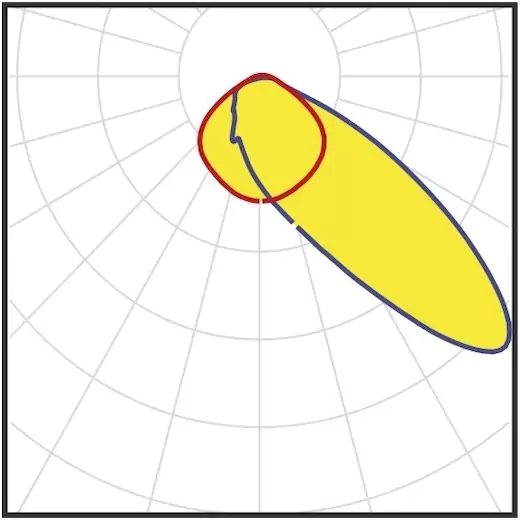

P50

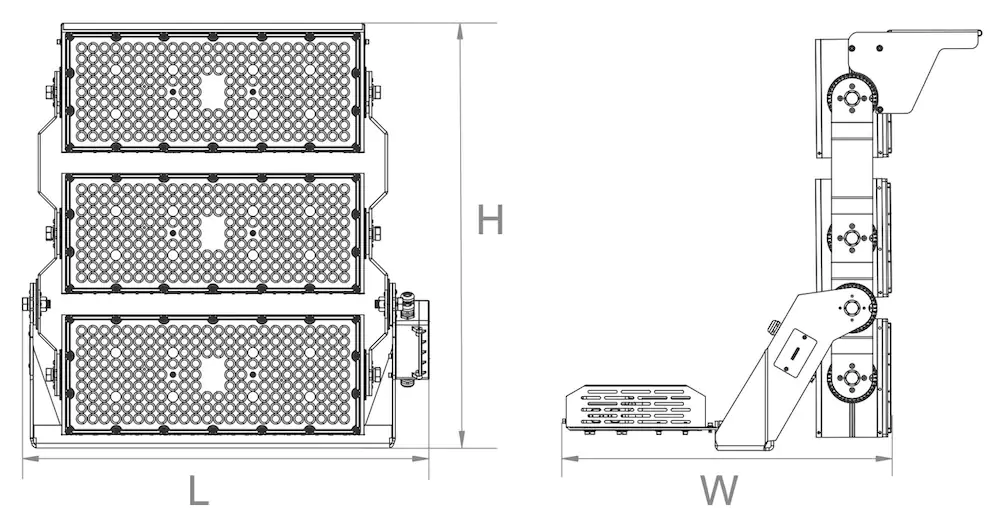

Product size
| Power | L | W | H |
| 500W | 498mm | 195mm | 250mm |
| 1000W | 605mm | 265mm | 421mm |
| 1500W | 605mm | 265mm | 631mm |
