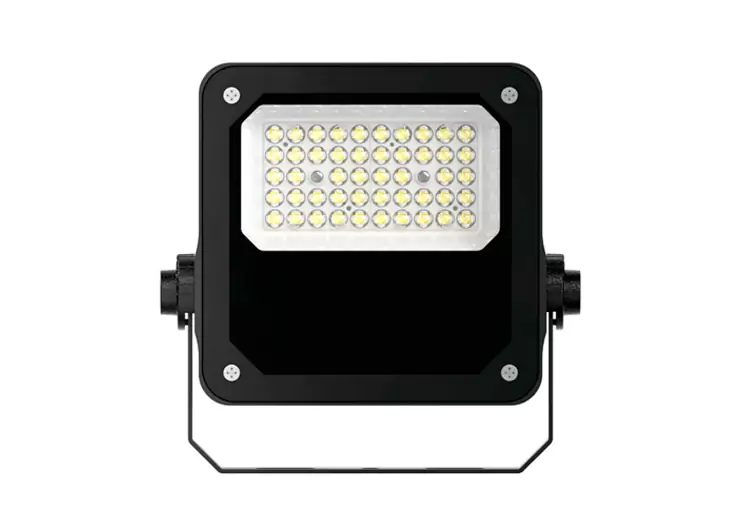

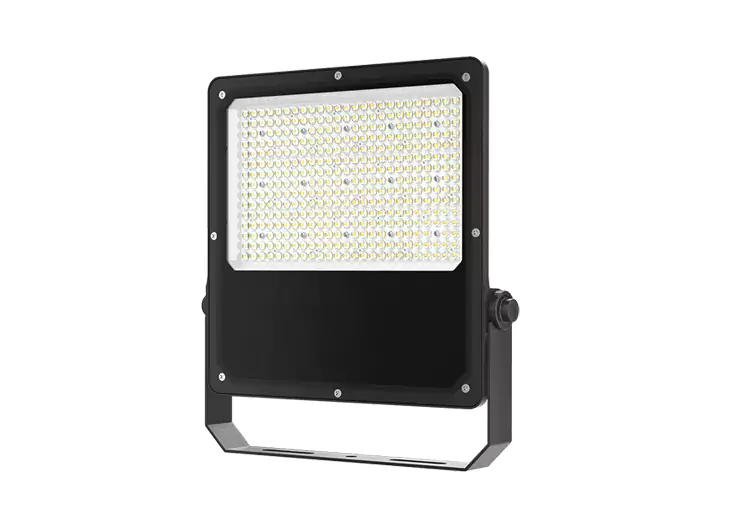

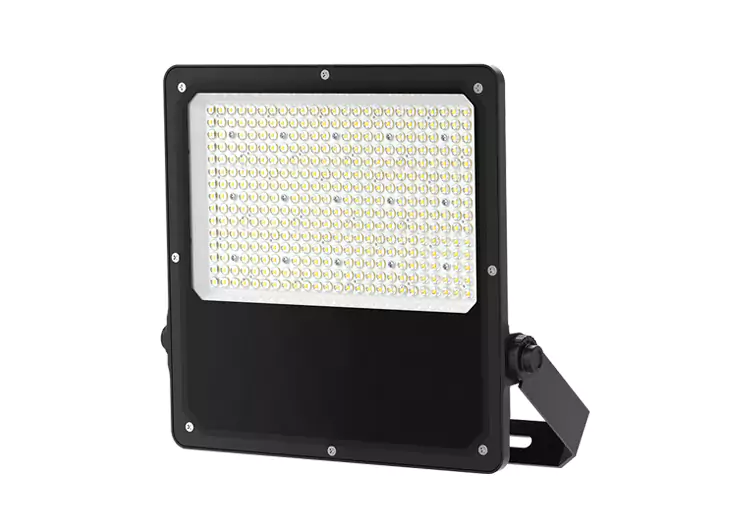

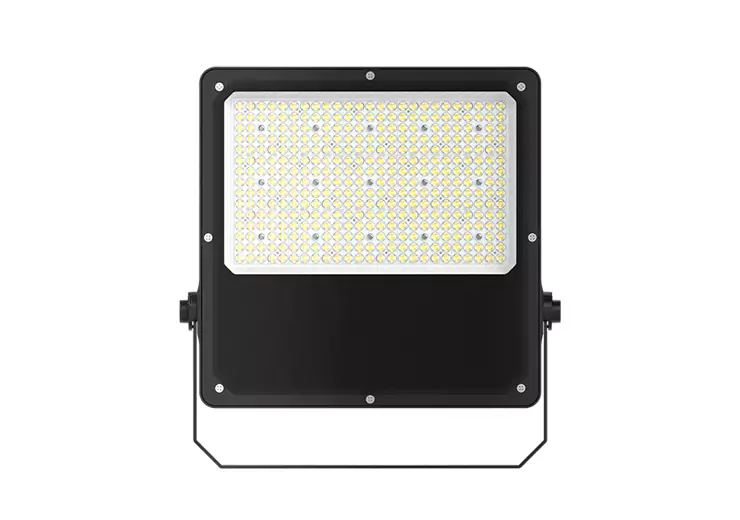

mimiLED 9 Series LED Flood Light
Key Features:
■ High efficiency Philips LED chip, 170LM/W.
■ Top grade die-casting aluminum housing, good heat dissipation.
■ Different beam angles for your different applications.
■ 10-50W with plug-in sensor optional.
■ 1-10 & Dali dimmable are both available for you.
Specification
| Model No. | ML-F10W-UCF9 | ML-F20W-UCF9 | ML-F30W-UCF9 | ML-F50W-UCF9 |
| Power | 10W | 20W | 30W | 50W |
| LED Chip Brand | Philips | Philips | Philips | Philips |
| Power Driver Brand | Done | Done | Done | Done |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 |
| Beam Angle | 20°/30°/45°/60°/90°/120°/T2M/T3M/MLP30/P45/100×60° | |||
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >170LM/W | >160LM/W | >150LM/W | >160LM/W |
| Initial Flux | >1, 700lm | >3, 200lm | >4, 500lm | >8, 000lm |
| Working Environment | -40℃~+50℃ | -40℃~+50℃ | -40℃~+50℃ | -40℃~+50℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Fixture Dimension | 195*197*42MM | 195*197*42MM | 290*230*48MM | 290*230*48MM |
| Net Weight | 0.9KGS | 0.9KGS | 0.9KGS | 1.6KGS |
| Material | Die-casting Aluminum + Tempered Glass | |||
| Model No. | ML-F100W-UCF9 | ML-F150W-UCF9 | ML-F200W-UCF9 | ML-F300W-UCF9 |
| Power | 100W | 150W | 200W | 300W |
| LED Chip Brand | Philips | Philips | Philips | Philips |
| Power Driver Brand | Sosen | Sosen | Sosen | Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 |
| Beam Angle | 20°/30°/45°/60°/90°/120°/T2M/T3M/MLP30/P45/100×60° | |||
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >170LM/W | >170LM/W | >170LM/W | >170LM/W |
| Initial Flux | >17, 000lm | >25, 500lm | >34, 000lm | >51, 000lm |
| Working Environment | -40℃~+50℃ | -40℃~+50℃ | -40℃~+50℃ | -40℃~+50℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Fixture Dimension | 308*302*53MM | 358*302*53MM | 372*352*53MM | 430*403*58MM |
| Net Weight | 2.4KGS | 2.8KGS | 3.8KGS | 5.9KGS |
| Material | Die-casting Aluminum + Tempered Glass | |||

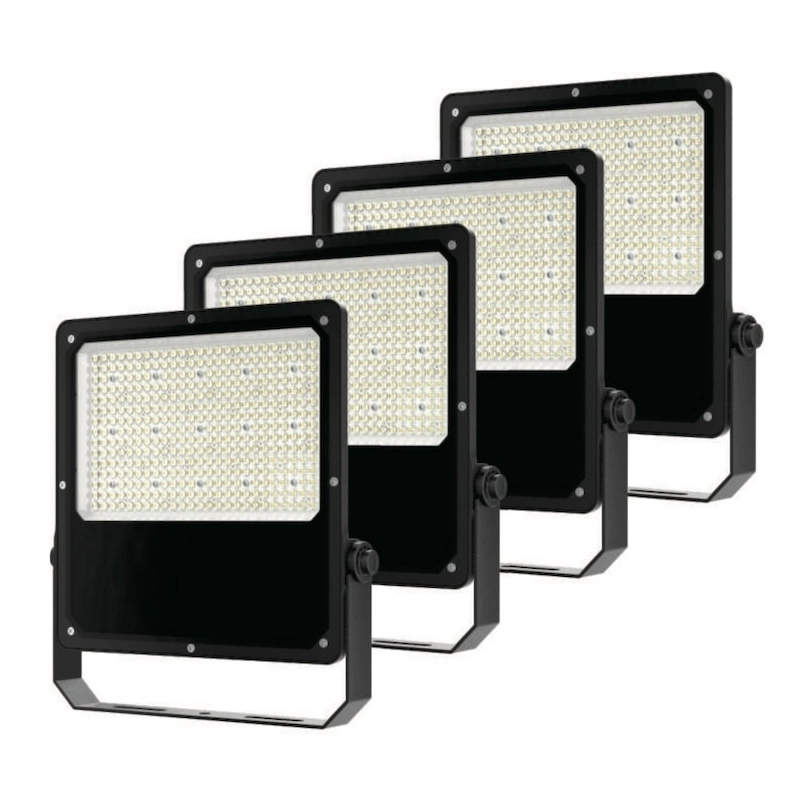

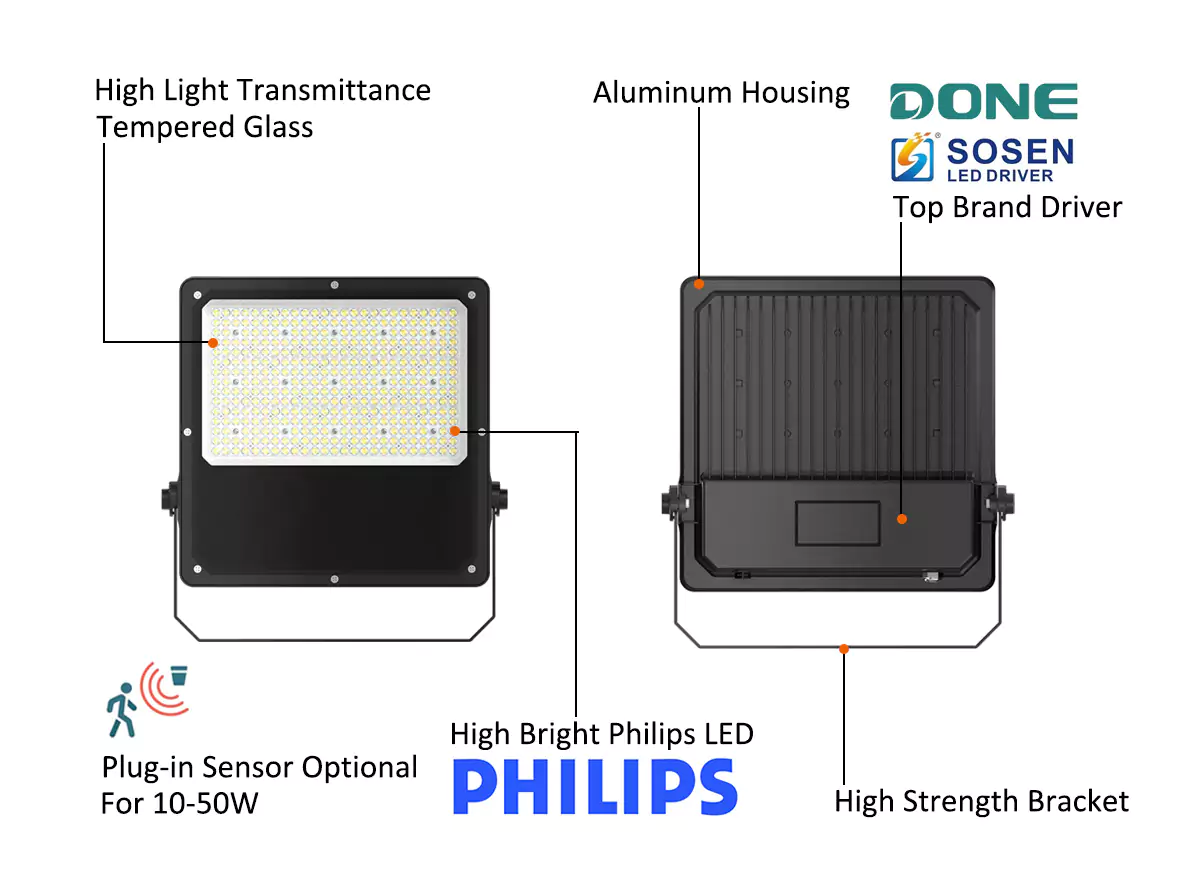

Imported Philips LED Chip
>170LM/W

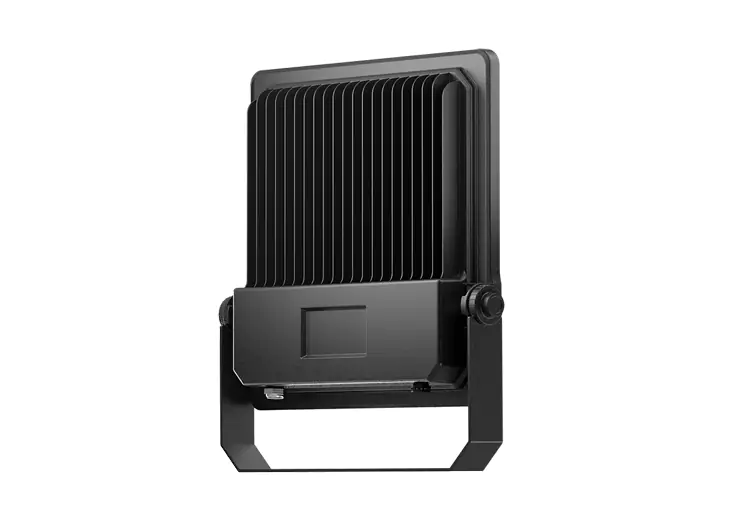

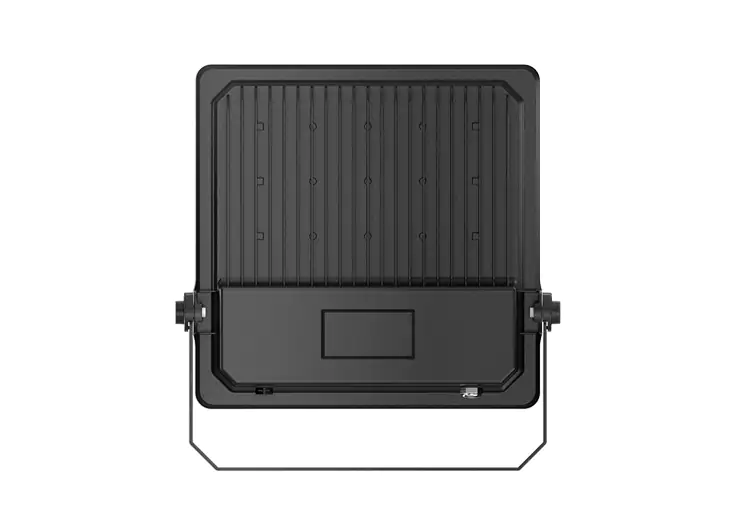

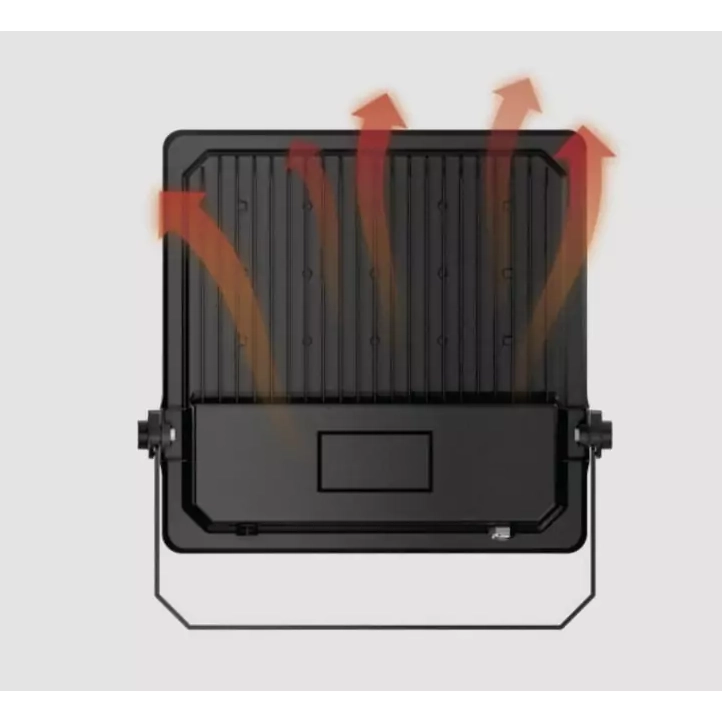

Die-casting Aluminum Housing
Good heat dissipation

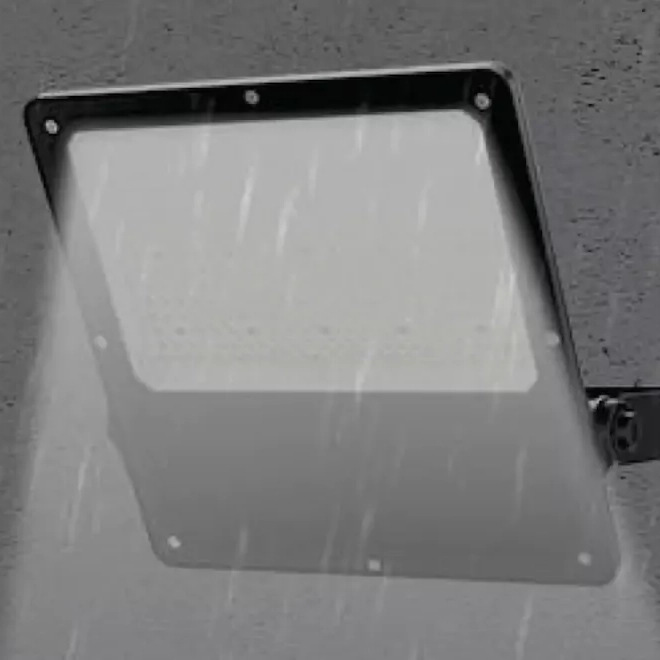

IP66 Waterproof
Excellent to use outside

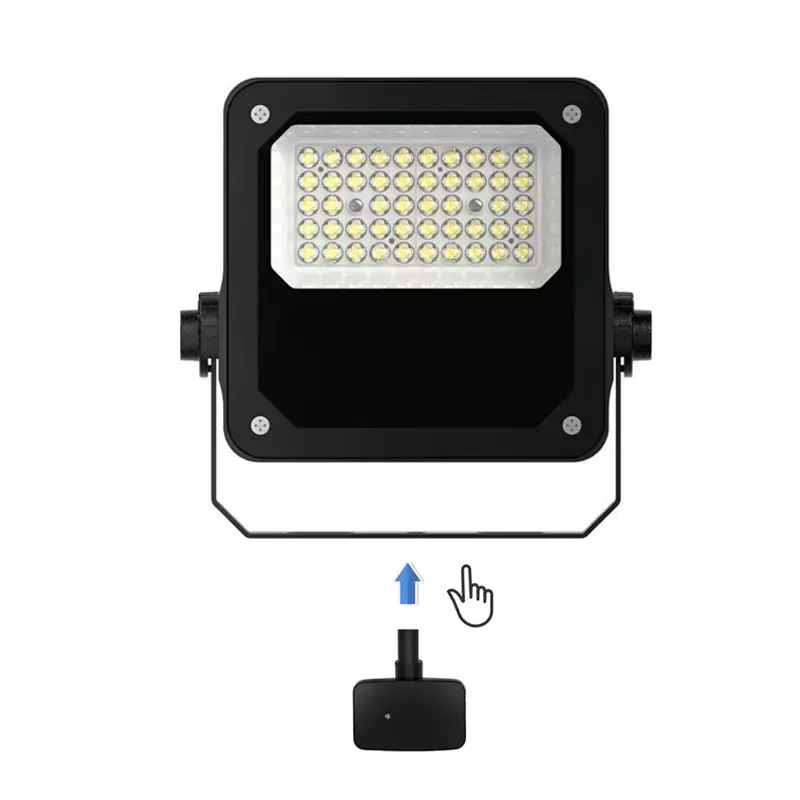

10-50W with Plug-in Sensor
Micro-wave sensor and PIR sensor are optional.
1-10V Dimmable and Dali Dimmable Optional
Different dimmable ways for your different requirements.
Light Distribution Curve

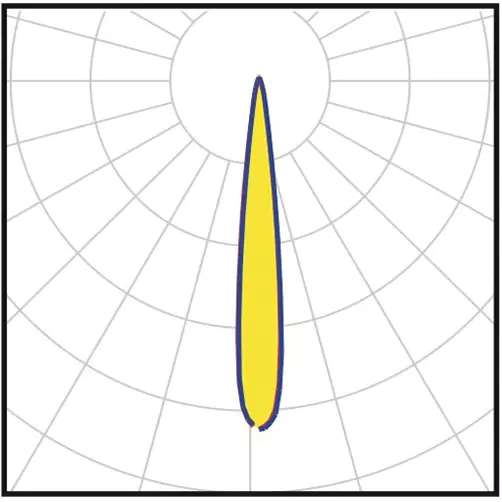

20°

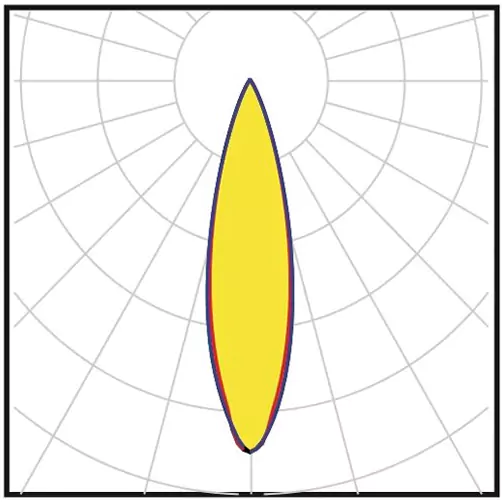

30°

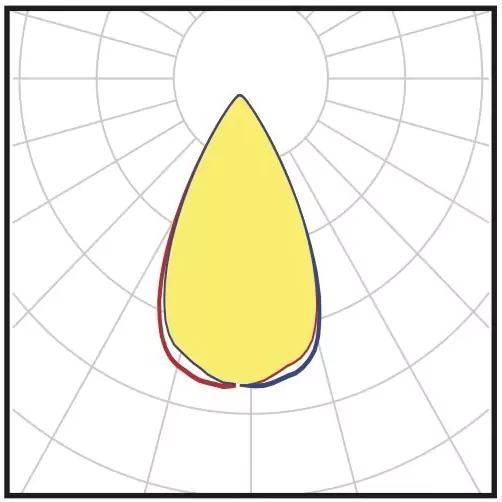

45°
60°

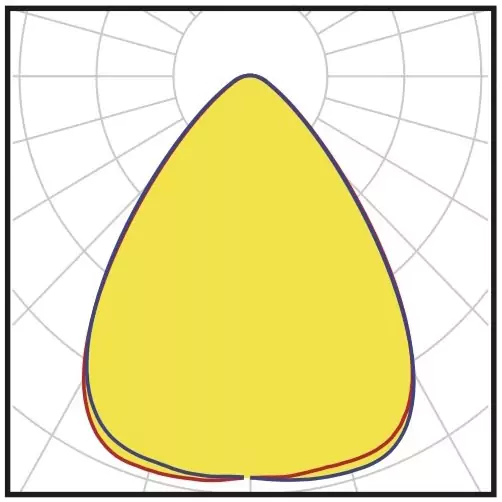

90°

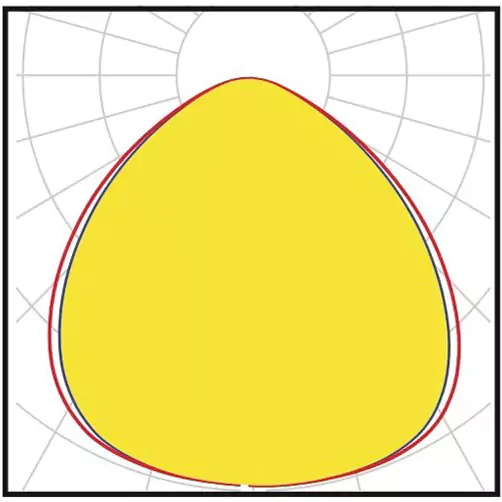

120°

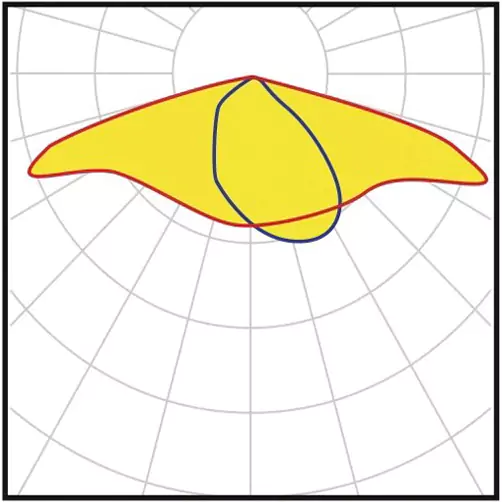

T2M
T3M

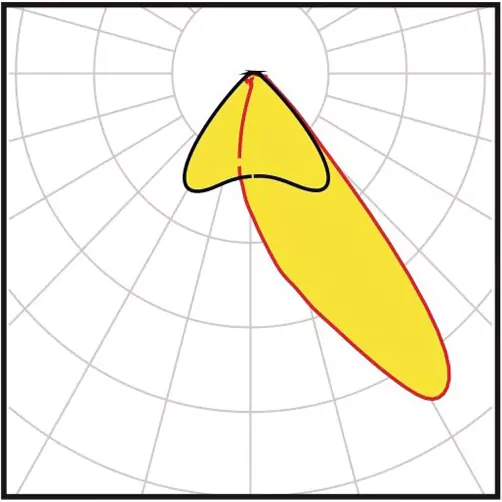

MLP30

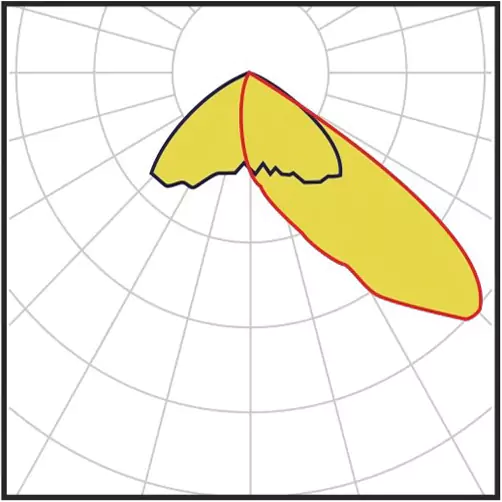

P45
100*60°

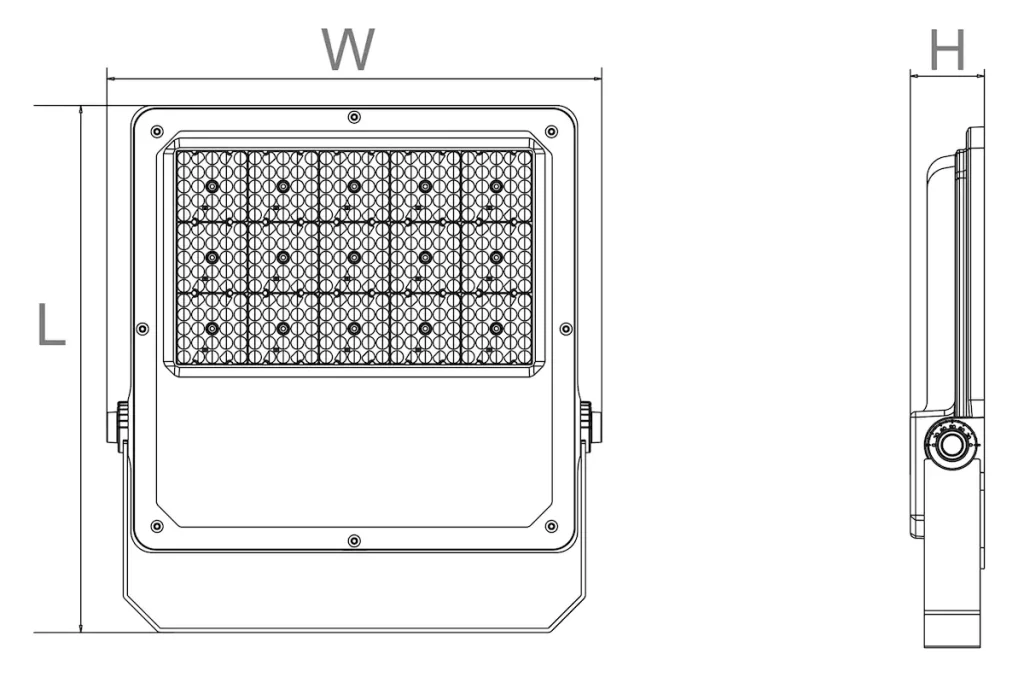

Product size
| Power | L | W | H |
| 10W | 195mm | 197mm | 42mm |
| 20W | 195mm | 197mm | 42mm |
| 30W | 290mm | 230mm | 48mm |
| 20W | 290mm | 230mm | 48mm |
| 100W | 308mm | 302mm | 53mm |
| 150W | 358mm | 302mm | 53mm |
| 200W | 372mm | 352mm | 53mm |
| 300W | 430mm | 403mm | 58mm |
