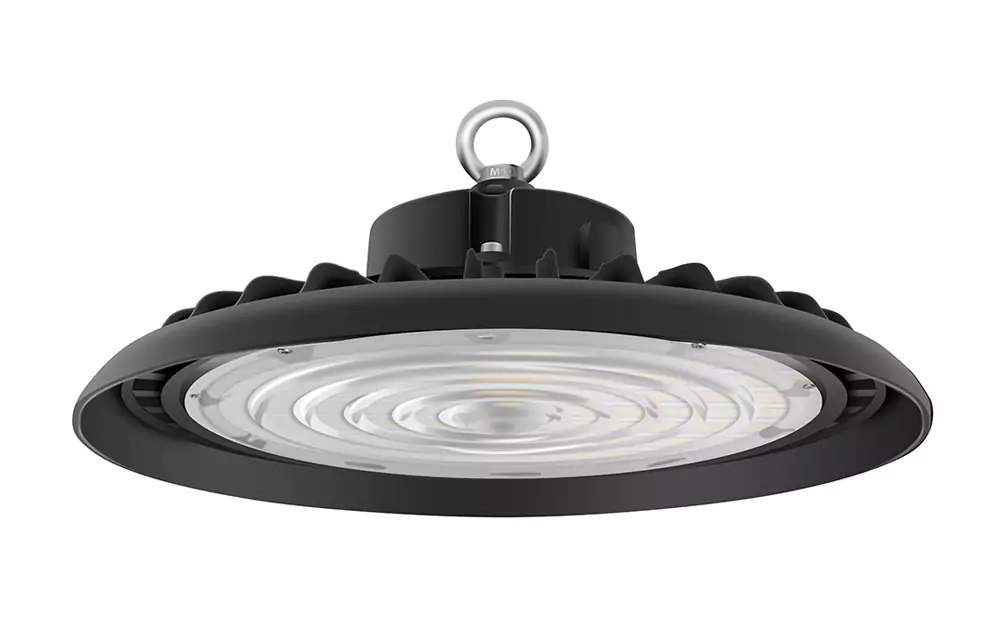

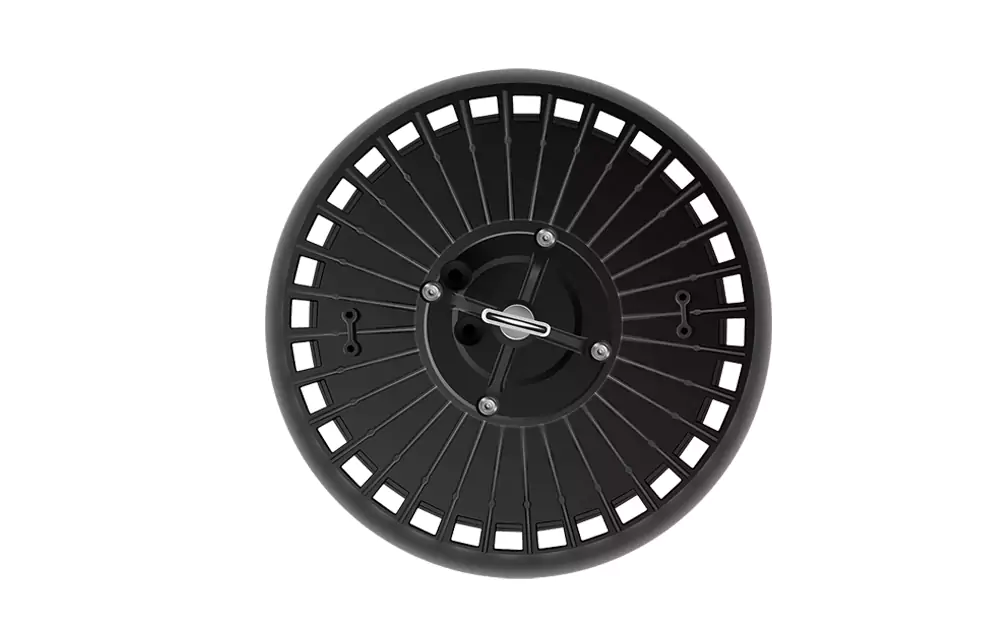

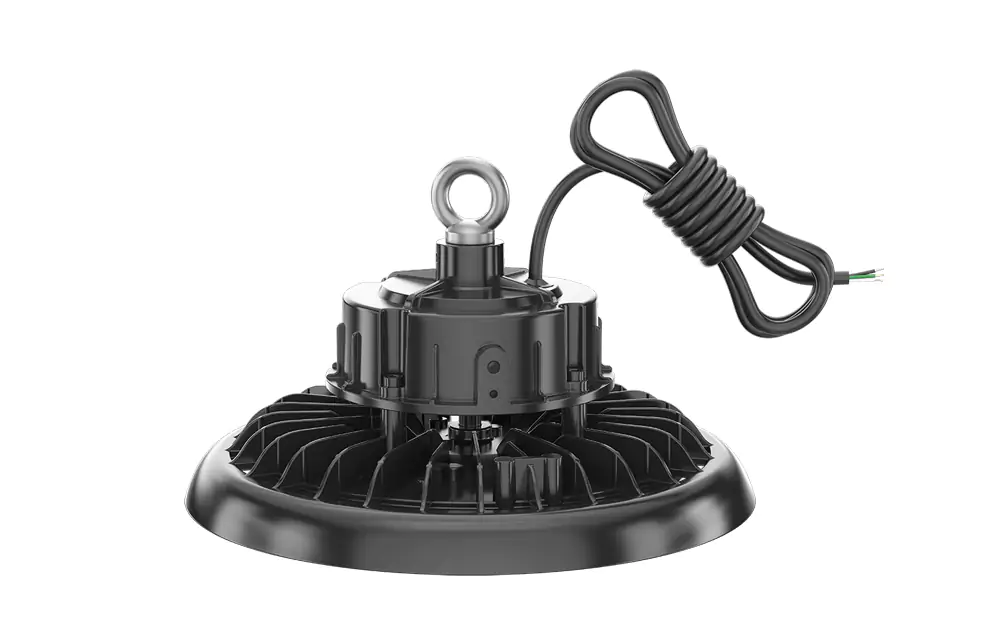

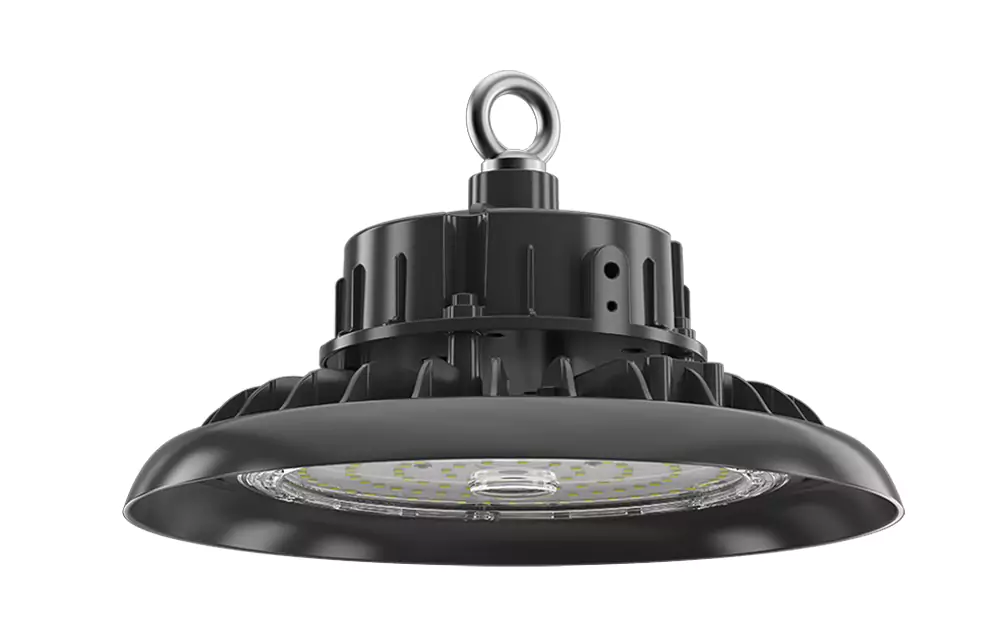

mimiLED 3 Series UFO LED High Bay Light

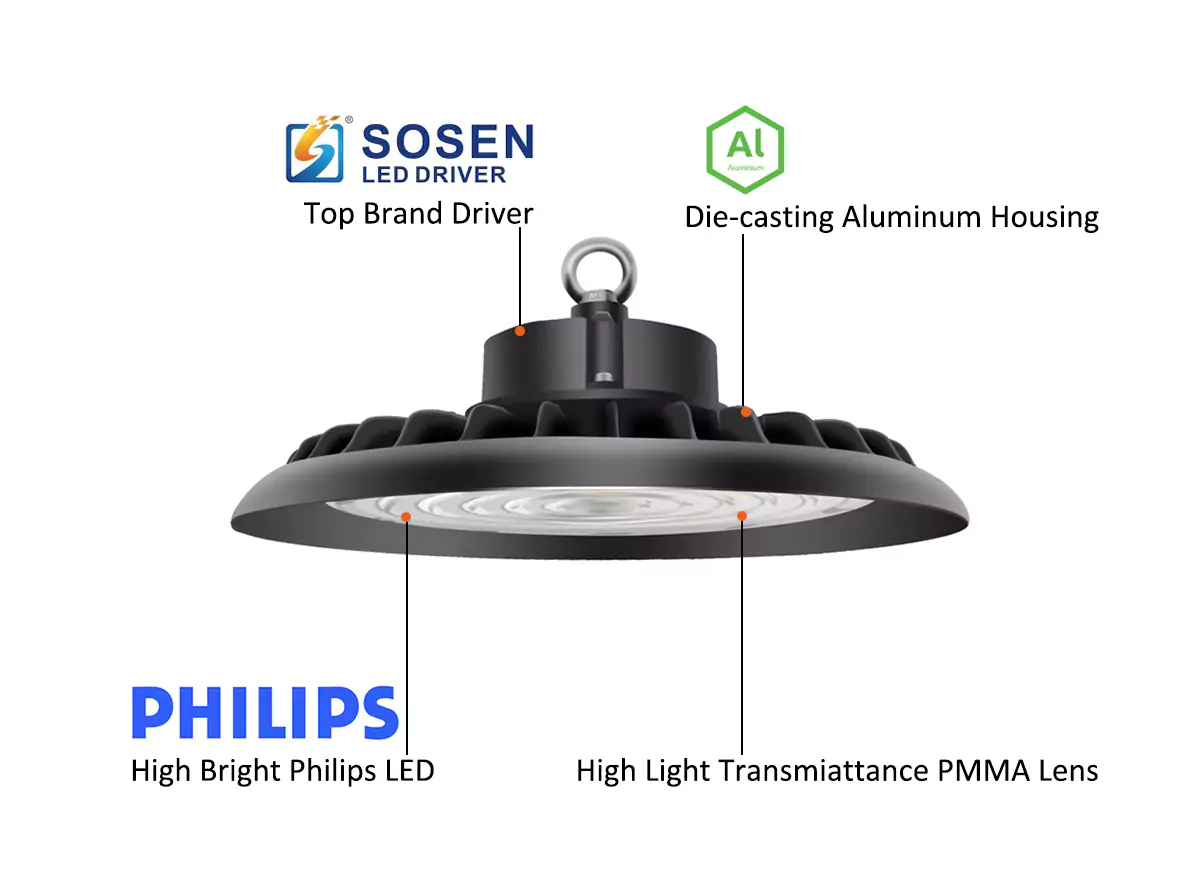

Key Features:
■ High bright Philips LED chip, more than 150LM/W.
■ High efficiency Sosen driver, great brand.
■ Die-casting aluminum housing, good heat dissipation for long lifespan.
■ High light transmitting lens used.
■ Different dimmable ways are optional.
Specification
| Model No. | ML-H100W-UCU3 | ML-H150W-UCU3 | ML-H200W-UCU3 |
| Power | 100W | 150W | 200W |
| LED Chip Brand | Philips | Philips | Philips |
| Power Driver Brand | Sosen | Sosen | Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 |
| Beam Angle | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W |
| Initial Flux | >15, 000LM | >22, 500LM | >30, 000LM |
| Working Environment | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP65 | IP65 | IP65 |
| Fixture Dimension | Φ258*139MM | Φ299*139MM | Φ347*142MM |
| Net Weight | 1.8KGS | 2.2KGS | 3.3KGS |
| Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |

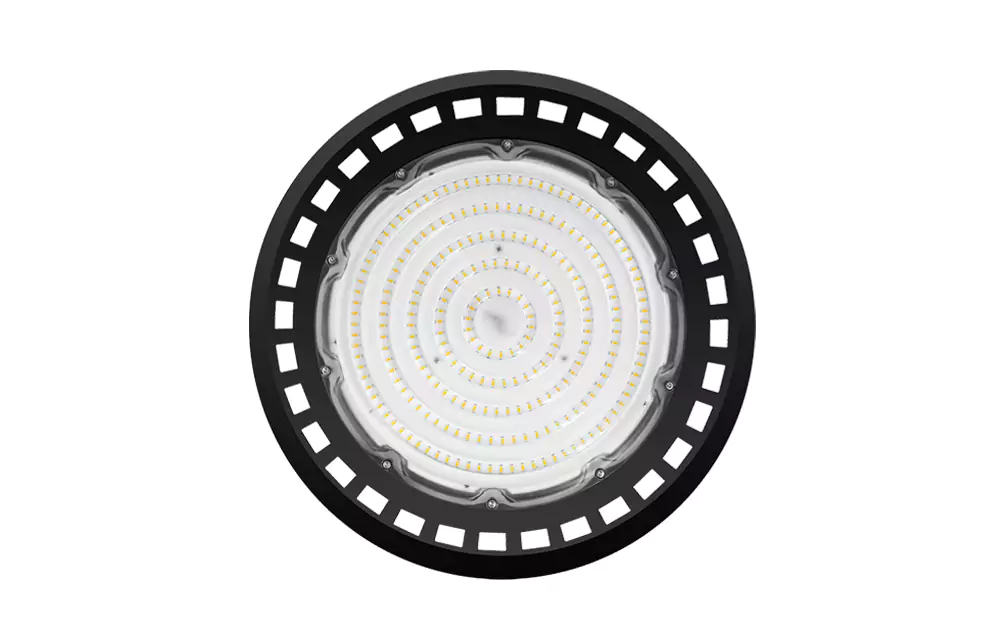

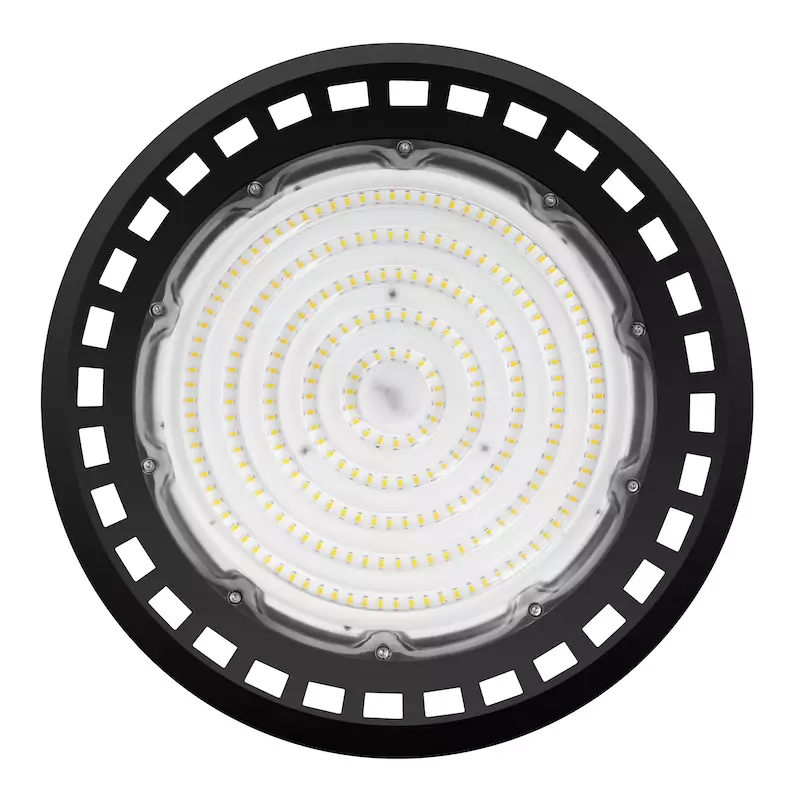

Philips LED Chip, High Brightness
>150LM/W, Saving energy for you

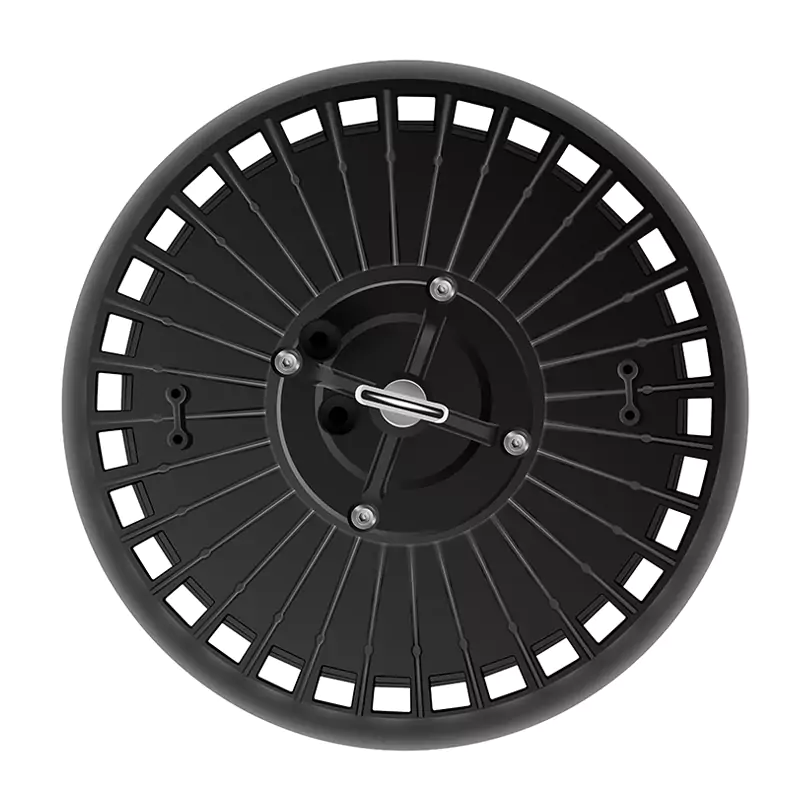

Die-Casting Aluminum Housing
Great heat dissipation

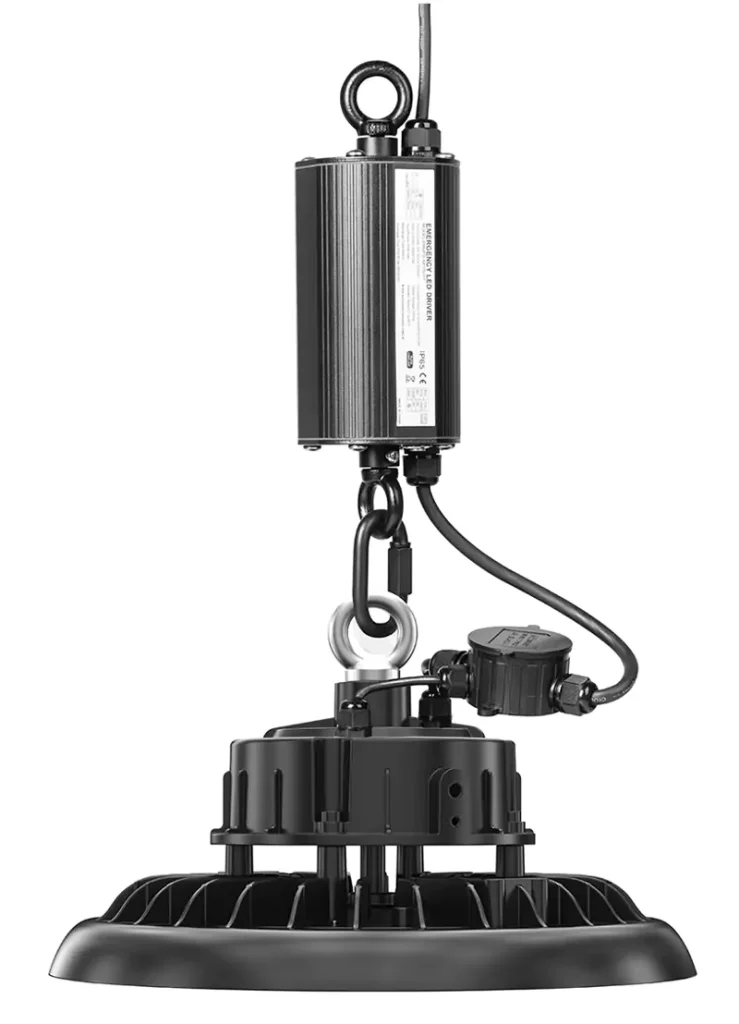

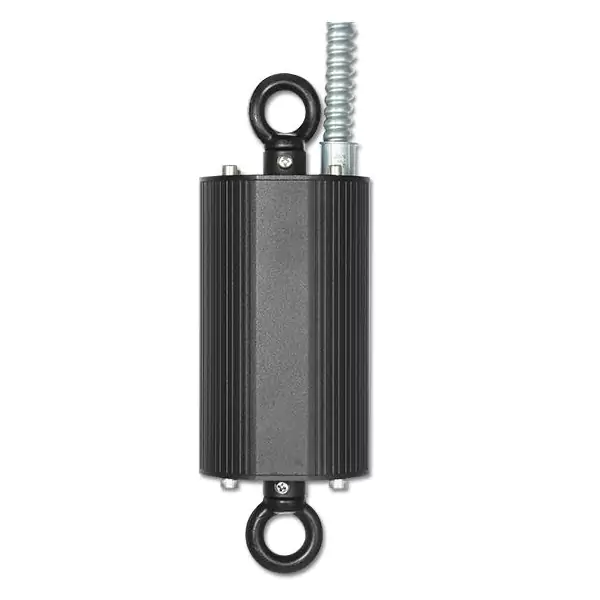

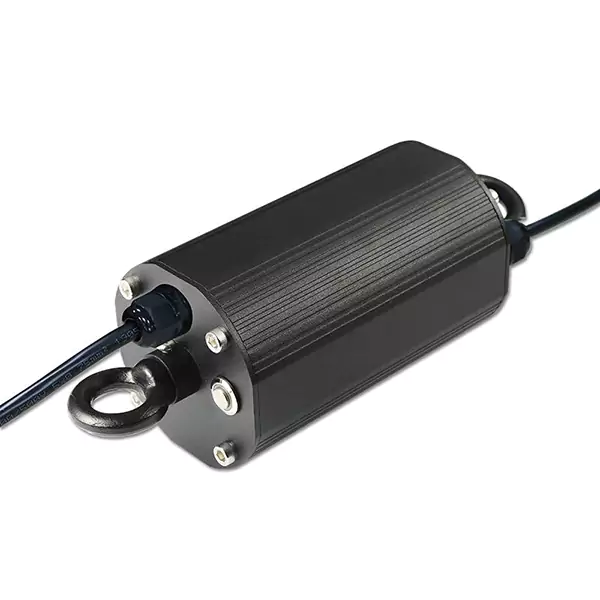

Emergency Kit is Optional
| Emergency Power | 25W | 40W |
|---|---|---|
| Battery | Li-on | Li-on |
| Emergency Time | 3Hours | 1.5Hours |
| Size | H280xD100mm | H280xD100mm |
1-10V Dimmable and Dali Dimmable Optional
Different dimmable ways for your different requirements.
Optional Parts Accessories

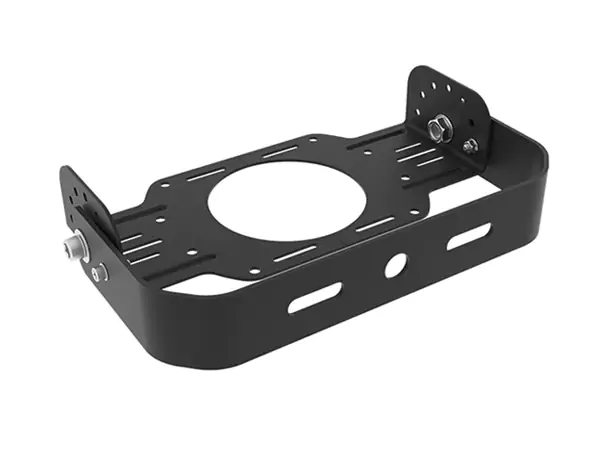

Mounting Bracket

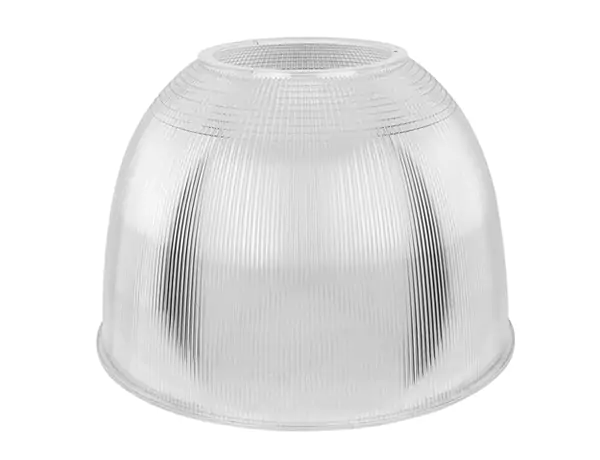

PC Lampshade

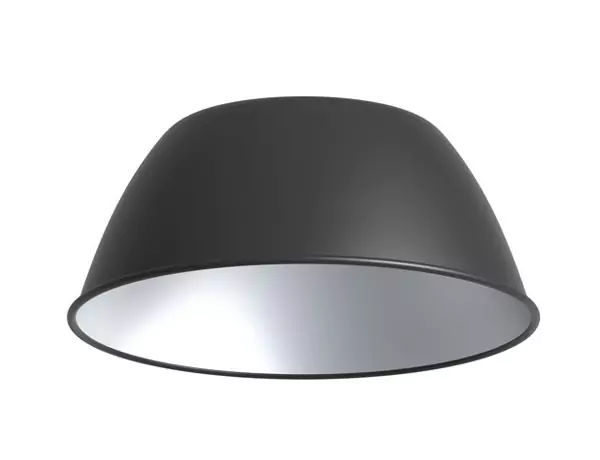

Aluminum Lampshade

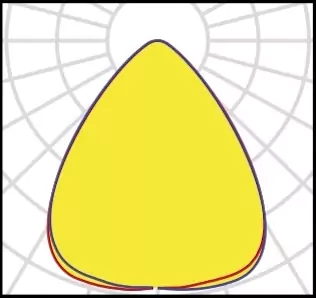

Light Distribution Curve

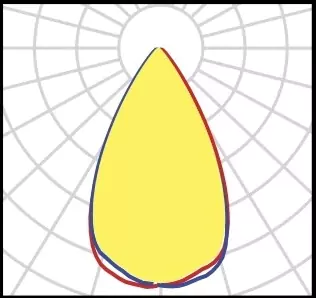

60°
90°

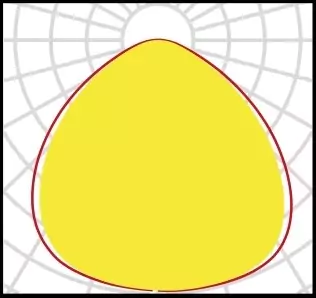

120°

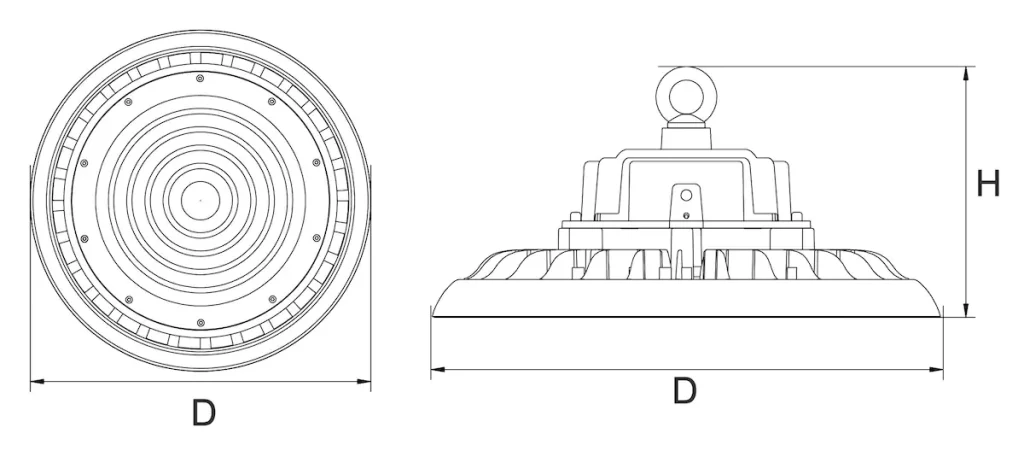

Product size
| Power | Diameter | Height |
| 100W | 258mm | 139mm |
| 150W | 299mm | 139mm |
| 200W | 347mm | 142mm |
