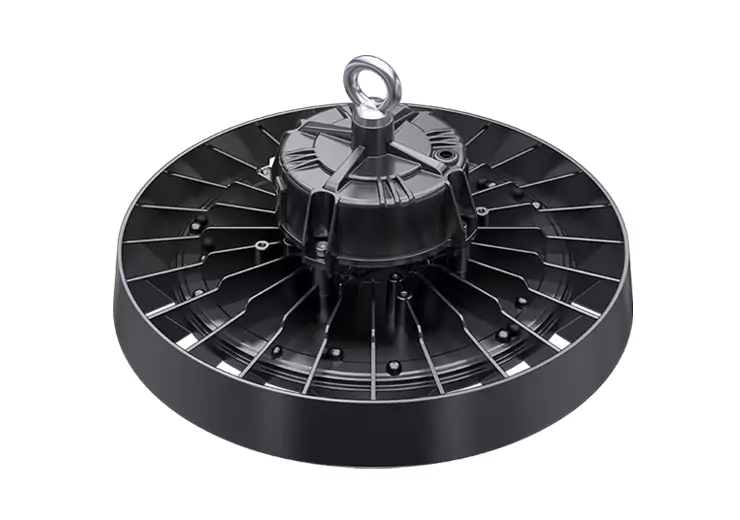

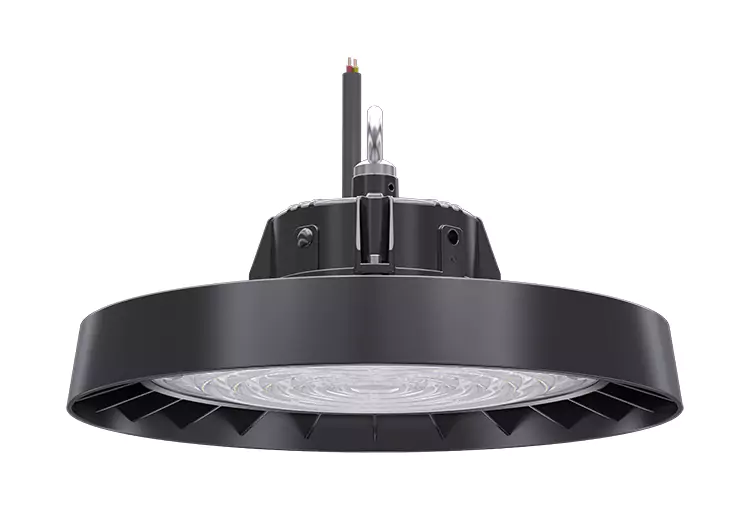

mimiLED 4 Series UFO LED High Bay Light
Key Features:
■ Philips LED, Philips/Sosen driver, 160LM/W.
■ Fashion design and popular in European market.
■ Die-casting aluminum housing, excellent heat dissipation.
■ Professional light distribution curve for your different requirement.
■ Different installation ways optional.
■ Power and CCT adjustable versions are available.
Specification
| Model No. | ML-H100W-UCU4 | ML-H150W-UCU4 | ML-H200W-UCU4 | ML-H240W-UCU4 |
| Power | 100W | 150W | 200W | 240W |
| LED Chip Brand | Philips | Philips | Philips | Philips |
| Power Driver Brand | Philips/Sosen | Philips/Sosen | Philips/Sosen | Philips/Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 | >80 |
| Beam Angle | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° |
| Input Voltage | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >160LM/W | >160LM/W | >160LM/W | >160LM/W |
| Initial Flux | >16, 000LM | >24, 000LM | >32, 000LM | >38, 400LM |
| Working Environment | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Fixture Dimension | Φ248*158MM | Φ308*168MM | Φ360*174MM | Φ360*174MM |
| Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |

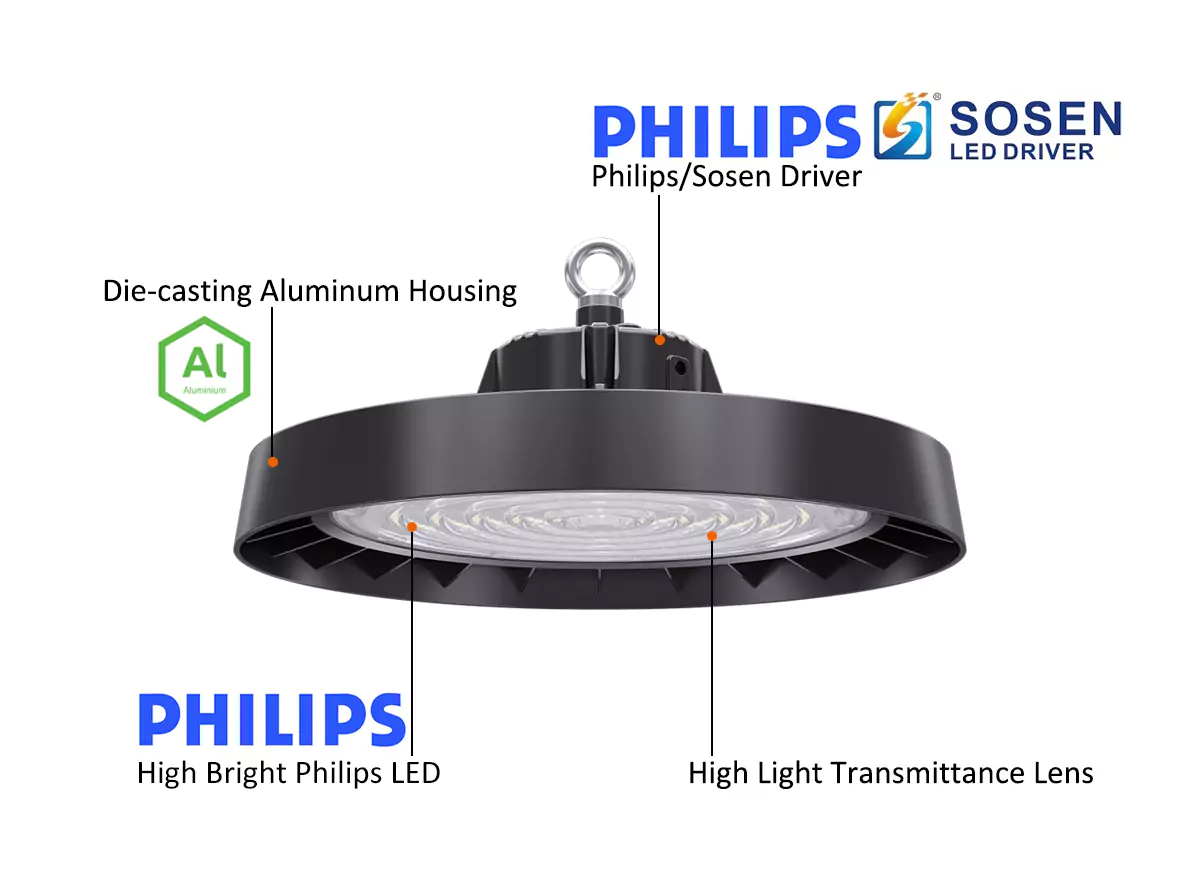

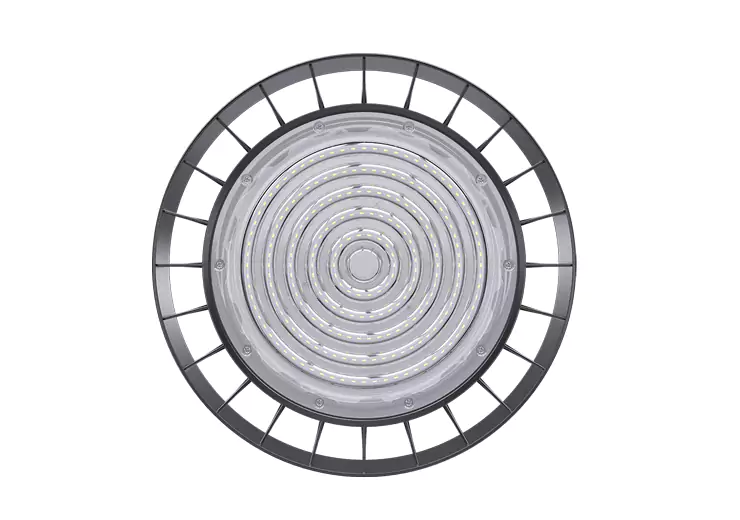

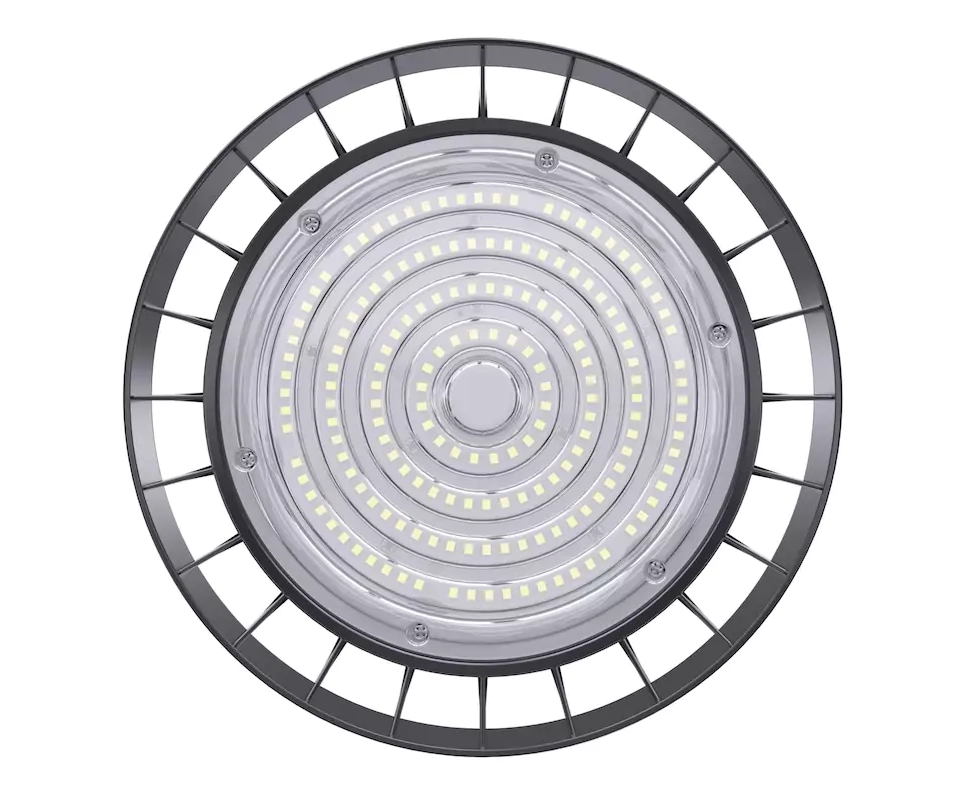

High Bright Philips LED, 160LM/W
Energy-saving and long life

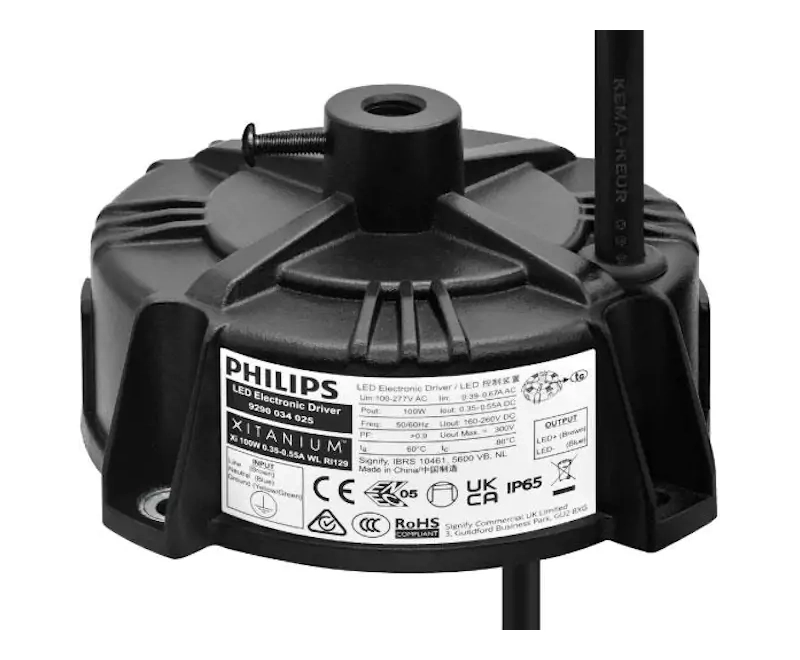

Philips Driver Optional
Leading brand and long life

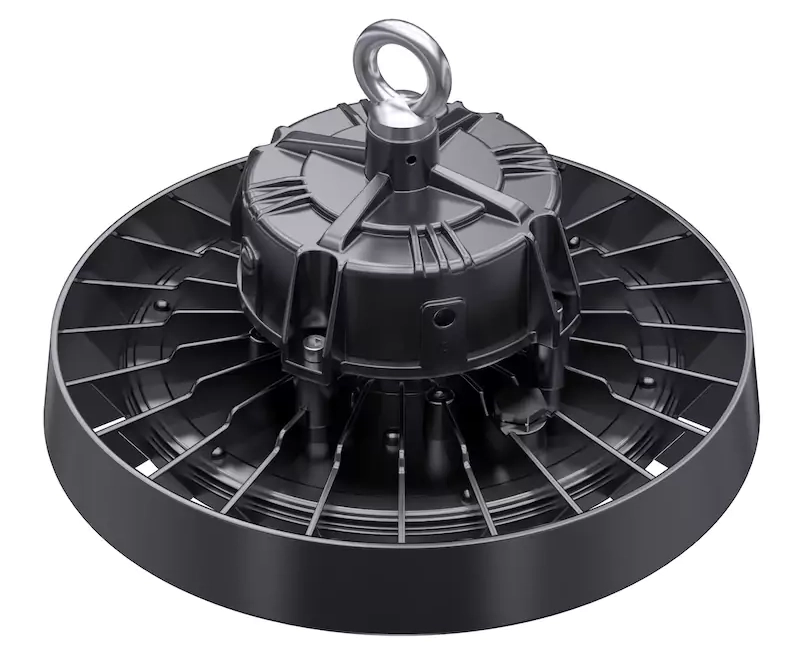

Die-casting Aluminum Housing
Excellent heat dissipation

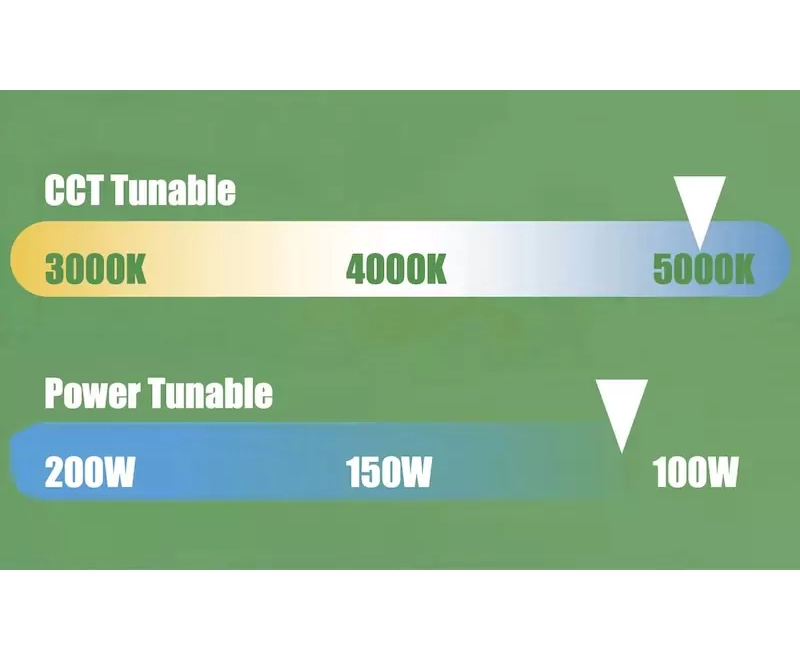

Power and CCT Adjustable
Lower your inventory cost.
1-10V Dimmable & Dali Dimmable are Available
Optional Parts Accessories

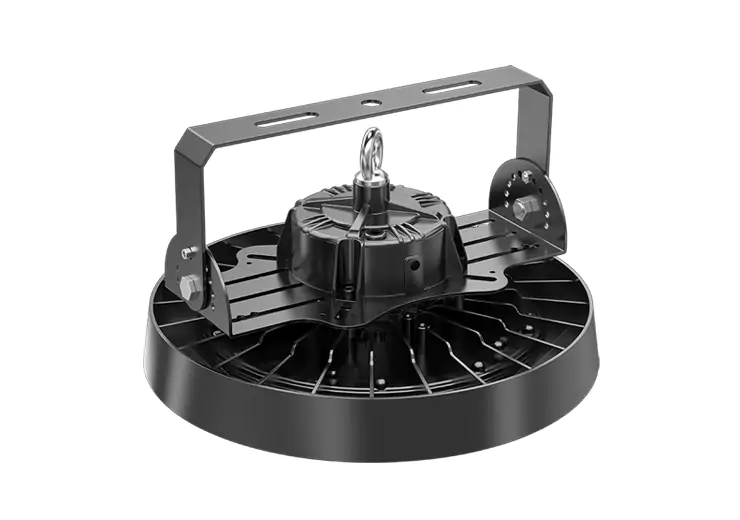

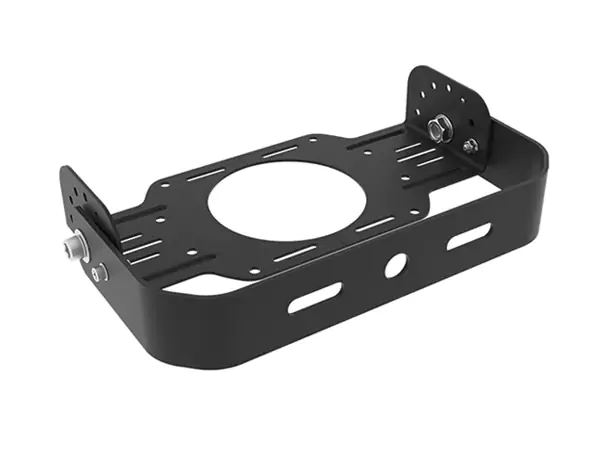

Mounting Bracket

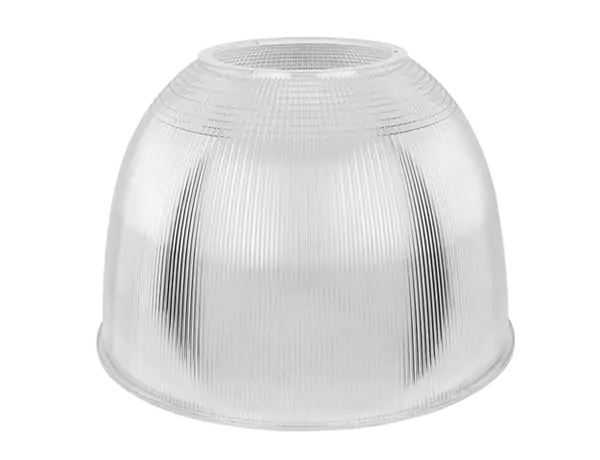

PC Lampshade

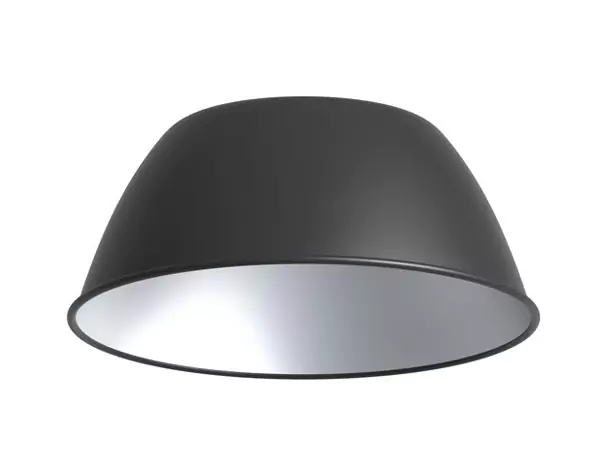

Aluminum Lampshade

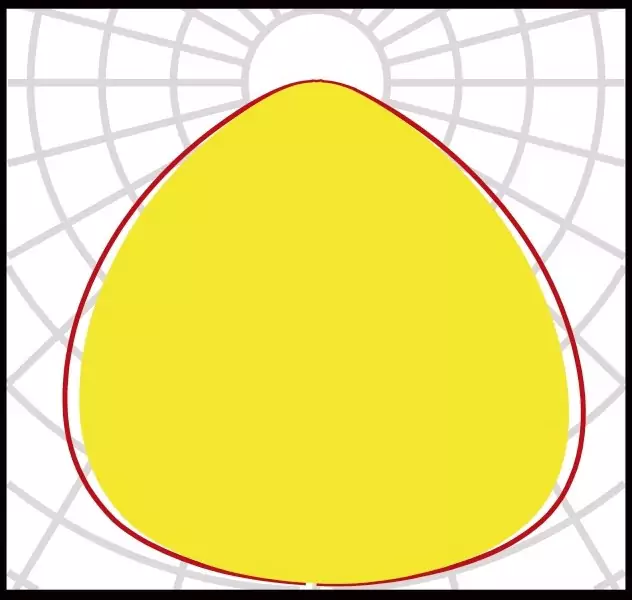

Light Distribution Curve

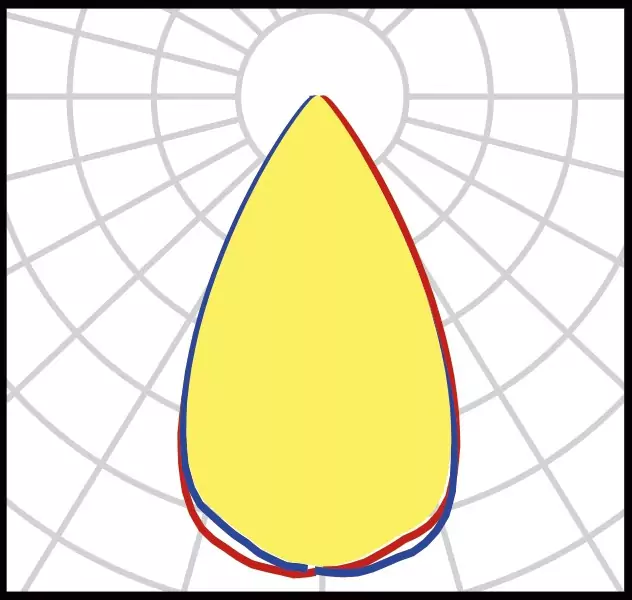

60°

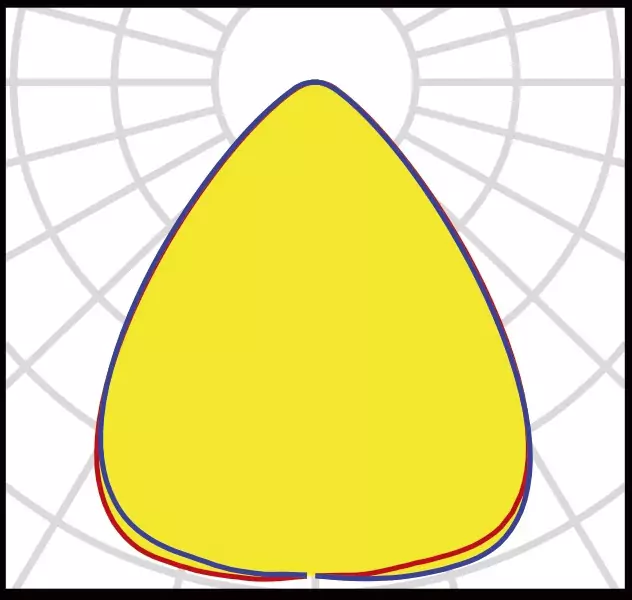

90°
120°

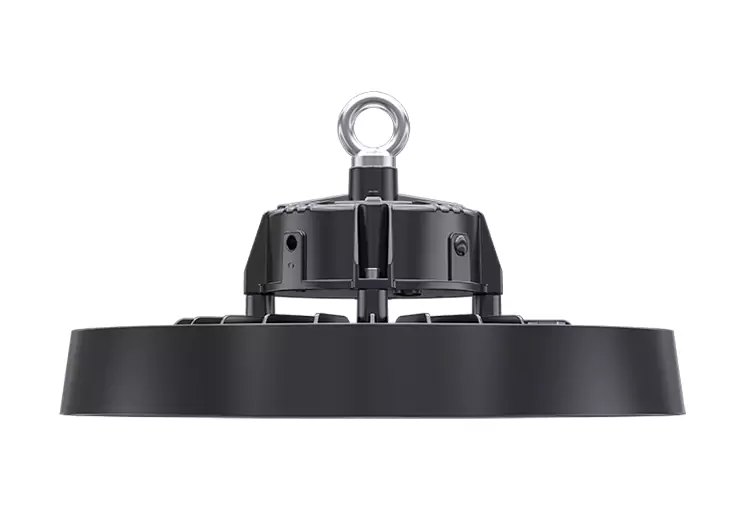

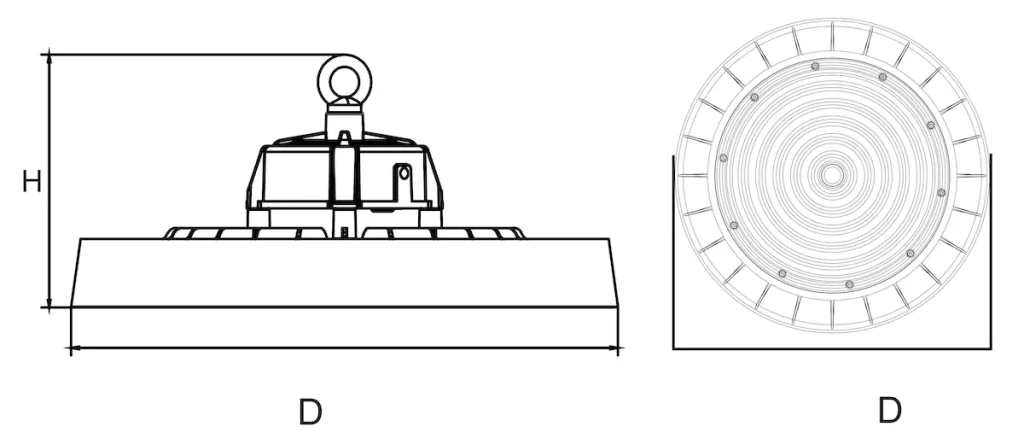

Product size
| Power | Diameter | Height |
| 100W | 248mm | 158mm |
| 150W | 308mm | 168mm |
| 200W | 360mm | 174mm |
| 240W | 360mm | 174mm |
