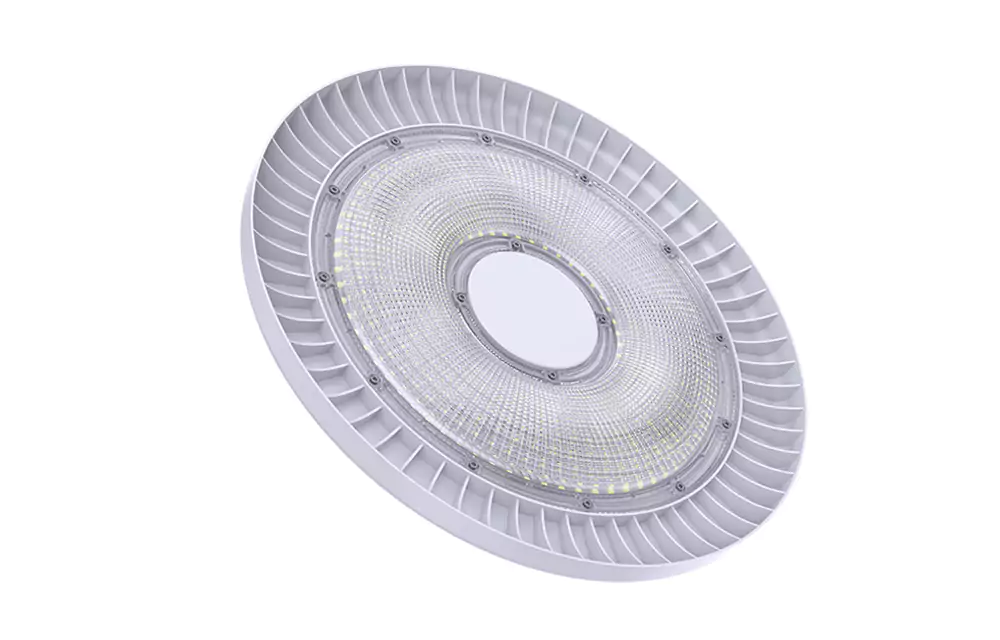

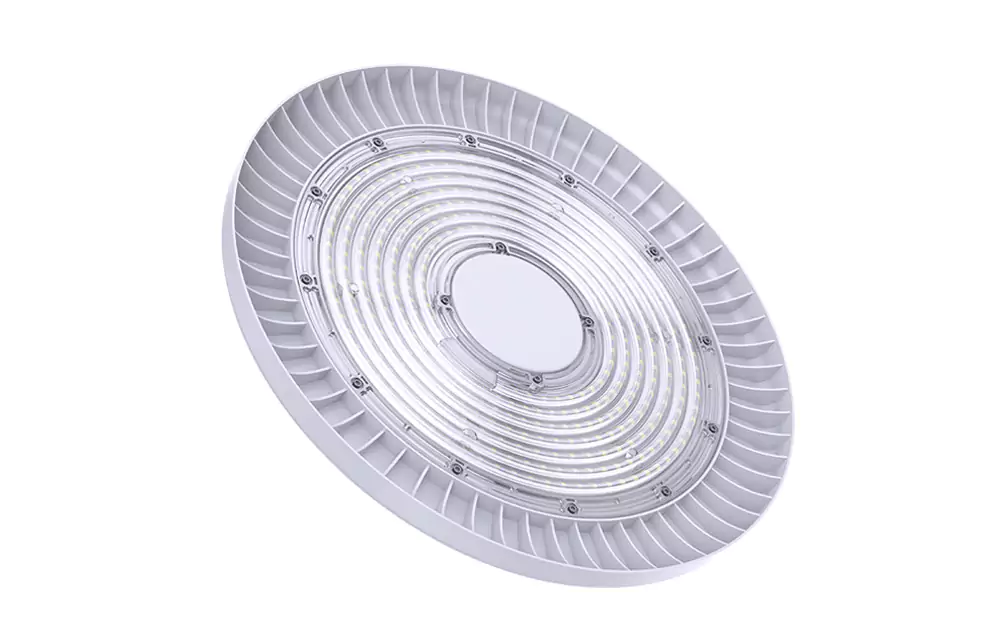

mimiLED 5 Series UFO LED High Bay Light

Key Features:

■ Philips LED chip & Sosen driver, up to 190LM/W.
■ Unique design & anti-glaring lens used, good on eye-protection.
■ Plug-in sensor is optional for your different requirement and lower inventory cost for you.
■ Wide movement detect area, up to 12meters height.
■ Both 1-10V & Dali dimmable available.

Specification

Model No. ML-H100W-UCU5 ML-H150W-UCU5 ML-H200W-UCU5 ML-H240W-UCU5
Power 100W 150W 200W 240W
LED Chip Brand Philips Philips Philips Philips
Power Driver Brand Sosen Sosen Sosen Sosen
Color Temperature 2700-6500K 2700-6500K 2700-6500K 2700-6500K
Color-rendering Index >80 >80 >80 >80
Beam Angle 90°/110° 90°/110° 90°/110° 90°/110°
Input Voltage AC 100-277V AC 100-277V AC 100-277V AC 100-277V
Power Factor >0.95 >0.95 >0.95 >0.95
Luminous Efficiency >160LM/W & 190LM/W >160LM/W & 190LM/W >160LM/W & 190LM/W >160LM/W & 190LM/W
Working Environment -40℃~+60℃ -40℃~+60℃ -40℃~+60℃ -40℃~+60℃
Life Span >50, 000Hrs >50, 000Hrs >50, 000Hrs >50, 000Hrs
IP Rating IP65 IP65 IP65 IP65
IK Rating IK08 IK08 IK08 IK08
Fixture Dimension Φ380*130MM Φ380*130MM Φ380*130MM Φ380*130MM
Material Die-Casting Aluminum

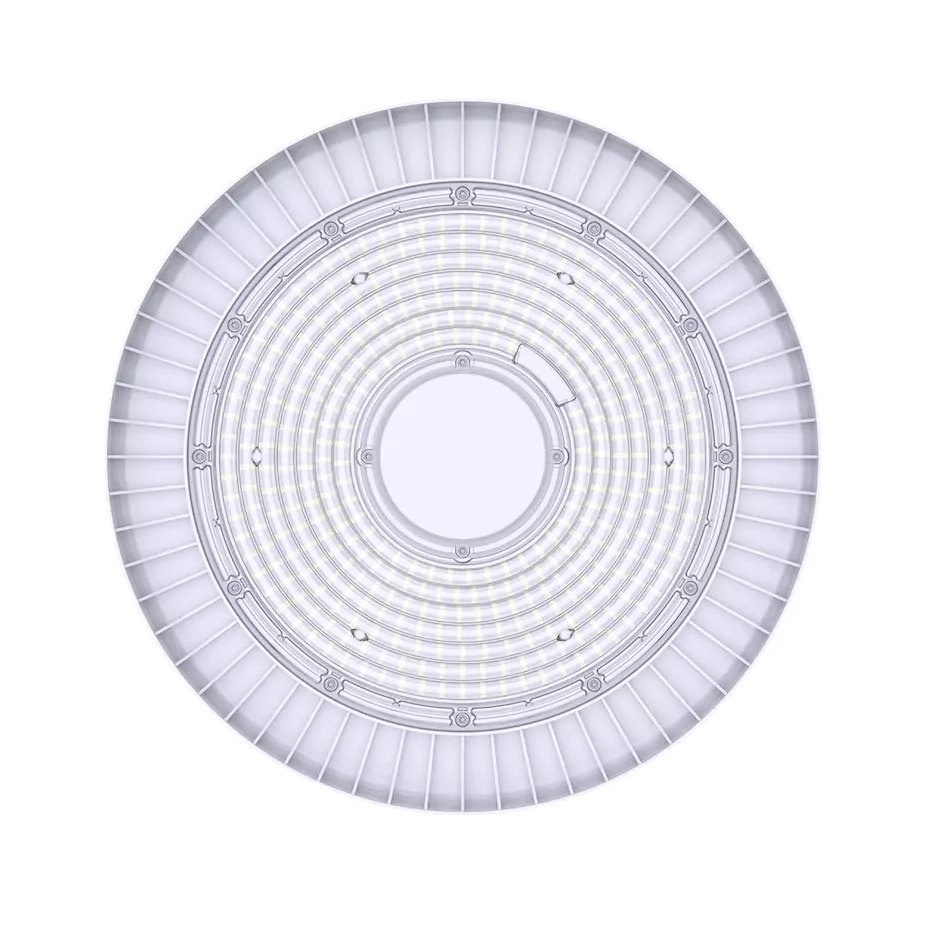

Philips LED Chip, High Brightness
Up to 190Lumens/Watts

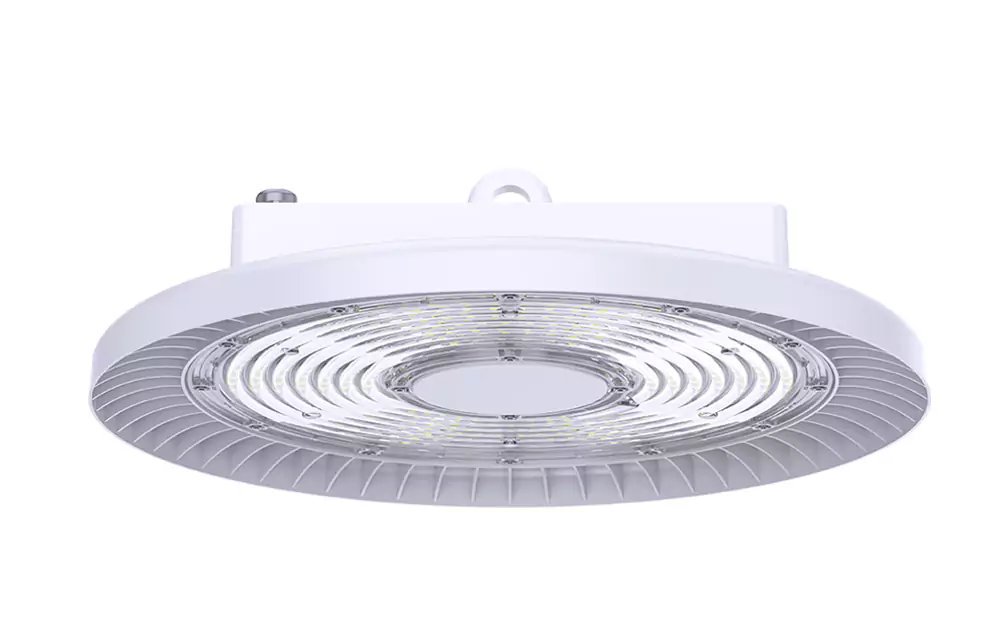

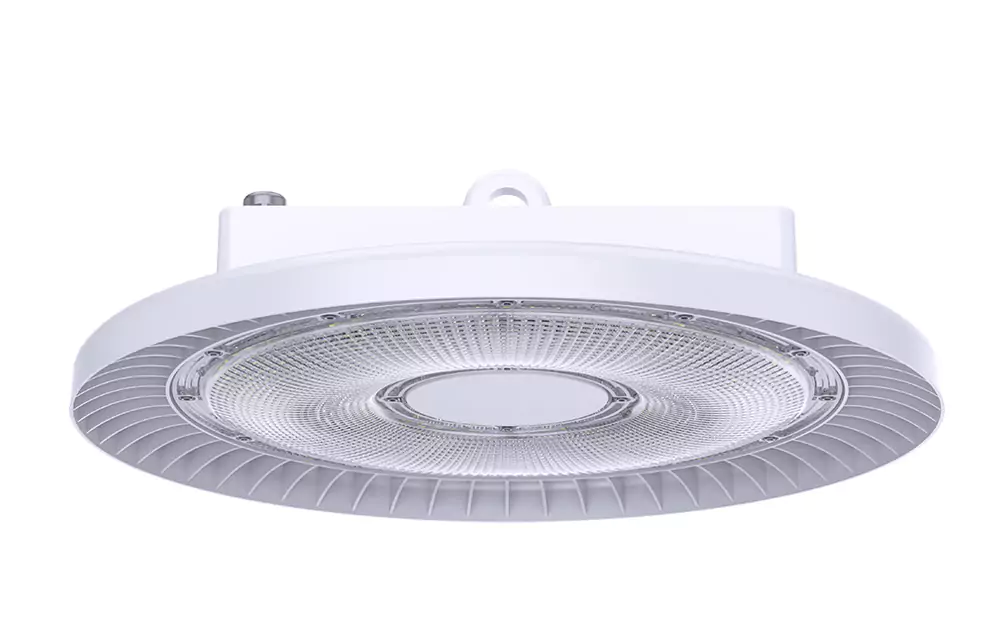

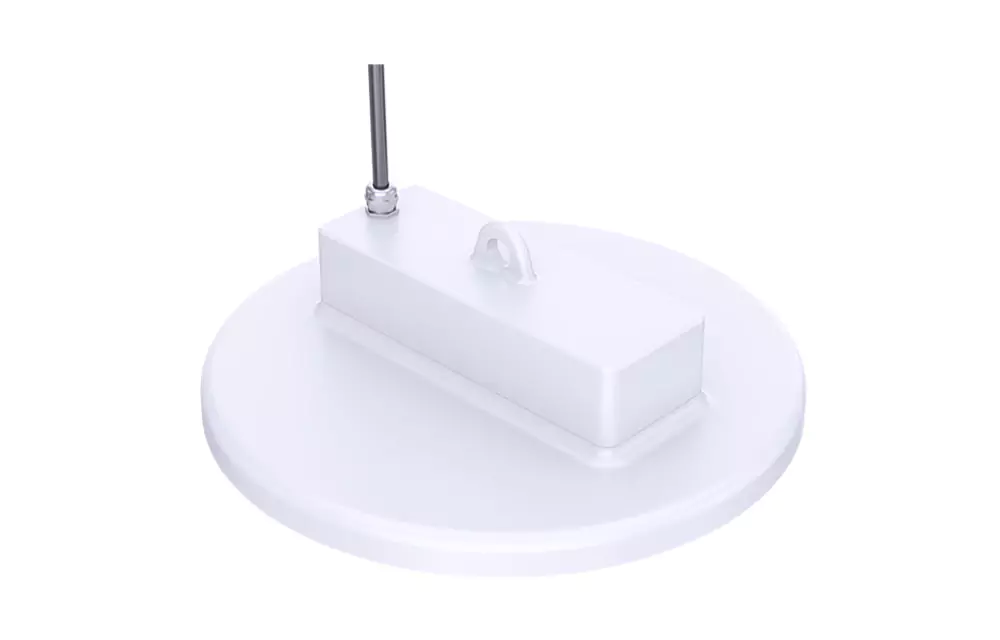

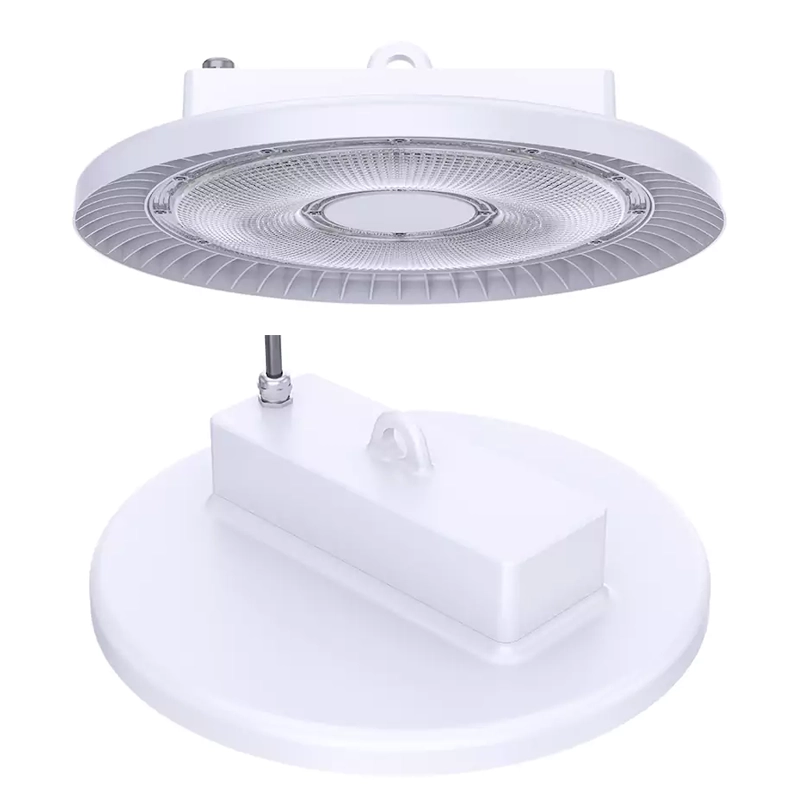

Unique Design and Excellent Outlook

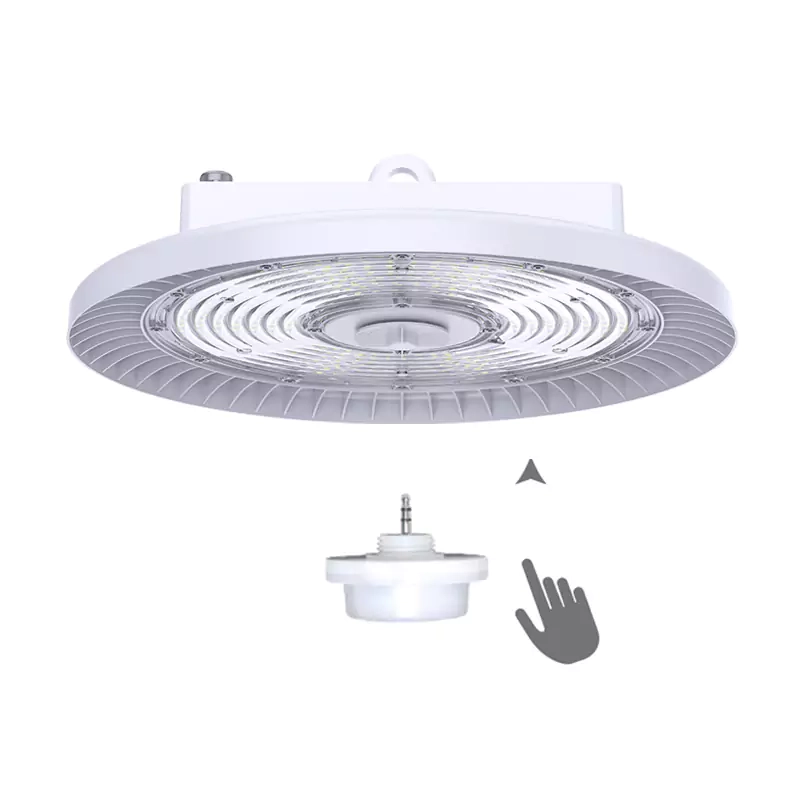

Plug-in Sensor is Optional
With Micro-wave sensor and PIR sensor optional. Very easy to operate

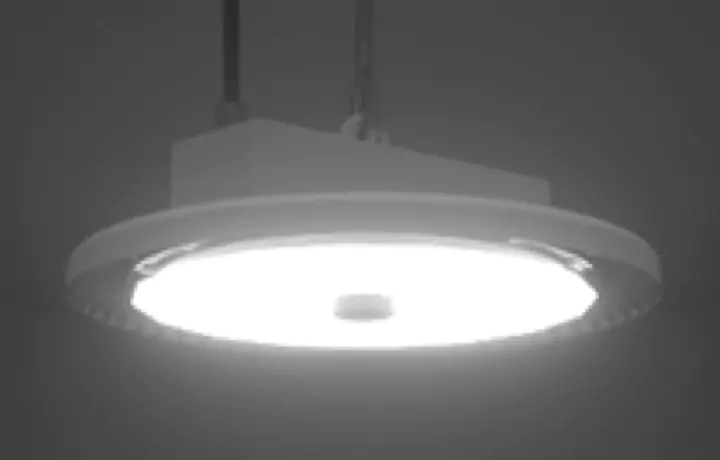

Comparison on Anti-glaring

mimiLED High Bay, Anti-glaring

Normal High Bay, High Glaring

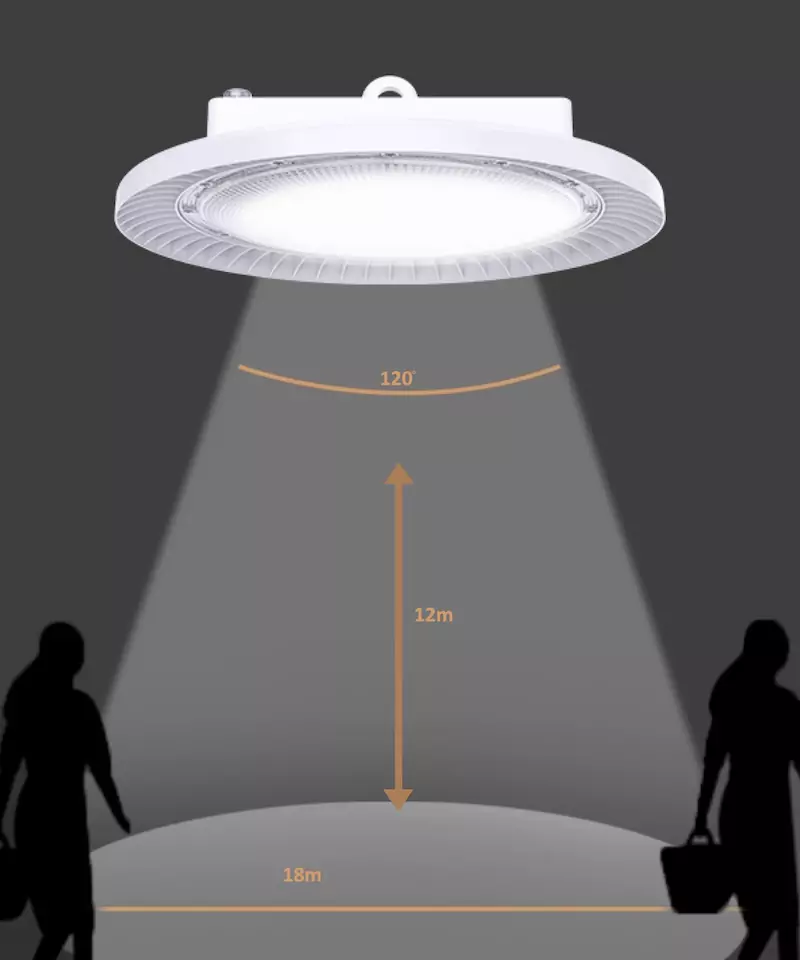

Big Detecting Range
Up to 12meters height and 18metes width

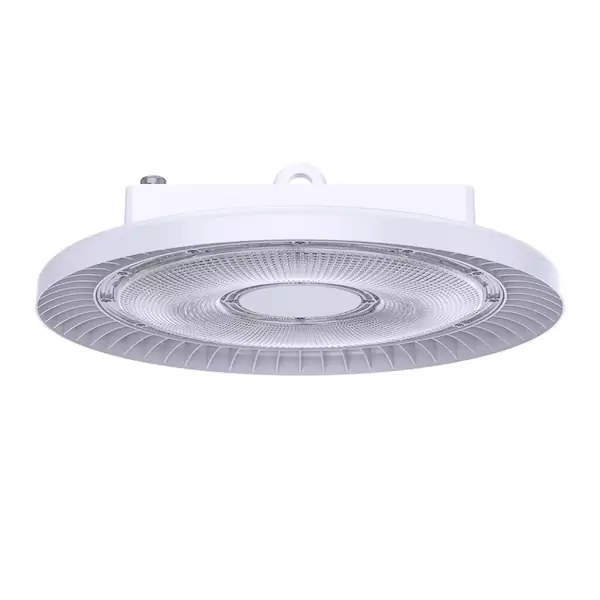

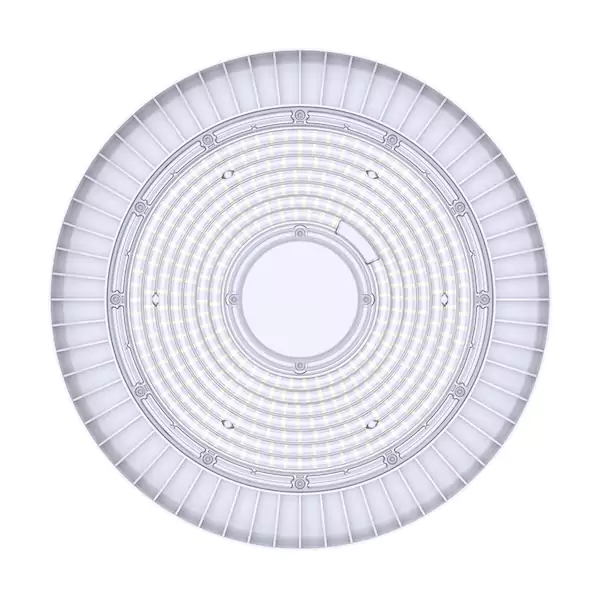

Standard Version, Without Sensor

90° Lens

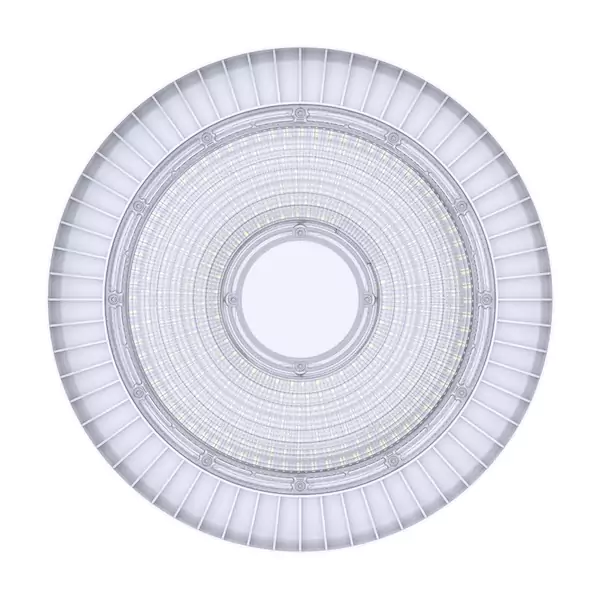

110° Anti-glaring Lens

Without Sensor

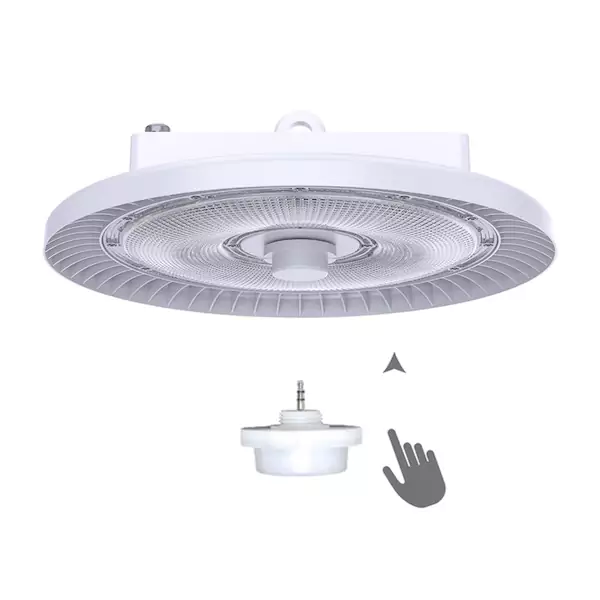

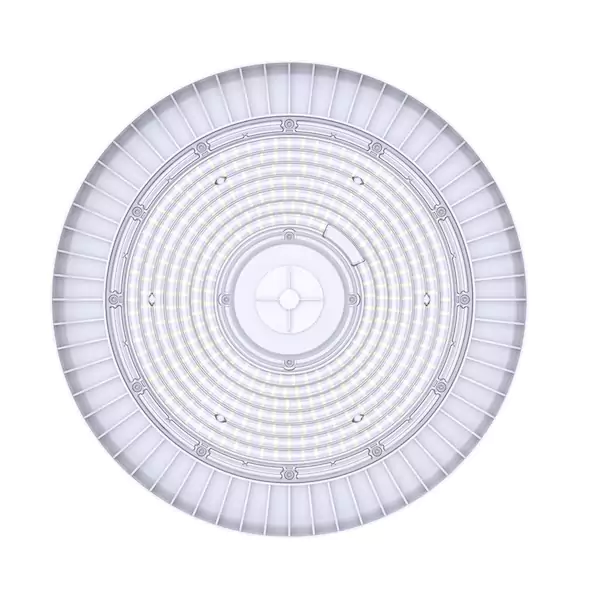

Plug-in Sensor Version

90° Lens

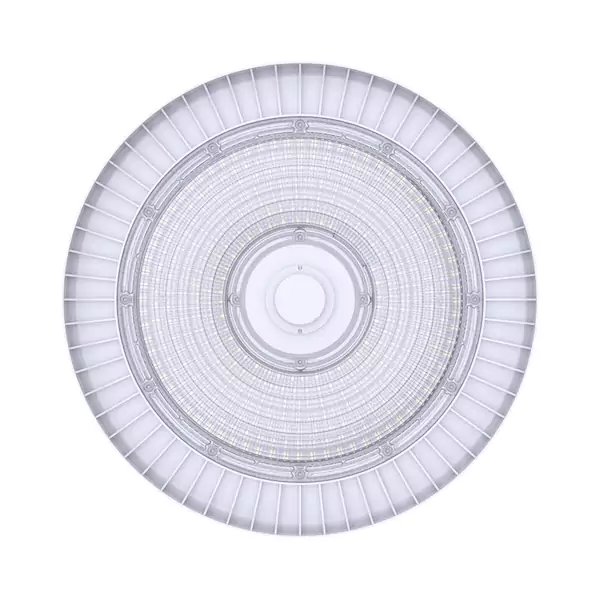

110° Anti-glaring Lens

Sensor Optional

1-10V Dimmable & Dali Dimmable are Available

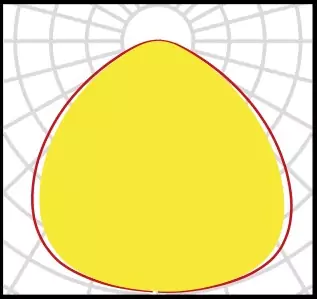

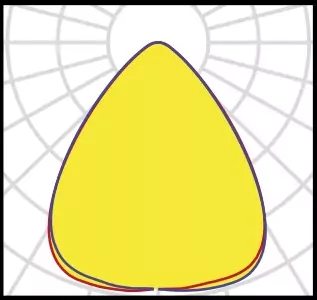

Light Distribution Curve

90°

110°

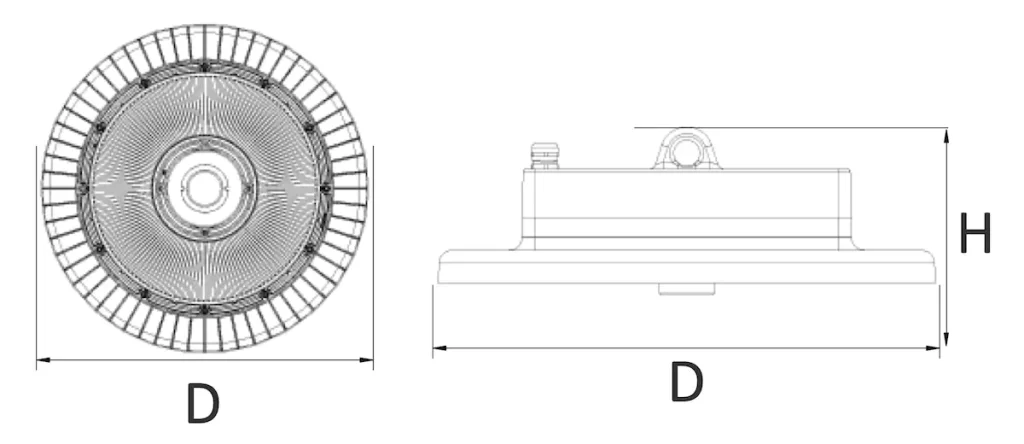

Product size

Power Diameter Height
100W 380mm 130mm
150W 380mm 130mm
200W 380mm 130mm
240W 380mm 130mm
