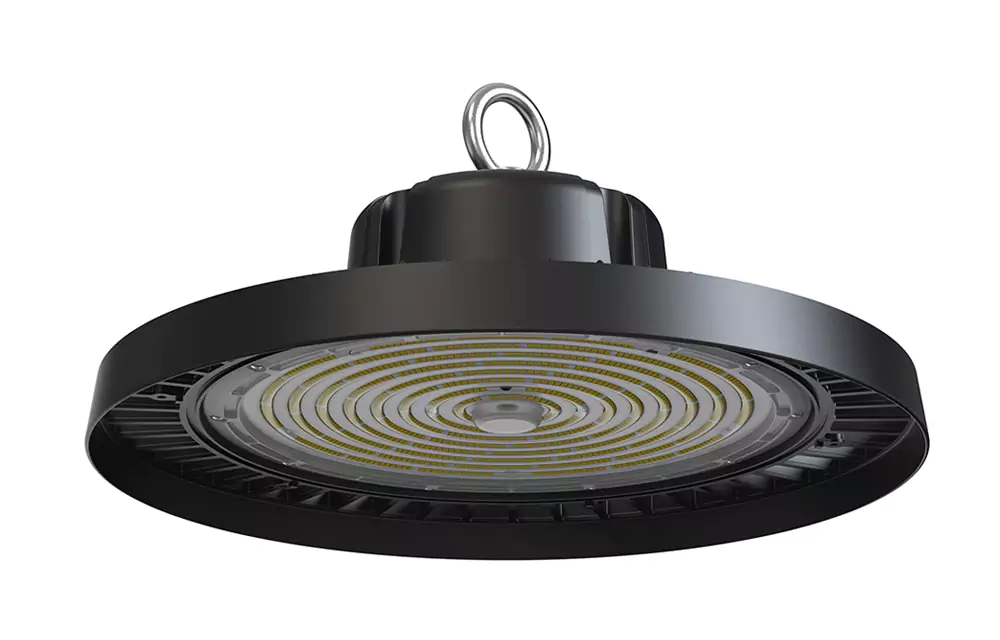

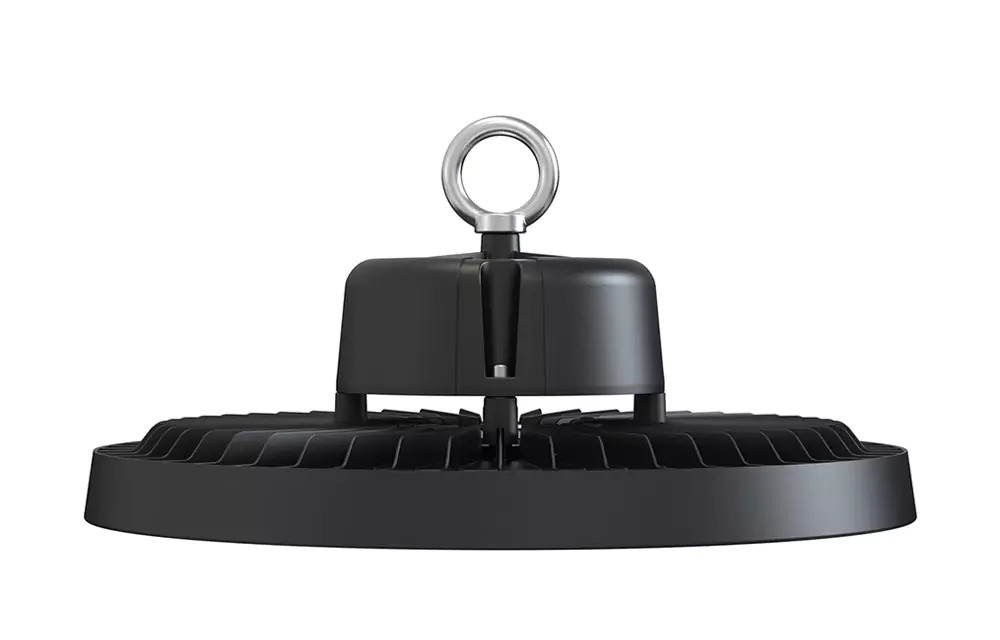

mimiLED 6 Series UFO LED High Bay Light
Key Features:

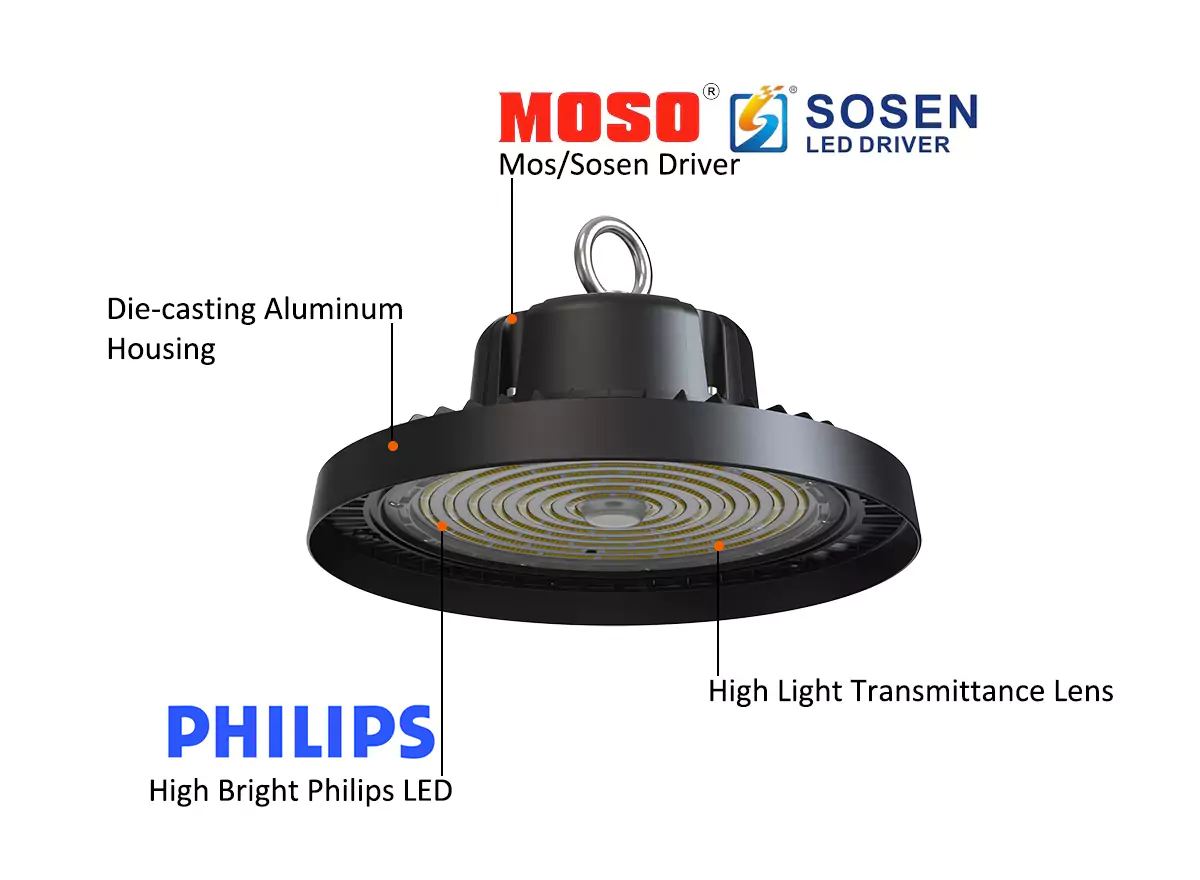

■ Philips LED, Moso/Sosen driver, 150-160LM/W.
■ Special heat dissipation design, improving the heat dissipation performance.
■ 100W-500W are available for your different projects.
■ Competitive price and great quality together, winning more market for you.
■ 500W with 30°/60°/90°/120° for your projects requires super powerful lamps.
Specification
| Model No. | ML-H100W-UCU6 | ML-H150W-UCU6 | ML-H200W-UCU6 | ML-H240W-UCU6 | ML-H300W-UCU6 | ML-H500W-UCU6 |
| Power | 100W | 150W | 200W | 240W | 300W | 500W |
| LED Chip Brand | Philips | Philips | Philips | Philips | Philips | Philips |
| Power Driver Brand | Moso/Sosen | Moso/Sosen | Moso/Sosen | Moso/Sosen | Moso/Sosen | Moso/Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 | >80 | >80 | >80 |
| Beam Angle | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 90°/120° | 30°/60°/90°/120° |
| Input Voltage | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V | AC 100-277V | AC 180-305V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >150LM/W | >150LM/W | >150LM/W | >150LM/W | >160LM/W | >160LM/W |
| Initial Flux | >15, 000LM | >22, 500LM | >30, 000LM | >36, 000LM | >48, 000LM | >80, 000LM |
| Working Environment | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| IK Rating | IK08 | IK08 | IK08 | IK08 | IK08 | IK08 |
| Fixture Dimension | Φ255*162MM | Φ255*162MM | Φ300*176MM | Φ365*176MM | Φ385*182MM | Φ490*208MM |
| Material | Die-Casting Aluminum | |||||

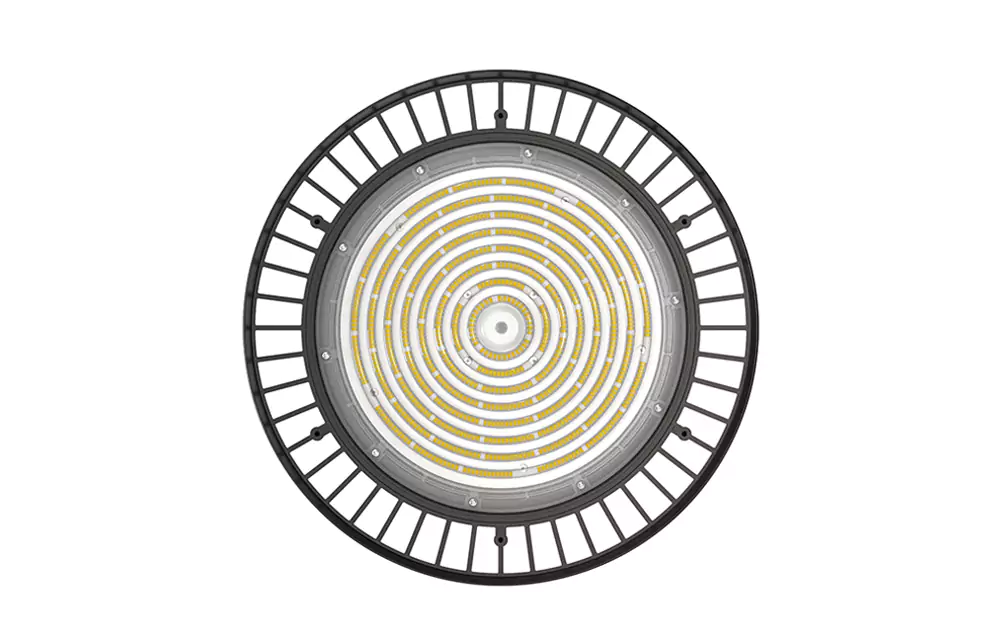

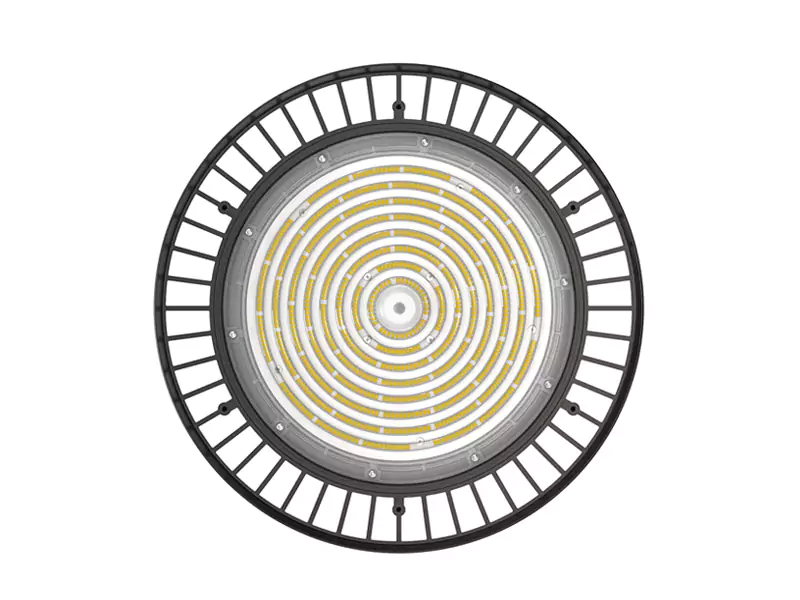

Philips LED Chip, High Brightness
150-160Lumens/Watts

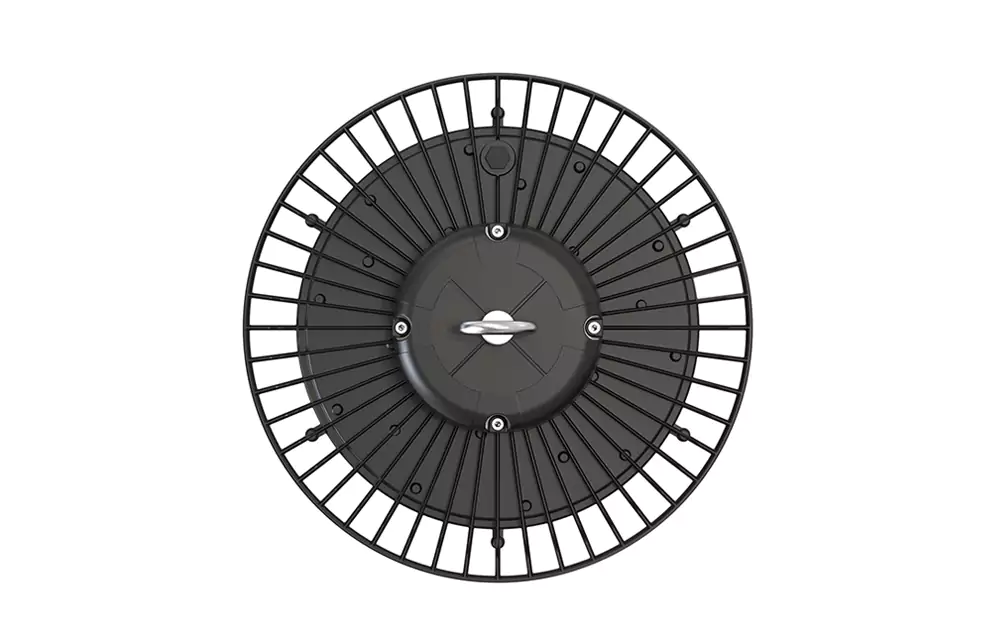

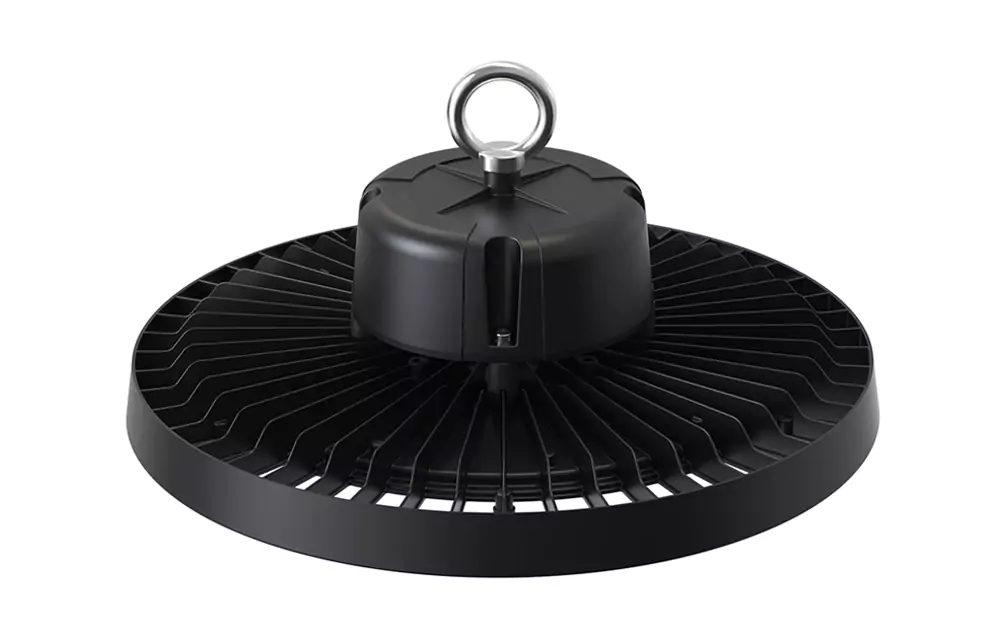

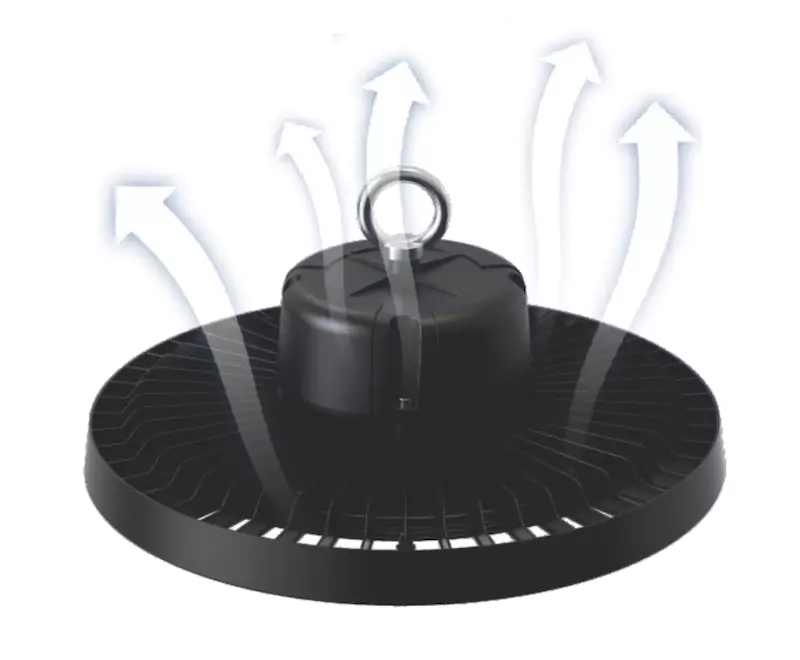

Special Design, Perfect Heat Dissipation
Up to 500W, Super Powerful

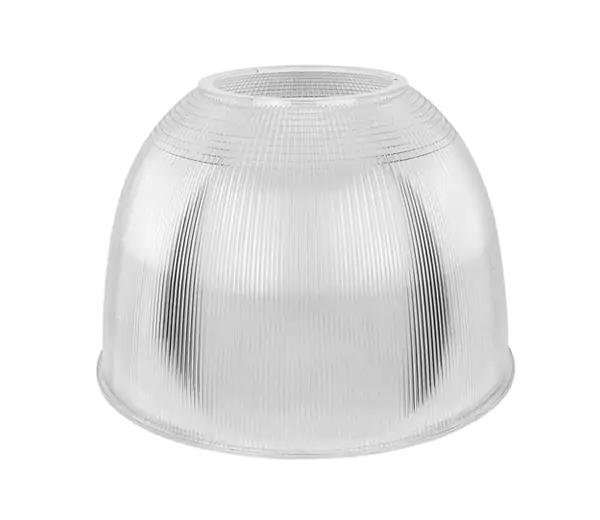

Optional Parts Accessories

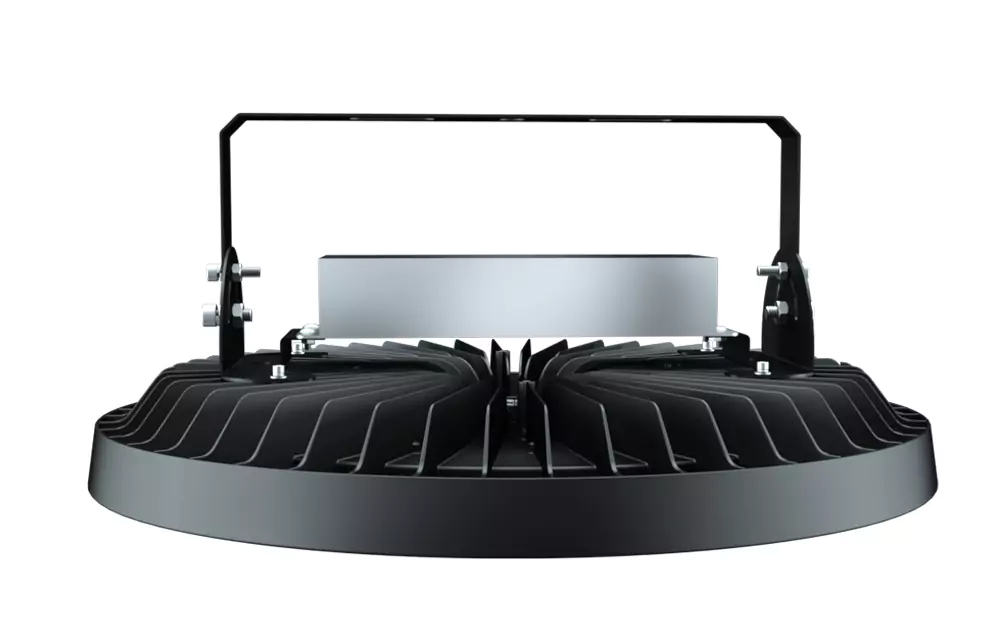

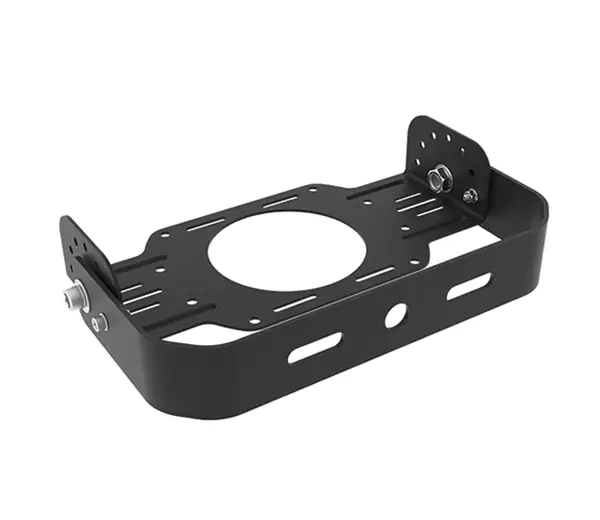

Mounting Bracket
Mounting Bracket
Mounting Bracket

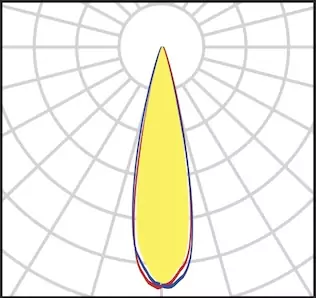

Light Distribution Curve
100-240W with 60°/90°/120°， 300W with 90°/120°，and 500W with 30°/60°/90°/120°.
30°

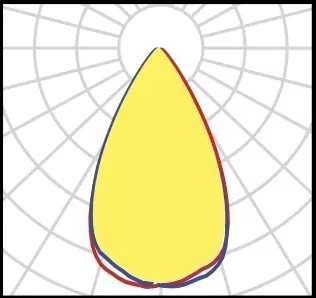

60°

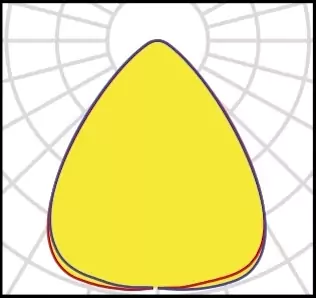

90°

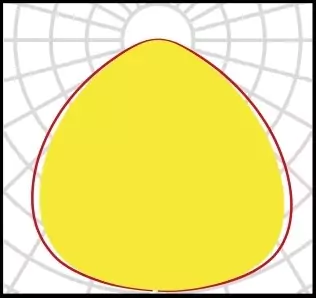

120°

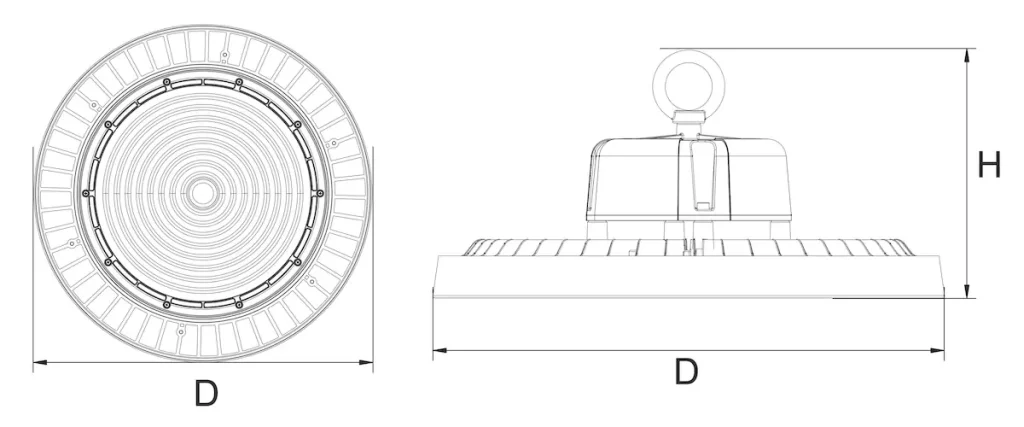

Product size
| Power | Diameter | Height |
| 100W | 255mm | 162mm |
| 150W | 255mm | 162mm |
| 200W | 300mm | 176mm |
| 240W | 365mm | 176mm |
| 300W | 385mm | 182mm |
| 500W | 490mm | 208mm |
