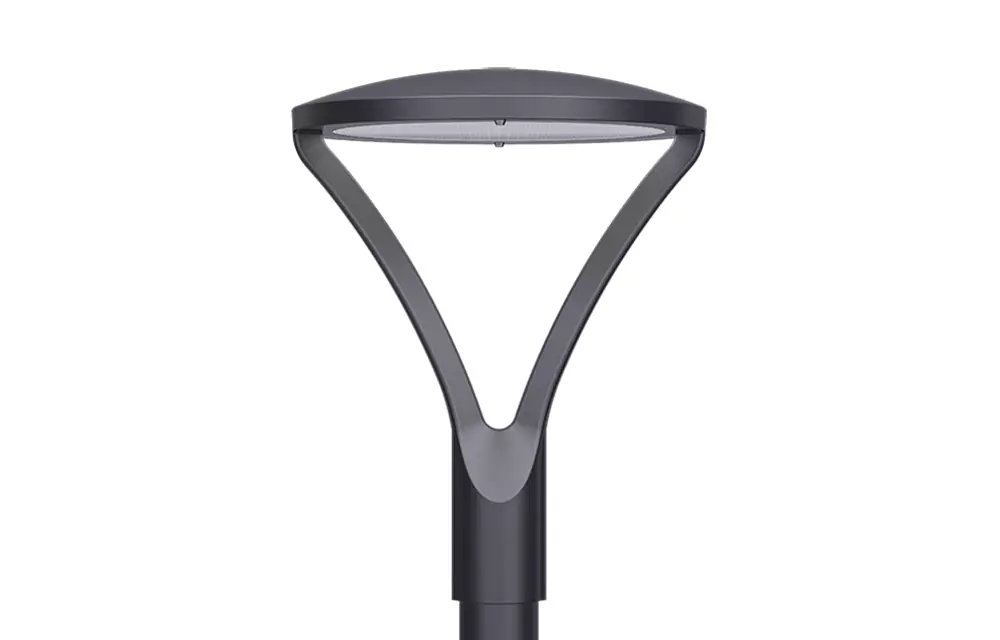

mimiLED 1 Series LED Pole Top Light

Key Features:

■ High bright Philips SMD3030 LED chip, >150LM/W.
■ Meanwell/Sosen driver used, stable working.
■ Various beam angle for your different requirement.
■ ADC12 aluminum alloy housing with good heat dissipation, long lifespan.
■ High light transmittance tempered glass.

Specification

Model No.	ML-PT30W-UCP1	ML-PT40W-UCP1	ML-PT60W-UCP1	ML-PT90W-UCP1
Power	30W	40W	60W	90W
LED Chip Brand	Philips	Philips	Philips	Philips
Power Driver Brand	Meanwell/Sosen	Meanwell/Sosen	Meanwell/Sosen	Meanwell/Sosen
Color Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Color-rendering Index	>70	>70	>70	>70
Beam Angle	90°/TP II/TP III/TP IV/TP V	90°/TP II/TP III/TP IV/TP V	90°/TP II/TP III/TP IV/TP V	90°/TP II/TP III/TP IV/TP V
Input Voltage	AC 100-277V	AC 100-277V	AC 100-277V	AC 100-277V
Power Factor	>0.95	>0.95	>0.95	>0.95
Luminous Efficiency	>150LM/W	>150LM/W	>150LM/W	>150LM/W
Initial Flux	>4, 500LM	>6, 000LM	>9, 000LM	>13, 500LM
Working Environment	-40℃~+50℃	-40℃~+50℃	-40℃~+50℃	-40℃~+50℃
Life Span	>50, 000Hrs	>50, 000Hrs	>50, 000Hrs	>50, 000Hrs
IP Rating	IP66	IP66	IP66	IP66
IK Rating	IK08	IK08	IK08	IK08
Product Dimension	Φ422*H539MM	Φ422*H539MM	Φ422*H539MM	Φ422*H539MM
Installation Tube	60-80mm	60-80mm	60-80mm	60-80mm
Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum

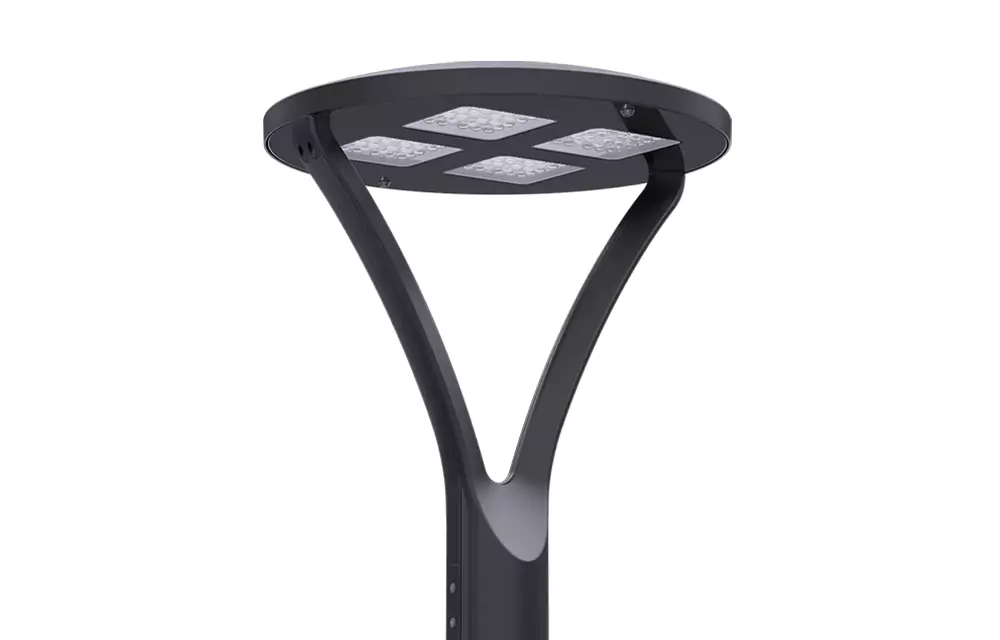

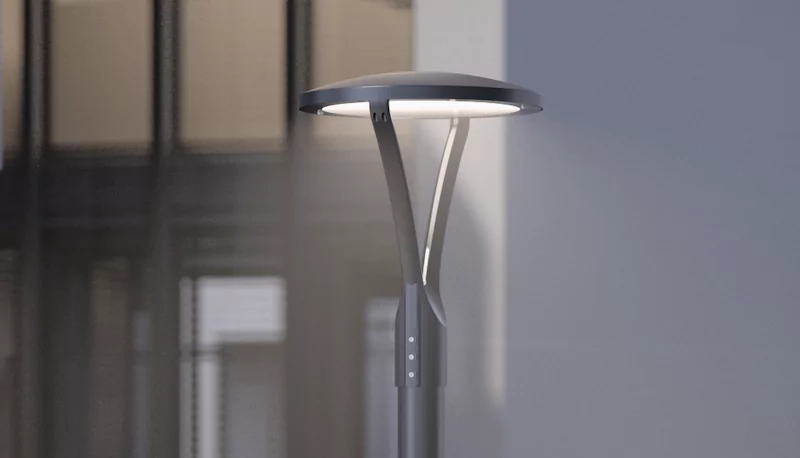

Philips LED Chip, High Brightness
More than 150LM/W

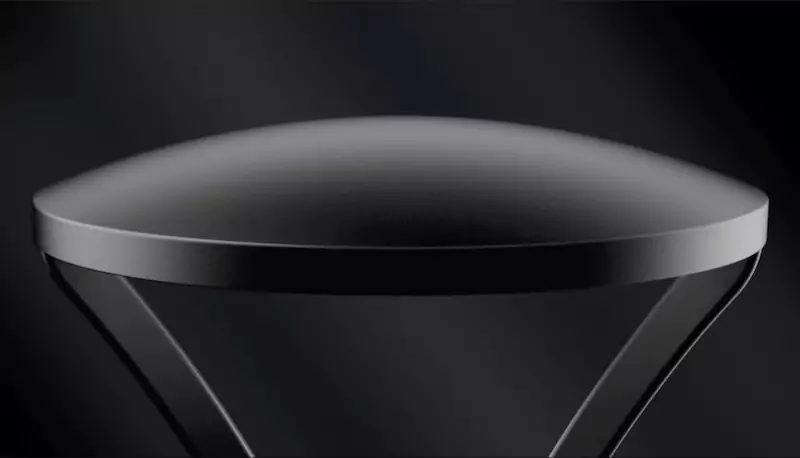

Smooth Surface
Eliminate the risk of dust and water accumulation

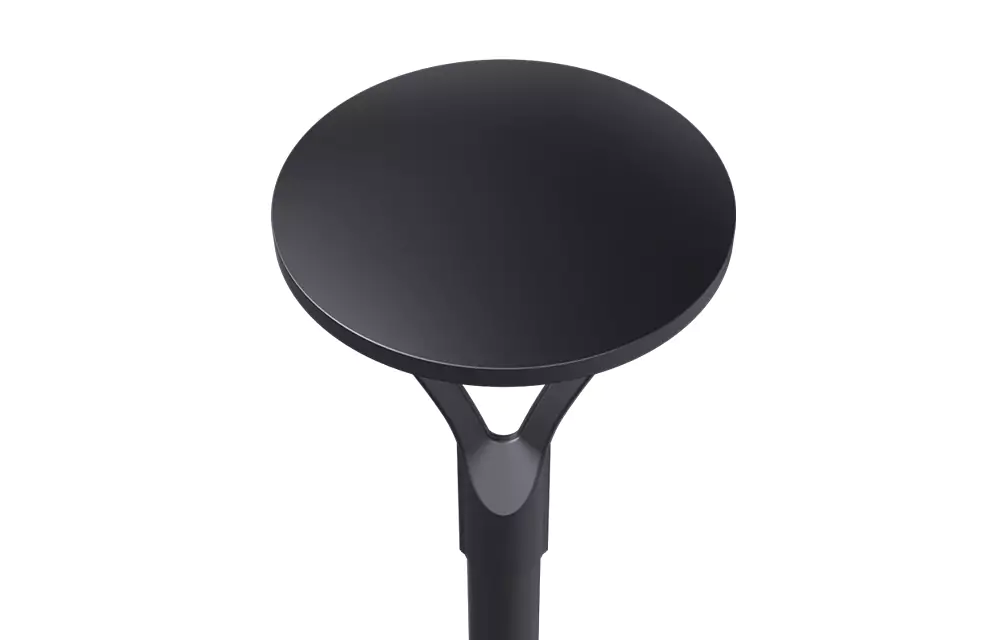

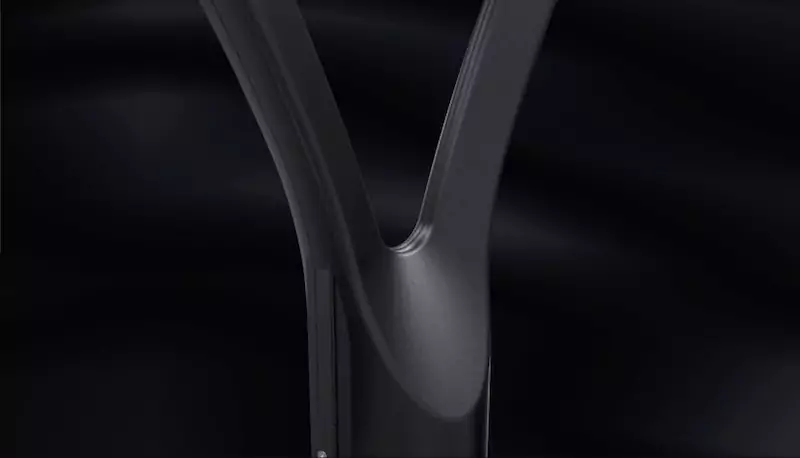

Streamlined Design
Minimize optical loss, more brightness

IP66 Waterpfoof
Good to use outside

Power & CCT Adjustable

Power Adjustable
30W-40W-60W

CCT Adjustable
2200K-3000K-4000K

Remote Control
Using for adjusting power and CCT

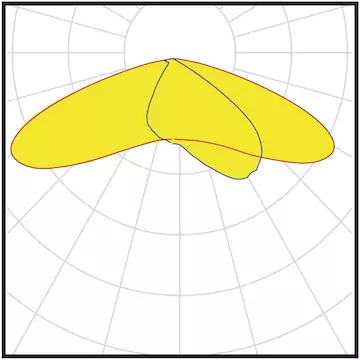

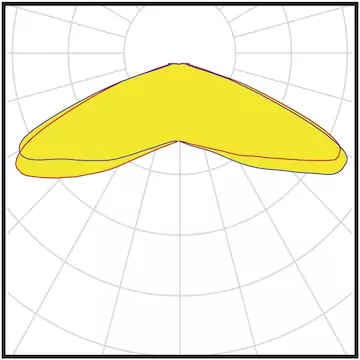

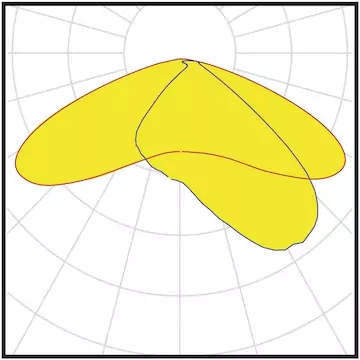

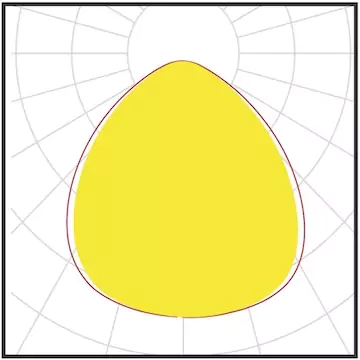

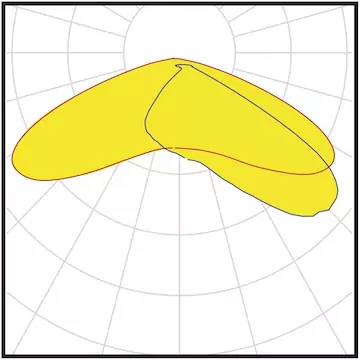

Different Light Distribution

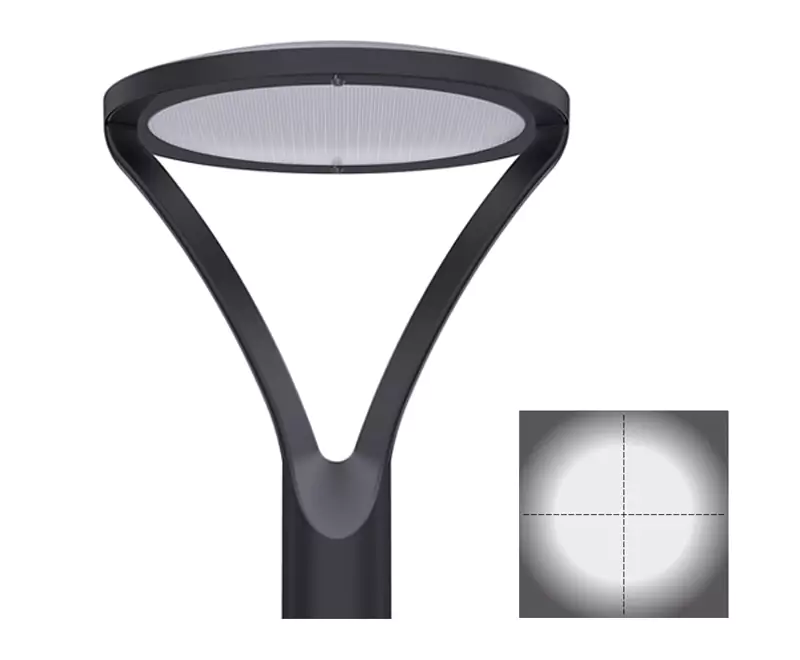

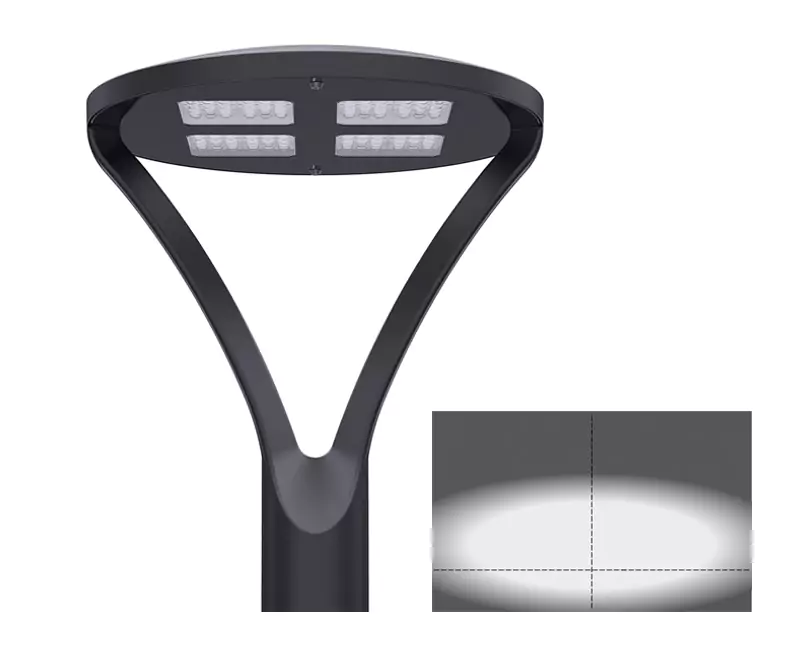

mimiLED 1 Series LED Pole Top Light with symmetric light distribution and asymmetric light distribution.
The symmetric light distribution is good to use for squares, plazas and other areas. While the asymmetric light distribution is good to use to use in the streets, pathways, etc.
