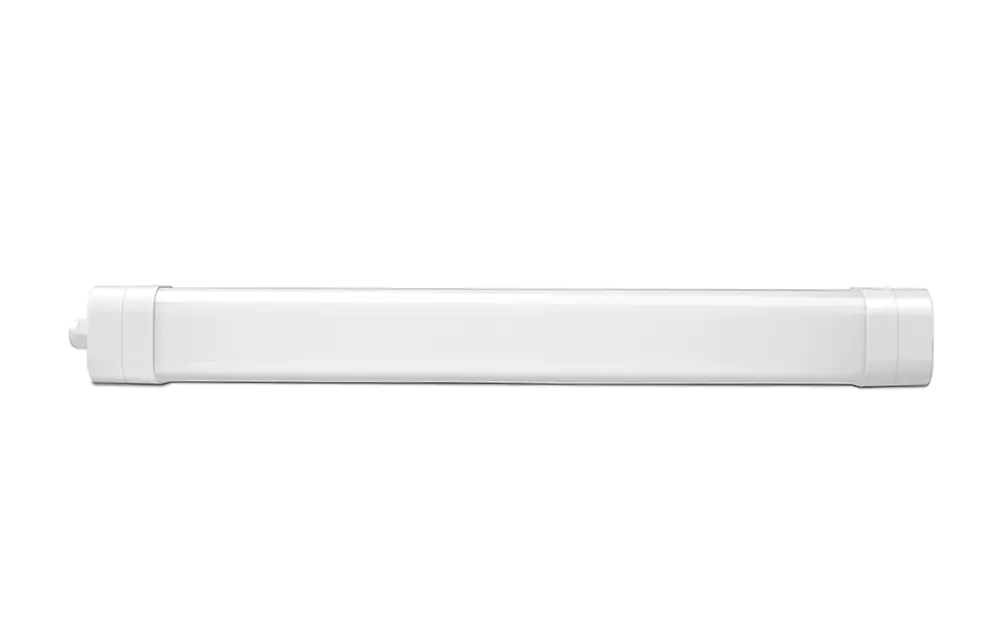

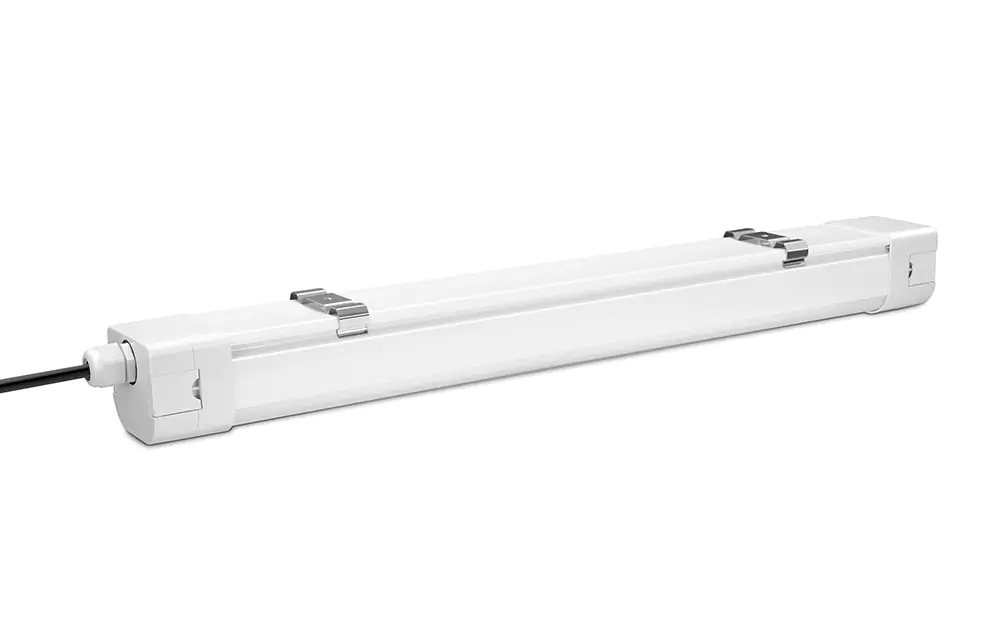

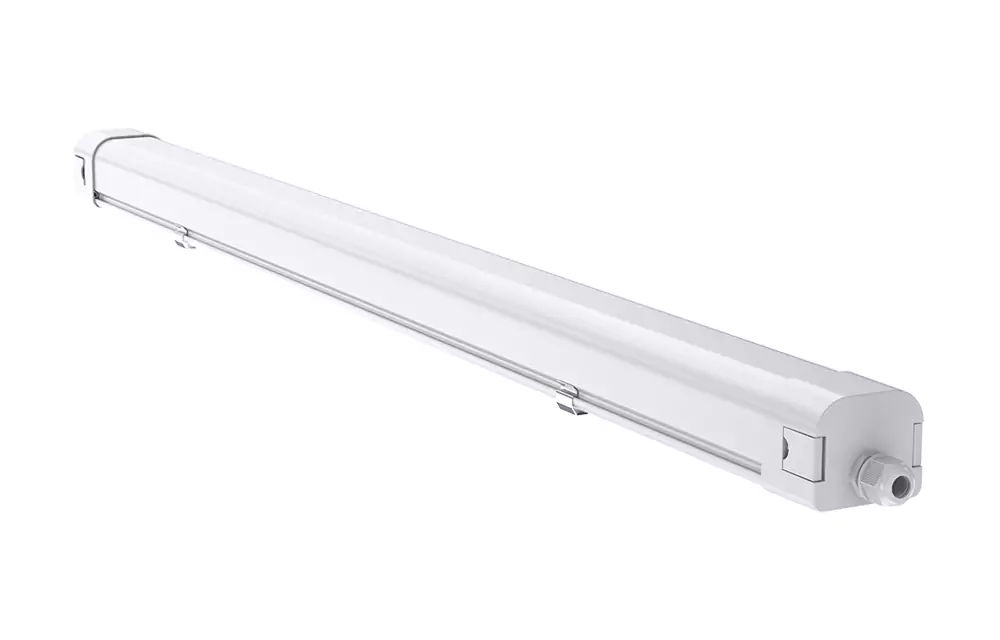

mimiLED 2 Series LED Tri proof Light
Key Features:
■ High bright Bridgelux LED, Tridonic/Osram/Lifud driver, >140LM/W.
■ Uvioresistant and anti-yellowish PC housing used, high light transmittance.
■ Aluminum heat sink inside, great heat dissipation.
■ Power adjustable and CCT adjustable for your different requirement.
■ Linkable, screw free and easy to operate.
Specification
| Model No. | ML-TP20WA-UCT2-L60 | ML-TP30WA-UCT2-L120 | ML-TP40WA-UCT2-L120 | ML-TP45WA-UCT2-L150 | ML-TP60WA-UCT2-L150 |
| Power | 20W | 30W | 40W | 45W | 60W |
| LED Chip Brand | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux |
| Power Driver Brand | Tridonic/Osram/Lifud | Tridonic/Osram/Lifud | Tridonic/Osram/Lifud | Tridonic/Osram/Lifud | Tridonic/Osram/Lifud |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >80 | >80 | >80 | >80 | >80 |
| Beam Angle | 120° | 120° | 120° | 120° | 120° |
| Input Voltage | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >140LM/W | >140LM/W | >140LM/W | >140LM/W | >140LM/W |
| Initial Flux | >2, 800Lm | >4, 200Lm | >5, 600Lm | >6, 300Lm | >8, 400Lm |
| Working Environment | -20℃~+40℃ | -20℃~+40℃ | -20℃~+40℃ | -20℃~+40℃ | -20℃~+40℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| IK Rating | IK08 | IK08 | IK08 | IK08 | IK08 |
| Connection | Linkable | Linkable | Linkable | Linkable | Linkable |
| Fixture Dimension | 659*74*64MM | 1221*74*64MM | 1221*74*64MM | 1502*74*64MM | 1502*74*64MM |
| Material | Aluminum Alloy & PC | Aluminum & PC | Aluminum & PC | Aluminum & PC | Aluminum & PC |

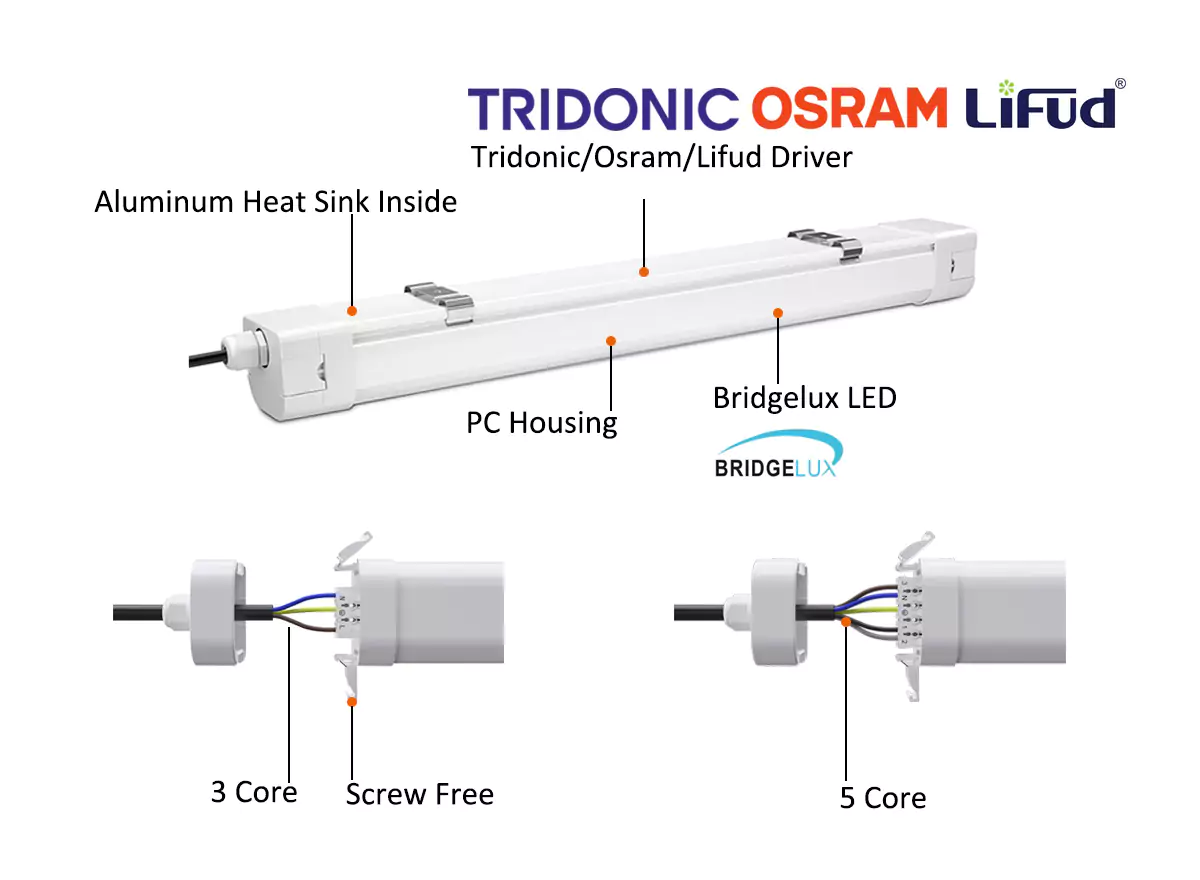

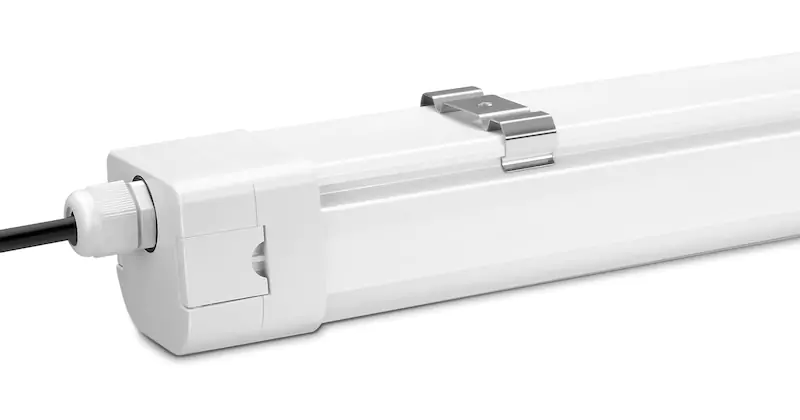

PC Housing & Aluminum Heat Sink Inside
Excellent on uvioresistant, high light transmittance and excellent heat dissipation

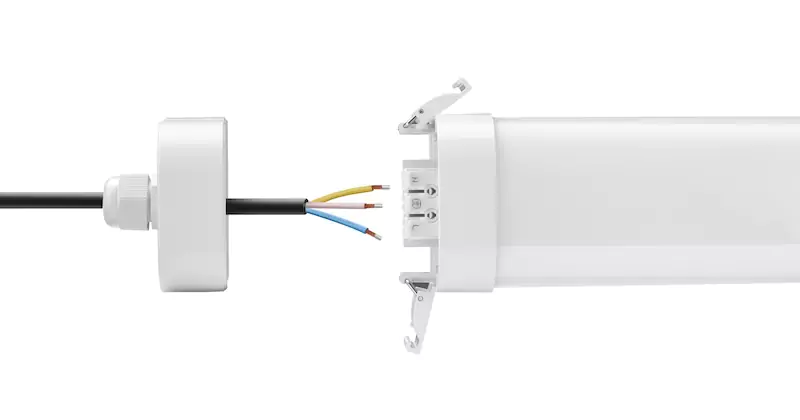

Screw Free, Easy to Install
With screw-free lock buckles on each end, it can be open very easily

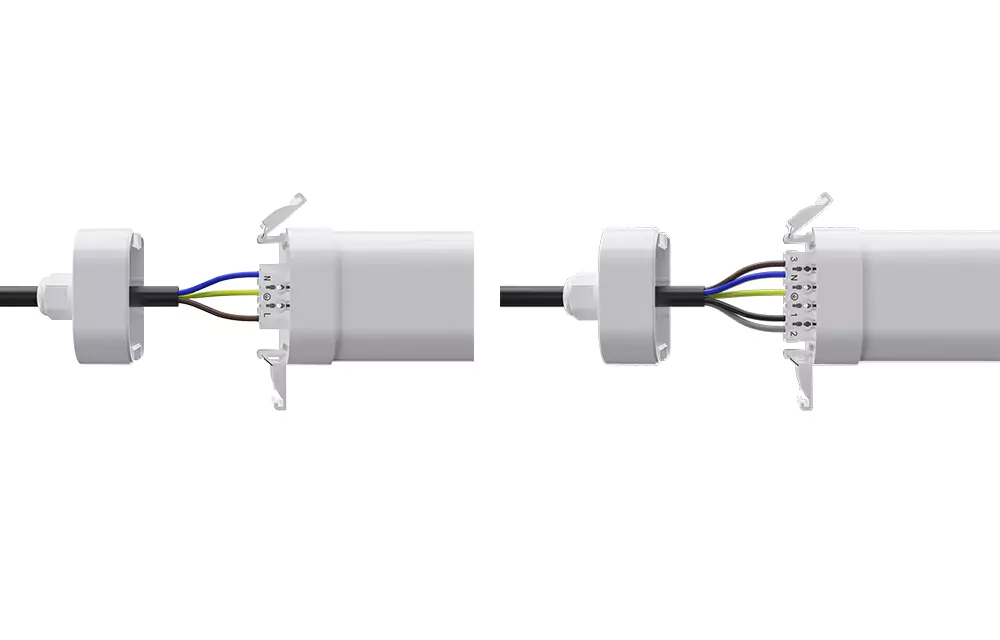

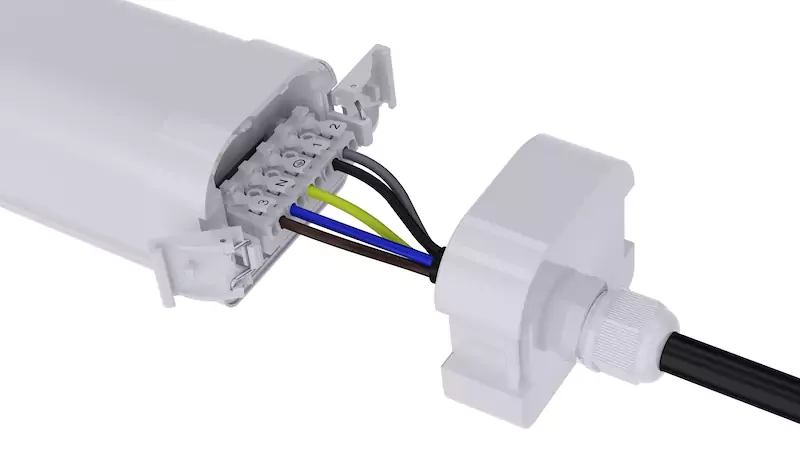

3 Core & 5 Core are Both Available
With terminal inside, 3 core or 5 core terminal is easy to rewire inside.

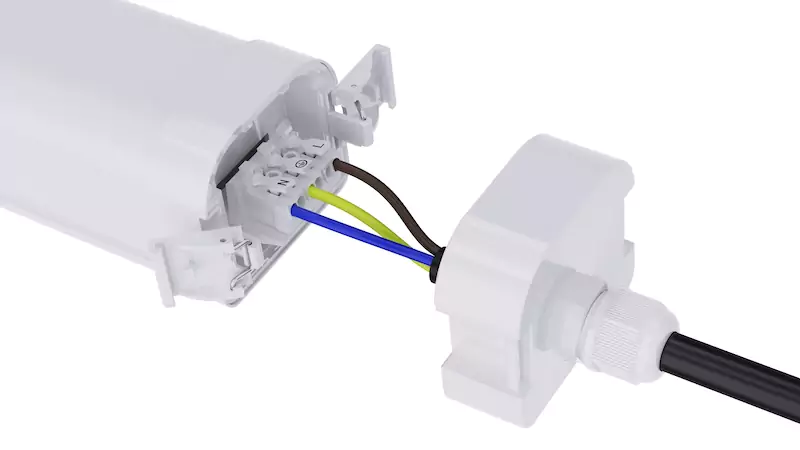

3 core
3 core

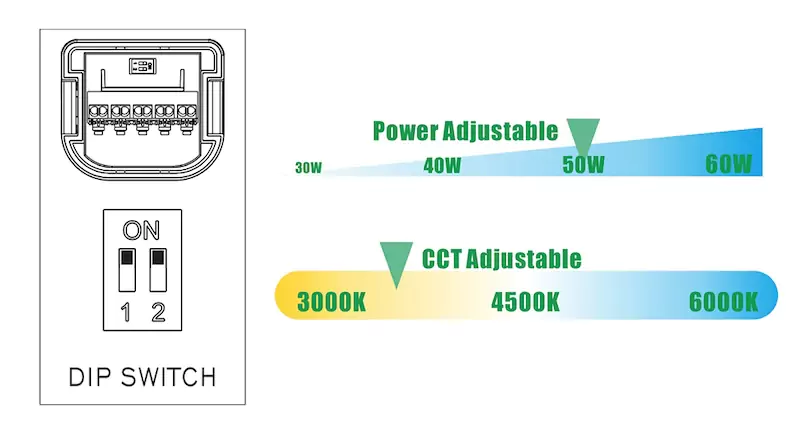

Power Adjustable & CCT Adjustable
The DIP switch on each end of end cap. It can be used to adjust the power and color temperature according to your requirement.

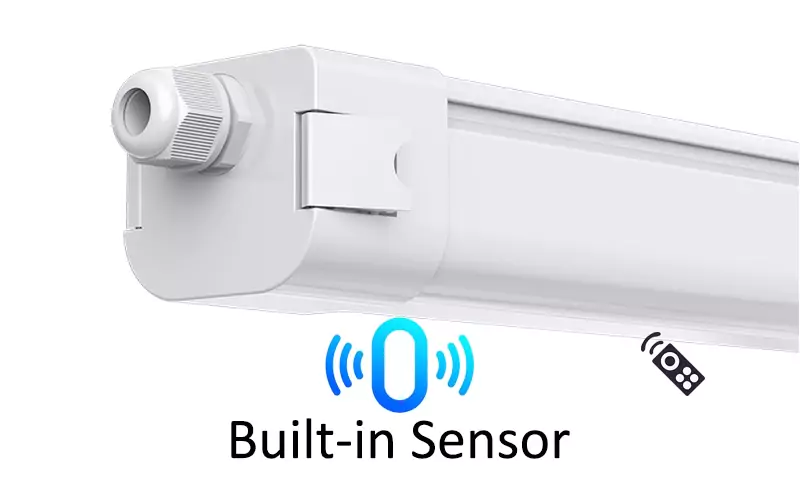

Micro-wave Sensor and Remote Control Optional
With built-in micro-wave sensor optional. In addition, remote control is optional for reseting working modes.

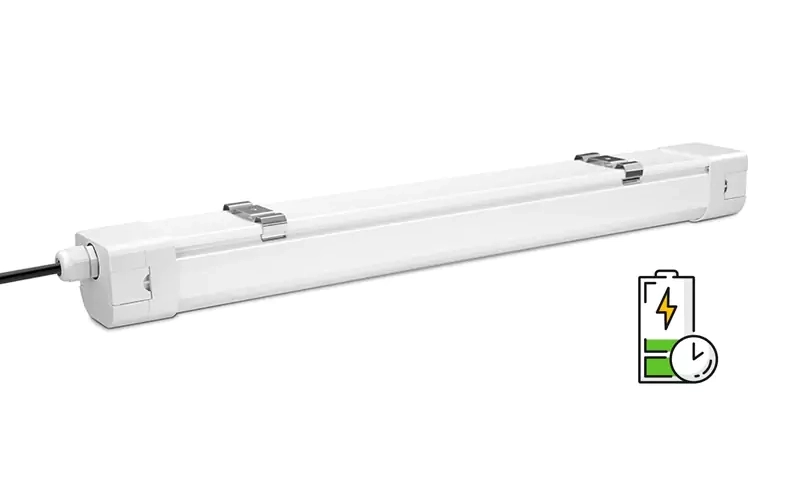

Emergency Version Available
We have it with emergency battery. The emergency power is 10%, and the emergency time is 3 hours.

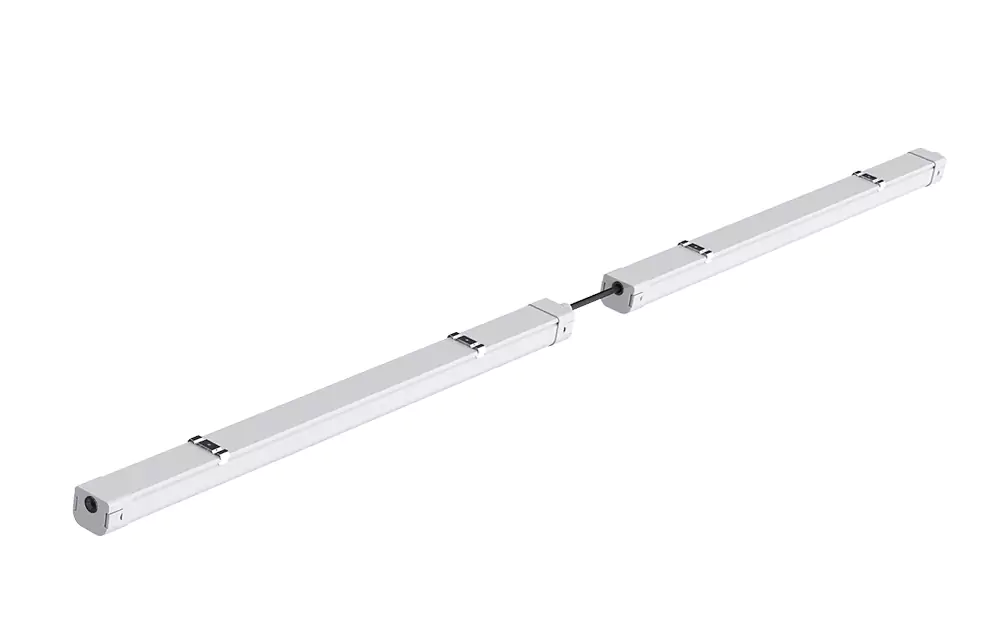

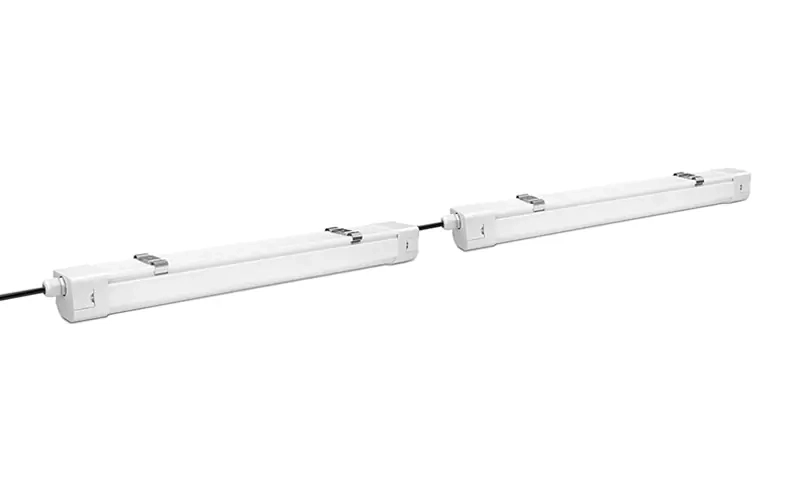

Easy to Link in Series
Loading capacity is up to 1, 440w
1-10V Dimmable and Dali Dimmable Optional
Different dimmable ways for your different requirements.
120°

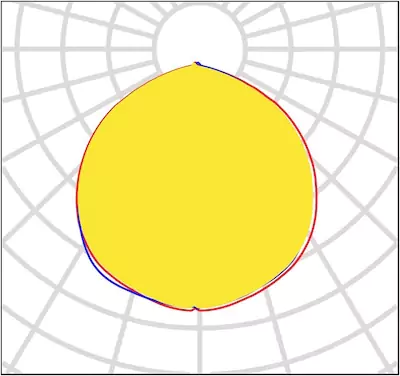

Light Distribution Curve

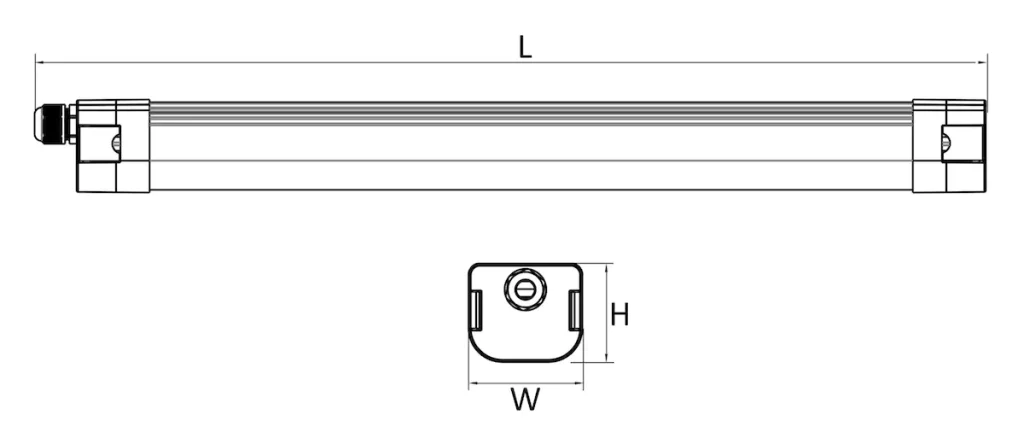

Product size
| Power | L | W | H |
| 20W | 659mm | 74mm | 64mm |
| 30W | 1221mm | 74mm | 64mm |
| 40W | 1221mm | 74mm | 64mm |
| 45W | 1502mm | 74mm | 64mm |
| 60W | 1502mm | 74mm | 64mm |
