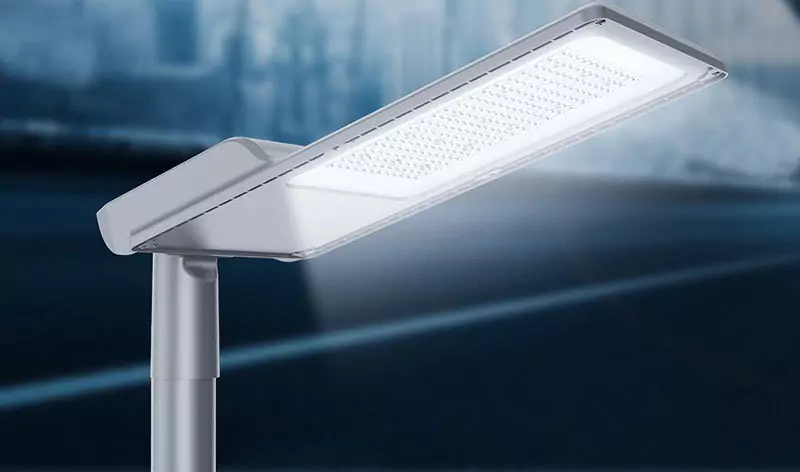

mimiLED 3 Series LED Street Light

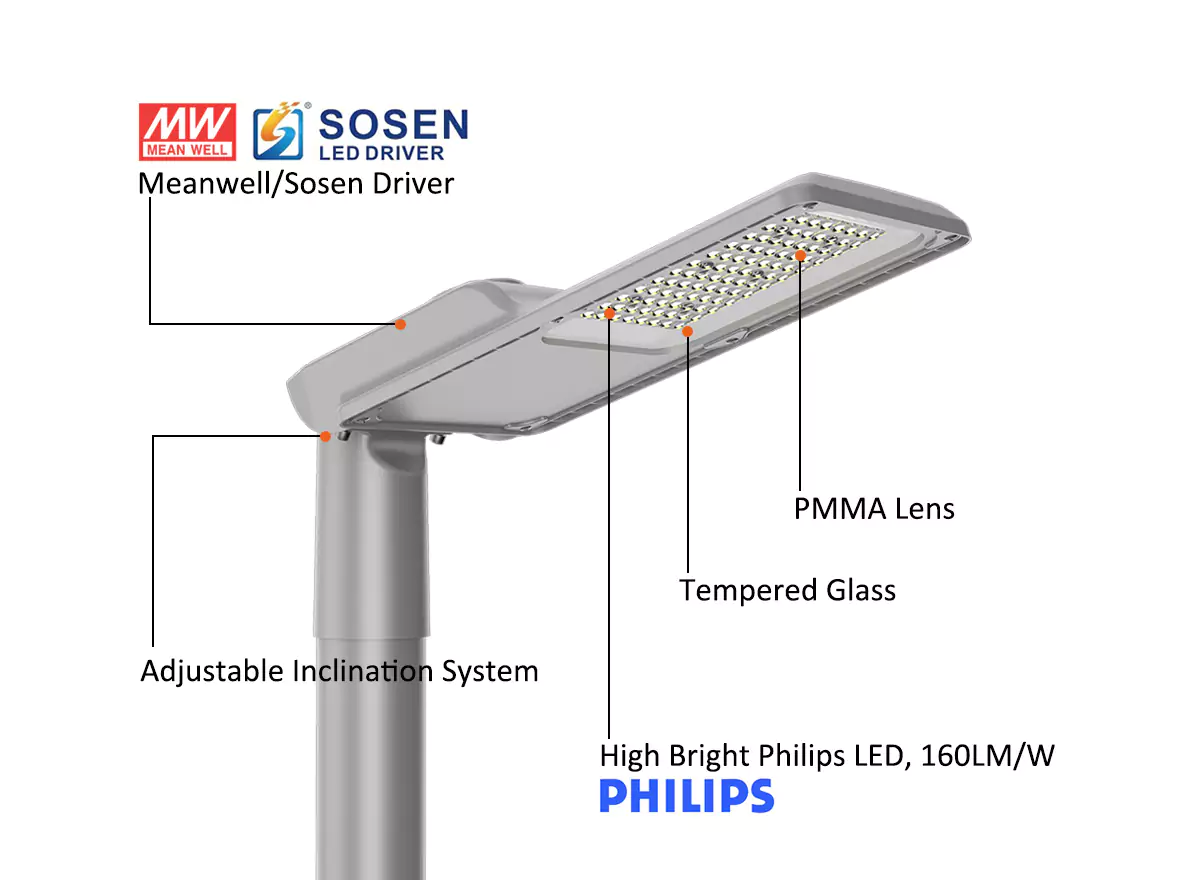

Key Features:
■ Philips LED, Meanwell/Sosen power driver.
■ Die-casting aluminum housing for good heat dissipation.
■ Smooth back design, eliminate the risk of dust and bird droppings.
■ Tempered glass used, increasing the security.
■ High light transmittance PMMA lens used.
■ Power adjustable, lower your inventory cost.
Specification
| Model No. | ML-S40W-UCS3 | ML-S50W-UCS3 | ML-S80W-UCS3 |
| Power | 40W | 50W | 80W |
| LED Chip Brand | Philips | Philips | Philips |
| Power Driver | Meanwell/Sosen | Meanwell/Sosen | Meanwell/Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 |
| Beam Angle | TP II/TP III/ | TP II/TP III/ | TP II/TP III/ |
| TP IV/TP V | TP IV/TP V | TP IV/TP V | |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >160LM/W | >160LM/W | >160LM/W |
| Initial Flux | >6, 400LM | >8, 000LM | >12, 800LM |
| Working Environment | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 |
| IK Rating | IK08 | IK08 | IK08 |
| Fixture Dimension | 515*190*99MM | 515*190*99MM | 575*242*109MM |
| Installation Tube | Φ60MM | Φ60MM | Φ60MM |
| Material | Die-cast Aluminum+Tempered Glass | Die-cast Aluminum+Tempered Glass | Die-cast Aluminum+Tempered Glass |
| Model No. | ML-S100W-UCS3 | ML-S120W-UCS3 | ML-S150W-UCS3 | ML-S200W-UCS3 |
| Power | 100W | 120W | 150W | 200W |
| LED Chip Brand | Philips | Philips | Philips | Philips |
| Power Driver | Meanwell/Sosen | Meanwell/Sosen | Meanwell/Sosen | Meanwell/Sosen |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Color-rendering Index | >70 | >70 | >70 | >70 |
| Beam Angle | TP II/TP III/ | TP II/TP III/ | TP II/TP III/ | TP II/TP III/ |
| TP IV/TP V | TP IV/TP V | TP IV/TP V | TP IV/TP V | |
| Input Voltage | AC 100-277V | AC 100-277V | AC 100-277V | AC 100-277V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Luminous Efficiency | >160LM/W | >160LM/W | >160LM/W | >160LM/W |
| Initial Flux | >16, 000LM | >19, 200LM | >24, 000LM | >32, 000LM |
| Working Environment | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |
| Life Span | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs | >50, 000Hrs |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| IK Rating | IK08 | IK08 | IK08 | IK08 |
| Fixture Dimension | 575*242*109MM | 615*262*109MM | 615*262*109MM | 685*287*109MM |
| Installation Tube | Φ60MM | Φ60MM | Φ60MM | Φ60MM |
| Material | Die-cast Aluminum+Tempered Glass | Die-cast Aluminum+Tempered Glass | Die-cast Aluminum+Tempered Glass | Die-cast Aluminum+Tempered Glass |
High Brightness Philips LED Chip, 160LM/W
Energy-saving and cost-effective

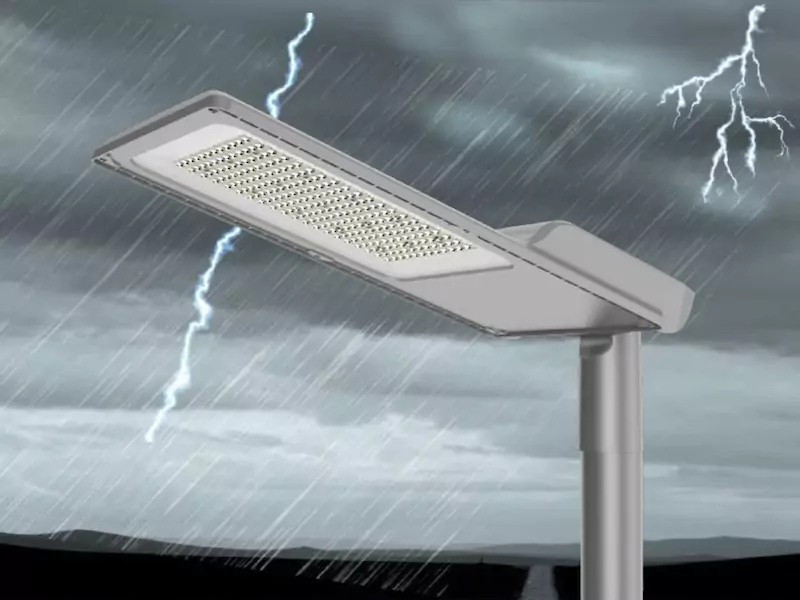

IP66 Waterproof & 6-20V Surge Protection
Different surge protection standard for your different requirements.
Adjustable Inclination System

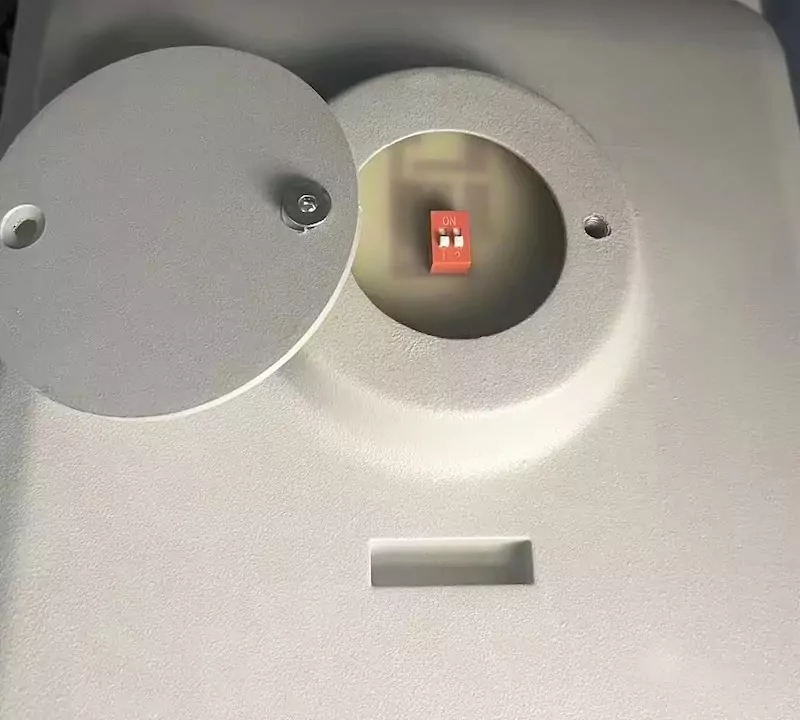

Power Adjustable
With DIP switch, easy to operate.
20W-50W Power Adjustable
| Power | 50W | 40W | 30W | 20W |
|---|---|---|---|---|
| 1 | OFF | ON | OFF | ON |
| 2 | OFF | OFF | ON | ON |
40W-100W Power Adjustable
| Power | 100W | 80W | 60W | 40W |
|---|---|---|---|---|
| 1 | OFF | ON | OFF | ON |
| 2 | OFF | OFF | ON | ON |
Different Installation Ways

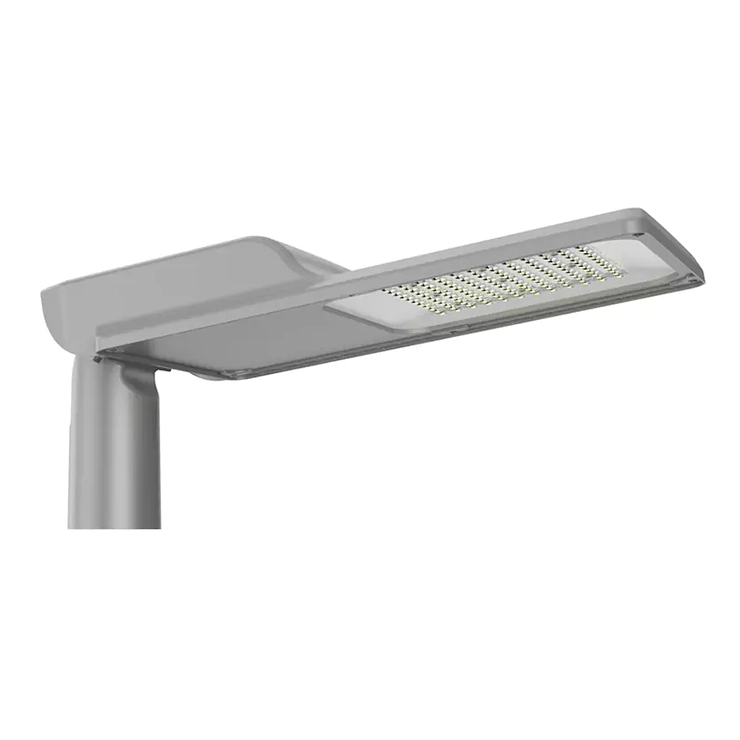

Vertical Installation

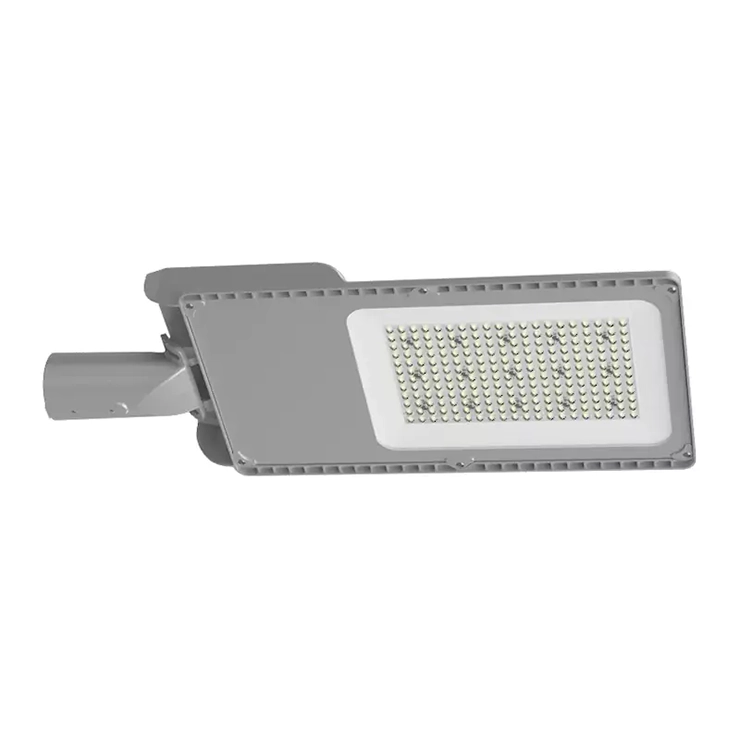

Horizontal Installation
Light Distribution Curve

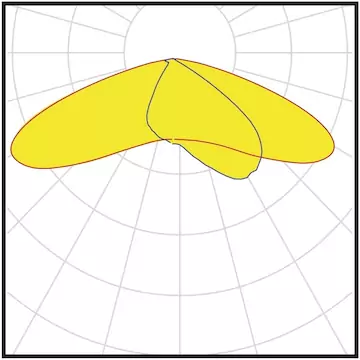

Type II

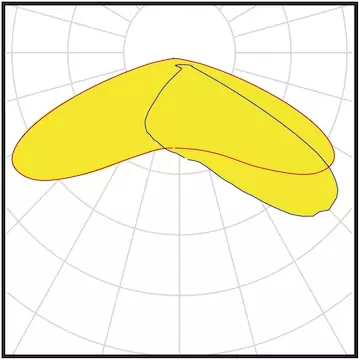

Type III

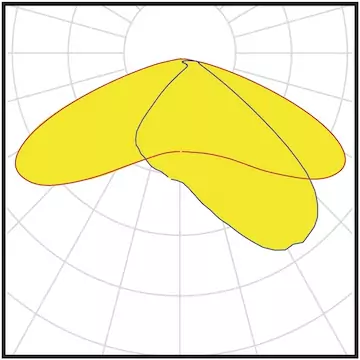

Type IV

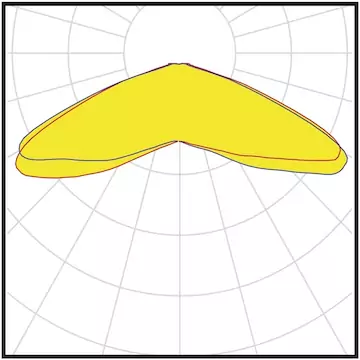

Type V

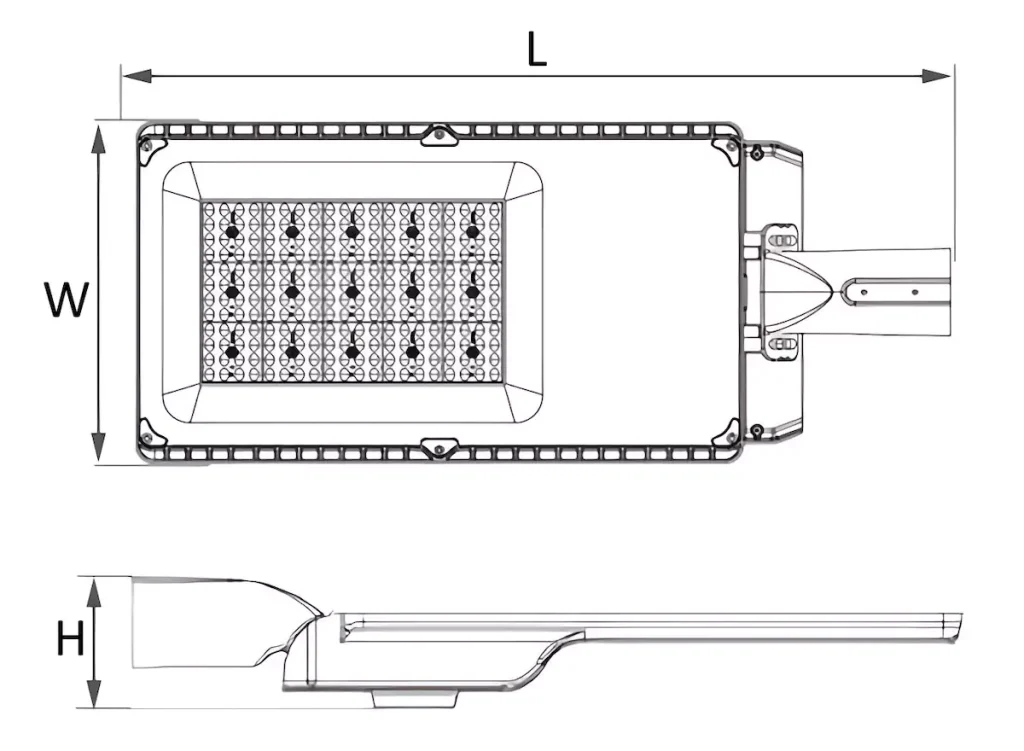

Product size
| Power | L | W | H |
| 40W | 515mm | 190mm | 99mm |
| 50W | 515mm | 190mm | 99mm |
| 80W | 575mm | 242mm | 109mm |
| 100W | 575mm | 242mm | 109mm |
| 120W | 615mm | 262mm | 109mm |
| 150W | 615mm | 262mm | 109mm |
| 200W | 685mm | 287mm | 109mm |
