In-ground lights

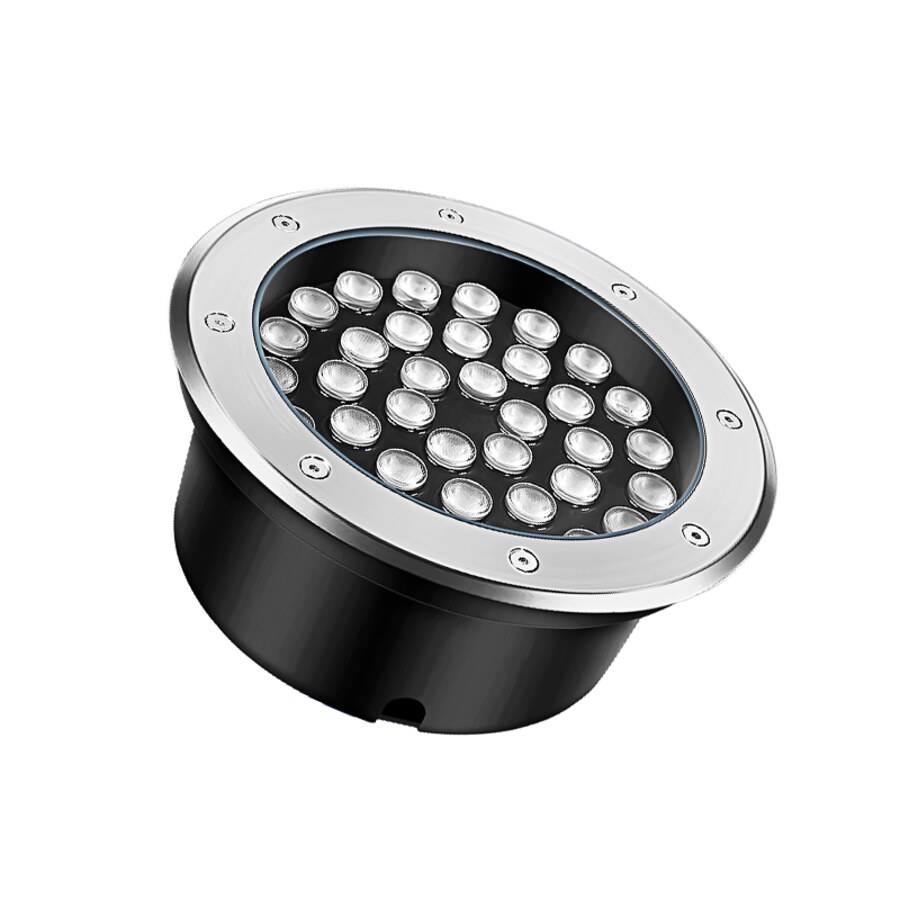

LED in-ground lights

LED in-ground lights are installed flush in paving, decking or soil to uplight facades, trees and paths. MiMiLed offers them from 3 to 48 W with IP67 protection.

Features

Power from 3 to 48 W
Up to 3,840 lm luminous flux
Colour temperatures: 3000 K, 4000 K
Protection: IP67
Beam angles: 30° 60° 90° 120°, 45°
Every version has its own order code

Benefits

Flush installation Sits in the ground, out of the way.
Waterproof IP67 protection.
Beam angles Several beam angles available.
Power range From 3 to 48 W.
Consistent quality Every version is documented with its specification and order code.
Quality components Components are chosen for stable light output and long service life.
Long-term reliability Up to 5 years warranty on listed versions, directly from MiMiLed.
Built for professional use Documented versions with fixed order codes, so repeat orders and spare parts are always the same product.

Application areas

Facade uplighting

Garden paths

Trees and landscaping

Squares and walkways

Product lines

Product line	Power	Efficacy	CCT
Low-power in-ground lights Paths and accents	3–9 W	up to 80 lm/W	3000/4000 K
High-power in-ground lights Facades and trees	12–48 W	up to 80 lm/W	3000/4000 K

Specifications

Nominal voltage	230V
Power	3–48 W
Colour temperature	3000 K, 4000 K
CRI	80
Protection (IP)	IP67
Beam angle	30° 60° 90° 120°, 45°
Warranty	up to 5 years, directly from MiMiLed

Which in-ground light to choose?

Path marking	Low power with wide beam.
Facade uplighting	Higher power with narrow beam.
Trees	Choose a medium beam.
Installation	Use a drainage layer.

All in-ground lights and order codes

PowerColour temperatureBeam angle

13 of 13 items

Description	Power	Luminous flux	CCT / colour	CRI	Voltage	IP	Beam angle	Order code
LED in-ground light round 3w 240lm 3000K 45°	3 W	240 lm	3000 K	80	230V	IP67	45°	MML-D6DBI2ZE
LED in-ground light round 3000K 30° 60° 90° 120°			3000 K	80	230V	IP67	30° 60° 90° 120°	MML-D6DBI2ZF
LED in-ground light round 6w 480lm 4000K 45°	6 W	480 lm	4000 K	80	230V	IP67	45°	MML-D6DBI3R5
LED in-ground light round 9w 720lm 4000K 45°	9 W	720 lm	4000 K	80	230V	IP67	45°	MML-D6DBI3R6
LED in-ground light round 12w 960lm 3000K 45°	12 W	960 lm	3000 K	80	230V	IP67	45°	MML-D6DBI2ZH
LED in-ground light round 12w 960lm 4000K 30° 60° 90° 120°	12 W	960 lm	4000 K	80	230V	IP67	30° 60° 90° 120°	MML-D6DBI3R7
LED in-ground light round 18w 1440lm 3000K 45°	18 W	1440 lm	3000 K	80	230V	IP67	45°	MML-D6DBI2ZI
LED in-ground light round 18w 1440lm 4000K 30° 60° 90° 120°	18 W	1440 lm	4000 K	80	230V	IP67	30° 60° 90° 120°	MML-D6DBI3R8
LED in-ground light round 24w 1920lm 3000K 45°	24 W	1920 lm	3000 K	80	230V	IP67	45°	MML-D6DBI2ZJ
LED in-ground light round 24w 1920lm 4000K 30° 60° 90° 120°	24 W	1920 lm	4000 K	80	230V	IP67	30° 60° 90° 120°	MML-D6DBI3R9
LED in-ground light round 36w 2880lm 3000K 45°	36 W	2880 lm	3000 K	80	230V	IP67	45°	MML-D6DBI2ZK
LED in-ground light round 36w 2880lm 4000K 30° 60° 90° 120°	36 W	2880 lm	4000 K	80	230V	IP67	30° 60° 90° 120°	MML-D6DBI3RA
LED in-ground light round 48w 3840lm 3000K 45°	48 W	3840 lm	3000 K	80	230V	IP67	45°	MML-D6DBI2ZL

Need a quote?
Tell us the article numbers and quantities.

Request a quote

Frequently asked questions

What does IP67 mean?

Dust-tight and protected against temporary immersion.

Can vehicles drive over them?

Check the load rating in the product description before installing in driveways.

What beam angle should I choose?

Narrow for uplighting facades, wide for paths. Available beam angles: 30° 60° 90° 120°, 45°.

How do I order?

Copy the order codes and send them with quantities through the quote form.
