Street & garden lights

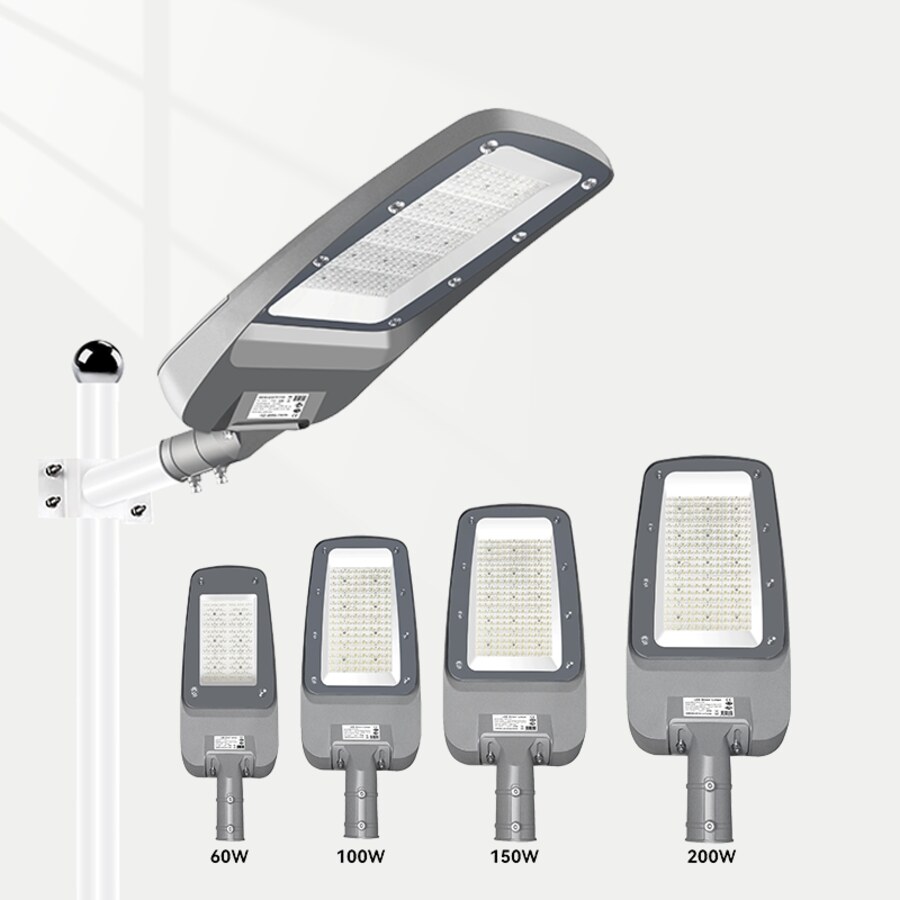

LED street and garden lights

LED street lights give even road lighting at a fraction of the energy of older lamps. MiMiLed offers them from 30 to 200 W with IP65-IP66 protection.

Features

Power from 30 to 200 W
Up to 34,000 lm luminous flux
Colour temperatures: 3000 K, 4000 K
Protection: IP65-IP66
Beam angles: 120°, 135°x70°, 140°x70°
Every version has its own order code

Benefits

Efficient road lighting High lumen output per watt.
Weatherproof IP65-IP66 protection.
Sensor versions Versions with sensor switch on when needed.
Mounting options Adapters and arms listed.
Proven components Selected versions use drivers from established manufacturers such as Osram, Sosen.
Quality components Components are chosen for stable light output and long service life.
Long-term reliability Up to 5 years warranty on listed versions, directly from MiMiLed.
Built for professional use Documented versions with fixed order codes, so repeat orders and spare parts are always the same product.

Application areas

Roads and streets

Car parks

Parks and paths

Industrial yards

Residential areas

Product lines

Product line	Power	Efficacy	CCT
Street lights For roads and car parks	30–200 W	up to 170 lm/W	3000/4000 K
With sensor Switch on when needed	60–200 W	up to 170 lm/W	4000 K
Garden lights For paths and parks	60 W	up to 150 lm/W	4000 K

Specifications

Nominal voltage	220-240V
Power	30–200 W
Colour temperature	3000 K, 4000 K
CRI	>80, 70
Protection (IP)	IP65-IP66
Beam angle	120°, 135°x70°, 140°x70°
Driver	Osram, Sosen
Warranty	up to 5 years, directly from MiMiLed

Which street light to choose?

Residential streets	30–60 W on 4–6 m poles.
Main roads and car parks	100–200 W on taller poles.
Energy saving	Choose the sensor versions.
Garden paths	Use the garden version.

All street and garden lights and order codes

PowerColour temperatureVoltageBeam angleCRI

25 of 25 items

Description	Power	Luminous flux	CCT / colour	CRI	Voltage	IP	Beam angle	Order code
LED street/garden light garden 60w 9000lm 4000K 120°	60 W	9000 lm	4000 K	>80	220-240V	IP65-IP66	120°	MML-X0021
LED street/garden light garden 76lm		76mm to 60mm		/	/	IP65-IP66	/	MML-X0022
LED street light 30w 4500lm 3000K 140°x70°	30 W	4500 lm	3000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CMYL
LED street light 30w 4500lm 4000K 140°x70°	30 W	4500 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQH
LED street light 30w 4500lm 3000K 135°x70°	30 W	4500 lm	3000 K	70	220-240V	IP65-IP66	135°x70°	MML-D652CMYN
LED street light 30w 4500lm 4000K 135°x70°	30 W	4500 lm	4000 K	70	220-240V	IP65-IP66	135°x70°	MML-D652CNR1
LED street light 60w 9000lm 4000K 140°x70°	60 W	9000 lm	4000 K	70		IP65-IP66	140°x70°	MML-D652CNQD
LED street light 100w 16000lm 4000K 140°x70°	100 W	16000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQE
LED street light 150w 25500lm 4000K 140°x70°	150 W	25500 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQF
LED street light 200w 34000lm 4000K 140°x70°	200 W	34000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQG
LED street light 60w 9000lm 4000K 140°x70°	60 W	9000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNR5
LED street light 100w 16000lm 4000K 140°x70°	100 W	16000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNR6
LED street light 150w 25500lm 4000K 140°x70°	150 W	25500 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNR7
LED street light 200w 34000lm 4000K 140°x70°	200 W	34000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-X0023
LED street light with motion sensor 60w 9000lm 4000K 140°x70°	60 W	9000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQO
LED street light with motion sensor 100w 16000lm 4000K 140°x70°	100 W	16000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQP
LED street light with motion sensor 150w 25500lm 4000K 140°x70°	150 W	25500 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQQ
LED street light with motion sensor 200w 34000lm 4000K 140°x70°	200 W	34000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNQR
LED street light with motion sensor 60w 9000lm 4000K 140°x70°	60 W	9000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNR9
LED street light with motion sensor 100w 16000lm 4000K 140°x70°	100 W	16000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNRA
LED street light with motion sensor 150w 25500lm 4000K 140°x70°	150 W	25500 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-D652CNRB
LED street light with motion sensor 200w 34000lm 4000K 140°x70°	200 W	34000 lm	4000 K	70	220-240V	IP65-IP66	140°x70°	MML-X0024
60mm adjustable lamp head adapter 0-90°						IP65-IP66		MML-Q5XVTEQO
40-60mm adjustable lamp head adapter 0-90°						IP65-IP66		MML-Q5XVTEOK
60mm lamp holder arm						IP65-IP66		MML-Q5XVTEPQ

Need a quote?
Tell us the article numbers and quantities.

Request a quote

Frequently asked questions

How many lumens does a street light need?

It depends on the road class, pole height and spacing. Residential streets need less than main roads.

What does IP65 or IP66 mean?

Dust-tight and protected against water jets or powerful water jets. Listed: IP65-IP66.

What mounting height is typical?

Residential streets 4–6 m, main roads higher. Higher poles need more lumens.

Can I get a version with a sensor?

Yes, sensor versions are in the table.

Which colour temperature is best?

4000 K neutral white is common. Listed: 3000 K, 4000 K.

How do I order?

Copy the order codes and send them with quantities through the quote form.
