mimiLED Series Solar LED Garden Light

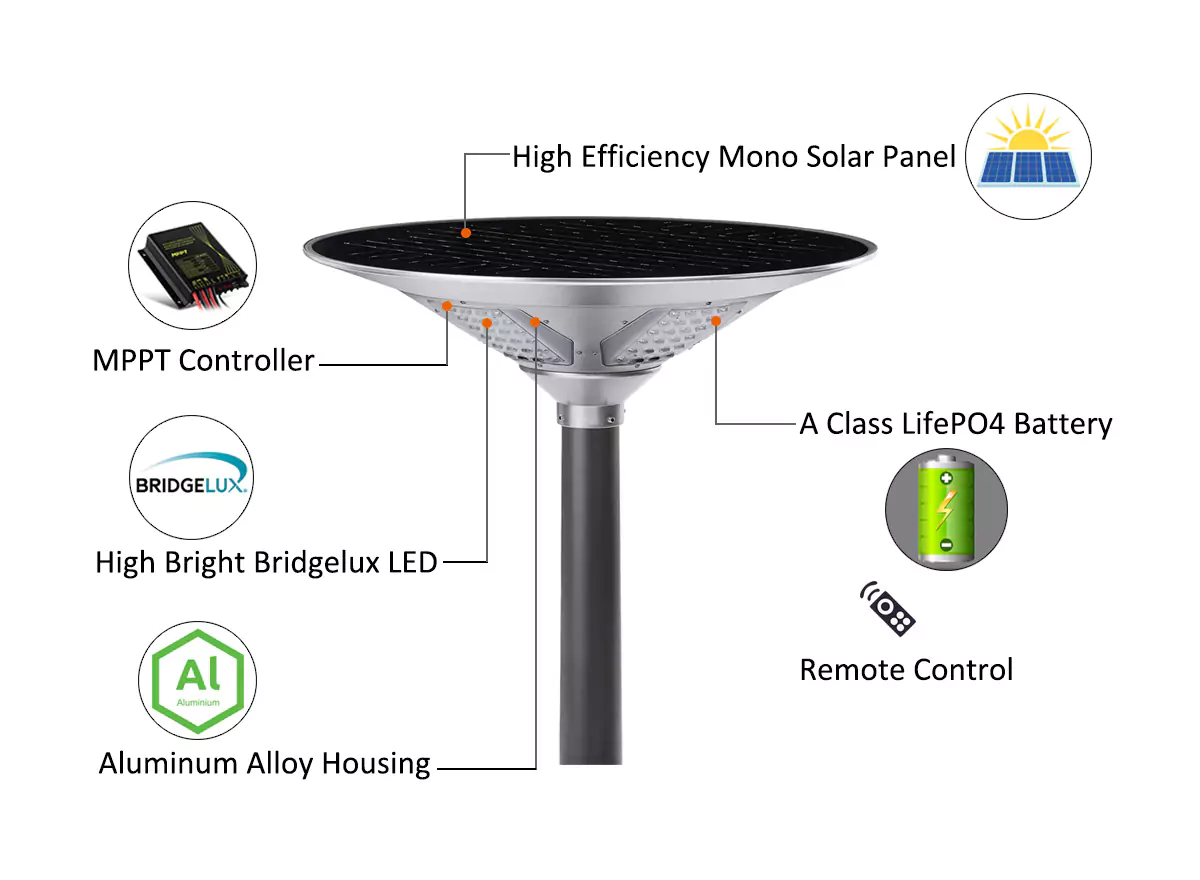

Key Features:

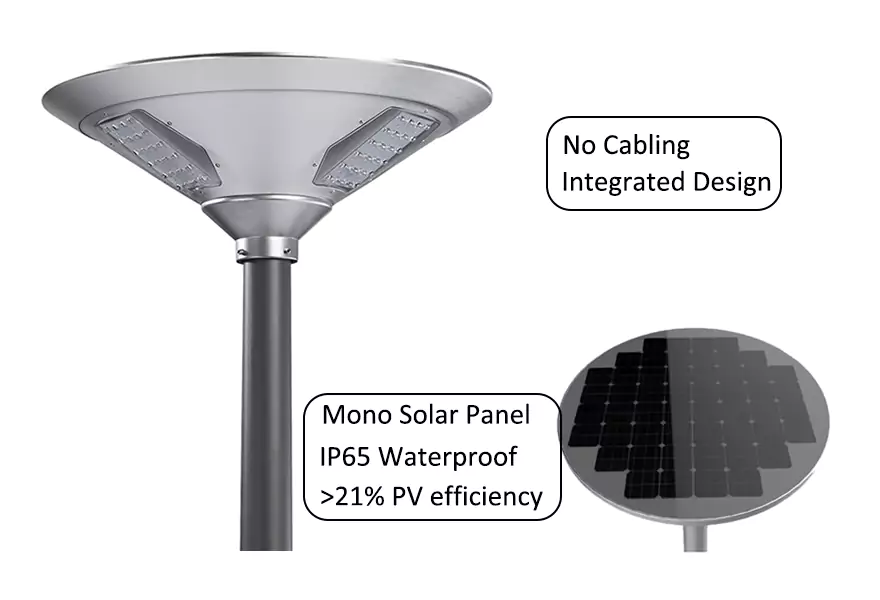

■ All in one design, low transportation cost.
■ High bright Bridgelux LED & Mono solar panel.
■ Various lighting modes to meet your requirement.
■ Intelligent temperature control system to protect the battery charging and discharging.
■ Aluminum alloy housing, ensure good heat dissipation.
Specification
| Model No. | ML-SG20W-BEU1 | ML-SG30W-BEU1 | ML-SG50W-BEU1 |
| Power | 20W | 30W | 50W |
| Solar Panel | 18V30W | 18V40W | 18V50W |
| LED Chip Brand | Bridgelux | Bridgelux | Bridgelux |
| LED Chip Quantity | 3*24pcs | 3*24pcs | 5*24pcs |
| Luminous Efficiency | >135LM/W | >135LM/W | >135LM/W |
| Initial Flux | >2, 700lm | >4, 050lm | >6, 750lm |
| LED Chip Life Time | 100, 000Hours | 100, 000Hours | 100, 000Hours |
| Beam Angle | 360° | 360° | 360° |
| LifePO4 Battery | 12.8V 30AH | 12.8V 30AH | 12.8V 45AH |
| Charge Time | 6Hours | 6Hours | 6Hours |
| Working Temperature | -25°C~+65°C | -25°C~+65°C | -25°C~+65°C |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Install Pole | Φ70-73mm | Φ70-73mm | Φ70-73mm |
| Mounting Height | 3-4m | 4-5m | 5-6m |
| Space Between Light | 10-15m | 10-18m | 14-25m |
| IP Rating | IP65 | IP65 | IP65 |
| With Remote Control | Yes | Yes | Yes |
| Controller | MPPT | MPPT | MPPT |
| Rainy/Cloudy Days | 3-5 Days | 3-5 Days | 3-5 Days |
| Lighting Mode | 5Hrs High Bright 100% power+7Hrs 25% power=12Hrs/Night | 5Hrs High Bright 100% power+7Hrs 25% power=12Hrs/Night | 5Hrs High Bright 100% power+7Hrs 25% power=12Hrs/Night |
| Sensor | Daylight Sensor | Daylight Sensor | Daylight Sensor |
| Fixture Dimension | Φ570*230mm | Φ660*240mm | Φ760*250mm |
| Lamp Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Model No. | ML-SG20W-BEU1 | ML-SG30W-BEU1 | ML-SG50W-BEU1 |
| Power | 20W | 30W | 50W |
| Solar Panel | 18V30W | 18V40W | 18V50W |
| LED Chip Brand | Bridgelux | Bridgelux | Bridgelux |
| LED Chip Quantity | 3*24pcs | 3*24pcs | 5*24pcs |
| Luminous Efficiency | >135LM/W | >135LM/W | >135LM/W |
| Initial Flux | >2, 700lm | >4, 050lm | >6, 750lm |
| LED Chip Life Time | 100, 000Hours | 100, 000Hours | 100, 000Hours |
| Beam Angle | 360° | 360° | 360° |
| LifePO4 Battery | 12.8V 30AH | 12.8V 30AH | 12.8V 45AH |
| Charge Time | 6Hours | 6Hours | 6Hours |
| Working Temperature | -25°C~+65°C | -25°C~+65°C | -25°C~+65°C |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K |
| Install Pole | Φ70-73mm | Φ70-73mm | Φ70-73mm |
| Mounting Height | 3-4m | 4-5m | 5-6m |
| Space Between Light | 10-15m | 10-18m | 14-25m |
| IP Rating | IP65 | IP65 | IP65 |
| With Remote Control | Yes | Yes | Yes |
| Controller | MPPT | MPPT | MPPT |
| Rainy/Cloudy Days | 3-5 Days | 3-5 Days | 3-5 Days |
| Lighting Mode | 5Hrs High Bright 100% power+7Hrs 25% power=12Hrs/Night | 5Hrs High Bright 100% power+7Hrs 25% power=12Hrs/Night | 5Hrs High Bright 100% power+7Hrs 25% power=12Hrs/Night |
| Sensor | Daylight Sensor | Daylight Sensor | Daylight Sensor |
| Fixture Dimension | Φ570*230mm | Φ660*240mm | Φ760*250mm |
| Lamp Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |

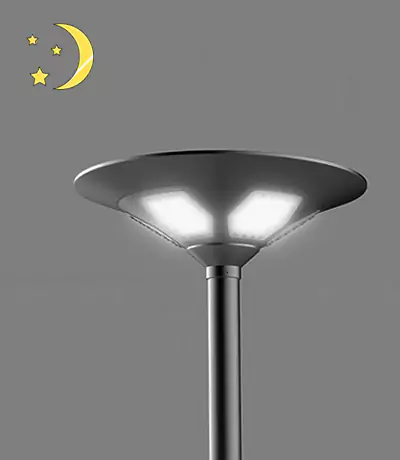

The Lighting Modes

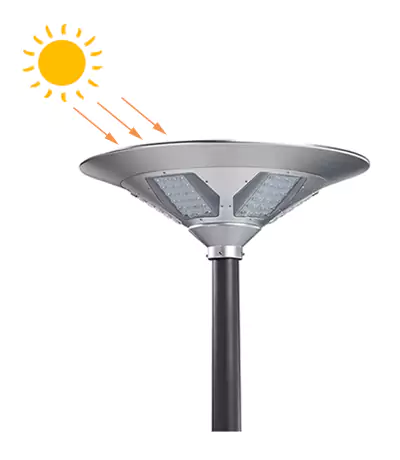

Light switch off for sun charging in daytime.

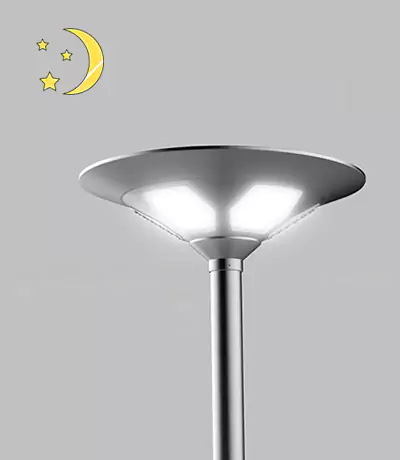

Work in 100% power for 5 hours.
After 5 hours, work in 25% power till dawn.

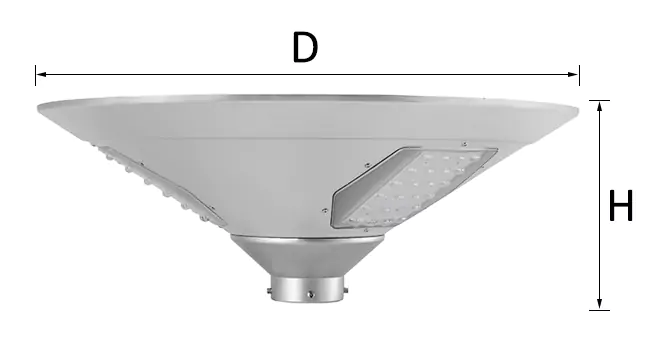

Product size
| Power | Diameter | Height |
|---|---|---|
| 20W | 570mm | 230mm |
| 30W | 660mm | 240mm |
| 40W | 760mm | 250mm |
