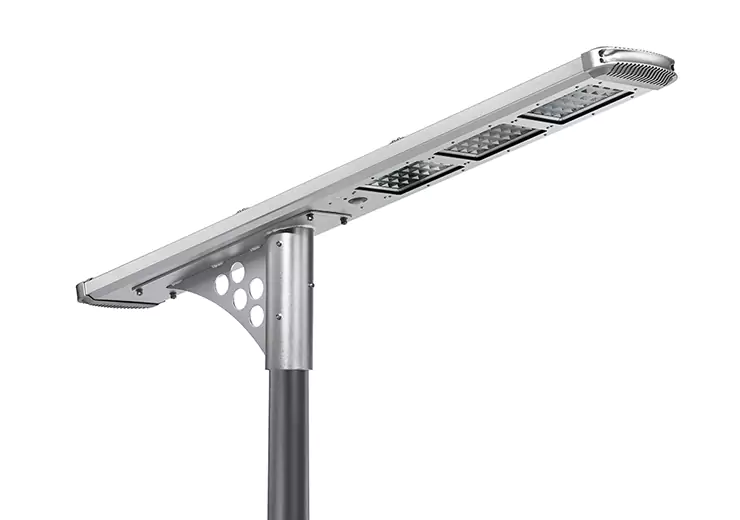

mimiLED 2 Series Solar LED Street Light

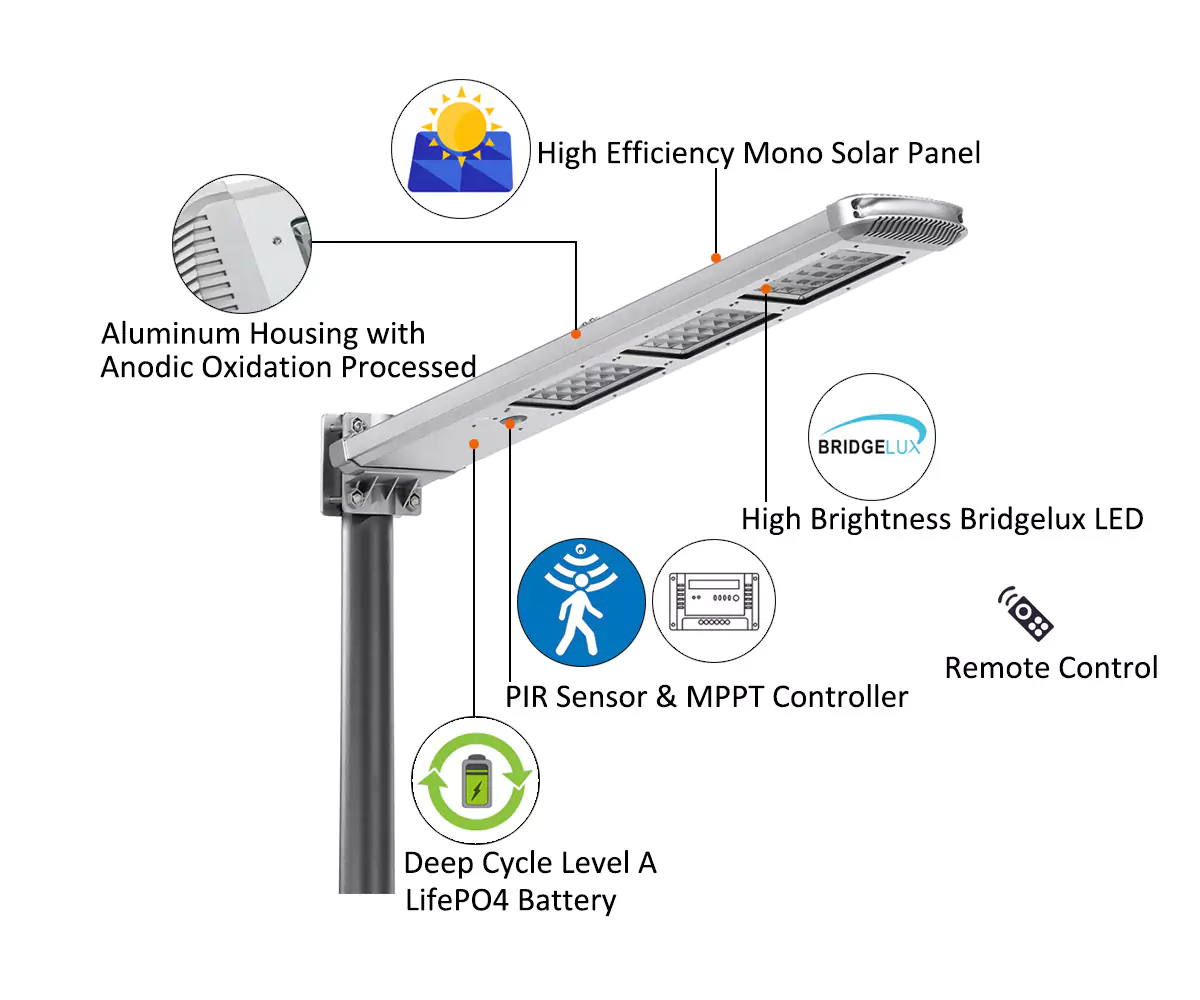

Key Features:
■ High bright Bridgelux LED chip, great quality.
■ Mono solar panel, high photoelectric conversion efficiency.
■ All in one design, easy on transportation and installation.
■ Aluminum housing, good heat dissipation.
■ A-class LifePO4 battery, with long life time.
■ Remote control available, easy to operate.
Specification
| Model No. | ML-AIO20W-BES2 | ML-AIO40W-BES2 | ML-AIO60W-BES2 | ML-AIO100W-BES2 | ML-AIO120W-BES2 |
| Power | 20W | 40W | 60W | 100W | 120W |
| MONO Solar Panel | 18V12W | 18V25W | 18V35W | 18V60W | 18V80W |
| LED Chip Brand | Bridgelux | Bridgelux | Bridgelux | Bridgelux | Bridgelux |
| Luminous Efficiency | >130LM/W | >130LM/W | >130LM/W | >130LM/W | >130LM/W |
| Initial Flux | >2, 600lm | >5, 200lm | >7, 800lm | >13, 000lm | >15, 600lm |
| LED Chip Life Time | 100, 000Hours | 100, 000Hours | 100, 000Hours | 100, 000Hours | 100, 000Hours |
| Beam Angle | 120° | 120° | 120° | 120° | 120° |
| LifePO4 Battery | 12.8V 72WH | 12.8V 144WH | 12.8V 384WH | 12.8V 576WH | 12.8V 576WH |
| Charge Time | 6Hours | 6Hours | 6Hours | 6Hours | 6Hours |
| Working Temperature | -25°C~+65°C | -25°C~+65°C | -25°C~+65°C | -25°C~+65°C | -25°C~+65°C |
| Color Temperature | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
| Mounting Height | 3-4m | 4-5m | 5-7m | 6-8m | 7-10m |
| Space Between Light | 8-10m | 10-14m | 14-18m | 15-20m | 18-25m |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 |
| Remote Control | Not | Not | Yes | Yes | Yes |
| Controller | MPPT | MPPT | MPPT | MPPT | MPPT |
| Installation Pole | Φ70-76mm | Φ70-76mm | Φ70-76mm | Φ70-76mm | Φ70-76mm |
| Fixture Dimension | 530*235*150mm | 815*227*164mm | 1095*227*164mm | 1580*421*225mm | 1950*421*225mm |
| Sensor | Daylight Sensor + Motion Sensor | ||||
| Lighting Mode | Dusk to dawn + Time control + Motion sensor | ||||
| Rainy/Cloudy Days | 3-5 Days | 3-5 Days | 3-5 Days | 3-5 Days | 3-5 Days |
| Lamp Material | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |

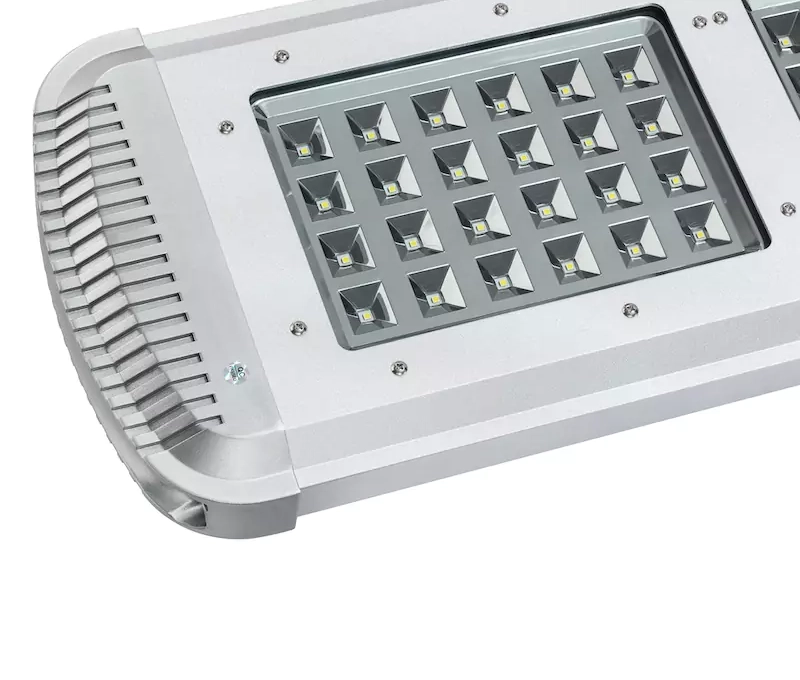

Bridgelux LED Chip, High Brightness
Top brand and great quality

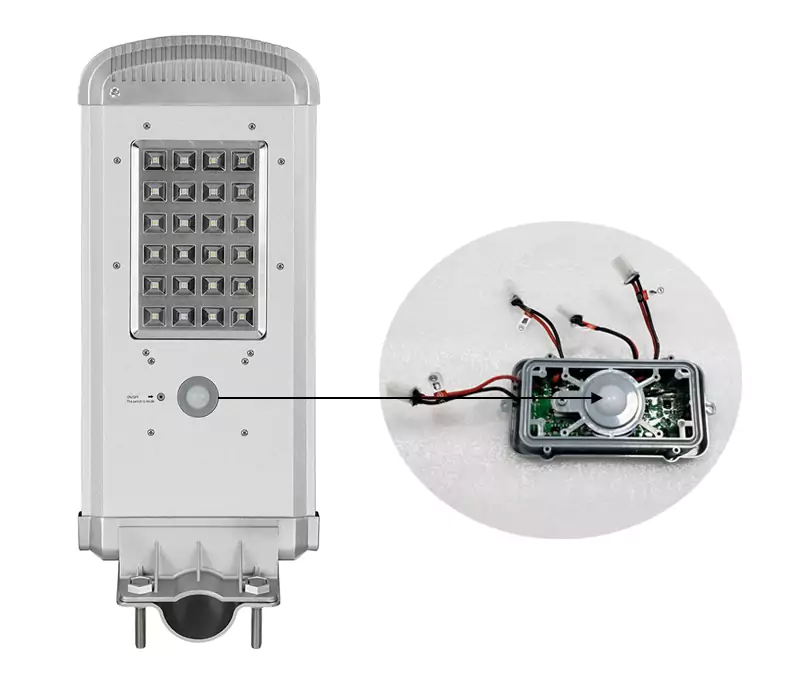

Top Brand MPPT Controller with Sensor

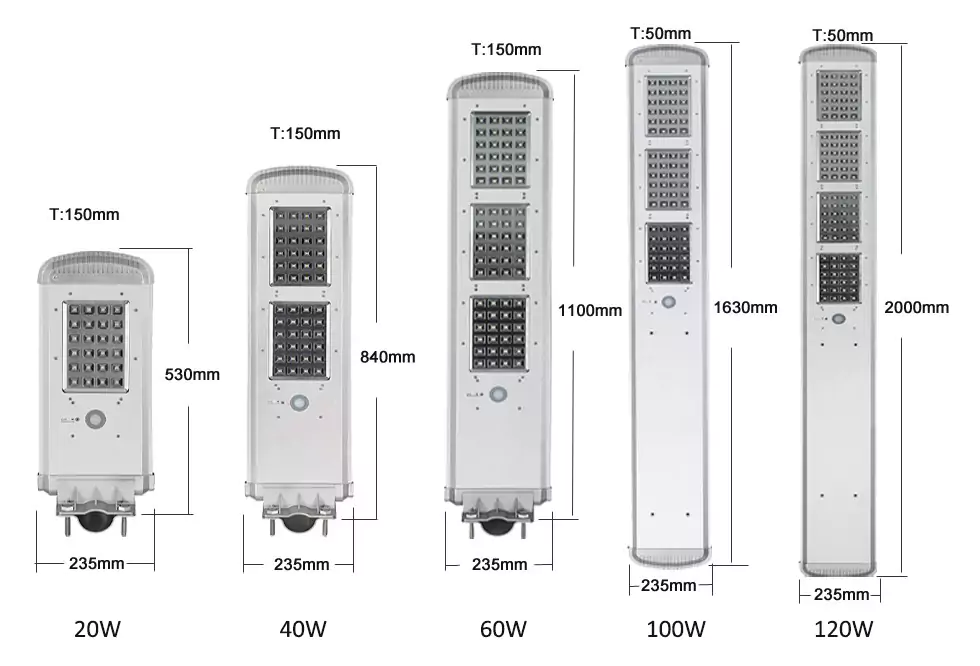

Product size
