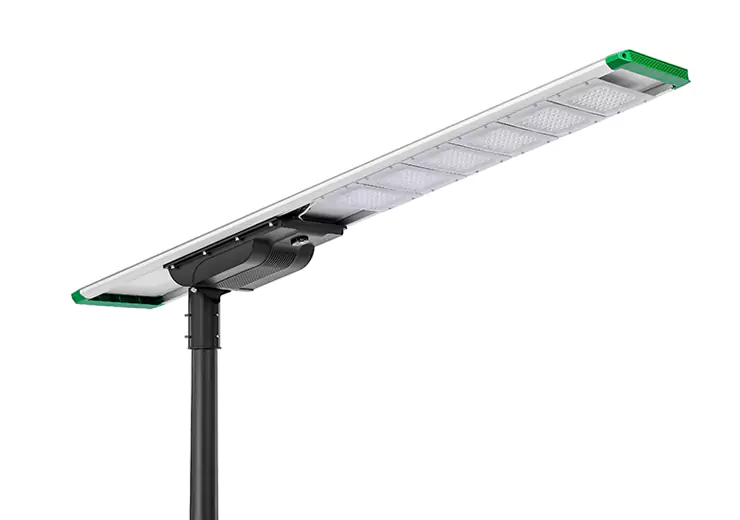

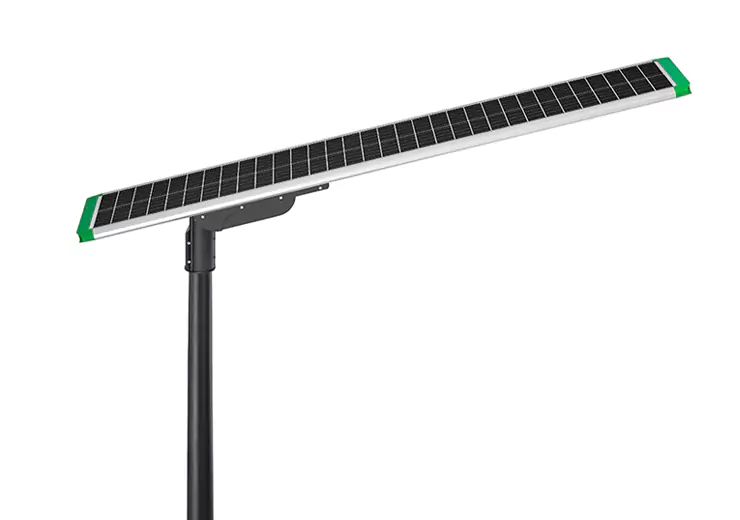

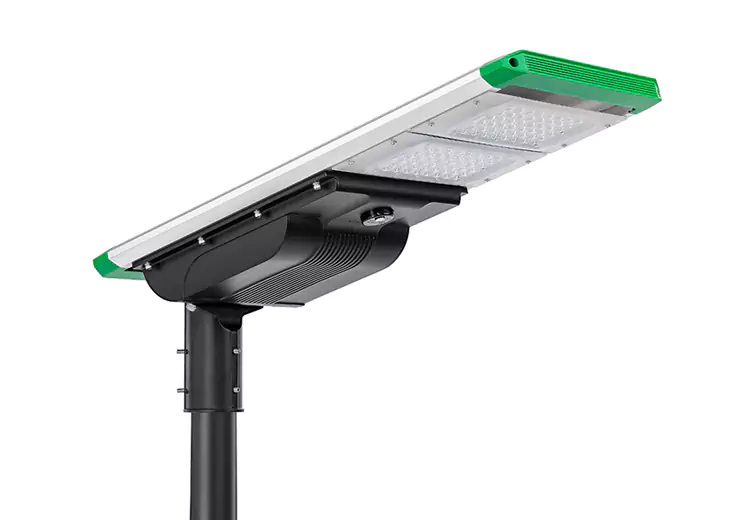

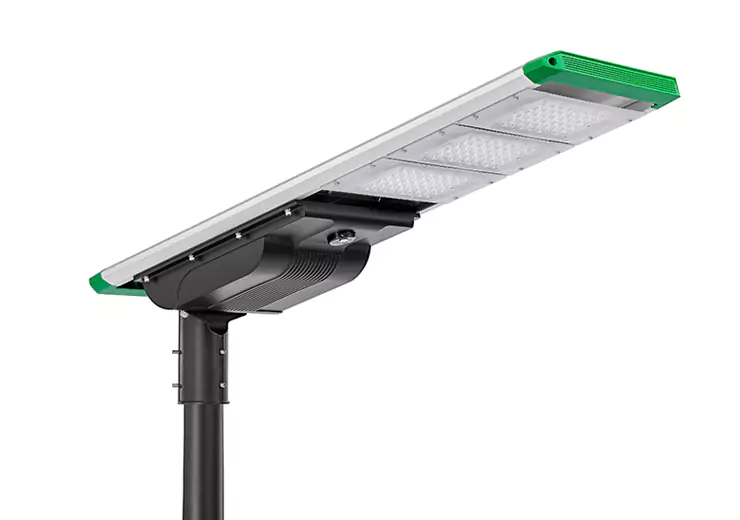

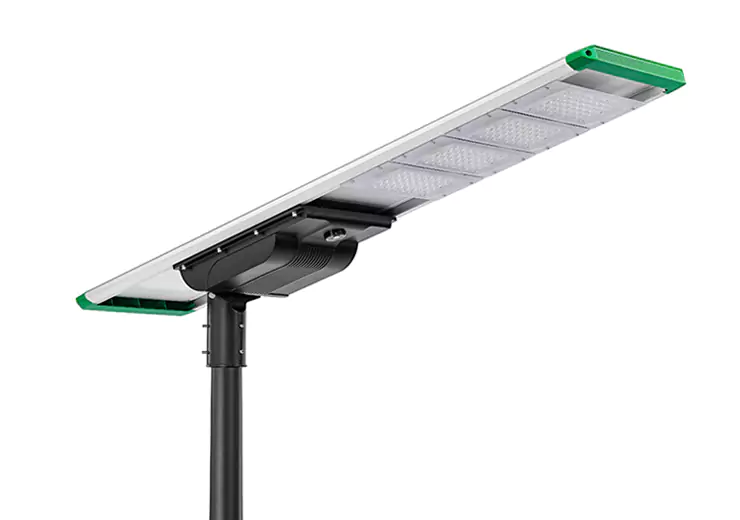

mimiLED 5 Series Solar LED Street Light

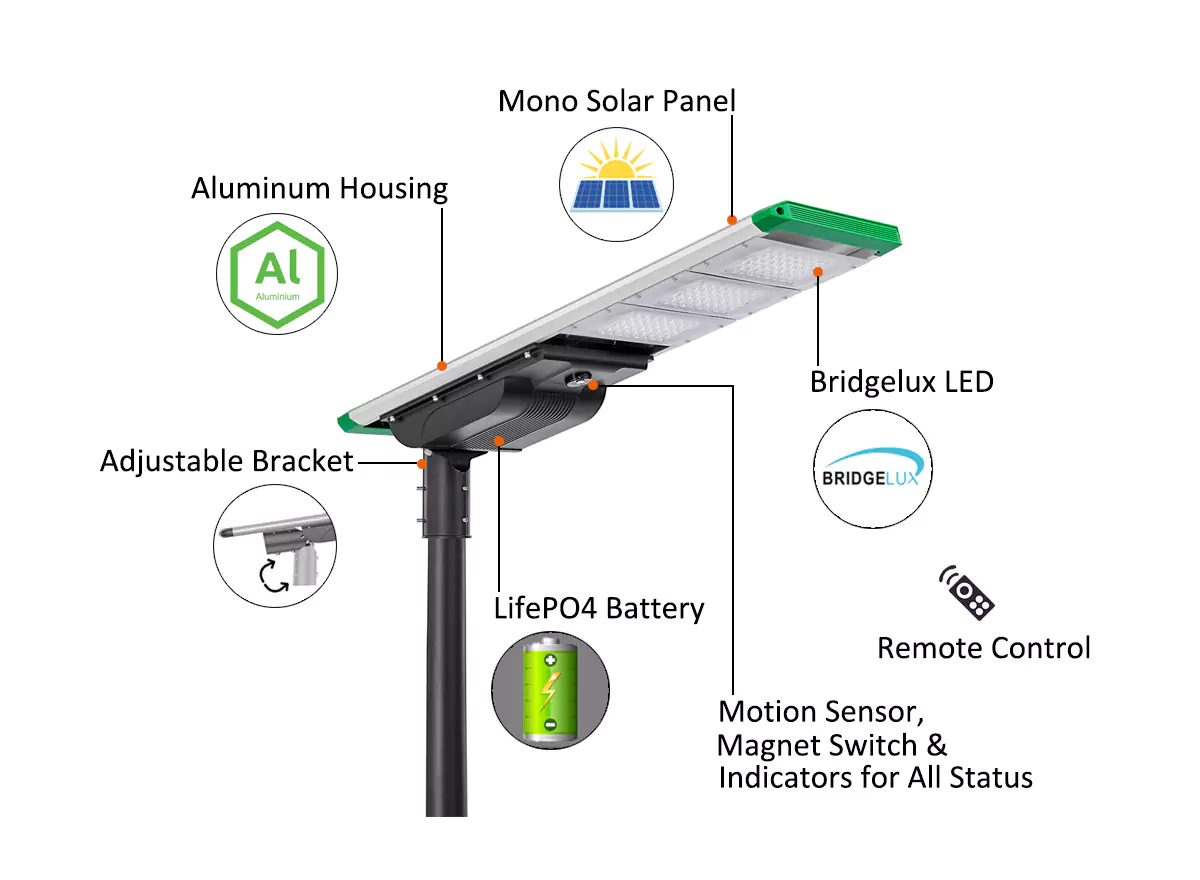

Key Features:

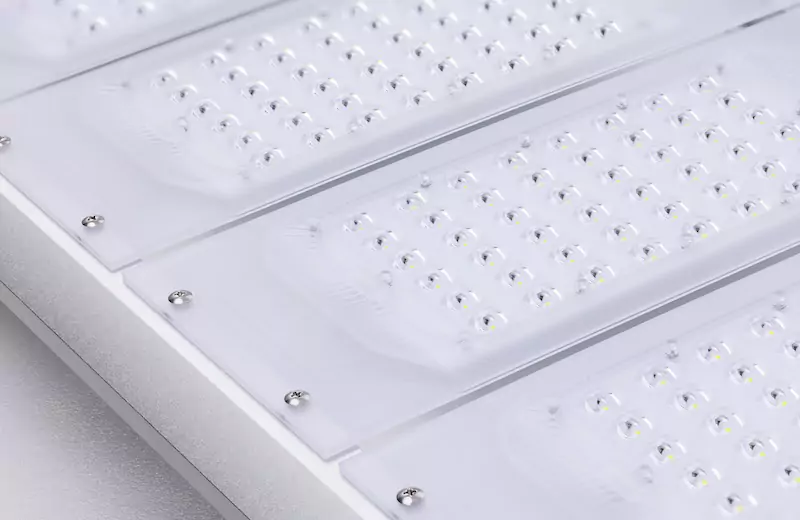

■ High bright Bridgelux LED, more than 170LM/W.
■ Aluminum alloy housing with anodic oxidation processed, antirust and anticorrosion.

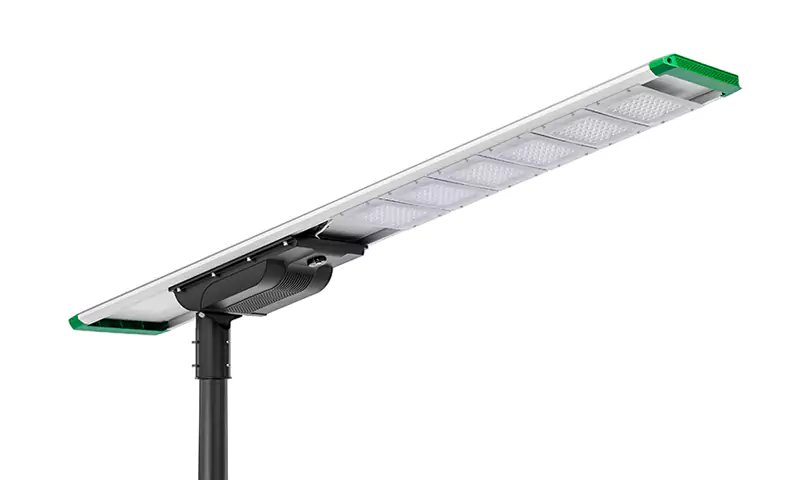

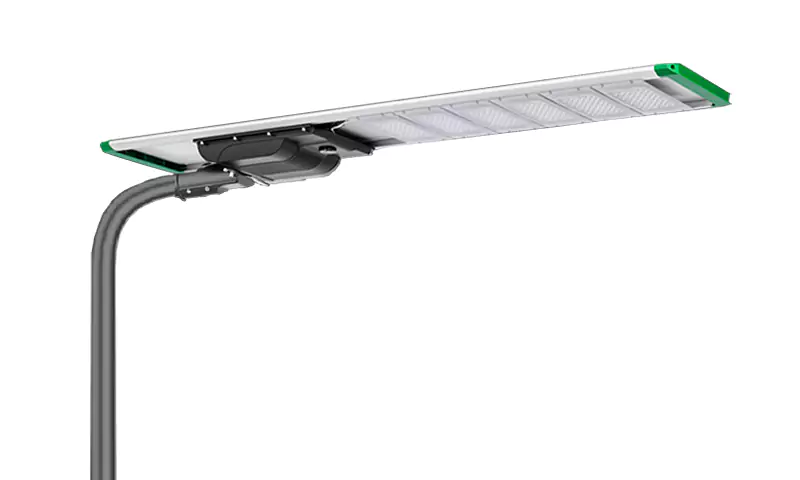

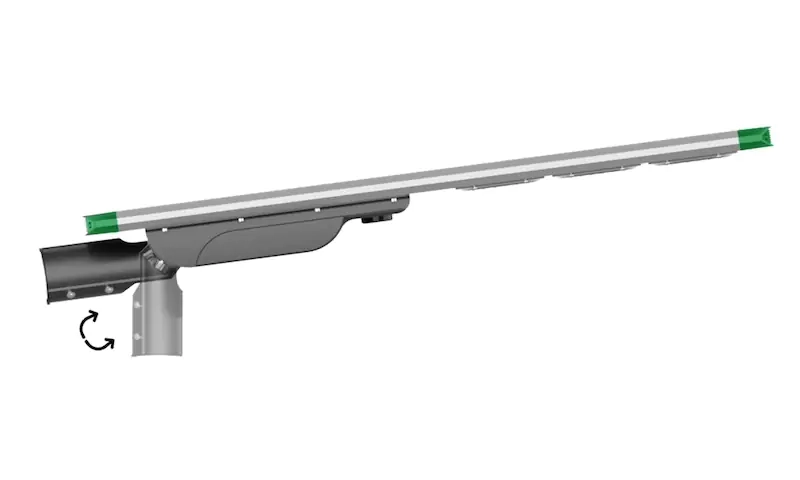

■ Adjustable mounting brackets, suitable for vertical installation and horizontal installation.
■ Intelligent power adjustment system and charging & discharging system, suitable for different weather condition.

Specification

Model No.	ML-AIO40W-BES5	ML-AIO50W-BES5	ML-AIO60W-BES5	ML-AIO80W-BES5	ML-AIO100W-BES5	ML-AIO120W-BES5
Power	40W	50W	60W	80W	100W	120W
MONO Solar Panel	18V65W	18V70W	18V80W	18V100W	18V130W	18V140W
LED Chip Brand	Bridgelux	Bridgelux	Bridgelux	Bridgelux	Bridgelux	Bridgelux
Luminous Efficiency	>170LM/W	>170LM/W	>170LM/W	>170LM/W	>170LM/W	>170LM/W
Initial Flux	>6, 800lm	>8, 500lm	>10, 200lm	>13, 600lm	>17, 000lm	>20, 400lm
LED Chip Life Time	100, 000Hours	100, 000Hours	100, 000Hours	100, 000Hours	100, 000Hours	100, 000Hours
Beam Angle	140*70°	140*70°	140*70°	140*70°	140*70°	140*70°
LifePO4 Battery	12.8V 30AH	12.8V 45AH	12.8V 45AH	12.8V 60AH	12.8V 60AH	12.8V 75AH
Charge Time	6Hours	6Hours	6Hours	6Hours	6Hours	6Hours
Working Temperature	-25°C~+65°C	-25°C~+65°C	-25°C~+65°C	-25°C~+65°C	-25°C~+65°C	-25°C~+65°C
Colour Temperature	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K	2700-6500K
Mounting Height	4-7m	5-7m	5-8m	6-9m	7-10m	9-10m
Space Between Light	13-23m	21-24m	17-27m	20-30m	23-34m	31-34m
Remote Control	Yes	Yes	Yes	Yes	Yes	Yes
Sensor	Daylight Sensor + Motion Sensor
Lighting Mode	4 Lighting modes available to be set by remote control, and can be customized.
IP Rating	IP65	IP65	IP65	IP65	IP65	IP65
Installation Pole	Φ70-76mm	Φ70-76mm	Φ70-76mm	Φ70-76mm	Φ70-76mm	Φ70-76mm
Rainy/Cloudy Days	7 Days	7 Days	7 Days	7 Days	7 Days	7 Days

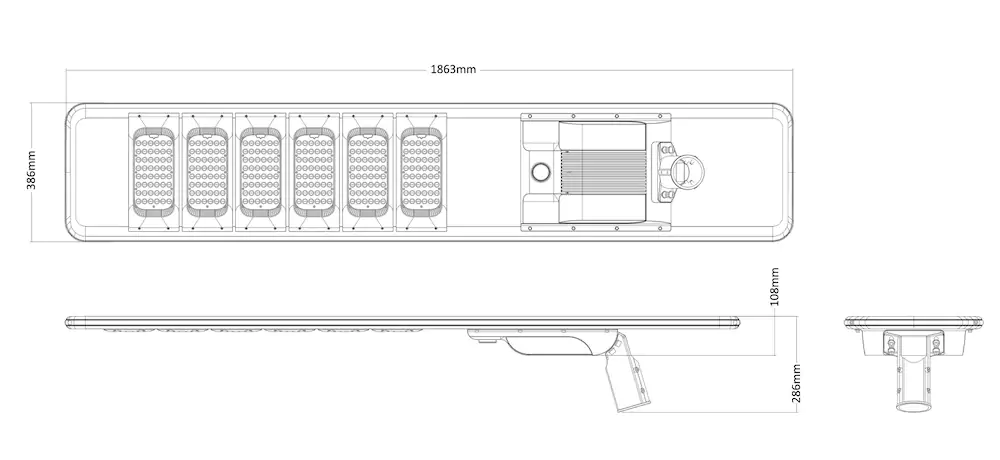

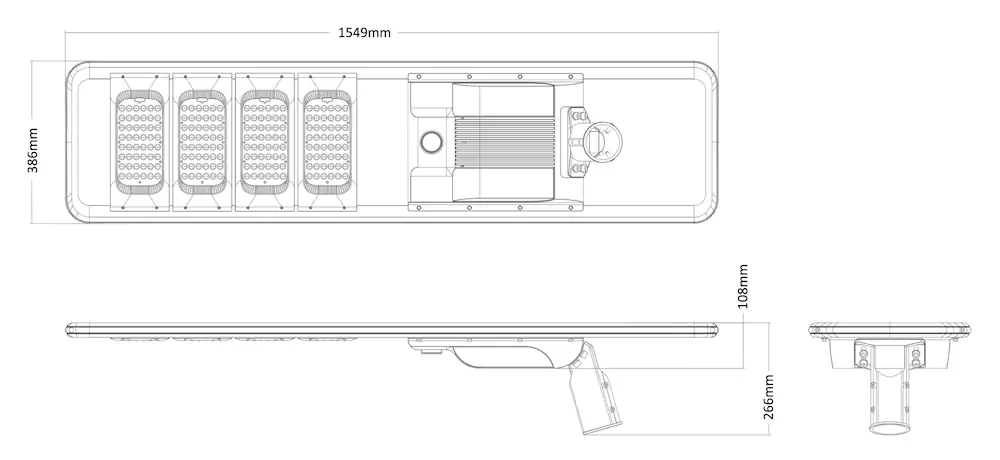

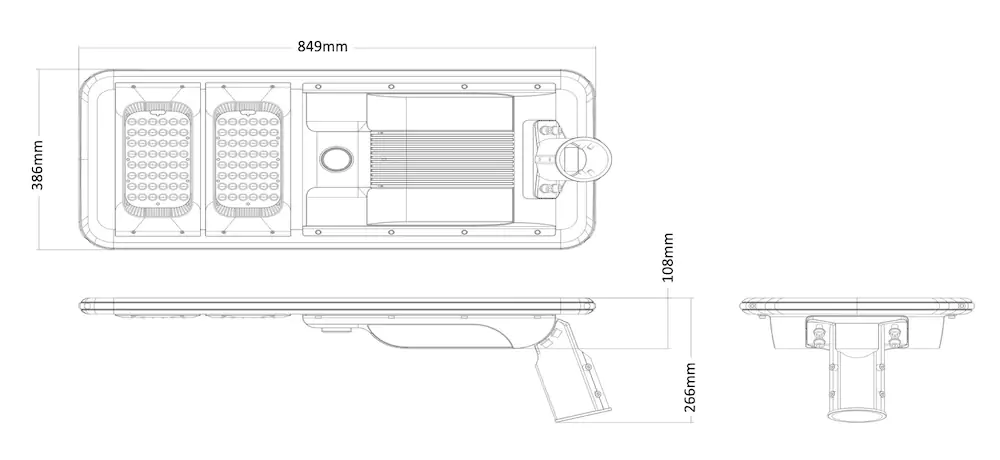

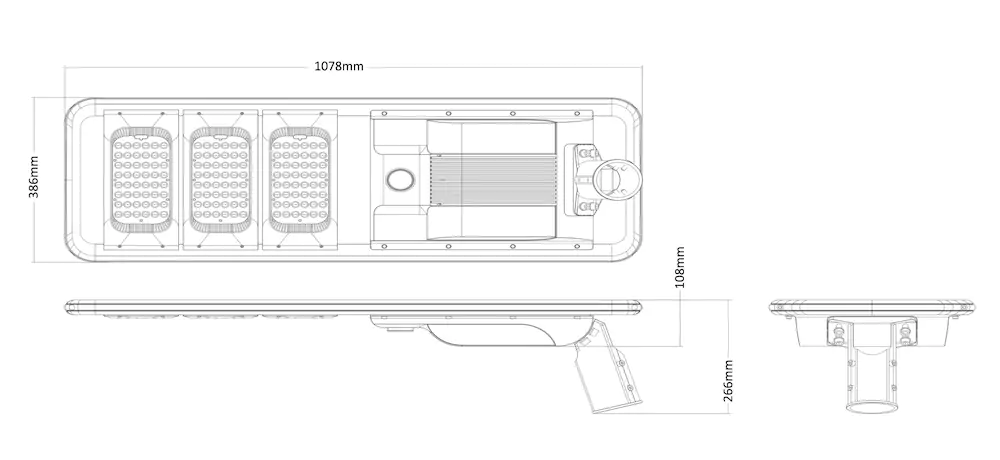

Fixture Dimension	849386108mm	1078386108mm	1078386108mm	1549386108mm	1863386108mm	1863386108mm
Lamp Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
